Description

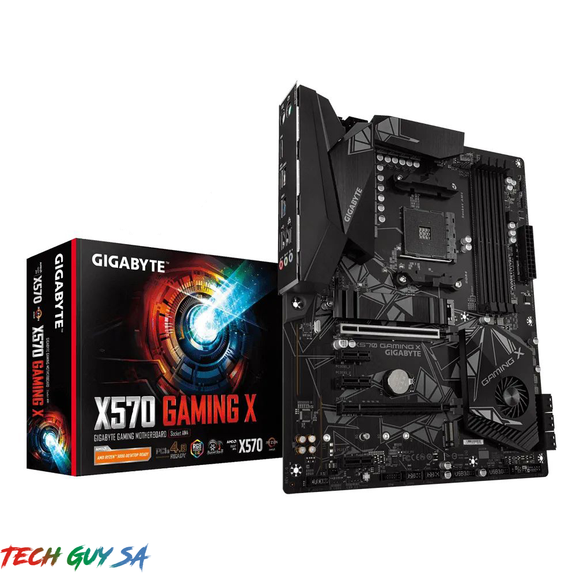

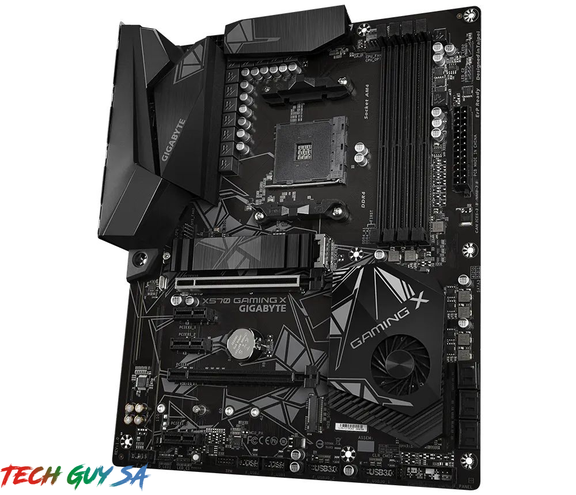

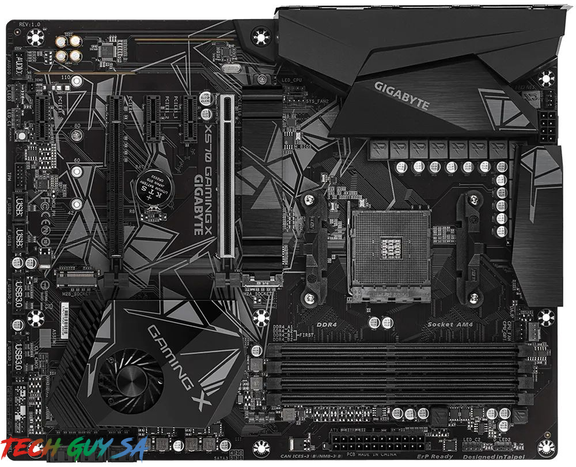

AMD X570 GAMING Motherboard with 10+2 Phases Digital VRM, Advanced Thermal Design with Enlarge Heatsink, Dual PCIe 4.0 M.2, M.2 Thermal Guard, GIGABYTE Gaming GbE LAN with Bandwidth Management, HDMI 2.0, RGB Fusion 2.0
- Supports AMD Ryzen⢠5000 Series/ 3rd Gen Ryzenā¢/ 2nd Gen Ryzenā¢/ 3nd Gen Ryzen⢠with Radeon⢠Vega Graphics/ 2nd Gen Ryzen⢠with Radeon⢠Vega Graphics/ Ryzen⢠with Radeon⢠Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+2 Phases Digital VRM Solution
- Advanced Thermal Design with Enlarge Heatsink
- Dual Ultra-FastĀ NVMe PCIe 4.0/3.0 x4 M.2 withĀ one Thermal Guard
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GIGABYTE Gaming GbE LAN with Bandwidth Management
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Integrated I/O Shield Armor & HDMI 2.0 support
- Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card
GIGABYTE X570-GamingX – AMD X570 Chipset: Socket AM4, Supports AMD 3rd Gen Ryzenā¢/ 2nd Gen Ryzenā¢/ 2nd Gen Ryzen⢠with Radeon⢠Vega Graphics/ Ryzen⢠with Radeon⢠Vega Graphics Processors |
Memory : 4x Dual Channel DDR4 DIMM Slots (128GB Max / 4000MHz Supported) |
Expansion Slots : 1x PCI-Express 4.0 (x16 Speed), 1x PCI-Express 3.0 (x16 Speed), 1x PCI-Express 4.0 (4x Speed), 3x PCI-Express 4.0 (x1 Speed) |
Storage and USB : 6x SATA 3 (6 Gb/s), 2x M.2 Connector (Socket 3, M Key, 1x PCIe 4.0 only), Supports RAID 0,1,10, 8x USB 3.2 Ports (4x Back, 4x Cable), 6x USB 2.0 Ports (2x Back,Ā 4x Cable) |
Misc. : 5.1 Channel High Definition Audio, 1x Realtek GBE Lan (10 / 100 / 1000) |
Rear IO Panel Display Ports Available: 1x HDMI Ports |
Additional information
Weight | 2 kg |
---|---|
Dimensions | 28.2 × 27.2 × 7.1 cm |
