Description

KEY FEATURE

Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution

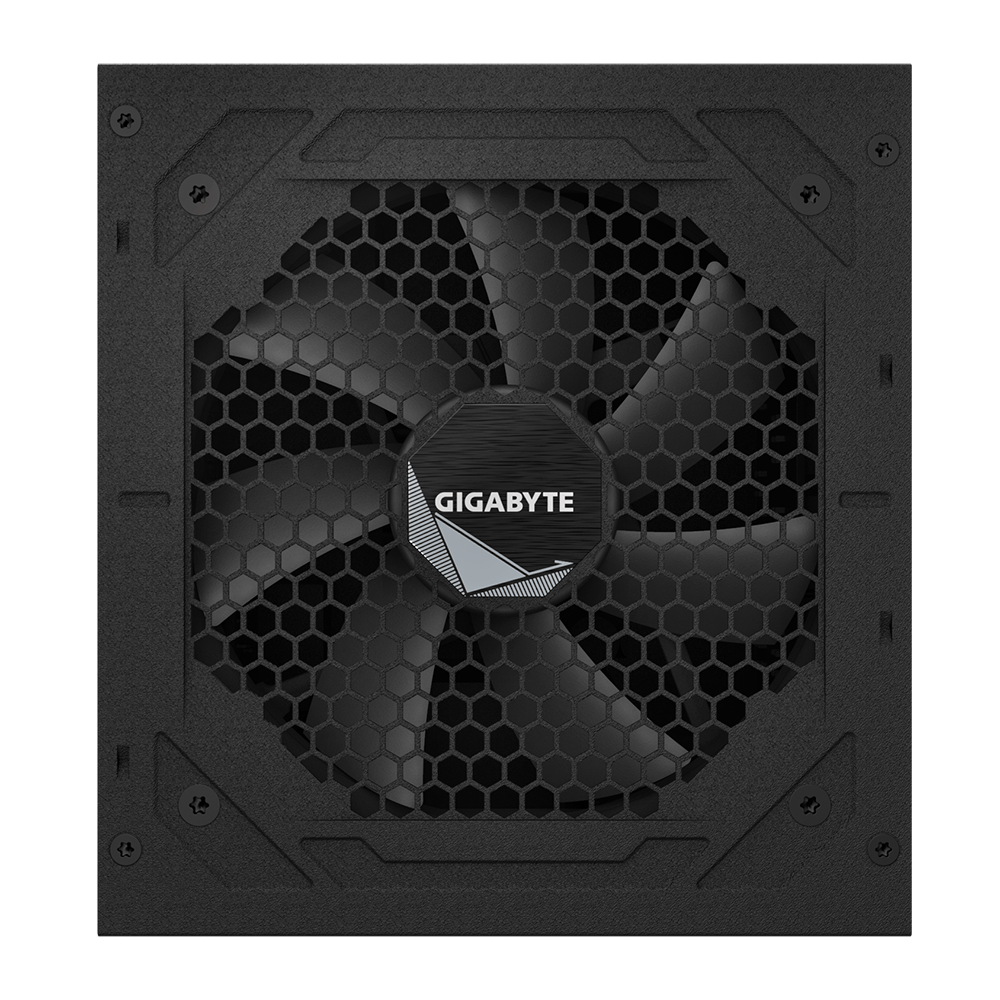

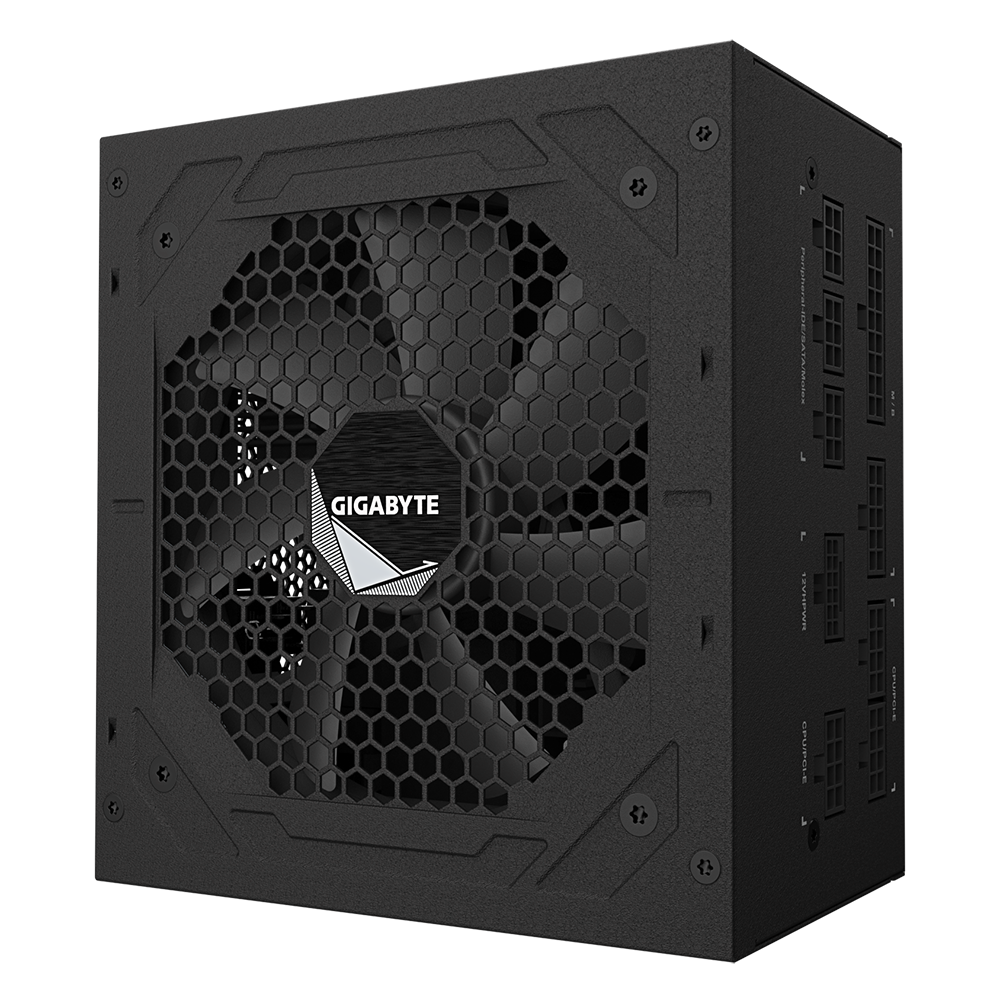

- 120mm smart hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics card

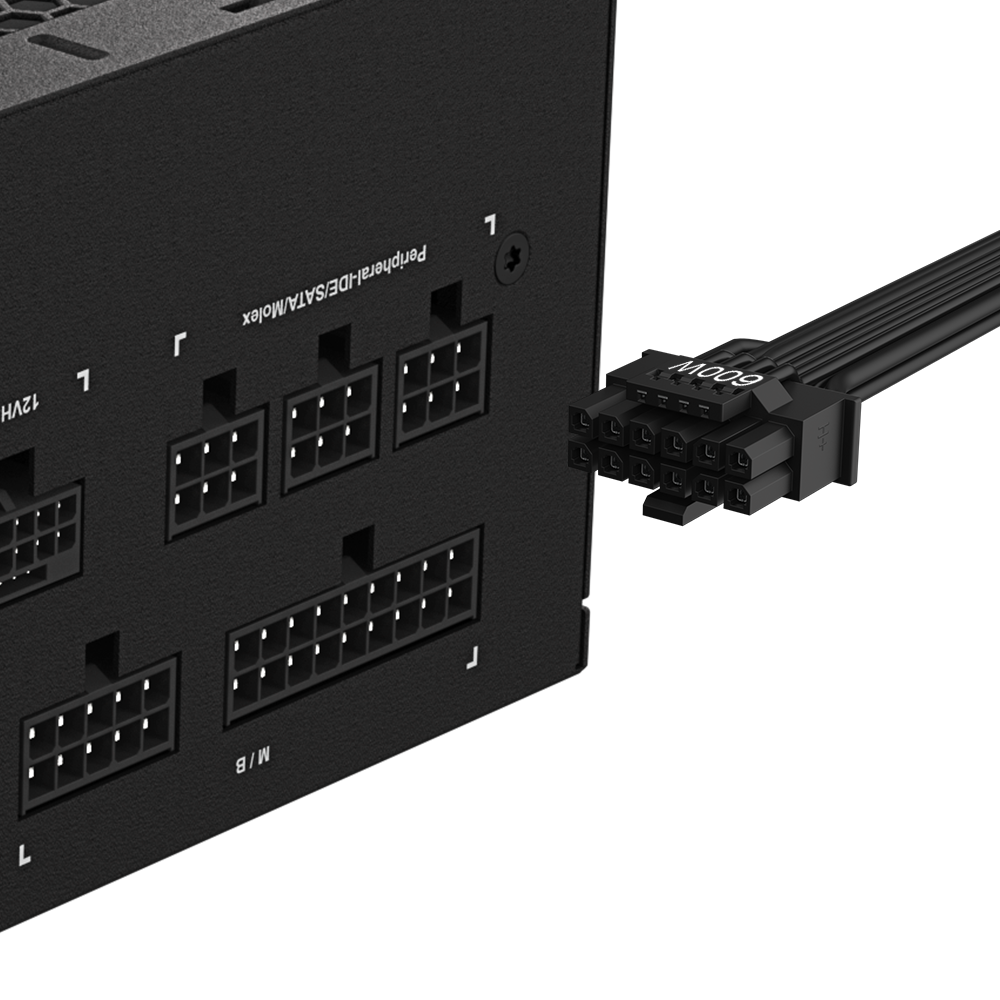

High-quality native 16-pin cable supports 600W output
80 PLUS Gold certified

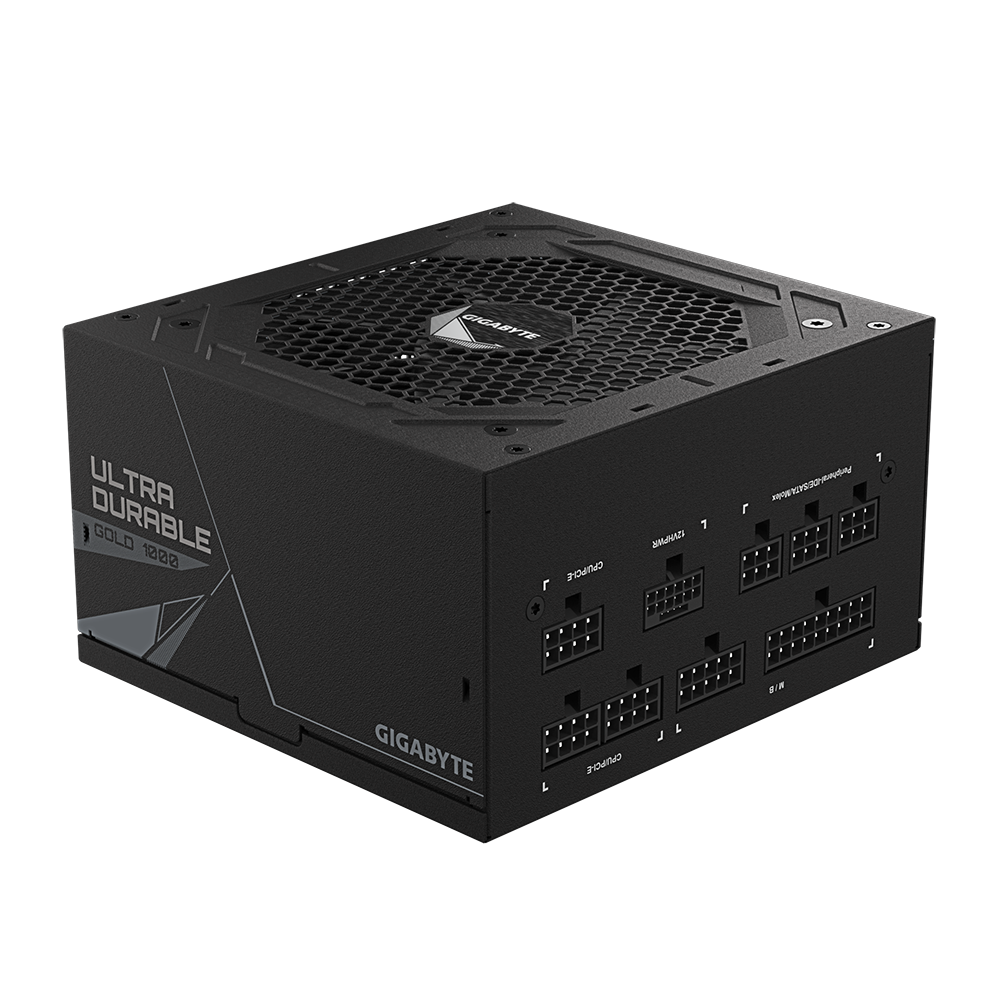

Fully modular design
Compact design
10 years warranty (Adjusted according to different regions)

Model

GP-UD1000GM PG5
Type

Intel Form Factor ATX 12V
PFC

Active PFC (>0.9 typical)
Input Voltage

100-240 Vac (full range)
Input Current

15-6.5A
Input Frequency

60-50 Hz
Output Capacity

1000W
Dimension

150 x 140 x 86 mm
Fan Type

120mm Hydraulic Bearing(HYB)fan
80 PLUS

Gold
Efficiency

90% at typical load
MTBF

>100,000 hours
Protection

OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal

100-150ms
Hold Up Time

>16ms
Cable Type

Flat, All black
Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1

Additional information

Brand	Gigabyte
