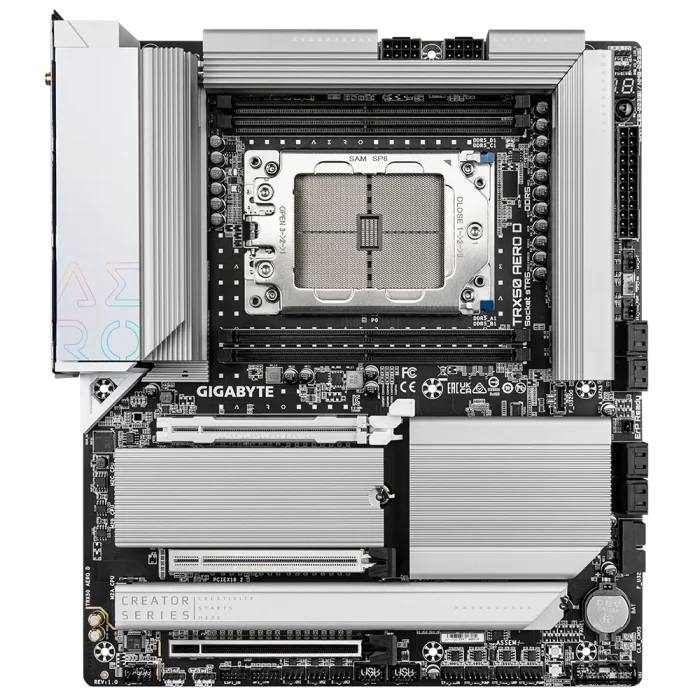

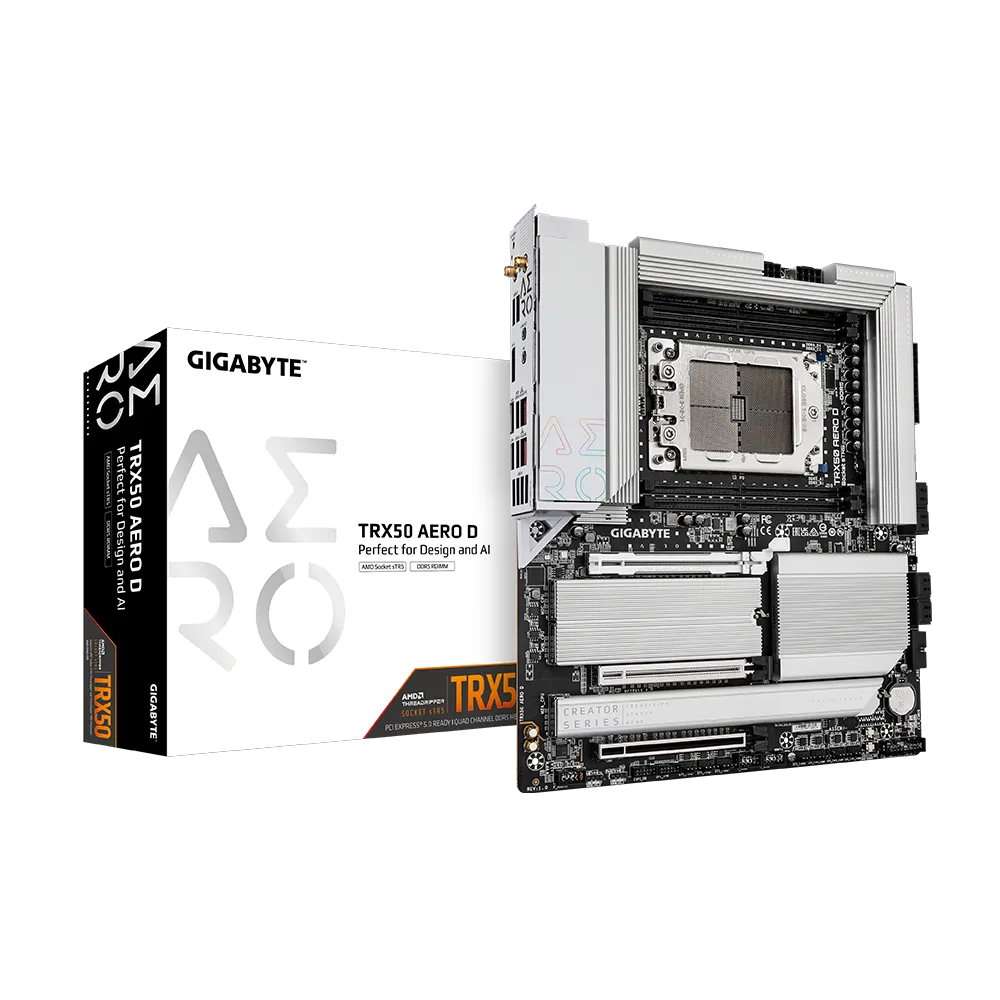

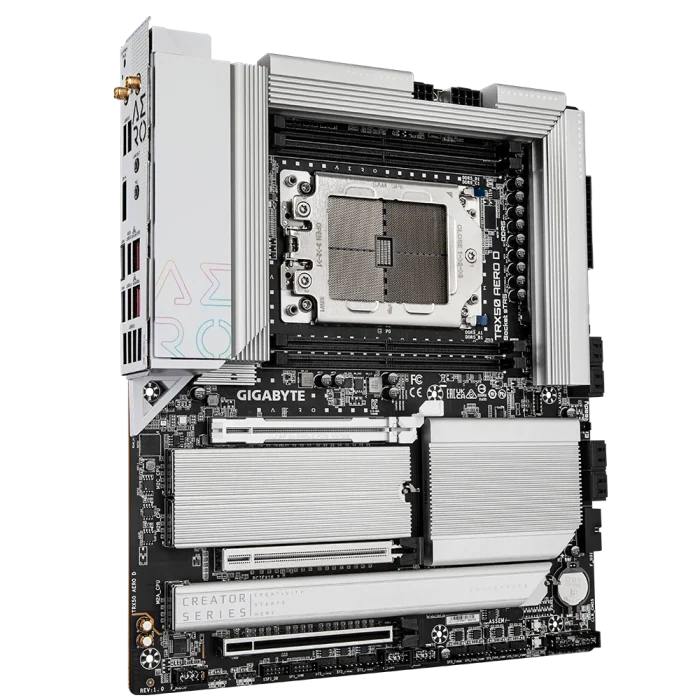

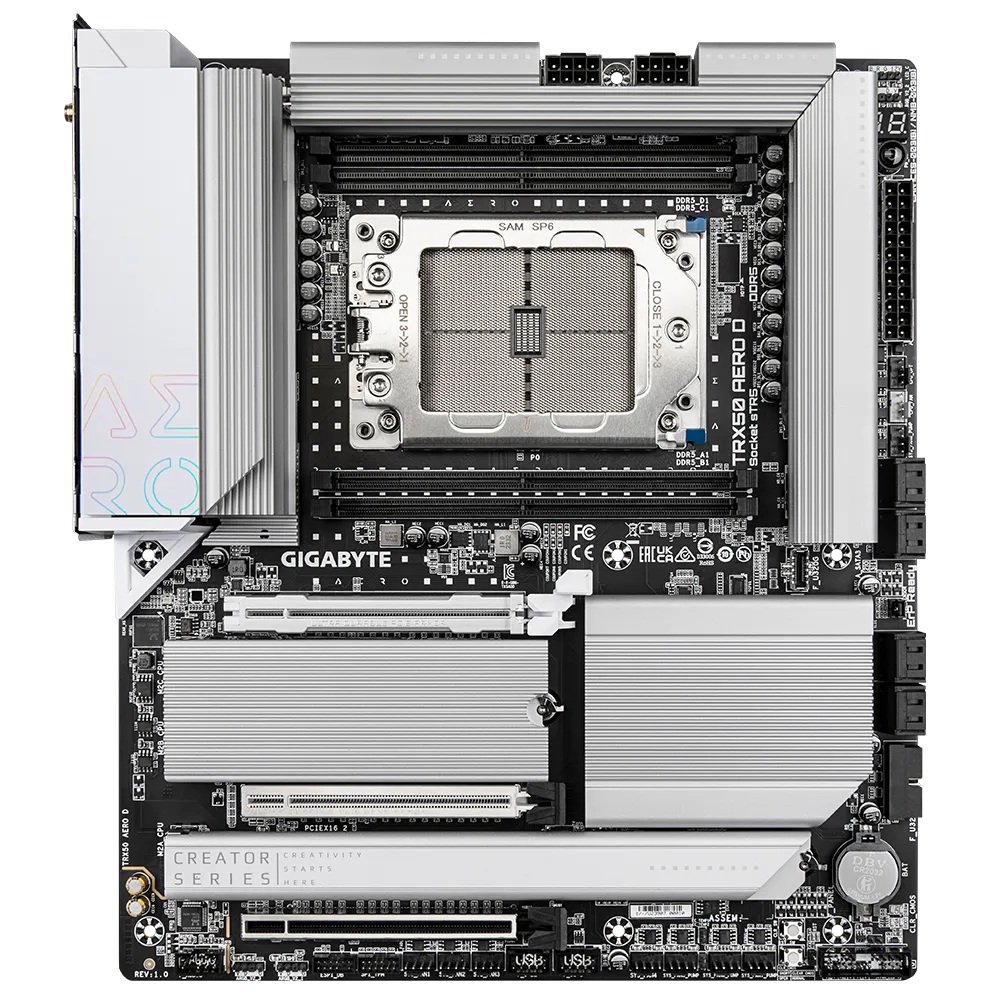

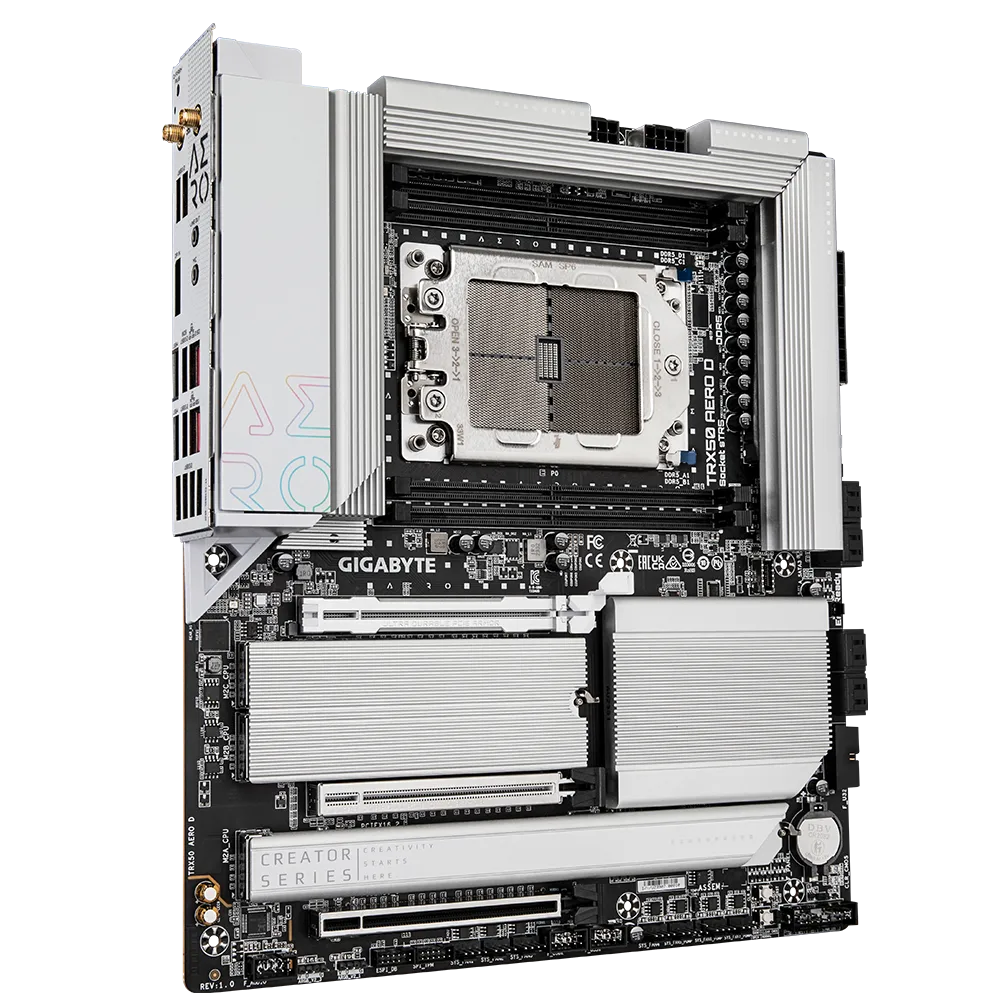

Gigabyte TRX50 AERO D – AMD sTR5 Motherboard
R14,200 Incl VAT
Pay R13,774 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Key Features
- Supports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors
- Breakthrough Performance：16+8+4 Phases Digital VRM Solution
- Quad Channel DDR5：4*SMD R-DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Reinforced Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
- Ultimate Scalability: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
- Next-gen Connectivity: Dual USB4® Type-C ports
- Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7
- PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：M.2 slots with quick release design
- Hi-Fi Audio with DTS:X® Ultra：ALC4080+ALC897 CODEC
- UC BIOS：User-Centred intuitive UX with Quick Access function
- CPUAMD Socket sTR5, support for:
AMD Ryzen™ Threadripper™ PRO 9000-WX Series Processors/ AMD Ryzen™ Threadripper™ 9000 Series Processors/ AMD Ryzen™ Threadripper™ PRO 7000-WX Series Processors/ AMD Ryzen™ Threadripper™ 7000 Series Processors
(Go to GIGABYTE’s website for the latest CPU support list.) - ChipsetAMD TRX50
- MemorySupport for DDR5 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7200(O.C.) / 7000(O.C) / 6800(O.C.) / 6400(O.C.) / 6000(O.C.) / 5600(O.C.) / 5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS)
4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory
Quad channel memory architecture
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) - AudioRealtek® ALC4080 CODEC (rear panel audio)
– Support for DTS:X® Ultra
– High Definition Audio
– 2-channel
Realtek® ALC897 CODEC (front panel audio) - LANMarvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN) - Wireless Communication moduleQualcomm® Wi-Fi 7 QCNCM865
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)Note:
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
Wi-Fi 7 channels on 6GHz band availability depends on individual country’s regulations. - Expansion Slots2 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2), integrated in the CPU:
– AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX/9000/7000 Series Processors support PCIe 5.0 x16 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.)1 x PCI Express x16 slot (PCIEX16_3), integrated in the CPU:
– AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX/9000/7000 Series Processors support PCIe 4.0 x16 mode - Storage InterfaceCPU:
– 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
– 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU)
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)CPU+Chipset:
– 8 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices - USBCPU:
– 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panelChipset+Intel® JHL8540 USB4® controller:
– 2 x USB4® USB Type-C® ports on the back panelChipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
– 2 x USB 3.2 Gen 1 ports available through the internal USB headerCPU+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports on the back panelChipset+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports available through the internal USB headers - Internal I/O Connectors1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Clear CMOS button
1 x reset button
1 x reset jumper
2 x temperature sensor headers

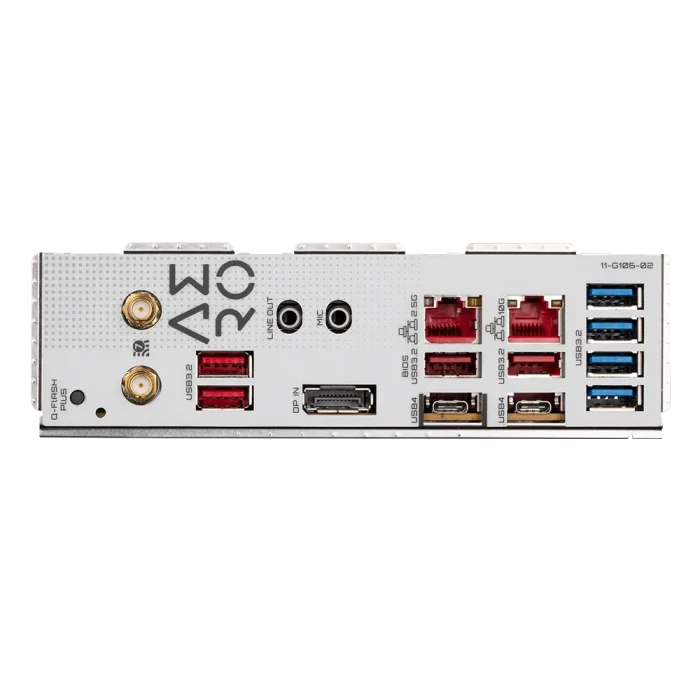

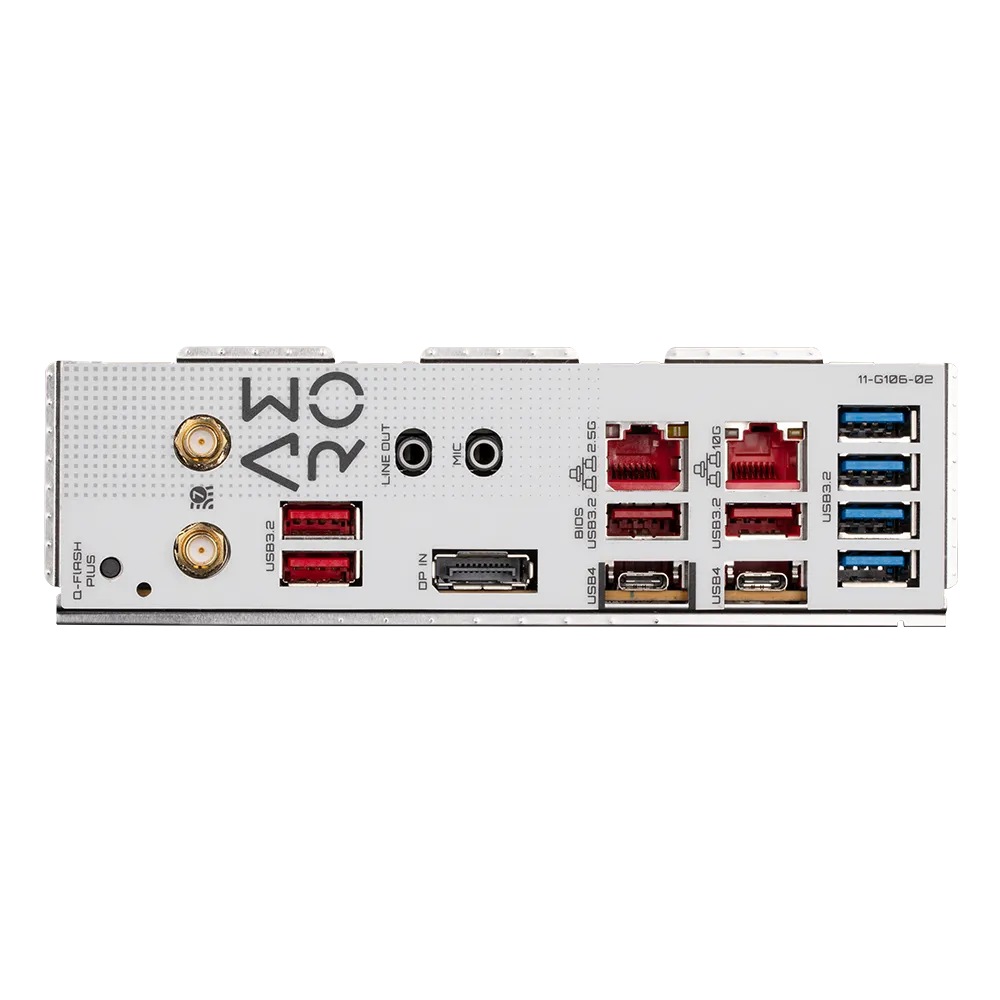

1 x Clear CMOS jumper - Back Panel Connectors1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort In port
1 x USB4® USB Type-C® port (DisplayPort)
1 x USB4® USB Type-C® port
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x RJ-45 ports
2 x audio jacks - I/O ControlleriTE® I/O Controller Chip
- H/W MonitoringVoltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection
- BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 - Unique FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash
Support for Q-Flash Plus - Bundled SoftwareNorton® Internet Security (OEM version)
LAN bandwidth management software - Operating SystemSupport for Windows 11 64-bit
- Form FactorE-ATX Form Factor; 30.5cm x 26.4cm
| Weight | 3.04 kg |
|---|---|
| Brand | Gigabyte |
