Features
Powered by AMD Radeon™ RX 5600 XT
Integrated with 6GB GDDR6 192-bit memory interface

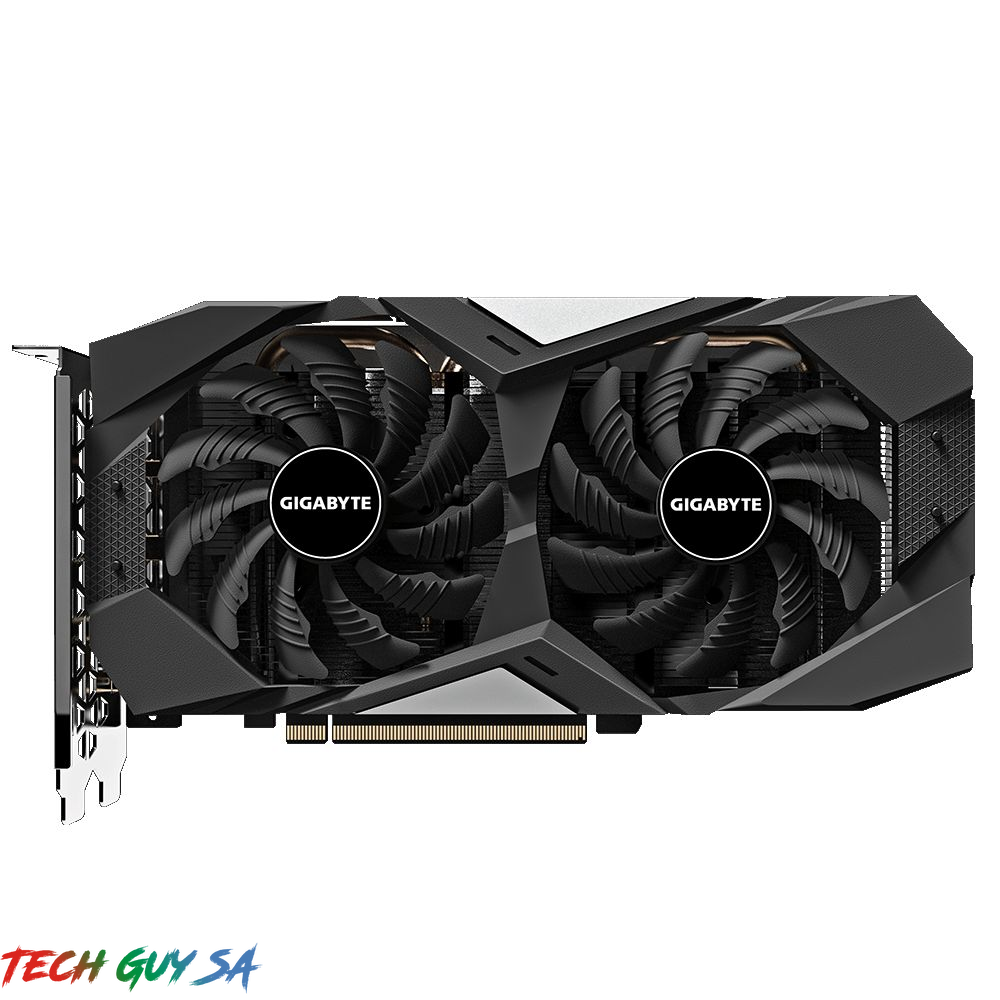

WINDFORCE 2X Cooling System with alternate spinning fans

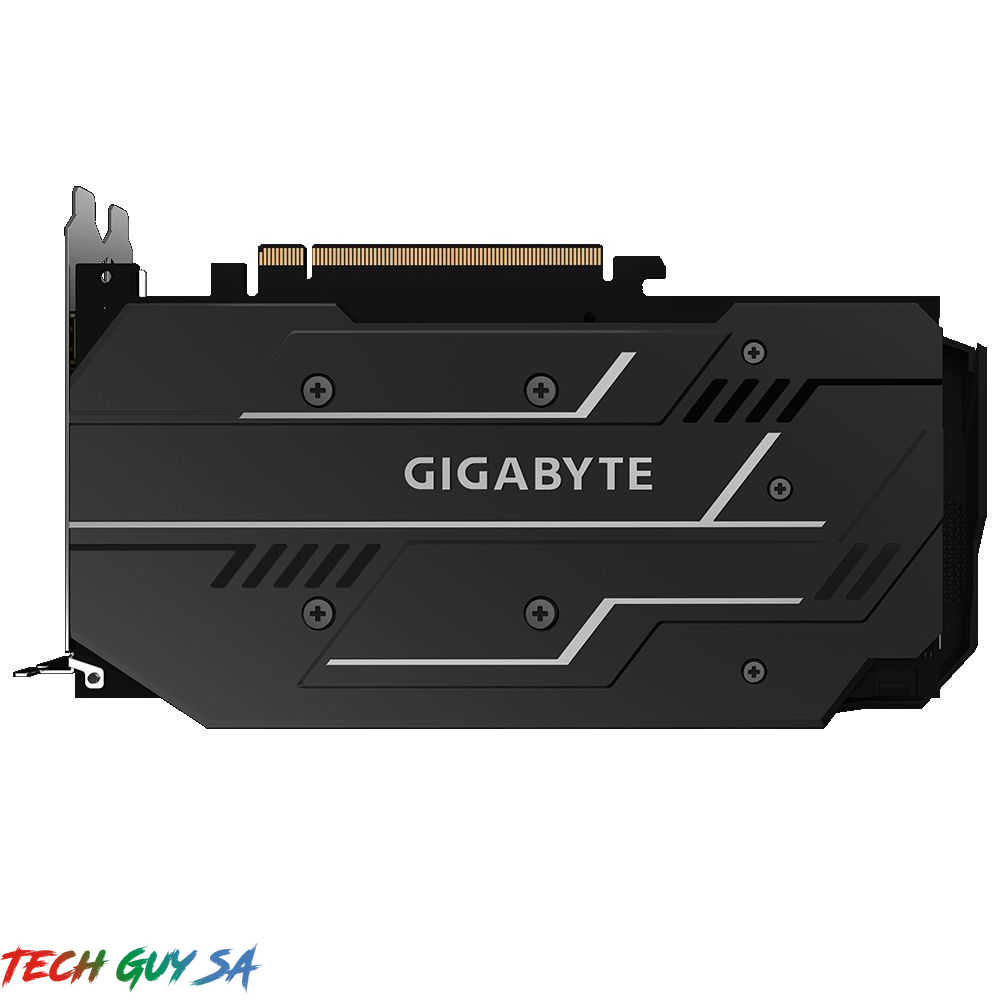

Protection Back Plate
PCI-Express 4.0 Support
Core Clock
Boost Clock : up to 1620 MHz
Game Clock* : 1460 MHz
GV-R56XTWF2OC-6GD | |
Graphics Processing | Radeon™ RX 5600 XT |
Core Clock | Boost Clock : up to 1620 MHz |
Game Clock* : 1460 MHz | |
Stream Processors | 2304 |
Process Technology | 7 nm |
Memory Clock | 12000 MHz** |
Memory Size | 6 GB |
Memory Type | GDDR6 |
Memory Bus | 192 bit |
Memory Bandwidth (GB/sec) | 288 GB/s |
Card Bus | PCI-E 4.0 x 16 |
Digital max resolution | 7680×4320@60Hz |
Multi-view | 4 |
Card size | L=228 W=118 H=40.8 mm |
PCB Form | ATX |
DirectX | 12 |
OpenGL | 4.6 |
Recommended PSU | 450W |
Power Connectors | 8 Pin*1 |

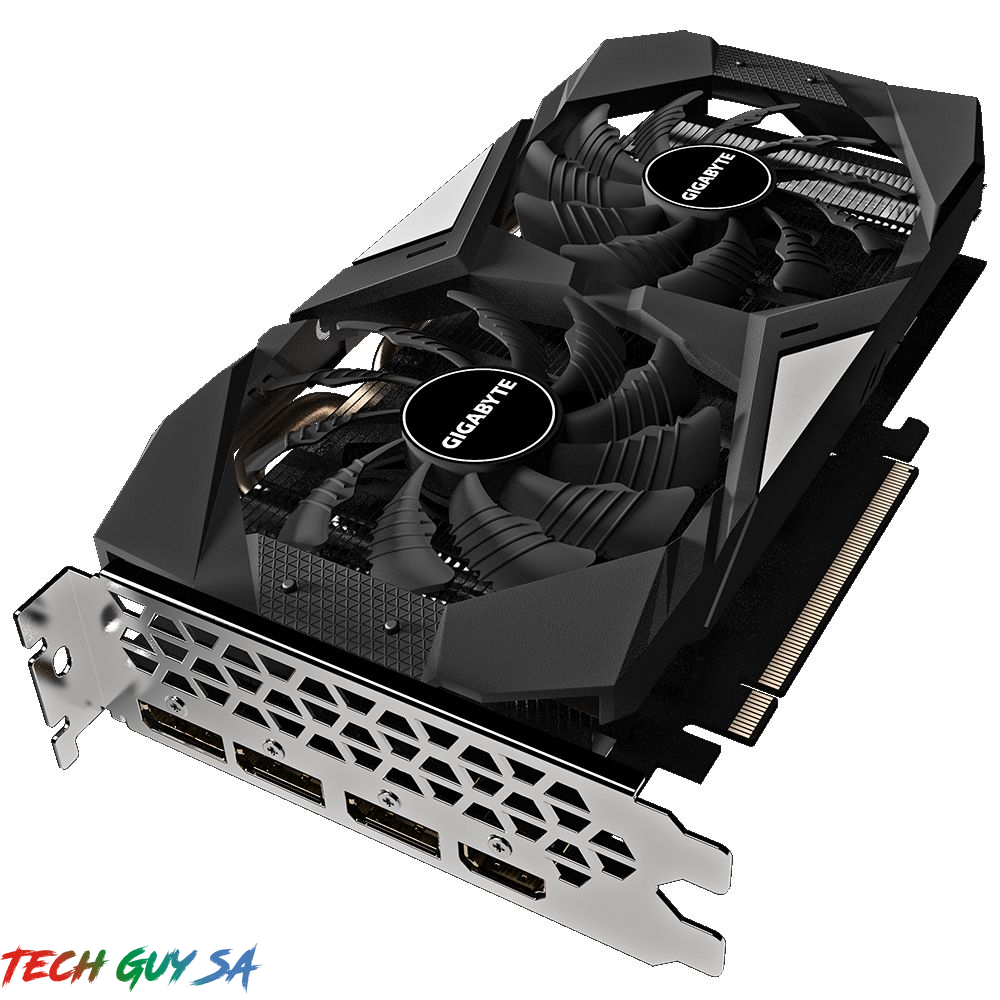

Output | DisplayPort 1.4 *3 |
HDMI 2.0b *1 | |
Accessories | Quick Guide |
Note | |
*Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. | |
**One-click flash for 14000 MHz memory clock step: | |
1. Go to the “Support” page in the upper right, then choose the BIOS category. | |
2. Download the “FA0” BIOS and decompress the zip file. | |
3. One-click the “GVFLASH.exe”, and it will start to flash BIOS to 14000 MHz. | |
4. Restart your PC. |
