Gigabyte B660M GAMING DDR4 - LGA 1700 - End of Life

Gigabyte B660M GAMING DDR4 – LGA 1700 – End of Life

SKU / Product is End of Life

Pay R0 When paying via EFT at checkout.

0 People watching this product now!

Intel^® B660 GAMING Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2, 2.5GbE LAN, Rear USB 3.2 Gen 1 Type-C^®, RGB FUSION 2.0, Q-Flash Plus

Supports 12th Gen Intel^® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+2+1 Phases Hybrid Digital VRM with MOS Heatsink
Fast 2.5 GbE GAMING LAN with Bandwidth Management
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2
Rear SuperSpeed USB 3.2 Gen 1 TYPE-C^® for Fast and Versatile Connections
High Quality Audio Capacitors and Audio Noise Guard
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Link to Gigabyte

CPU
1. LGA1700 socket: Support for 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
2. L3 cache varies with CPU
* Please refer to “CPU Support List” for more information.
Chipset
1. Intel^® B660 Express Chipset
Memory
1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.
3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
  * Support for DisplayPort 1.2 version and HDCP 2.3
Support for up to 3 displays at the same time
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16
  (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
2. 1 x PCI Express x1 slot
  (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Storage Interface
CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 4 x SATA 6Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

Intel^® Optane™ Memory Ready
* System acceleration with Intel^® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB
Chipset:
1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 1 support
2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
3. 2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 2 x M.2 Socket 3 connectors
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
14. 1 x serial port header
15. 1 x S/PDIF Out header
16. 1 x Q-Flash Plus button
17. 1 x reset button
18. 1 x reset jumper
19. 1 x Clear CMOS jumper
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

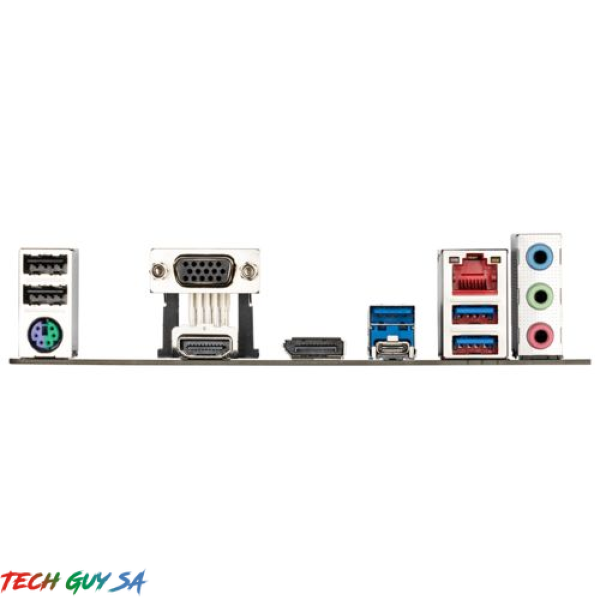

Back Panel Connectors
1. 2 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 1 x D-Sub port
4. 1 x HDMI port
5. 1 x DisplayPort
6. 3 x USB 3.2 Gen 1 ports
7. 1 x USB Type-C^® port, with USB 3.2 Gen 1 support
8. 1 x RJ-45 port
9. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. Realtek^® Gaming LAN Bandwidth Control Utility
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 24.4cm x 22.5cm

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

Brand

Gigabyte

Socket

LGA 1700

CPU Support

12ᵗʰ Generation

13th Generation

14th Generation

Chipset Manufacture

Intel

Chipset Model

B660

Form Factor

mATX

Memory Slots Available

2 Slots

On-Board WiFi

Windows Compatibility

Windows 10

Windows 11 ( Possibly Requires TPM )

Please note that We use either following Couriers Courierit / Courier Guy / MDS Collivery / DPD Laser / Internet Express / Rhenus / RTT / DCB. via uAfrica / Suppliers

Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 – R1000 T&C’s Apply.

Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.

Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT) Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB).

Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved: Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals

Add to compare

Add to wishlist

SKU: MB-GB660MGD4 Category: End of Life Tags: 12th gen intel, B660, B660M, B660M GAMING DDR4, DDR4 B660, Intel 12th Gen, lga 1700

Description

Additional information

Brand	Gigabyte
Socket	LGA 1700
CPU Support	12ᵗʰ Generation , 13th Generation , 14th Generation
Chipset Manufacture	Intel
Chipset Model	B660
Form Factor	mATX
Memory Slots Available	2 Slots
On-Board WiFi	No
Windows Compatibility	Windows 10 , Windows 11 ( Possibly Requires TPM )
