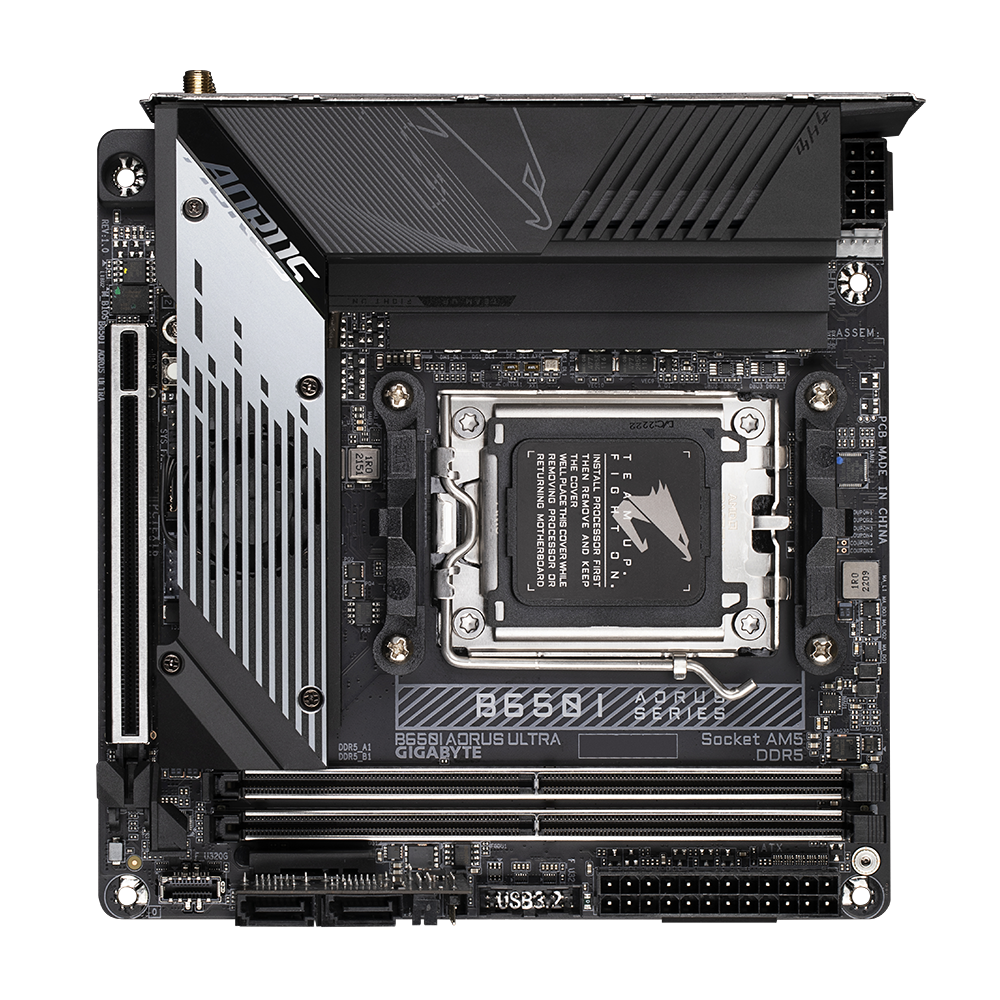

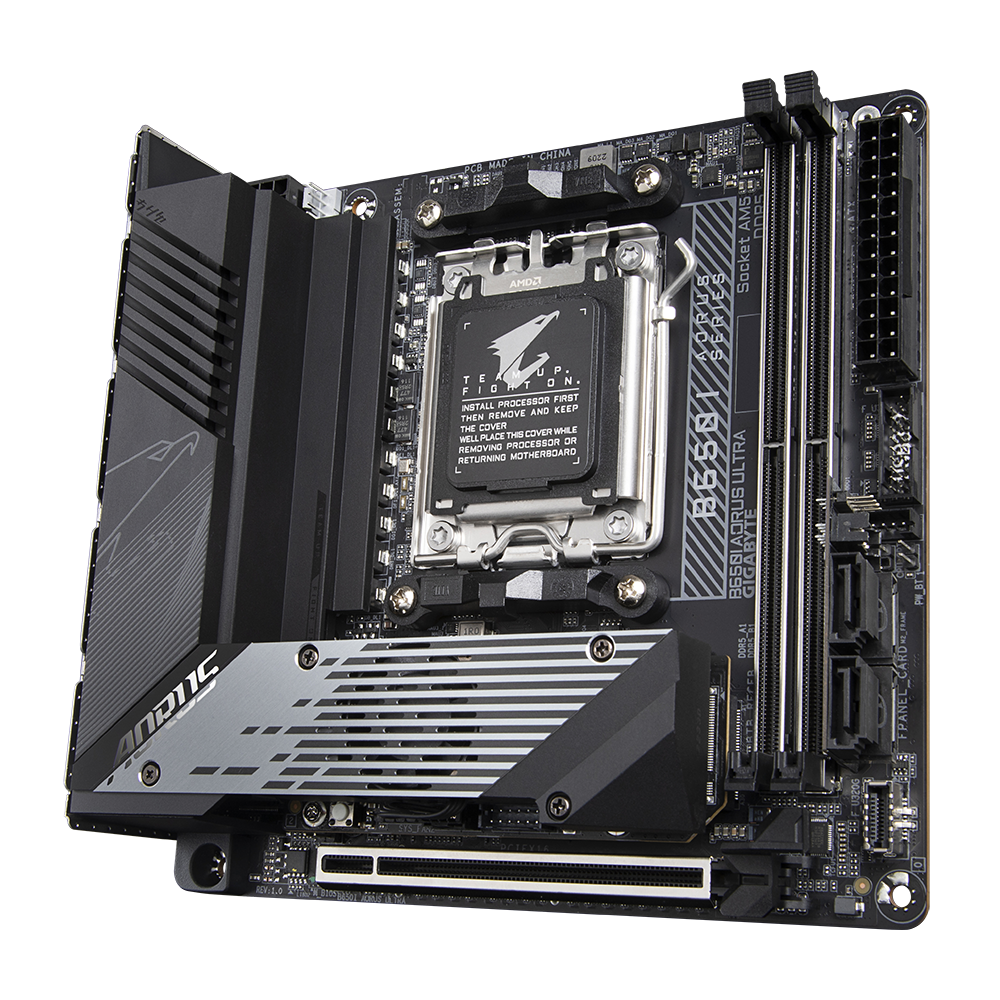

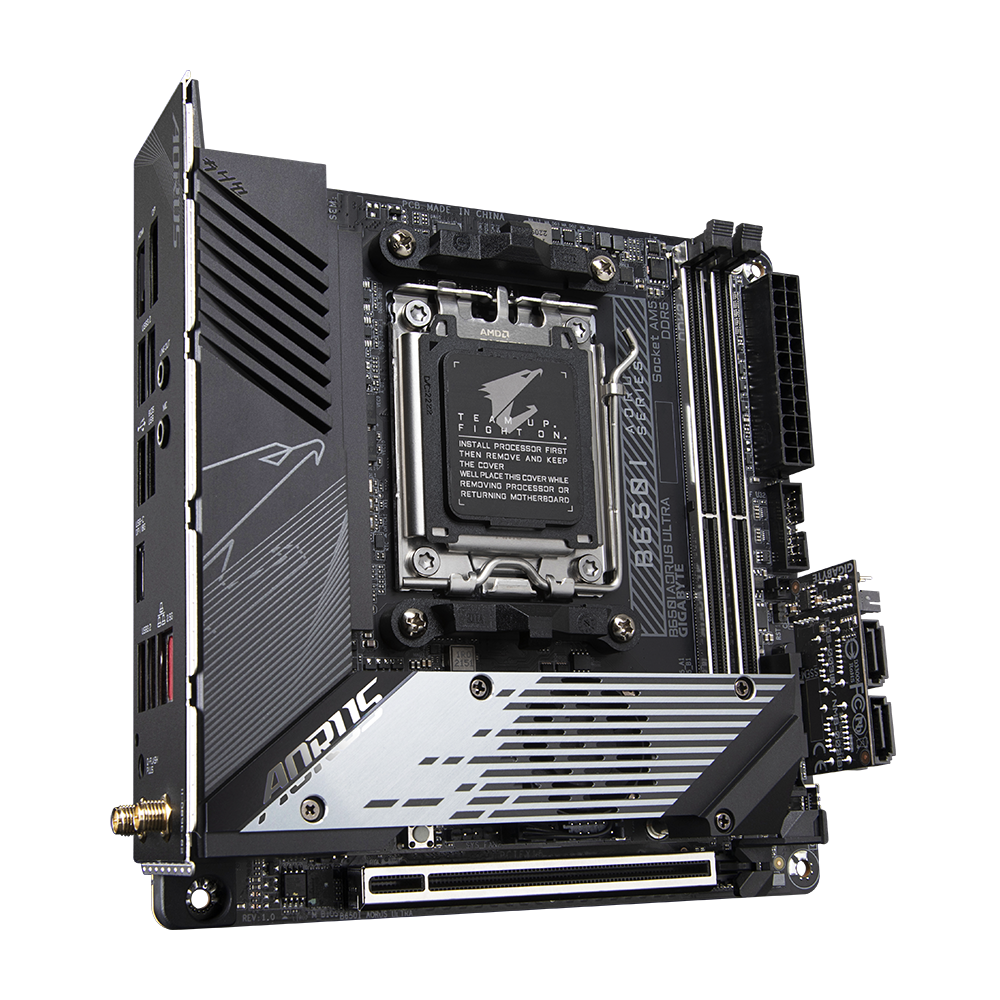

Gigabyte B650I AORUS ULTRA

1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

(Please refer “CPU Support List” for more information.)

1. AMD B650

1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2. 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

Integrated Graphics Processor:

1. 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
   * Support for DisplayPort 1.4 version and HDR.
2. 1 x USB Type-C^® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz
   * Support for DisplayPort 1.4 version and HDR.
3. 1 x HDMI port, supporting a maximum resolution of 7680×4320@60 Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

1. Realtek^® ALC4080 CODEC
2. High Definition Audio
3. 2-channel

1. Intel^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

AMD Wi-Fi 6E RZ616 (MT7922A22M)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

CPU:

1. 1 x M.2 connector on the front of GC-B650I BTB PLUG (Socket 3, M key, type 2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)
   * Actual support may vary by CPU.
2. 1 x M.2 connector on the back of GC-B650I BTB PLUG (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
2. 4 x SATA 6Gb/s connectors on the front of GC-B650I FRONT CARD

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

CPU:

1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2 support
2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU + USB 2.0 Hub:

1. 4 x USB 2.0/1.1 ports available through the F_USB header on the front of GC-B650I BTB PLUG

Chipset:

1. 1 x USB Type-C^® port with USB 3.2 Gen 2×2 support, available through the internal USB header
2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
3. 2 x USB 2.0/1.1 ports on the back panel

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x CPU fan/water cooling pump header
5. 1 x system fan header (SYS_FAN1^{(Note 1)})
6. 1 x addressable LED strip header^{(Note 2)}
7. 1 x RGB LED strip header^{(Note 1)}
8. 3 x M.2 Socket 3 connectors (M2B_CPU^{(Note 2)}/M2A_CPU^{(Note 3)}/M2C_SB^{(Note 4)})
9. 4 x SATA 6Gb/s connectors^{(Note 1)}
10. 1 x front panel header^{(Note 1)}
11. 1 x front panel audio header (routed from the adapter card on the rear panel)
12. 1 x USB Type-C^® header, with USB 3.2 Gen 2×2 support
13. 1 x USB 3.2 Gen 1 header
14. 1 x USB 2.0/1.1 header^{(Note 2)}
15. 1 x reset button^{(Note 2)}
16. 1 x reset jumper
17. 1 x power switch jumper
18. 1 x Clear CMOS jumper

(Note 1) The connector is on the front of GC-B650I FRONT CARD.
(Note 2) The connector is on the front of GC-B650I BTB PLUG.
(Note 3) The connector is on the back of GC-B650I BTB PLUG.
(Note 4) The connector is on the back of the motherboard.

1. 1 x DisplayPort
2. 1 x HDMI port
3. 1 x USB Type-C^® port (DisplayPort), with USB 3.2 Gen 2 support
4. 2 x USB 3.2 Gen 2 Type-A ports (red)
5. 2 x USB 3.2 Gen 1 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 2 x SMA antenna connectors (2T2R)
9. 1 x Q-Flash Plus button
10. 2 x audio jacks

1. iTE^® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.

1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus

1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

1. Mini-ITX Form Factor; 17.0cm x 17.0cm
