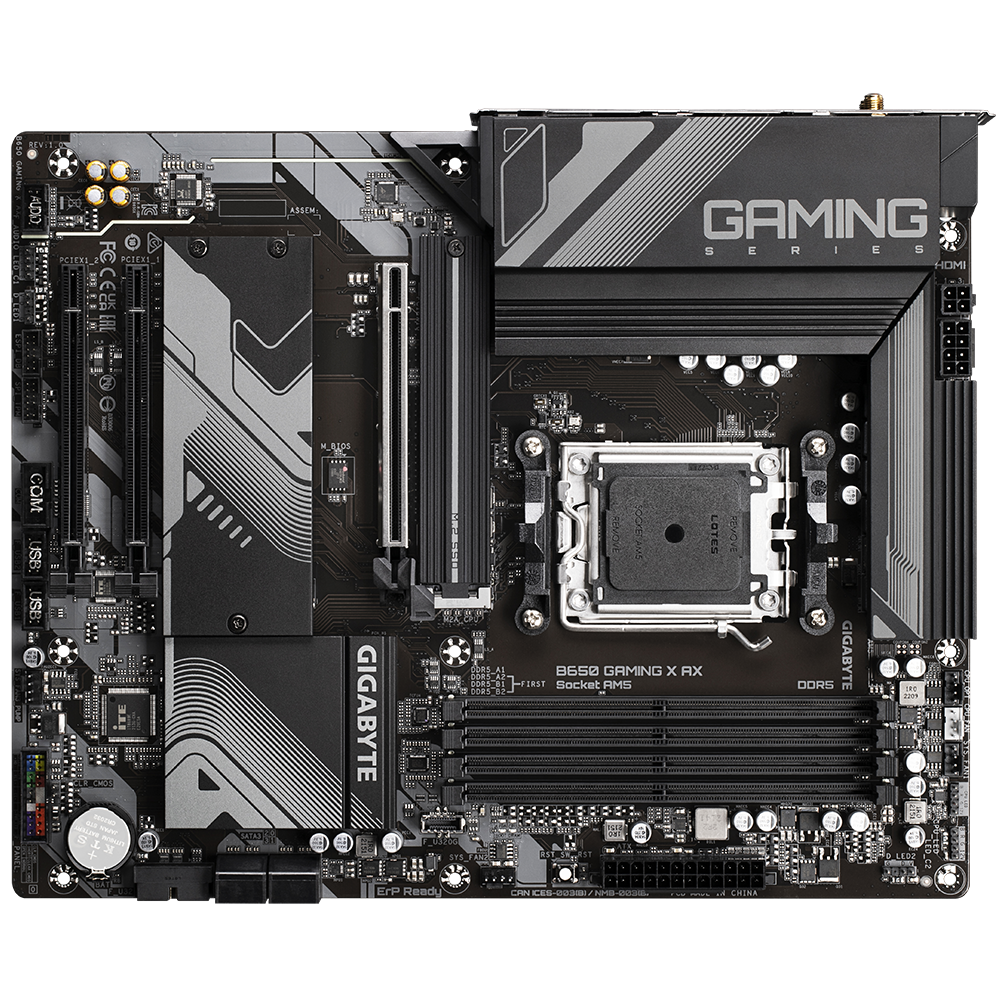

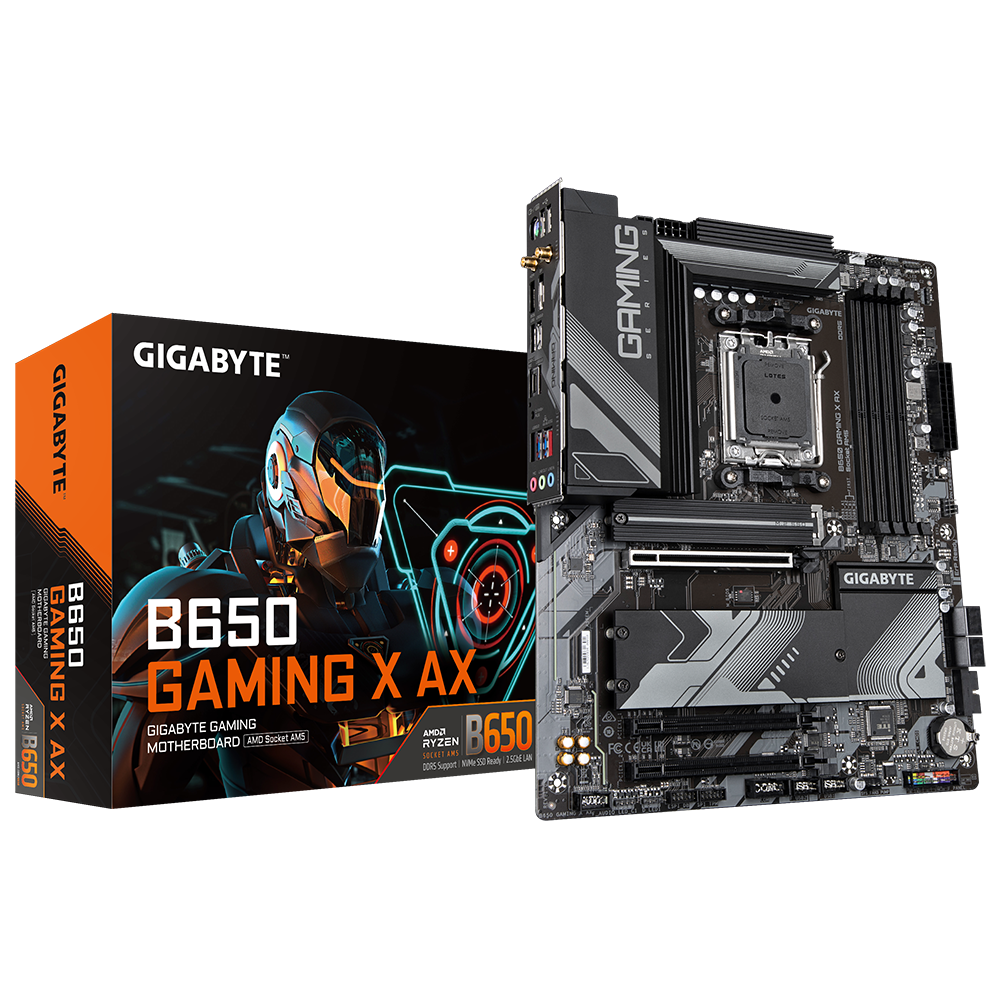

Gigabyte B650 GAMING X AX – AM5 Motherboard
R4,900 Incl VAT
Pay R4,753 When paying via EFT at checkout.
In stock with Supplier
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
0
People watching this product now!
Description
- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance：Direct 8+2+1 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s, Front USB-C® 20Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
-
CPU
- AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
(Please refer “CPU Support List” for more information.)
-
Chipset
- AMD B650
-
Memory
- Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
-
Onboard GraphicsIntegrated Graphics Processor:
- 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
- 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
-
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
-
LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
-
Wireless Communication moduleAMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0/PCB rev. 1.2)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.2
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
-
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
-
Storage Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs (PCB rev. 1.0/1.1)
- AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs (PCB rev. 1.2)
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices -
USBCPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 3.2 Gen 1 port on the back panel
CPU + USB 2.0 Hub:
- 3 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
-
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 2 x system fan headers
- 1 x system fan/water cooling pump header
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 1 x CPU cooler LED strip/RGB LED strip header
- 3 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper
-
Back Panel Connectors
- 2 x SMA antenna connectors (2T2R)
- 1 x Q-Flash Plus button
- 1 x DisplayPort
- 1 x HDMI port
- 1 x USB Type-C® port, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 3 x USB 3.2 Gen 1 ports
- 3 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
-
I/O Controller
- iTE® I/O Controller Chip
-
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
-
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Unique Features
- Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - Support for Q-Flash
- Support for Q-Flash Plus
- Support for GIGABYTE Control Center (GCC)
-
Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
-
Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
-
Form Factor
- ATX Form Factor; 30.5cm x 24.4cm
Additional information
| Weight | 2.2 kg |
|---|---|
| Brand |
Gigabyte |
| Socket |
AM5 |
| CPU Support |
AMD Ryzen 7000 Series ,AMD Ryzen 8000 Series ,AMD Ryzen 9000 Series |
| Chipset Manufacture |
AMD |
| Chipset Model |
AMD B650 |
| Form Factor |
ATX |
| Memory Slots Available |
4 Slots |
| Memory Type |
Desktop DDR5 |
| On-Board WiFi |
Yes |
| Reverse Connectors |
No |
| GPU High Powered Connector |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
| Colour |
Black |
