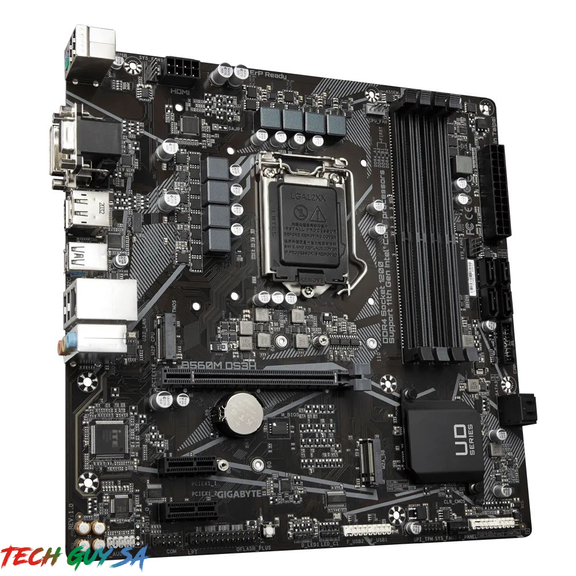

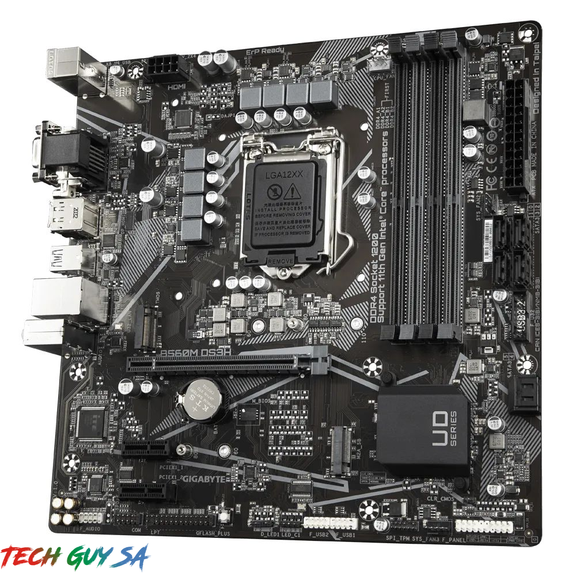

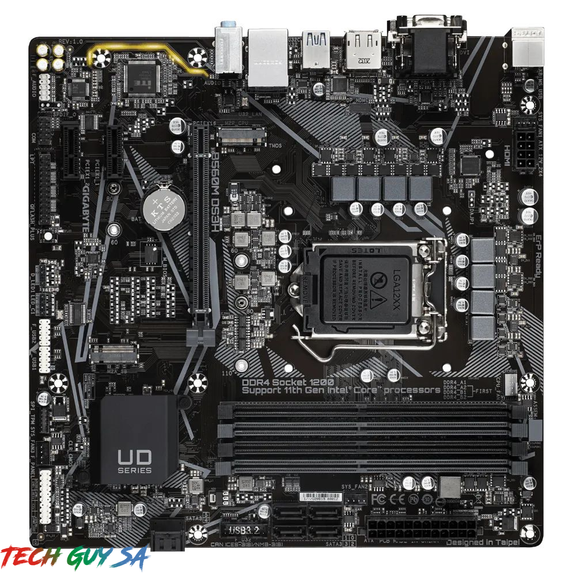

Gigabyte B560M DS3H – End of Life
SKU / Product is End of Life
Pay R0 When paying via EFT at checkout.
0
People watching this product now!
Description
Intel® B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, GIGABYTE 8118 Gaming LAN, 8-ch HD Audio with Audio Caps, USB TYPE-C® , RGB FUSION 2.0, Q-Flash Plus
-
- Supports 11th and 10th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
- Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- USB 3.2 Gen1 Type-C® for Fast and Versatile Connections
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- * Actual support may vary by CPU.
| CPU | LGA1200 package: |
| 1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors | |
| 2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* | |
| * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. | |
| 3. L3 cache varies with CPU | |
| (Please refer to “CPU Support List” for more information.) | |
| Chipset | 1. Intel® B560 Express Chipset |
| Memory | 1. 11th Generation Intel® Core™ i9/i7/i5 processors: |
| Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules | |
| 2. 10th Generation Intel® Core™ i9/i7 processors: | |
| Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
| 3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: | |
| Support for DDR4 2666/2400/2133 MHz memory modules | |
| 4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| 5. Dual channel memory architecture | |
| 6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 8. Support for Extreme Memory Profile (XMP) memory modules | |
| (Go to GIGABYTE’s website for the latest supported memory speeds and memory modules.) | |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz | |
| 2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz | |
| * The DVI-D port does not support D-Sub connection by adapter. | |
| 3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
| * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. | |
| 4. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz | |
| * Support for HDMI 1.4 version and HDCP 2.3. | |
| (Graphics specifications may vary depending on CPU support.) | |
| Support for up to 3 displays at the same time | |
| LAN | 1. Realtek® GbE LAN chip (1000/100 Mbit) |
| Wireless Communication module | N/A |
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 |
| (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note) | |
| 2. 2 x PCI Express x1 slots | |
| (The PCIEX1 slot conforms to PCI Express 3.0 standard.) | |
| Storage Interface | CPU: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) | |
| Chipset: | |
| 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) | |
| 2. 6 x SATA 6Gb/s connectors | |
| * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. | |
| Intel® Optane™ Memory Ready | |
| * System Acceleration with Intel® Optane™ Memory enabled on the M2P_CPU connector only. | |
| USB | Chipset: |
| 1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support | |
| 2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
| 3. 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Chipset+USB 2.0 Hub: | |
| 1. 2 x USB 2.0/1.1 ports on the back panel | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x CPU fan header | |
| 4. 3 x system fan headers | |
| 5. 1 x addressable LED strip header | |
| 6. 1 x RGB LED strip header | |
| 7. 6 x SATA 6Gb/s connectors | |
| 8. 2 x M.2 Socket 3 connectors | |
| 9. 1 x front panel header | |
| 10. 1 x front panel audio header | |
| 11. 1 x USB 3.2 Gen 1 header | |
| 12. 2 x USB 2.0/1.1 headers | |
| 13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 14. 1 x serial port header | |
| 15. 1 x parallel port header | |
| 16. 1 x Clear CMOS jumper | |
| 17. 1 x Q-Flash Plus button | |

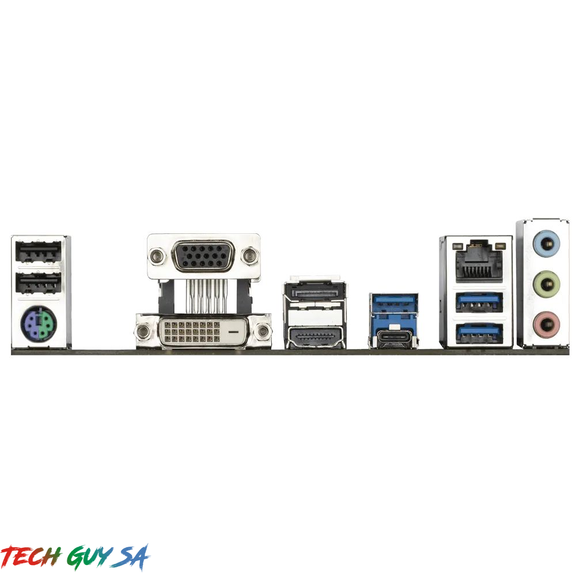

| Back Panel Connectors | 1. 2 x USB 2.0/1.1 ports |
| 2. 1 x PS/2 keyboard/mouse port | |
| 3. 1 x D-Sub port | |
| 4. 1 x DVI-D port | |
| 5. 1 x DisplayPort | |
| 6. 1 x HDMI port | |
| 7. 3 x USB 3.2 Gen 1 ports | |
| 8. 1 x USB Type-C® port, with USB 3.2 Gen 1 support | |
| 9. 1 x RJ-45 port | |
| 10. 3 x audio jacks | |
| I/O Controller | 1. iTE® I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Fan fail warning | |
| 5. Fan speed control | |
| * Whether the fan speed control function is supported will depend on the fan you install. | |
| BIOS | 1. 1 x 256 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| RGB Fusion | |
| Smart Backup | |
| System Information Viewer | |
| 2. Support for Q-Flash Plus | |
| 3. Support for Q-Flash | |
| 4. Support for Xpress Install | |
| Bundled Software | 1. Norton® Internet Security (OEM version) |
| 2. Realtek® 8118 Gaming LAN Bandwidth Control Utility | |
| Operating System | 1. Support for Windows 10 64-bit |
| Form Factor | 1. Micro ATX Form Factor; 24.4cm x 24.4cm |
| Note | Supported by 11th Generation processors only. |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 27 × 34 × 7 cm |
