Gigabyte B550 AORUS PRO - End of Life

Description

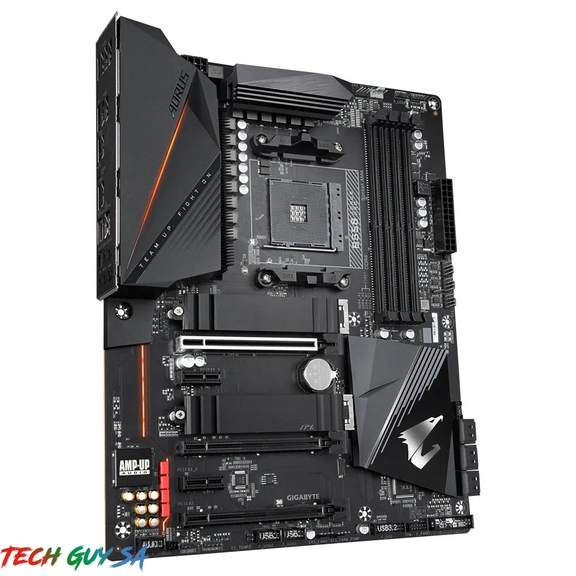

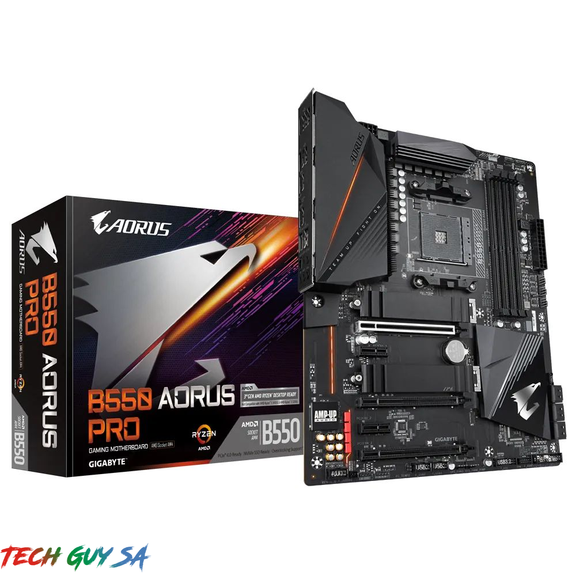

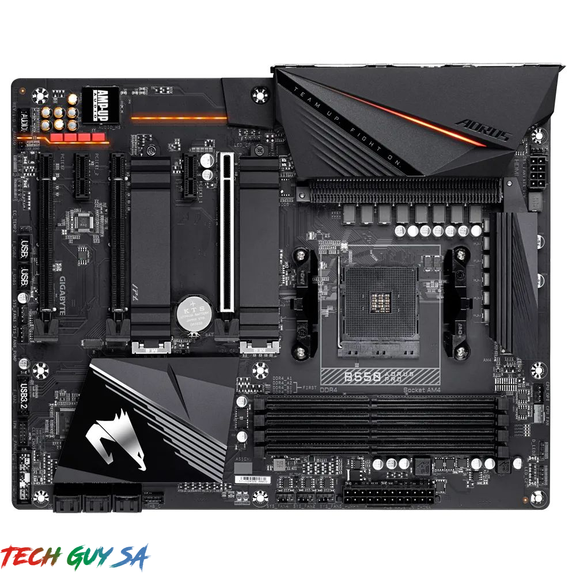

AMD B550 AORUS Motherboard with True 12+2 Phases Digital VRM, Fins-Array Heatsink, Direct-Touch Heatpipe, Dual PCIe 4.0/3.0 x4 M.2 with Thermal Guards, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
True 12+2 Phases Digital VRM Solution with 50A DrMOS
Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
Ultra Durable™ PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR
Blazing Fast 2.5GbE LAN with Bandwidth Management
USB 3.2 Gen2 Type-C™ & HDMI Support
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation

Link to Gigabyte

GIGABYTE B550 AORUS PRO – AMD B550 Chipset: Socket AM4, Supports 3rd Gen AMD Ryzen™ Processors

Memory : 4x Dual Channel DDR4 DIMM Slots (128GB Max / 4000MHz Supported)

Expansion Slots : 1x PCI-Express 4.0 (x16 Speed), 1x PCI-Express 3.0 (x2 Speed), 2x PCI-Express 3.0 (x1 Speed)

Storage and USB : 6x SATA 3 (6 Gb/s), 2x M.2 Socket 3 Connector Support for raid 0 / 1 / 5 / 10, 2x USB 3.2 Type A Ports (4x Back),1x USB Type C (Back), 5x USB 3.2 Gen 1 (3x Back, 2x Cable), 10x USB 2.0 (6x Back, 4x Cable)

Misc. : 7.1 Channel High Definition Audio, Supports S/PDIF Out, 1x Realtek 2.5 GBE Lan (2.5 Gbit/1 Gbit/100 Mbit)

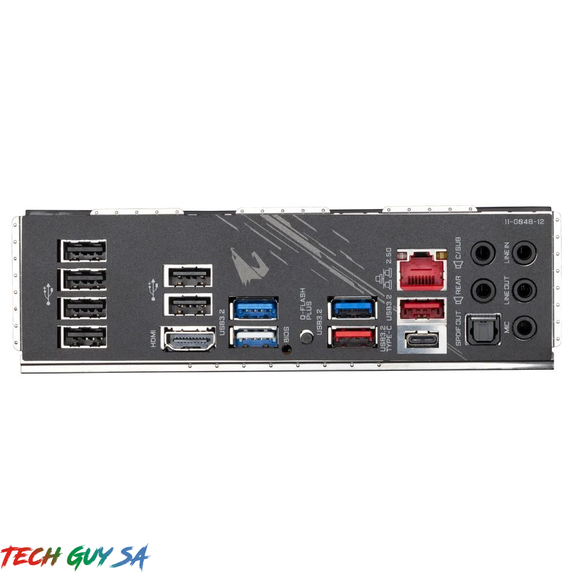

Rear IO Panel Display Ports Available: 1x HDMI Ports

Additional information

Weight	2 kg
Dimensions	28.2 × 27.2 × 7.1 cm
