Gigabyte B360 AORUS GAMING 3 WIFI LGA1151 Motherboard - End of Life

Gigabyte B360 AORUS GAMING 3 WIFI LGA1151 Motherboard – End of Life

SKU / Product is End of Life

Pay R0 When paying via EFT at checkout.

0 People watching this product now!

Specification
CPU	Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
	L3 cache varies with CPU
	(Please refer “CPU Support List” for more information.)
Chipset	Intel® B360 Express Chipset
Memory	4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
	Dual channel memory architecture
	Support for DDR4 2666/2400/2133 MHz memory modules
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	* To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.
	(Please refer “Memory Support List” for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
	* The DVI-D port does not support D-Sub connection by adapter.
	1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
	* Support for HDMI 1.4 version and HDCP 2.2.
	Maximum shared memory of 1 GB
	Actual support may vary by CPU
Audio	Realtek® ALC892 codec
	High Definition Audio
	2/4/5.1/7.1-channel
	Support for S/PDIF Out
LAN	Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16)
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	1 x PCI Express x16 slot, running at x4 (PCIEX4)
	* The PCIEX4 slot shares bandwidth with the PCIEX1_2/PCIEX1_3 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 or PCIEX1_3 slot is populated.
	1 x PCI Express x16 slot, running at x1 (PCIEX1_3)
	2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)
	(All of the PCI Express slots conform to PCI Express 3.0 standard.)
	1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
	* B360 AORUS GAMING 3 WIFI includes the GC-CI22M_A CNVi wireless module.
	* The CNVi connector shares bandwidth with the USB 2.0/1.1 port on the back panel (the one below the LAN port). When a Wi-Fi module is populated in the CNVi connector, the USB 2.0/1.1 port becomes unavailable.
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface	Chipset:
	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)
	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
	6 x SATA 6Gb/s connectors
	* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
	Intel® Optane™ Memory Ready
	* System Acceleration with Intel® Optane™ Memory enabled on the M2A_32G connector only.
USB	Chipset:
	1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
	1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
	4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x water cooling CPU fan header
	2 x system fan headers
	1 x system fan/water cooling pump header
	2 x digital LED strip headers
	2 x digital LED strip power select jumpers
	2 x RGB (RGBW) LED strip headers
	6 x SATA 6Gb/s connectors
	2 x M.2 Socket 3 connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB 3.1 Gen 1 header
	1 x USB 2.0/1.1 header
	1 x S/PDIF Out header
	1 x Thunderbolt™ add-in card connector
	1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
	1 x serial port header
	1 x Clear CMOS jumper

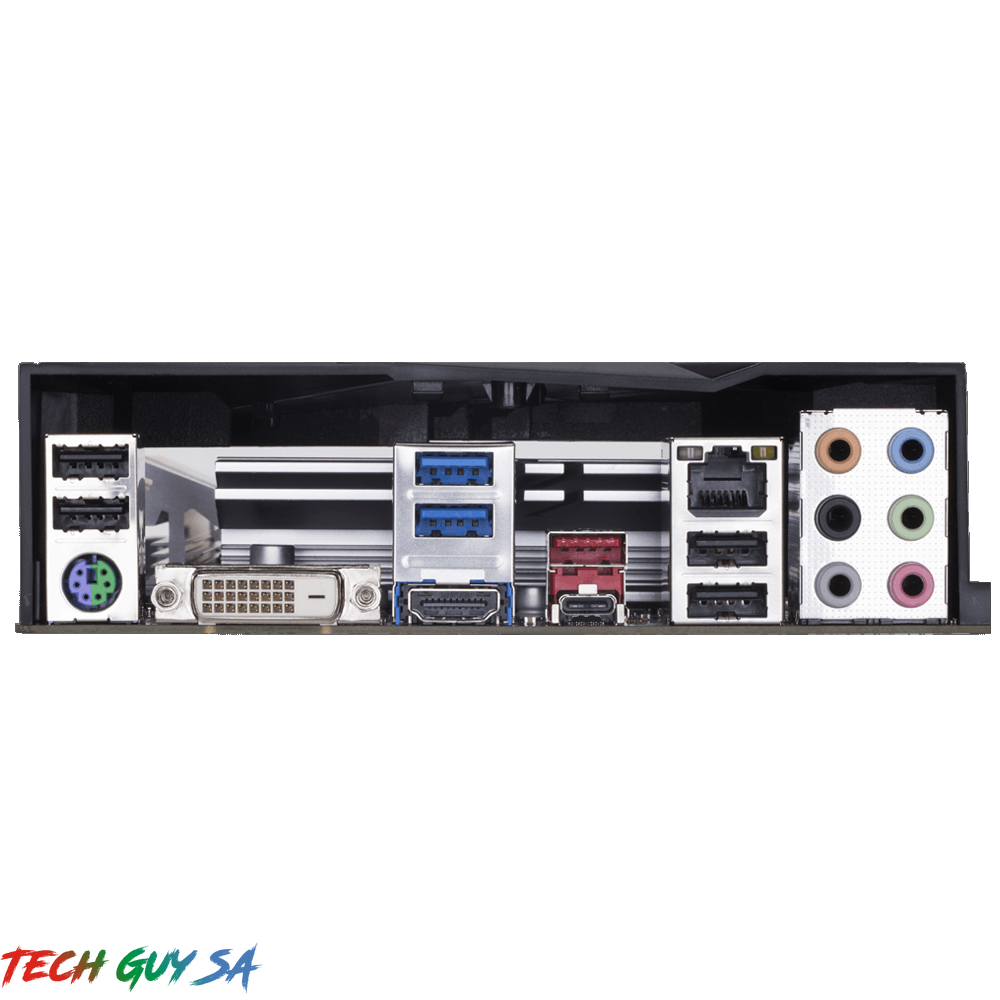

Back Panel Connectors	1 x PS/2 keyboard/mouse port
	1 x DVI-D port
	1 x HDMI port
	1 x USB 3.1 Gen 2 Type-A port (red)
	1 x USB Type-C™ port, with USB 3.1 Gen 1 support
	2 x USB 3.1 Gen 1 ports
	4 x USB 2.0/1.1 ports
	1 x RJ-45 port
	6 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Overheating warning
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	2 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	Support for DualBIOS™
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	3D OSD
	@BIOS
	AutoGreen
	Cloud Station
	EasyTune
	Fast Boot
	Game Boost
	ON/OFF Charge
	Platform Power Management
	RGB Fusion
	Smart Backup
	Smart Keyboard
	Smart TimeLock
	Smart HUD
	System Information Viewer
	USB Blocker
	V-Tuner
	Support for Q-Flash
	Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version)
	cFosSpeed
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 22.5cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
	Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Weight

1 kg

Dimensions

27.2 × 26.9 × 5.8 cm

Please note that We use either following Couriers Courierit / Courier Guy / MDS Collivery / DPD Laser / Internet Express / Rhenus / RTT / DCB. via uAfrica / Suppliers

Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 – R1000 T&C’s Apply.

Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.

Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT) Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB).

Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved: Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals
