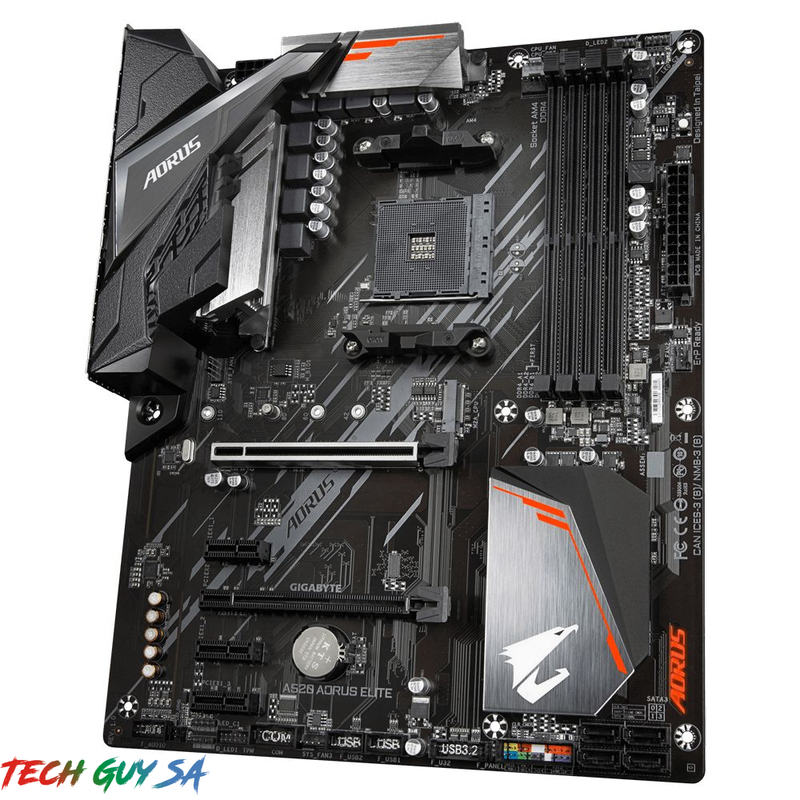

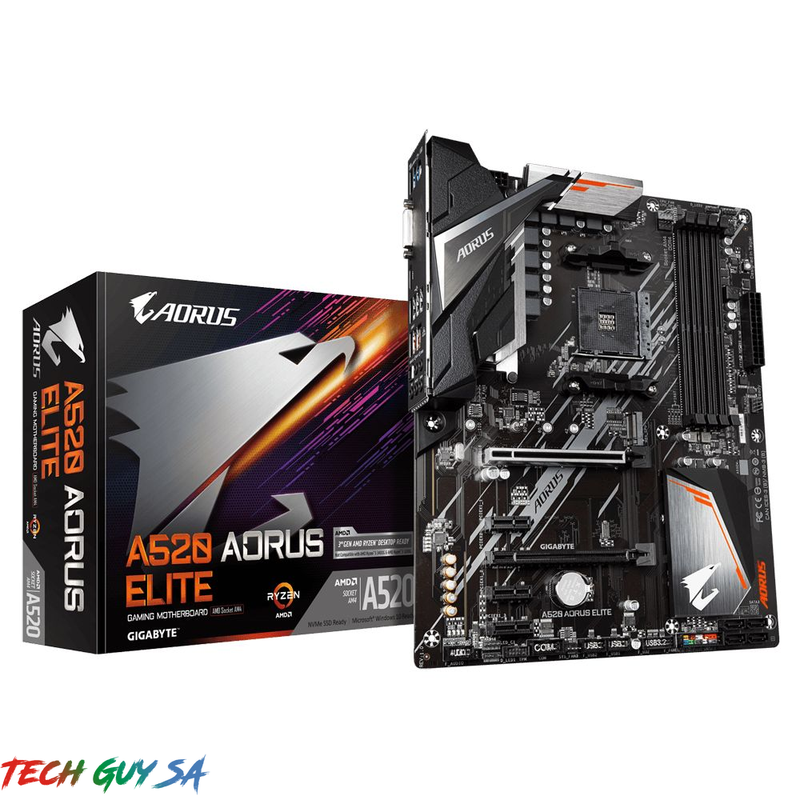

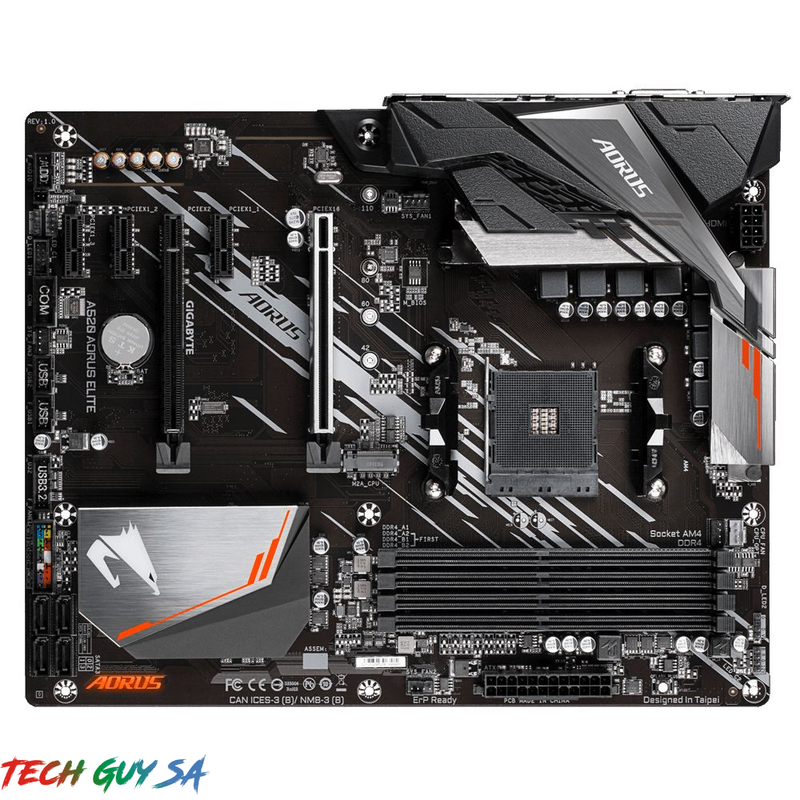

Gigabyte A520 AORUS ELITE – End of Life
R1,800 Incl VAT
SKU / Product is End of Life
Pay R1,746 When paying via EFT at checkout.
Supplier out of stock
0
People watching this product now!
Description
AMD A520 AORUS Motherboard with Pure Digital VRM Solution, ALC1200 Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Pre-installed IO Shield Design
- Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- AMP-UP Audio with ALC1200 and High End Audio Capacitors
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- HDMI, DVI-D Ports for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Pre-installed IO Shield for Easy and Quick Installation
| CPU | 1. AMD Socket AM4, support for AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors |
| (Please refer “CPU Support List” for more information.) | |
| Chipset | 1. AMD A520 |
| Memory | 1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| 2. AMD Ryzen™ 5000 series processors: | |
| Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| 3. 3rd Gen AMD Ryzen™ Processors: | |
| Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| 4. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: | |
| Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| 5. Dual channel memory architecture | |
| 6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules | |
| 7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 8. Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer “Memory Support List” for more information.) | |
| Onboard Graphics | Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: |
| 1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz | |
| * The DVI-D port does not support D-Sub connection by adapter. | |
| 2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| Maximum shared memory of 16 GB | |
| Audio | 1. Realtek® ALC1200 codec |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| 4. Support for S/PDIF Out | |
| LAN | 1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit) |
| Expansion Slots | CPU: |
| 1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| 1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) | |
| 2. 3 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2, PCIEX1_3) | |
| * The PCIEX1_2 and PCIEX1_3 slots share bandwidth with the PCIEX2 slot. The PCIEX2 slot becomes unavailable when a device is installed in the PCIEX1_2 or PCIEX1_3 slot. | |
| Storage Interface | CPU: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) | |
| Chipset: | |
| 1. 4 x SATA 6Gb/s connectors | |
| 2. Support for RAID 0, RAID 1, and RAID 10 | |
| USB | CPU: |
| 1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| 2. 3 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset: | |
| 1. 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| 2. 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Chipset+USB 2.0 Hub: | |
| 1. 4 x USB 2.0/1.1 ports on the back panel | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x CPU fan header | |
| 4. 1 x water cooling CPU fan header | |
| 5. 3 x system fan headers | |
| 6. 2 x addressable LED strip headers | |
| 7. 2 x RGB LED strip headers | |
| 8. 1 x M.2 Socket 3 connector | |
| 9. 4 x SATA 6Gb/s connectors | |
| 10. 1 x front panel header | |
| 11. 1 x front panel audio header | |
| 12. 1 x USB 3.2 Gen 1 header | |
| 13. 2 x USB 2.0/1.1 headers | |
| 14. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| 15. 1 x serial port header | |
| 16. 1 x Clear CMOS jumper | |
| 17. 1 x Q-Flash Plus button | |

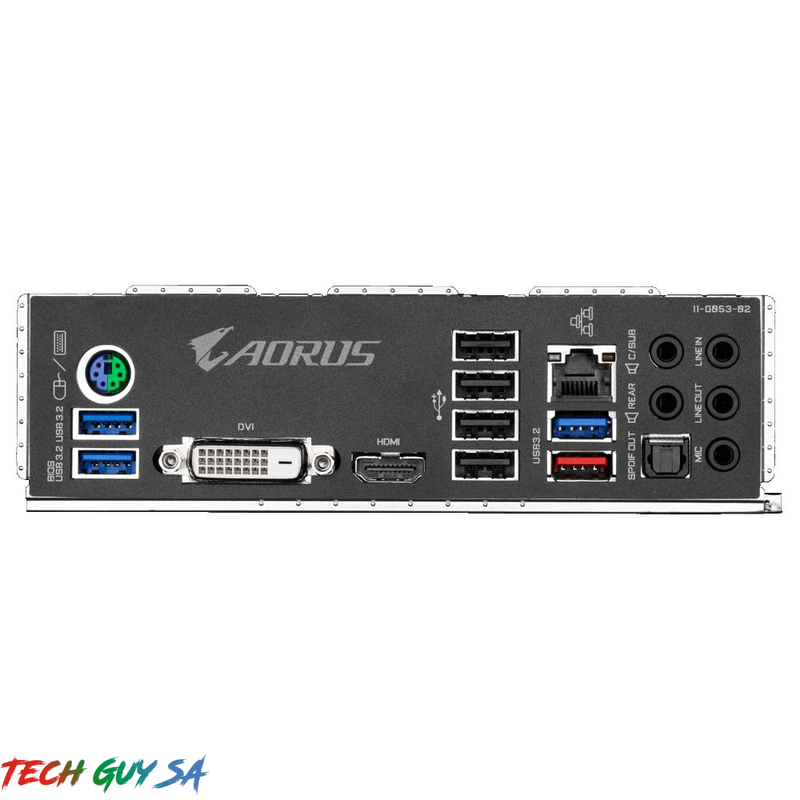

| Back Panel Connectors | 1. 1 x PS/2 keyboard/mouse port |
| 2. 1 x DVI-D port | |
| 3. 1 x HDMI port | |
| 4. 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 5. 3 x USB 3.2 Gen 1 ports | |
| 6. 4 x USB 2.0/1.1 ports | |
| 7. 1 x RJ-45 port | |
| 8. 1 x optical S/PDIF Out connector | |
| 9. 5 x audio jacks | |
| I/O Controller | 1. iTE® I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Water cooling flow rate detection | |
| 5. Overheating warning | |
| 6. Fan fail warning | |
| 7. Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
| BIOS | 1. 1 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| RGB Fusion | |
| Smart Backup | |
| System Information Viewer | |
| 2. Support for Q-Flash Plus | |
| 3. Support for Q-Flash | |
| 4. Support for Xpress Install | |
| Bundled Software | 1. Norton® Internet Security (OEM version) |
| 2. Realtek® 8118 Gaming LAN Bandwidth Control Utility | |
| Operating System | 1. Support for Windows 10 64-bit |
| Form Factor | 1. ATX Form Factor; 30.5cm x 24.4cm |
| Remark | 1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website. |
| 2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 28.2 × 27.2 × 7.1 cm |
