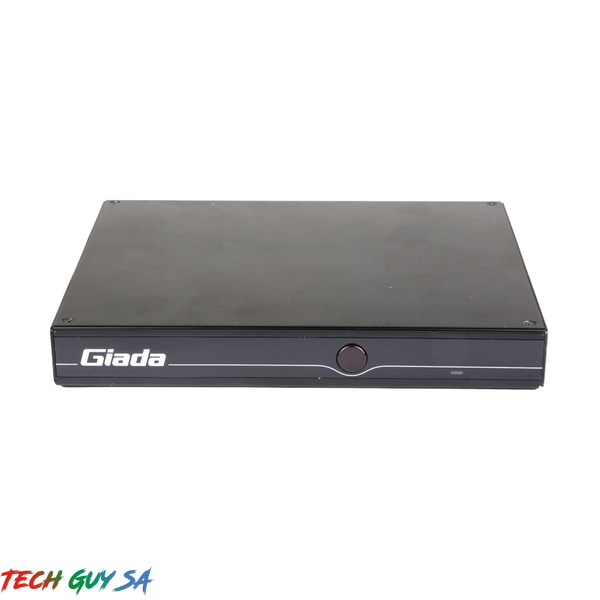

GIADA D68 I5 8259U 2XDDR4 M.2/MSATA HDMI - End of Life

GIADA D68 I5 8259U 2XDDR4 M.2/MSATA HDMI – End of Life

SKU / Product is End of Life

Pay R0 When paying via EFT at checkout.

0 People watching this product now!

Description

The Giada D68 Signage Player is a compact book-sized PC, and is ideal for signage player applications in hospitality, retail, commercial, service and advertising roles. This device brings organizations all the performance and efficiency of Intel Whiskey Lake CPUs, plus independent outputs to multiple 4K displays, plus the ease of use and rapid employee and client uptake offered by intuitive touch screen support.

FEATURES:

Intel i5 8th Gen Processor
Intel^® Iris Plus Graphics
Up to 4K resolution support
2 x HDMI and 1 x DisplayPort Ports
Up to 32GB of memory support
Gigabit Ethernet

SPECIFICATIONS:

Processor:
- CPU: Intel^®Core™ i5-8259U
- Frequency: 2.30GHz
- BIOS: AMI Source Code
- Chipset: SOC
Memory:
- Type: DDR4-2400MHz
- Socket: 2 x SO-DIMM
- Max Size: 32GB
Graphics:
- GPU: Intel^® Iris Plus Graphics
- Graphic Engine: Direct3D 2015, OpenGL 4.5, OpenCL 2.1
- DP: 1 x DP (Max.4096 x 2304 @60Hz)
- HDMI: 1 x HDMI (Max.4096×2304 @60Hz)
- HDMI: 1 x HDMI (Max.4096×2304 @24Hz)
Network:
- Controller: Realtek 8111H Gigabit Ethernet
- Interface: 1 x RJ45
I/O:
- USB: 5 x USB 3.2 Gen2 (10 Gbps)
- Serial Port: 1 x RS232
- Audio: 1 x AUDIO-OUT, 1 x MIC-IN
- Mini-PCIe1: 1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G
- M.2(2230): 1 x M.2(2230) for WiFi
- SIM: 1 x SIM Slot
- TPM: Infineon TPM 2.0
Storage:
- mSATA: 1 x Full-size mSATA（Optional）
- M.2: 1 x M.2(2242/2280) for SSD
JAHC Tech:
- WatchDog Timer: 0~255 Second Time Out Support
- Auto Power On: Power Activated Automatically Start
- Remote Control: By IR Controller for Power On
- RTC: Set Up Independently Every day, A Week as a Cycle
- Wake On Lan: Yes
Operation System:
- Windows: Windows 10（64-Bit）
- Linux: Supported
Power:
- Power Type: DC-IN
- Input Voltage: 19V / 3.42A
Environment:
- Operating Temperature: 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
- Relative Humidity: 95%@40℃ (non-condensing)
Certification: CE, FCC Class B, CCC
Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)
Construction: Metal
Colour: Black
Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT’S IN THE BOX:

Giada D68 i5 8th Gen Signage Player – Black x1
