Giada AE67 Pentium 4415U 2xDDR3L SATA2.5 MSATA – End of Life

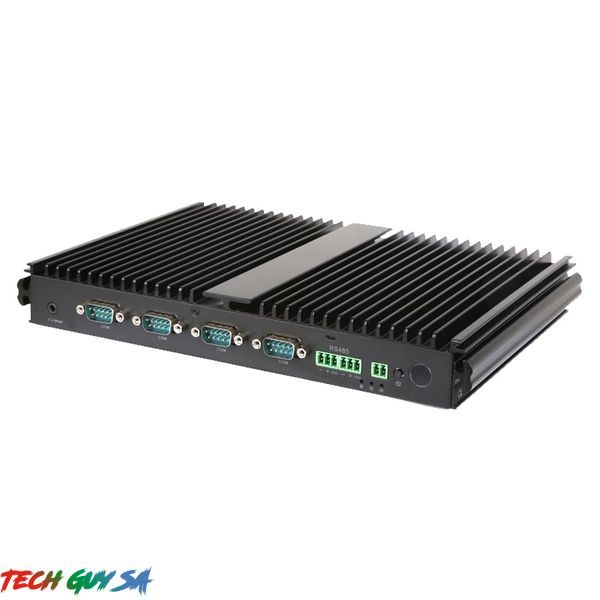

The Giada AE67-W1 Pentium Fanless Outdoor Signage Player is a robust solution for PC’s in semi-industrial environments, being able to withstand heats of up to 60 degrees Celsius. It is equipped with a powerful Intel Pentium 4415U processor, which allows for the smooth delivery of 4k content to any of its connected displays. The Giada AE67 has IR remote control features for external powering on. This pc ensures a quiet and smooth run with its fanless design.

Features:

• Intel Pentium 4415U Processor
• Supports 4K display
• Three display ports: DP | HDMI | VGA
• Two DDR3L SO-DIMM slots, supporting up to 32GB
• 2.5″ SATA and mSATA compatibility
• Four USB3.0 ports and four USB2.0 ports
• Four RS232 ports and two RS485 ports
• RJ45, Mini-PCIe for communication adapters and a SIM Slot
• M.2 (2230) internal WiFi adapter

Specifications:

• Processor
  • CPU: Intel Pentium 4415U
  • Frequency: 2.5GHz
  • BIOS: AMI Source Code
  • Chipset: SOC
• Memory
  • Type: DDR3L-1600MHz
  • Socket: 2x SO-DIMM
  • Max Size: 32GB
• Graphics
  • GPU: Intel HD Graphics 620
  • Graphics Engine: Direct3D 2015, OpenGL 5.0, OpenCL 2.1
• Display
  • DP: 1x DP (Max.4096 x 2304@60Hz)
  • HDMI: 1x HDMI（Max.4096 x 2304@24Hz)
  • VGA: 1x VGA (Max.2048 x 1536@60Hz)
• Storage
  • SATA: 1x 2.5″ SATA
  • mSATA: 1x Full-size Mini-PCIe for mSATA
• Network
  • Controller: Intel I219 Gigabit Ethernet
  • Interface: 1x RJ45
• I/O
  • USB: 4x USB 3.0, 4 x USB 2.0
  • Serial Port: 4x RS232, 2x RS485
  • Audio: 1x 2-in-1 Headset ( AUDIO-OUT&SPDIF )
  • Mini-PCIe: 1x Full-size Mini-PCIe for mSATA/3G/4G
  • M.2:  1x M.2(2230) for WiFi
  • SIM: 1x SIM Slot
• JAHC
  • WatchDog Timer: 0~255 Second Time Out Support
  • Auto Power On: Power Activated Automatically Start
  • RTC: Set Up Independently Every day, A Week as a Cycle
  • Remote Control: By IR Controller for Power On
  • Wake On Lan: Yes
• Power
  • Power Type: DC-IN
  • Input Voltage: 19V/3.42A
• Environment
  • Operating Temperature: -20℃ ~ 60℃ ( -4 ℉ ~ 140 ℉ ) at 0.7m/s Air Flow
  • Relative Humidity: 95%@40℃ (non-condensing)
• Mounting: Desk/Wall Mounting and VESA
• Supported Operation Systems: Windows 10 (64bit), Linux Supported
• Certifications:  CE, FCC Class B, CCC
• Dimensions: 25.99 x 17.34 x 3.85 cm

What’s In The Box:

• Giada AE67-W1 Pentium Fanless Outdoor Signage Player x1
• Drive Disk x1
• AC Power Adapter x1
• AC Power Cable x1
• WiFi Antenna x2
• User Manual x1
