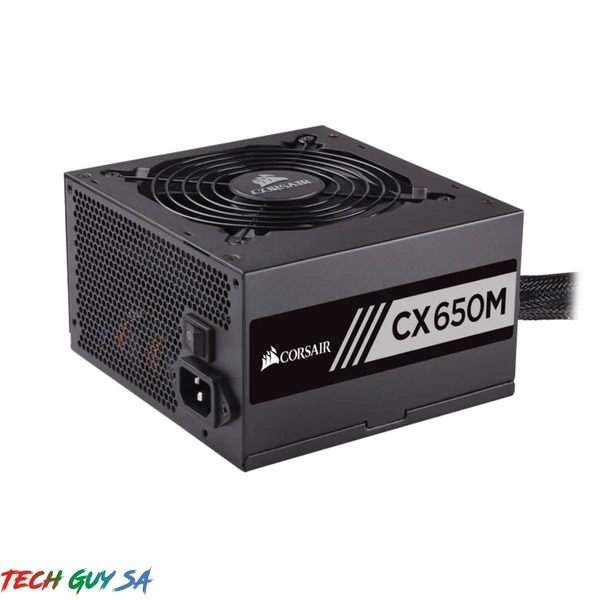

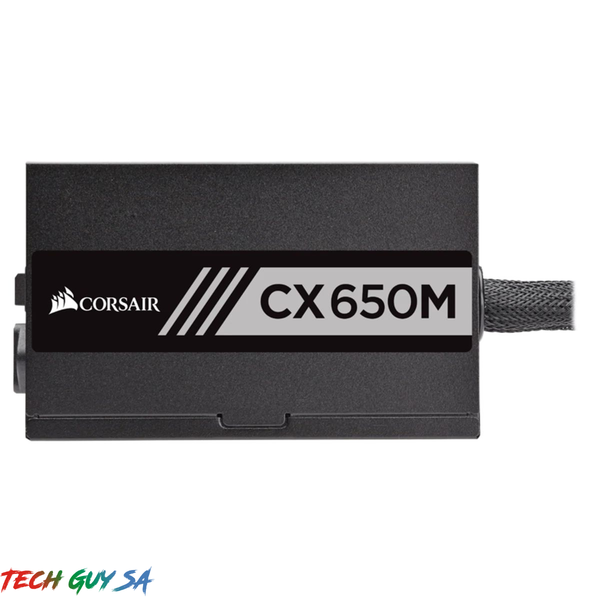

Corsair CX Series™ CX650M – 650 Watt 80 PLUS® Bronze Certified Modular ATX PSU
R1,890 Incl VAT
Pay R1,833 When paying via EFT at checkout.
Supplier out of stock

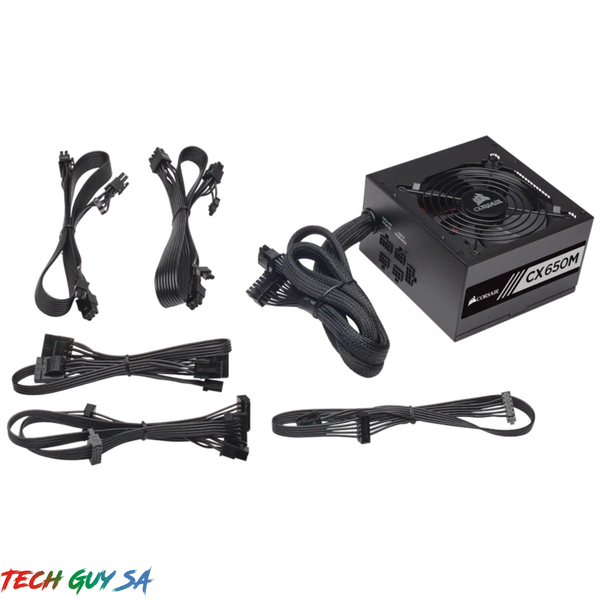

CX Series™ Modular power supply units are an excellent choice for basic system builds and desktop PC computer upgrades, offering high reliability, low noise, and the flexibility of modular cabling.
Corsair CX650M. Total power: 650 W, AC input voltage: 100 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Design
| Product colour | Black |
|---|---|
| Fan diameter | 120 |
Weight & dimensions
| Width | 150 |
|---|---|
| Weight | 3270 |
| Depth | 140 |
| Height | 86 |
Power
| AC input voltage | 100 – 240 |
|---|---|
| AC input frequency | 47 – 63 |
| Input current | 5 – 10 |
| Total power | 650 |
| Combined power (+3.3V) | 130 |
| Combined power (+12V) | 648 |
| Combined power (+5V) | 130 |
| Combined power (-12V) | 9.6 |
| Combined power (+5Vsb) | 15 |
| Max output current (+3.3V) | 25 |
| Max output current (+12V) | 54 |
| Max output current (+5V) | 25 |
| Max output current (-12V) | 0.8 |
| Max output current (+5Vsb) | 3 |
Other features
| Number of SATA connectors | 6 |
|---|---|
| PCI Express slots quantity | 2 |
| Frequency tolerance | 85 |
Performance
| 80 PLUS certification | 80 PLUS Bronze |
|---|---|
| Mean time between failures (MTBF) | 100000 |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.4 |
| EPS version | 2.92 |
| RoHS compliance | Y |
Ports & interfaces
| Peripheral (Molex) power connectors (4-pin) | 4 |
|---|---|
| Number of SATA power connectors | 6 |
| EPS power connector (8-pin) | Y |
| PCI Express connector | Y |

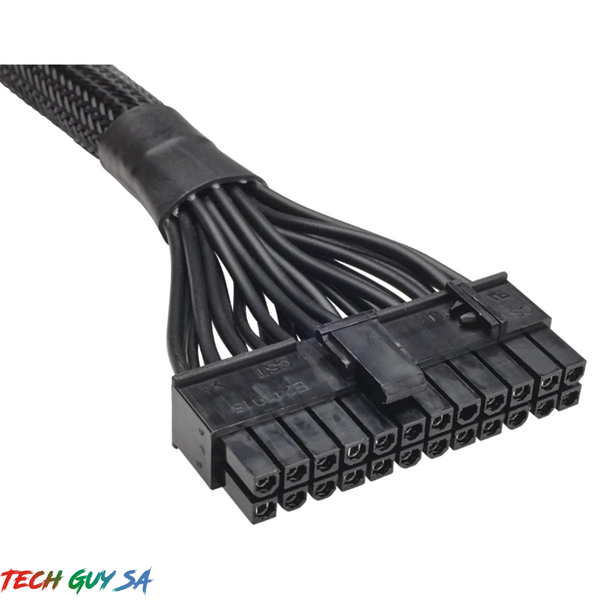

| Motherboard power connector | 20+4 pin ATX |
| ATX power connector (20+4 pin) | Y |
| Floppy disk drive connector | Y |
| Brand |
Corsair |
|---|---|
| Cabling |
Modular |
| Certification |
80 Plus Bronze |
| Form Factor |
ATX |
