Asus TUF Gaming X570-Plus (WI-FI) – End of Life
SKU / Product is End of Life
Pay R0 When paying via EFT at checkout.
0
People watching this product now!
Description

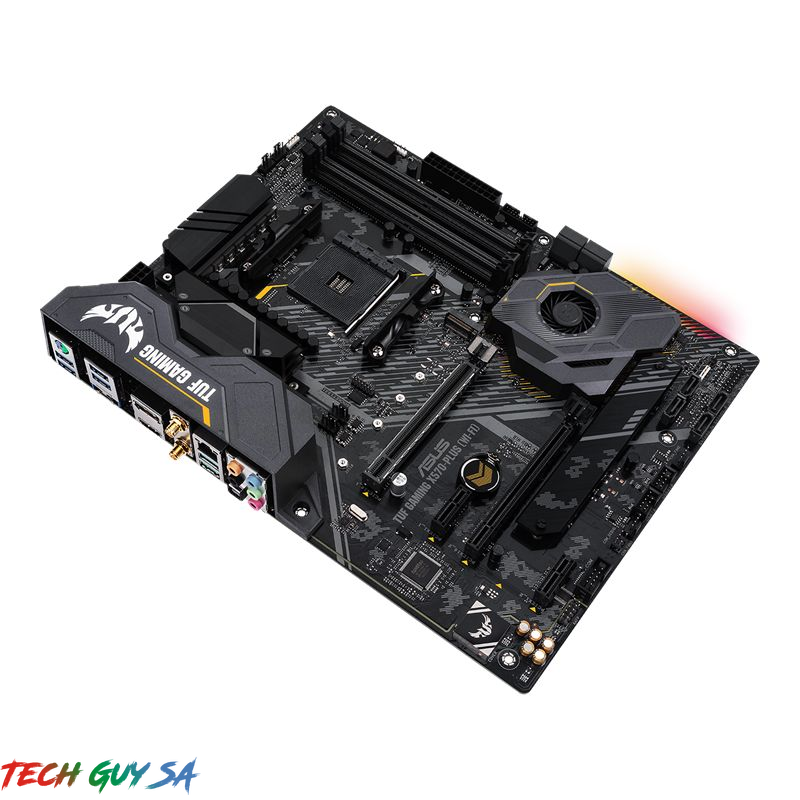

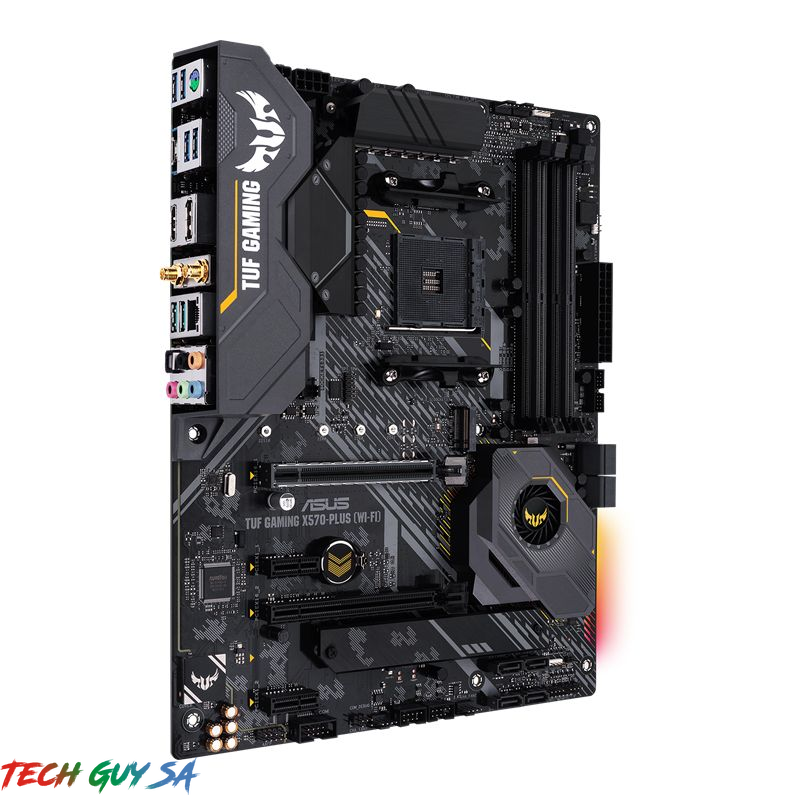

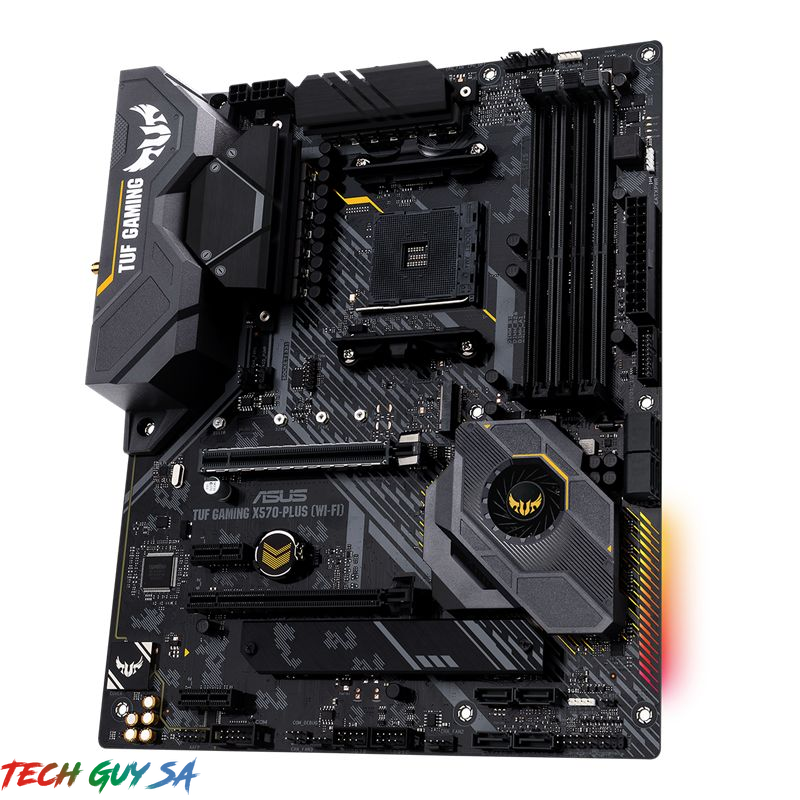

AMD AM4 X570 ATX gaming motherboard with PCIe 4.0, dual M.2, Wi-Fi, 14 Dr. MOS power stages, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting
- AMD AM4 Socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors
- Enhanced Power Solution: 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive Cooling: Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
- Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C
- Gaming Networking: Exclusive Realtek® L8200A Gigabit Ethernet, Intel 2×2 802.11ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF LANGuard and TurboLAN technology
- Realtek S1200A Codec: Pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line-out and 103dB SNR for line-in
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
- TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
| CPU |
| AMD AM4 Socket 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/AMD Ryzen™ 2nd Generation/3rd Gen AMD Ryzen™ Processors |
| Chipset |
| AMD X570 |
| Memory |
| 3rd Gen AMD Ryzen™ Processors |
| 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory |
| 2nd Gen AMD Ryzen™ Processors |
| 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory |
| 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory |
| Dual Channel Memory Architecture |
| ECC Memory (ECC mode) support varies by CPU. |
| * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic |
| Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| Multi-VGA output support : HDMI/DisplayPort ports |
| – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz |
| – Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz |
| Multi-GPU Support |
| 3rd and 2nd Gen AMD Ryzen™ Processors |
| AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors |
| Supports AMD CrossFireX™ Technology |
| Expansion Slots |
| 3rd Gen AMD Ryzen™ Processors |
| 1 x PCIe 4.0 x16 (x16 mode) |
| 2nd Gen AMD Ryzen™ Processors |
| 1 x PCIe 3.0 x16 (x16 mode) |
| 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| 1 x PCIe 3.0/2.0 x16 (x8 mode) |
| AMD X570 chipset |
| 1 x PCIe 4.0 x16 (max at x4 mode) |
| 2 x PCIe 4.0 x1 |
| Storage |
| 3rd Gen AMD Ryzen™ Processors : |
| 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support |
| 2nd Gen AMD Ryzen™ Processors : |
| 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support |
| AMD X570 chipset : |
| 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support |
| 8 x SATA 6Gb/s port(s) |
| Support Raid 0, 1, 10 |
| LAN |
| Realtek® L8200A |
| ASUS Turbo LAN Utility |
| TUF LANGuard |
| Wireless Data Network |
| Intel® Wireless-AC 9260 |
| Wi-Fi 802.11 a/b/g/n/ac |
| Supports dual band frequency 2.4/5 GHz |
| Supports 2×2 MU-MIMO |
| Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed |
| Bluetooth |
| Bluetooth® 5.0 |
| Audio |
| Realtek® ALC S1200A 8-Channel High Definition Audio CODEC |
| Audio Feature : |
| – Exclusive DTS Custom for GAMING Headsets. |
| – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference |
| – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals |
| – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| – Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
| USB Ports |
| 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : |
| 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) |
| AMD X570 chipset : |
| 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-CTM) |
| AMD X570 chipset : |
| 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) |
| AMD X570 chipset : |
| 4 x USB 2.0 port(s) (4 at mid-board) |
| Special Features |
| ASUS TUF PROTECTION |
| – ASUS SafeSlot: Protect your graphics card Investment |
| – ASUS ESD Guard: Enhanced ESD protection |
| – ASUS Overvoltage Protection: World-class circuit-protecting power design |
| – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! |
| – ASUS DIGI+ VRM: Precision control for stable power |
| – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! |
| AURA : |
| – Aura Lighting Control |
| – Aura RGB Strip Headers |
| – Addressable Gen 2 Header |
| ASUS Exclusive Features : |
| – AI Suite 3 |
| – Ai Charger |
| ASUS Quiet Thermal Solution : |
| – Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink |
| – ASUS Fan Xpert 4 |
| ASUS EZ DIY : |
| – ASUS CrashFree BIOS 3 |
| – ASUS EZ Flash 3 |
| – ASUS UEFI BIOS EZ Mode |
| ASUS Q-Design : |
| – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) |
| – ASUS Q-Slot |
| – ASUS Q-DIMM |
| DIY Friendly Design |
| – Procool |
| – SafeSlot |
| – Digi+ VRM |
| – Highly Durable components |
| – ESD Guards |

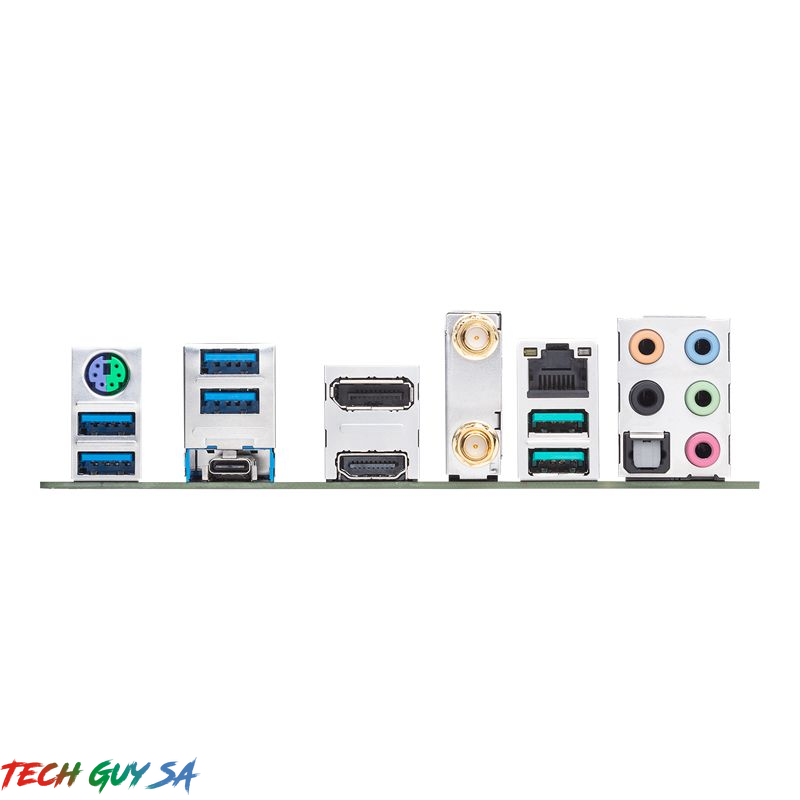

| Back I/O Ports |
| 1 x PS/2 keyboard/mouse combo port(s) |
| 1 x DisplayPort |
| 1 x HDMI |
| 1 x LAN (RJ45) port(s) |
| 1 x Optical S/PDIF out |
| 5 x Audio jack(s) |
| 4 x USB 3.2 Gen 1 (up to 5Gbps) ports |
| 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM) |
| ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) |
| Internal I/O Ports |
| 2 x Aura RGB Strip Header(s) |
| 1 x Addressable Gen 2 header(s) |
| 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
| 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) |
| 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) |
| 1 x SPI TPM header |
| 8 x SATA 6Gb/s connector(s) |
| 1 x CPU Fan connector(s) |
| 1 x CPU OPT Fan connector(s) |
| 3 x Chassis Fan connector(s) |
| 1 x AIO_PUMP connector |
| 1 x 24-pin EATX Power connector(s) |
| 1 x 8-pin ATX 12V Power connector(s) |
| 1 x 4-pin ATX 12V Power connector(s) |
| 1 x Front panel audio connector(s) (AAFP) |
| 1 x System panel(s) |
| 1 x Clear CMOS jumper(s) |
| 1 x COM port header |
| 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |

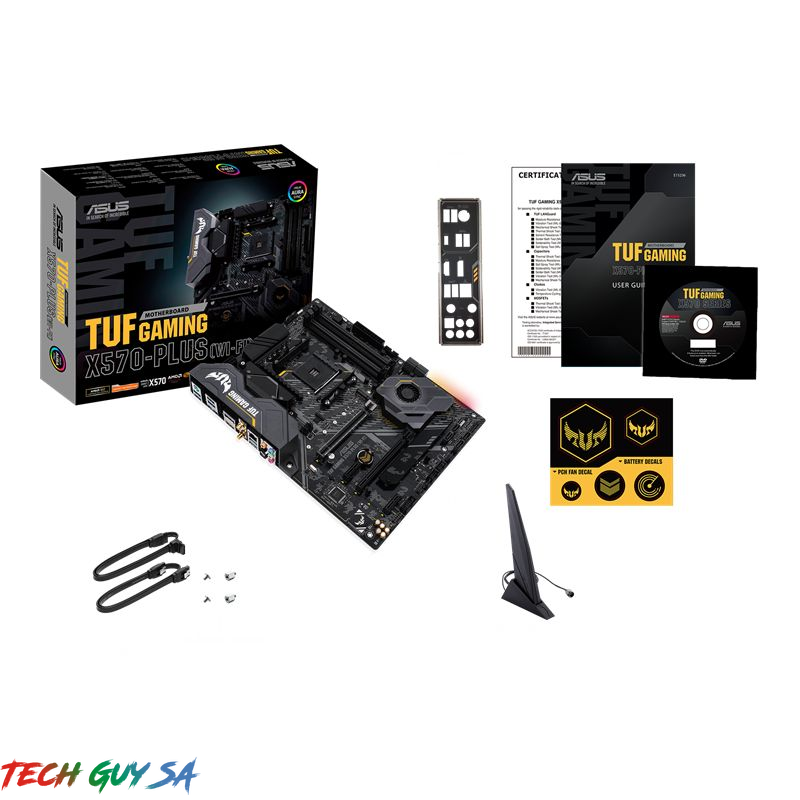

| Accessories |
| User´s manual |
| I/O Shield |
| 2 x SATA 6Gb/s cable(s) |
| 1 x M.2 Screw Package |
| 1 x Supporting DVD |
| 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) |
| 1 x TUF GAMING Sticker |
| 1 x TUF Certification card(s) |
| BIOS |
| 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability |
| WOL by PME, PXE |
| Operating System |
| Windows® 10 64-bit |
| Form Factor |
| ATX Form Factor |
| 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 28.2 × 27.2 × 7.1 cm |
| Brand |
Asus |
| Socket |
AM4 |
| CPU Support |
Ryzen 2000 Series ,Ryzen 3000 Series ,Ryzen 4000 Series ,Ryzen 5000 Series |
| Chipset Manufacture |
AMD |
| Chipset Model |
X570 |
| Form Factor |
ATX |
| Memory Slots Available |
4 Slots |
| On-Board WiFi |
Yes |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
