- NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
- This GeForce RTX 3060 Ti graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.).
- OC Edition: Boost clock 1785 MHz (OC mode)/ 1755 MHz (Gaming mode).

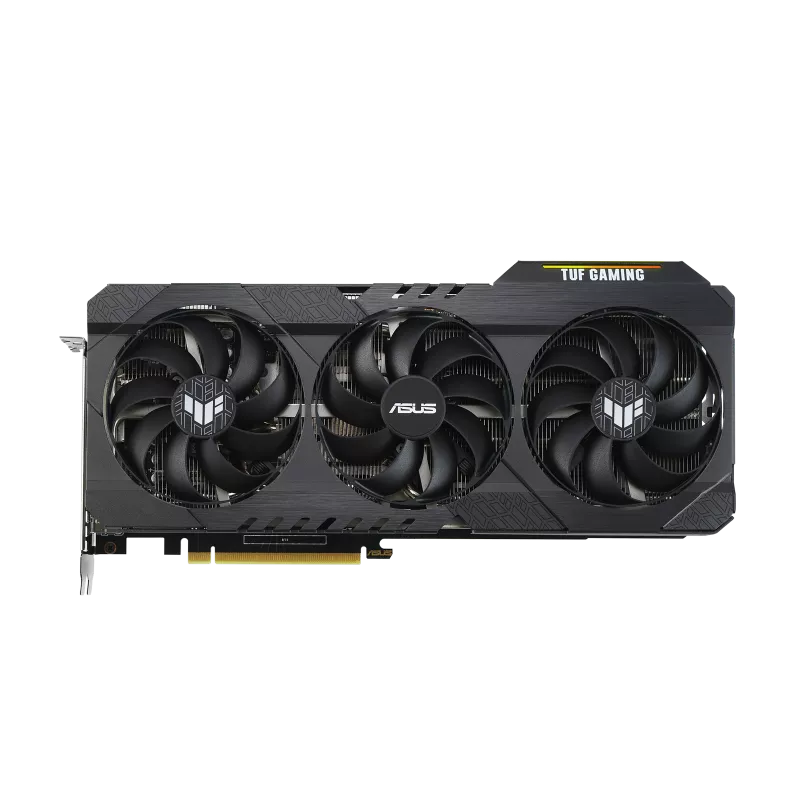

- Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- Military-grade capacitors and other TUF components enhance durability and performance.
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

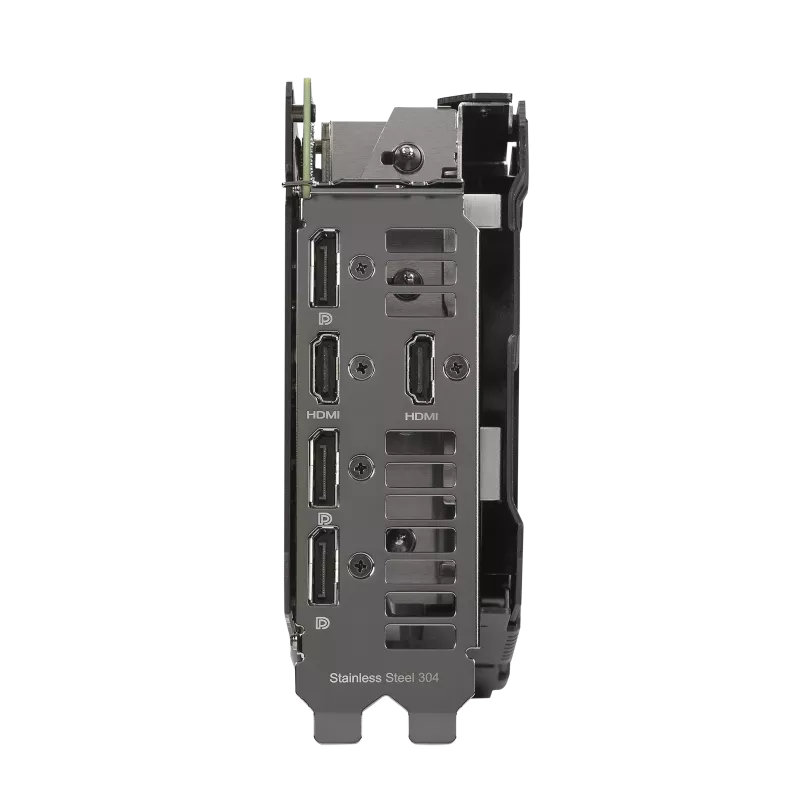

Ports & interfaces
HDMI ports quantity | 2 |
---|---|
DisplayPorts quantity | 3 |
Interface type | PCI Express 4.0 |
HDMI version | 2.1 |
DisplayPort version | 1.4a |
Design
Product colour | Black |
---|---|
Number of fans | 3 |
Cooling type | Active |
Number of slots | 2.7 |
Cooling technology | ASUS Axial-tech |
Packaging data
Manual | Y |
---|---|
Package type | Box |
Drivers included | Y |
Performance
TV tuner integrated | N |
---|---|
OpenGL version | 4.6 |
HDCP | Y |
Dual Link DVI | N |
DirectX version | 12 Ultimate |
Processor
Graphics processor family | NVIDIA |
---|---|
Maximum resolution | 7680 x 4320 |
CUDA | Y |
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Processor boost clock speed | 1755 |
Processor boost clock speed (OC mode) | 1785 |
Graphics processor | GeForce RTX 3060 Ti |
CUDA cores | 4864 |
Memory
Discrete graphics adapter memory | 8 |
---|---|
Graphics adapter memory type | GDDR6 |
Memory bus | 256 |
Memory bandwidth (max) | 14 |
Power
Minimum system power supply | 750 |
---|---|
Supplementary power connectors | 1x 8-pin |
Weight & dimensions
Height | 54 |
---|---|
Width | 143 |
Depth | 301 |
