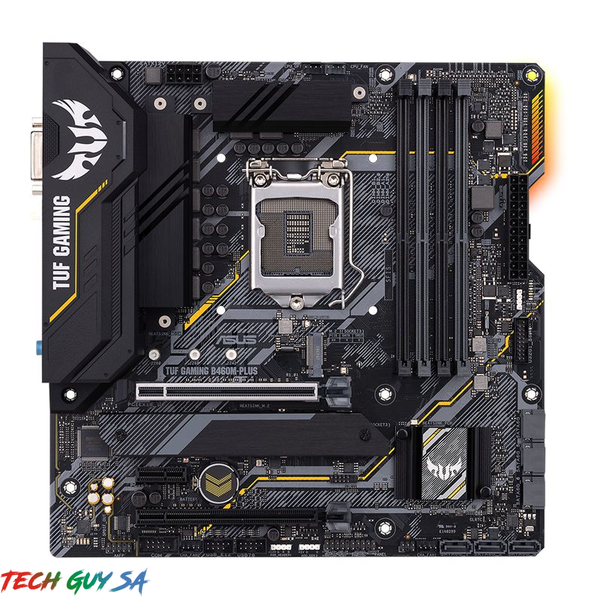

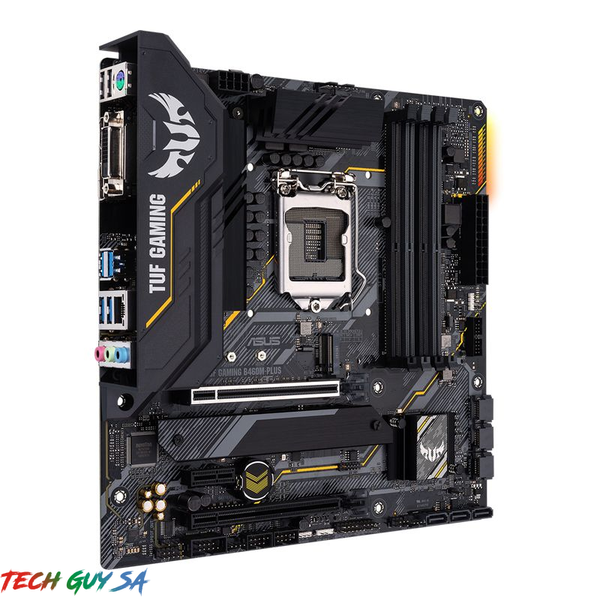

Asus TUF GAMING B460M-PLUS (LGA 1200) Micro ATX Gaming Motherboard – End of Life
SKU / Product is End of Life
Pay R0 When paying via EFT at checkout.
0
People watching this product now!
Description
DURABLE. STABLE. RELIABLE.
TUF Gaming B460M-PLUS distills essential elements of the latest Intel® platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
Intel® B460 (LGA 1200) micro ATX gaming motherboard with dual M.2, 8 power stages, HDMI, DisplayPort, SATA 6Gbps, USB 3.2 Gen 1 port, and Aura Sync RGB Lighting
- Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
- Enhanced power solution: 6+1+1 power stages, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink
- Made for online gaming: Intel® Ethernet Connection I219-V, TUF LANGuard and Turbo LAN technology
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- Aura Sync RGB Lighting: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips
Network
| Wi-Fi | N |
|---|---|
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| Wake-on-LAN ready | Y |
| LAN controller | Intel I219-V |
Weight & dimensions
| Width | 244 |
|---|---|
| Depth | 244 |
Processor
| Processor manufacturer | Intel |
|---|---|
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium |
Memory
| Maximum internal memory | 128 |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Non-ECC | Y |
| Unbuffered memory | Y |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2800,2933 |
Graphics
| Maximum resolution | 4096 x 2304 |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
Features
| Component for | PC |
|---|---|
| Windows operating systems supported | Windows 10 |
| Motherboard form factor | Micro ATX |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 |
| Audio chip | Realtek ALC S1200A |
| Motherboard chipset | Intel B460 |
Packaging content
| Cables included | SATA |
|---|
Expansion slots
| PCI Express x16 (Gen 3.x) slots | 2 |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 1 |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of chassis fan connectors | 2 |
| Number of SATA III connectors | 6 |
| Front panel audio connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Chassis intrusion connector | Y |
| 12V power connector | Y |
| RGB LED pin header | Y |
| Number of COM connectors | 1 |

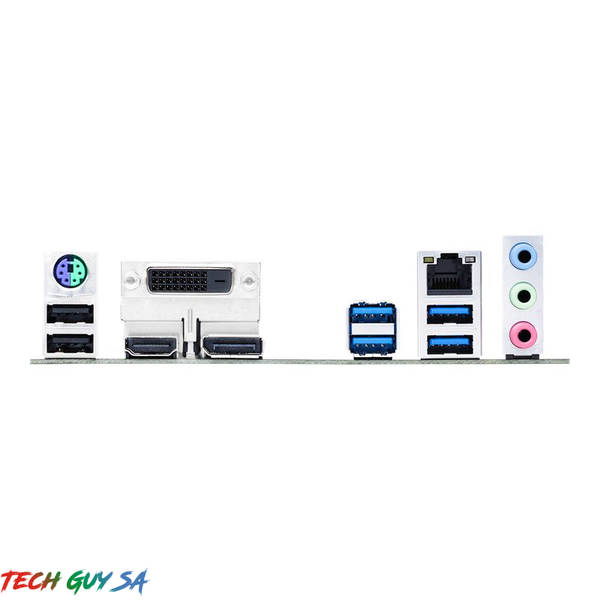

Rear panel I/O ports
| USB 2.0 ports quantity | 2 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4b |
| DisplayPort version | 1.4 |
Storage controllers
| RAID levels | 0,1,5,10 |
|---|---|
| Supported storage drive interfaces | Serial ATA III |
| Supported storage drive types | HDD & SSD |
BIOS
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 128 |
| Clear CMOS jumper | Y |
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 24.6 × 23.1 × 5.1 cm |
