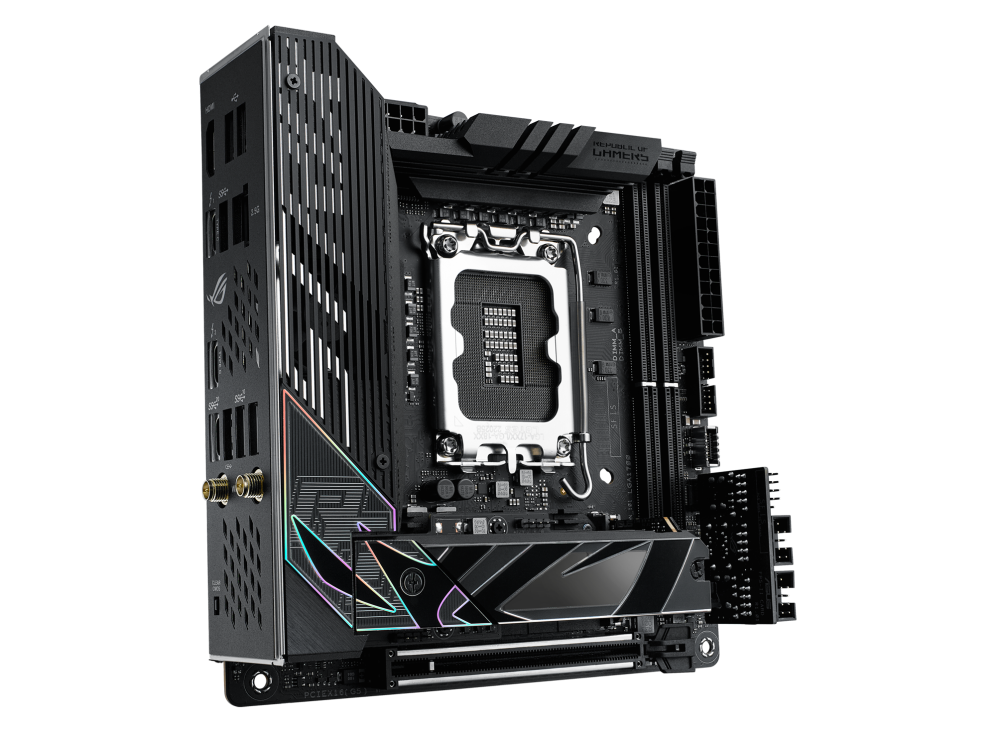

Asus ROG STRIX Z790-I GAMING WIFI
R10,600 Incl VAT
Pay R10,282 When paying via EFT at checkout.
In stock with Supplier
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
0
People watching this product now!
Description

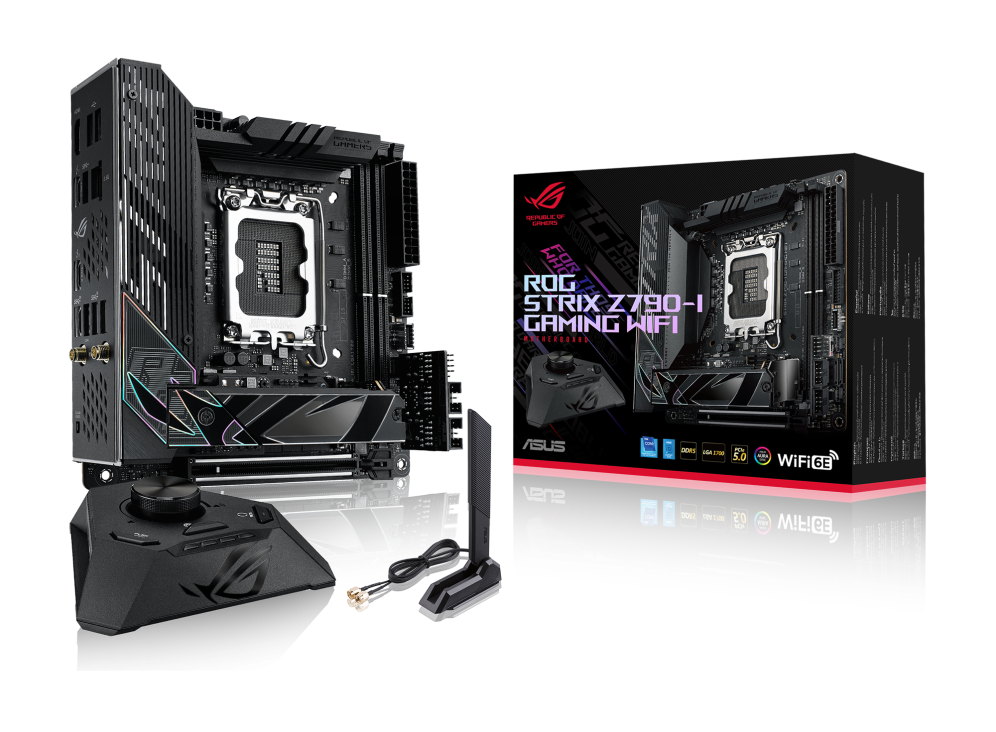

ROG STRIX Z790-I GAMING WIFI

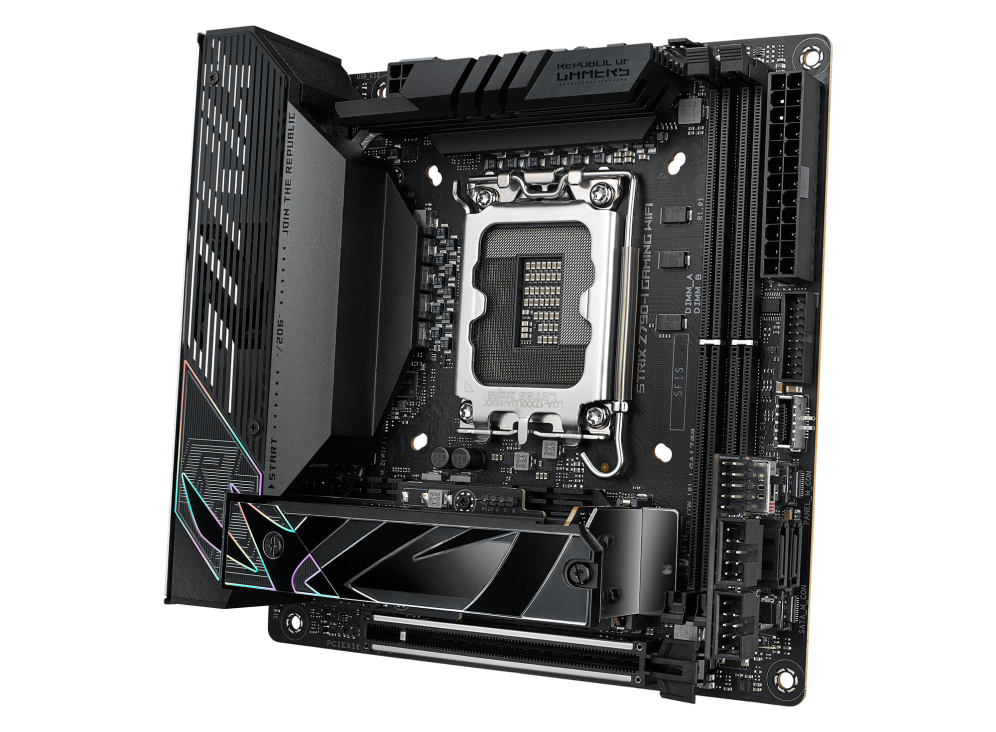

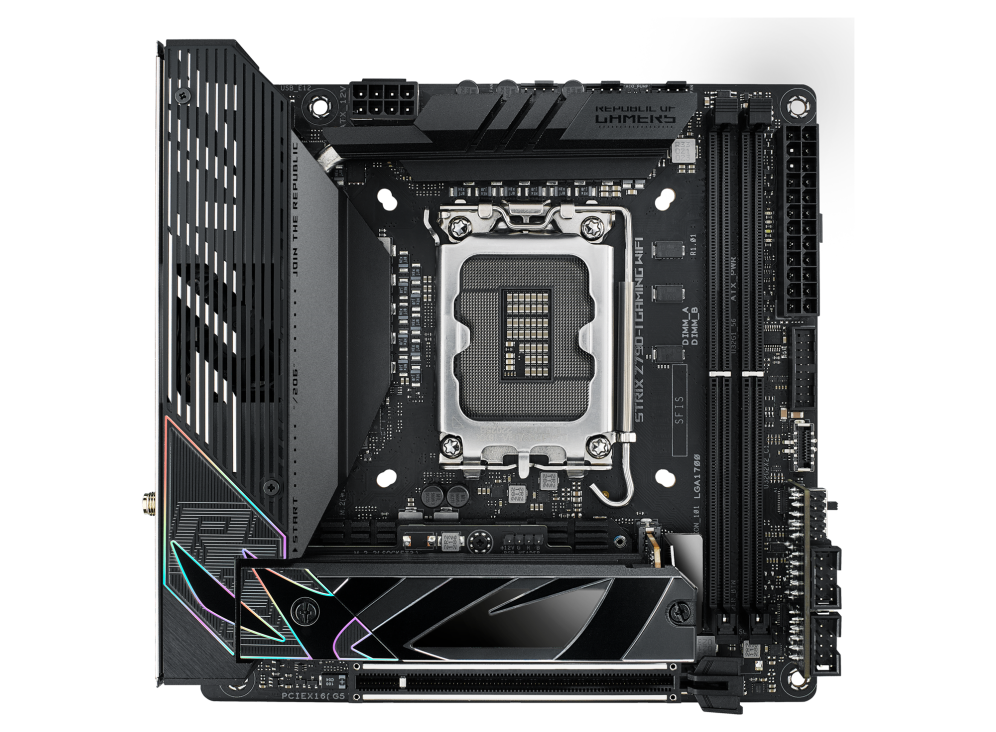

Intel® Z790 LGA 1700 Mini-ITX motherboard with 10 + 1 power stages, DDR5, two M.2 slots, PCIe® 5.0 NVMe® SSD slot, PCIe 5.0 x16 SafeSlot, ROG Strix Hive with AI Overclocking button, Wi-Fi 6E, USB 3.2 Gen 2×2 Type-C® rear I/O port and front-panel connector, two Thunderbolt™ 4 ports, and AI Cooling II
- Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors & 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
- SFF Innovations: ROG Strix Hive moves OC controls and connectivity to the desktop while allowing for a larger audio solution, and the ROG FPS-II Card vertically mounts USB and SATA ports for a better building experience
- Robust Power Solution: 10 + 1 power solution rated for 105A per stage with ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
- Optimized VRM Thermals: Thick heatsinks with integrated I/O cover high-conductivity thermal pads, and connected with an L-shaped heatpipe
- Multi-Layer M.2 Stack: Both a PCIe®5.0 M.2 slot and a PCIe 4.0 M.2 are sandwiched between thick heatsinks in a space-saving and thermally-efficient array
- Abundant Connectivity: Two Thunderbolt™ 4 ports, USB 3.2 Gen 2×2 Type-C® rear I/O port and front-panel connector, four additional USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, and HDMI® 2.1
- High-Performance Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- Immersive Gaming Audio: ALC4050 with ESS® SABRE 9260Q DAC, along with DTS® Sound Unbound and Sonic Studio III
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and one addressable Gen 2 headers
- DIY Friendly Design: AI Overclocking button, M.2 Q-Latch, Pre-mounted I/O shield, FlexKey button, BIOS FlashBack™ button, and Clear CMOS button
- Renowned Software: Bundled 60-day AIDA64 Extreme free trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
CPU
Intel® Socket LGA1700 for 13th Gen Intel®
Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors
Supports Intel® Turbo Boost Technology 2.0
and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support
list.
** Intel® Turbo Boost Max Technology 3.0
support depends on the CPU types.
Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors
Supports Intel® Turbo Boost Technology 2.0
and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support
list.
** Intel® Turbo Boost Max Technology 3.0
support depends on the CPU types.
Chipset
Intel® Z790 Chipset
Memory
2 x DIMM, Max. 96GB, DDR5
7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile
(XMP)
OptiMem II
* We recommend active airflow to ensure beter memory performance
* Supported memory types, data rate(Speed),
and number of DRAM modules vary depending on the CPU and memory configuration,
for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile
(XMP)
OptiMem II
* We recommend active airflow to ensure beter memory performance
* Supported memory types, data rate(Speed),
and number of DRAM modules vary depending on the CPU and memory configuration,
for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
1 x HDMI® port***
2 x Intel® Thunderbolt™ 4 ports (USB
Type-C®) support DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between
CPU types. Please refer to www.intel.com for any updates.
*** Supports 4K@60Hz as specified in HDMI
2.1.
**** VGA resolution support depends on
processors’ or graphic cards’ resolution.
2 x Intel® Thunderbolt™ 4 ports (USB
Type-C®) support DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between
CPU types. Please refer to www.intel.com for any updates.
*** Supports 4K@60Hz as specified in HDMI
2.1.
**** VGA resolution support depends on
processors’ or graphic cards’ resolution.
Expansion Slots
Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
A resolution support depends on processors’
or graphic cards’ resolution.
1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
A resolution support depends on processors’
or graphic cards’ resolution.
Storage
Total supports 2 x M.2 slots and 2 x SATA
6Gb/s ports
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2280 (supports
PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)***
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports****
*** M.2_1 comes from Intel® Z790 Chipset
when switched to PCIe 4.0 x4 mode
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports.
6Gb/s ports
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2280 (supports
PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)***
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports****
*** M.2_1 comes from Intel® Z790 Chipset
when switched to PCIe 4.0 x4 mode
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports.
2 x SATA 6Gb/s ports****
*AMD RAIDXpert2 Technology supports both
NVMe RAID 0/1 and SATA RAID 0/1.
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3
* WiFi 6E 6GHz regulatory may vary between
countries, and function will be ready in Windows 11 or later.
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3
* WiFi 6E 6GHz regulatory may vary between
countries, and function will be ready in Windows 11 or later.
USB
Rear USB (Total 9 ports)
2 x Thunderbolt™ 4 port(s) (2 x USB
Type-C®)
1 x USB 3.2 Gen 2×2 port(s) (1 x USB
Type-C®)
3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 3 ports)
1 x USB 3.2 Gen 2×2 connector supports 1
USB Type-C®
1 x USB 3.2 Gen 1 header(s) support(s) 2
additional USB 3.2 Gen 1 ports
ROG STRIX HIVE (Total 2 ports)
1 x USB 3.2 Gen 2 port ( 1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A)
ROG FPS-II Card (Total 3 ports)
2 x USB 2.0 header(s) additional 3 USB 2.0
ports**
2 x Thunderbolt™ 4 port(s) (2 x USB
Type-C®)
1 x USB 3.2 Gen 2×2 port(s) (1 x USB
Type-C®)
3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 3 ports)
1 x USB 3.2 Gen 2×2 connector supports 1
USB Type-C®
1 x USB 3.2 Gen 1 header(s) support(s) 2
additional USB 3.2 Gen 1 ports
ROG STRIX HIVE (Total 2 ports)
1 x USB 3.2 Gen 2 port ( 1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A)
ROG FPS-II Card (Total 3 ports)
2 x USB 2.0 header(s) additional 3 USB 2.0
ports**
Audio
ROG High Definition Audio CODEC ALC4050
– Supports: Jack-detection
– High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– ROG Hyper-Grounding Technology
– ESS® SABRE9260Q DAC
– Silver-plated audio jacks
– Optical S/PDIF out port & USB Type-C® port with indepent power solution
*** All audio functions on ROG STRIX Z790-I GAMING WIFI are supported through the ROG STRIX HIVE.
– Supports: Jack-detection
– High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– ROG Hyper-Grounding Technology
– ESS® SABRE9260Q DAC
– Silver-plated audio jacks
– Optical S/PDIF out port & USB Type-C® port with indepent power solution
*** All audio functions on ROG STRIX Z790-I GAMING WIFI are supported through the ROG STRIX HIVE.

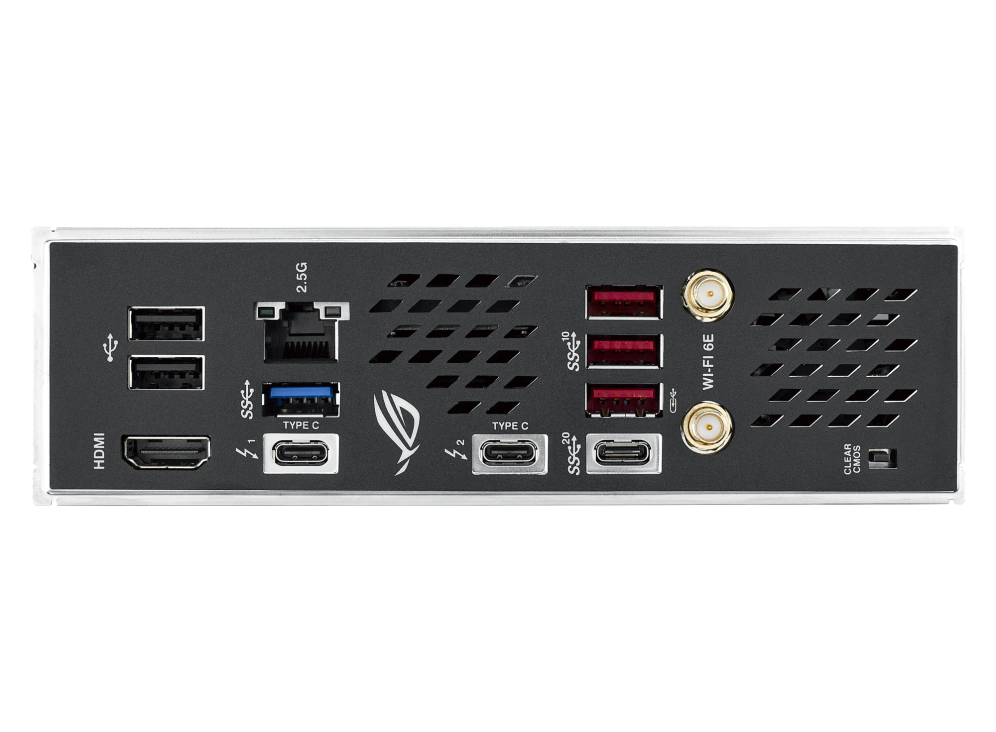

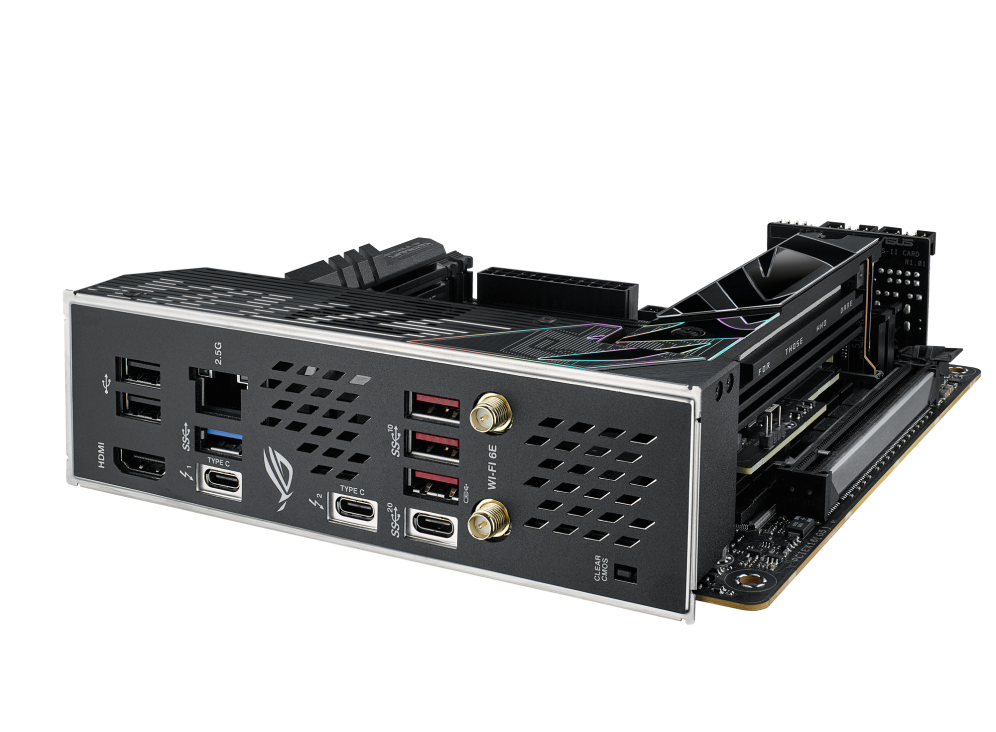

Back Panel I/O Ports
2 x Thunderbolt™ 4 USB Type-C® port(s)
1 x USB 3.2 Gen 2×2 port(s) (1 x USB
Type-C®)
3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
(supports ROG STRIX HIVE)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
1 x Clear CMOS button
1 x USB 3.2 Gen 2×2 port(s) (1 x USB
Type-C®)
3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
(supports ROG STRIX HIVE)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 2×2 connector (support(s)
USB Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s) 2
additional USB 3.2 Gen 1 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Thermal Sensor header
2 x USB Type-C® connectors to Install ROG
FPS-II card

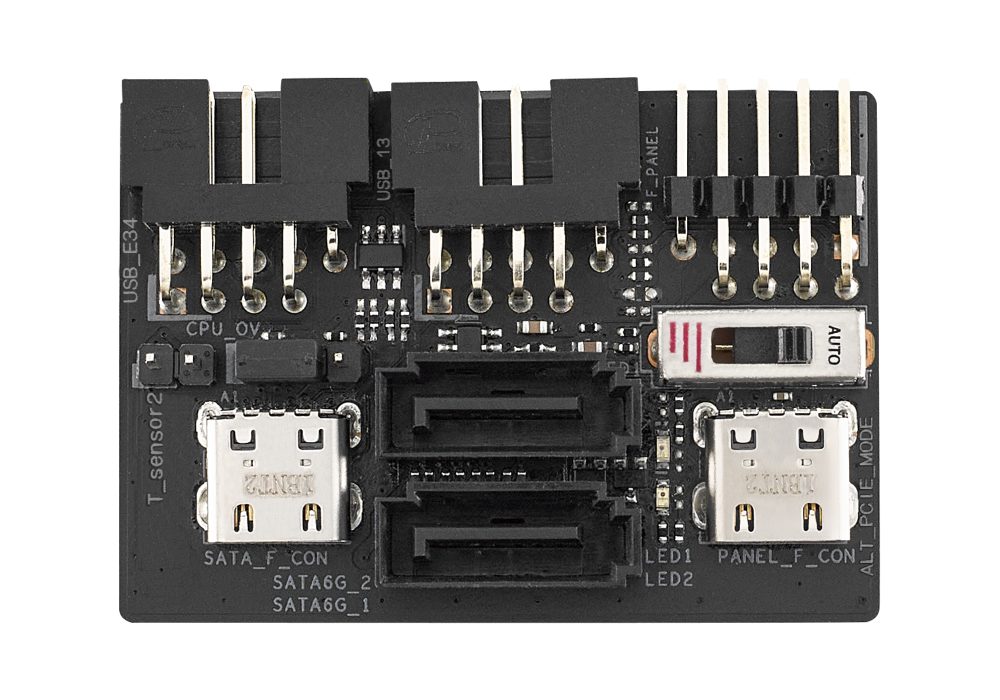

ROG FPS-II card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Thermal Sensor header
1 x Front Panel header
1 x Alternative PCIe Mode switch
2 x USB 2.0 header(s) support(s) additional
3 USB 2.0 ports
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 2×2 connector (support(s)
USB Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s) 2
additional USB 3.2 Gen 1 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Thermal Sensor header
2 x USB Type-C® connectors to Install ROG
FPS-II card
ROG FPS-II card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Thermal Sensor header
1 x Front Panel header
1 x Alternative PCIe Mode switch
2 x USB 2.0 header(s) support(s) additional
3 USB 2.0 ports
Special Features
Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Aura RGB header(s)
– Addressable Gen 2 header(s)

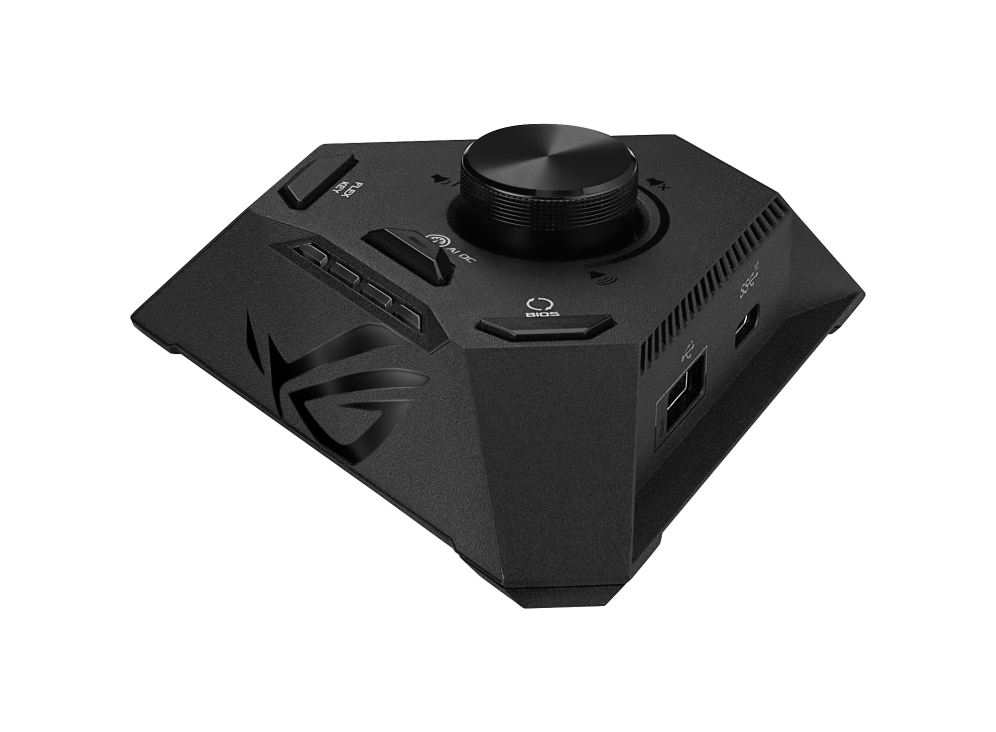

ROG STRIX HIVE
1 x USB Type-C® connects to Motherboard
1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A with BIOS
FlashBack™)
1 x Headphone jack with Mic in
1 x Mic in jack with Optical S/PDIF out
1 x AI OC button
1 x FlexKey button
1 x BIOS FlashBack™ button
1 x Volume Control Knob with Mute Button
Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Aura RGB header(s)
– Addressable Gen 2 header(s)
ROG STRIX HIVE
1 x USB Type-C® connects to Motherboard
1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A with BIOS
FlashBack™)
1 x Headphone jack with Mic in
1 x Mic in jack with Optical S/PDIF out
1 x AI OC button
1 x FlexKey button
1 x BIOS FlashBack™ button
1 x Volume Control Knob with Mute Button
Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
Software Features
ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– Easy Optimization with AI Overclocking
– TPU
– DIGI+ VRM
– Turbo app
– PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– Easy Optimization with AI Overclocking
– TPU
– DIGI+ VRM
– Turbo app
– PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

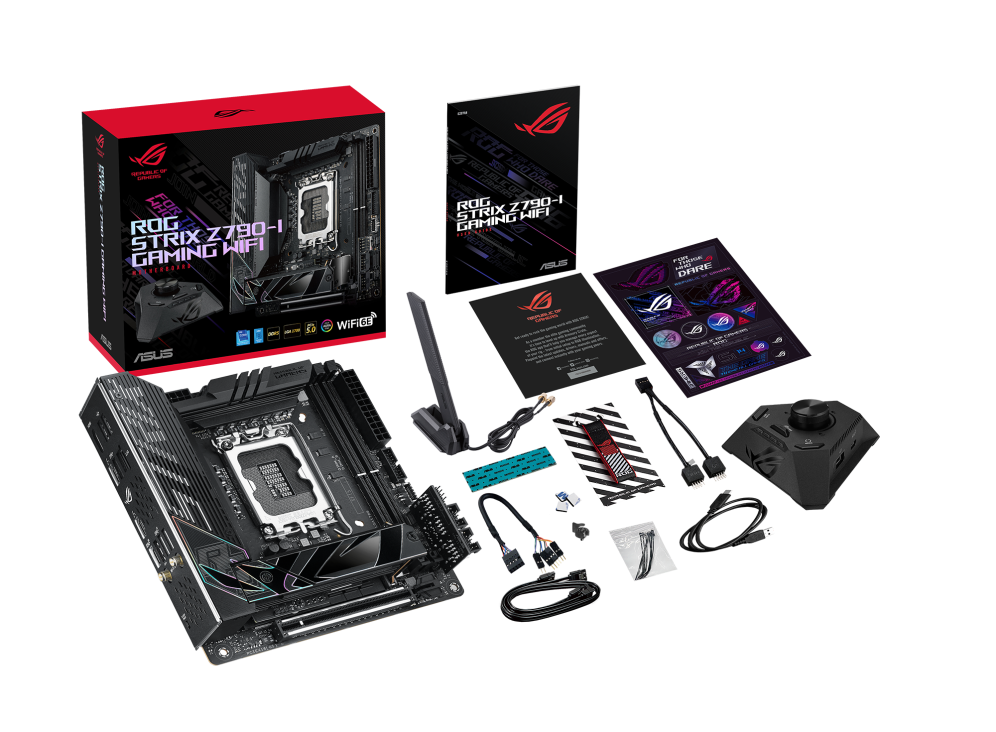

Accessories
Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
ROG FPS-II Card
1 x ROG FPS-II Card
ROG STRIX HIVE
1 x ROG STRIX HIVE
1 x USB Type-C® power connection cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x User guide
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
ROG FPS-II Card
1 x ROG FPS-II Card
ROG STRIX HIVE
1 x ROG STRIX HIVE
1 x USB Type-C® power connection cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
Mini-ITX Form Factor
6.7 inch x 6.7 inch( 17cm x 17cm)
6.7 inch x 6.7 inch( 17cm x 17cm)
Additional information
| Weight | 1.48 kg |
|---|---|
| Dimensions | 22 × 28.5 × 11 cm |
| Brand |
Asus |
| Socket |
LGA 1700 |
| CPU Support |
Intel 12ᵗʰ Generation ,Intel 13th Generation ,Intel 14th Generation |
| Chipset Manufacture |
Intel |
| Chipset Model |
Intel Z790 |
| Form Factor |
Mini ITX |
| Memory Slots Available |
2 Slots |
| Memory Type |
Desktop DDR5 |
| On-Board WiFi |
Yes |
| Reverse Connectors |
No |
| GPU High Powered Connector |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
| Colour |
Black |
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping
Please note that We use either following Couriers
Courierit / Courier Guy / MDS Collivery / DPD Laser / Internet Express / Rhenus / RTT / DCB.
via uAfrica / Suppliers
Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 – R1000 T&C’s Apply.
Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.
Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT) Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB).
Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved: Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals
Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 – R1000 T&C’s Apply.
Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.
Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT) Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB).
Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved: Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals
Reviews
There are no reviews yet.
