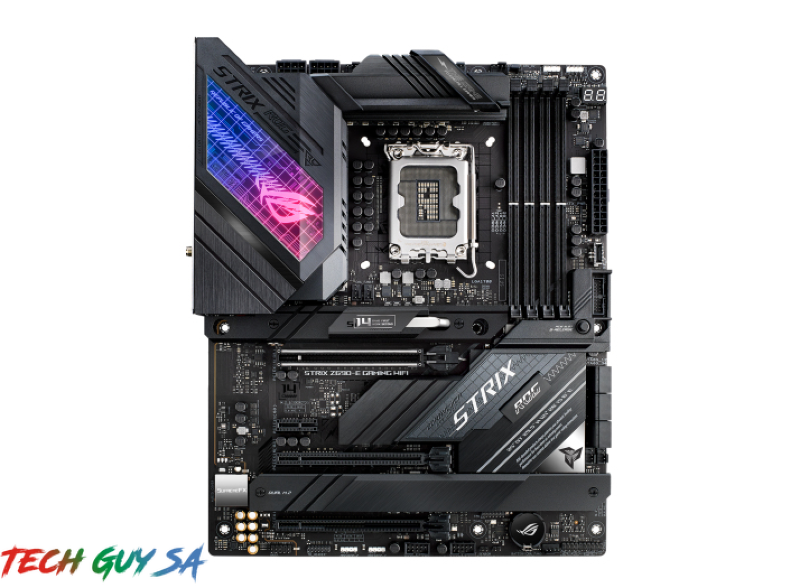

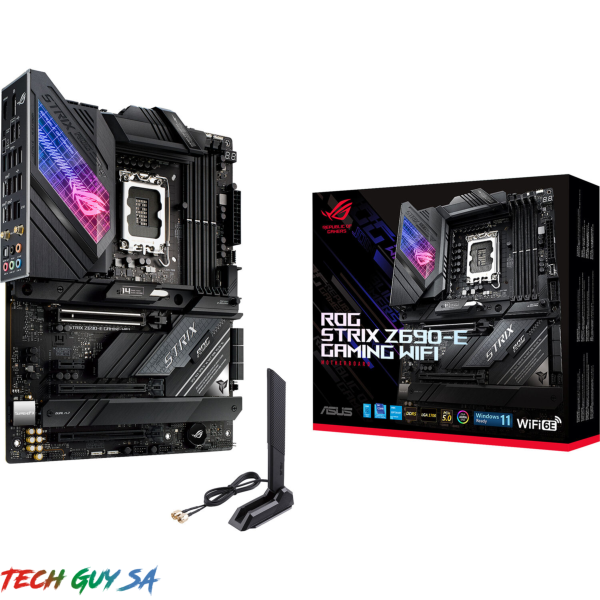

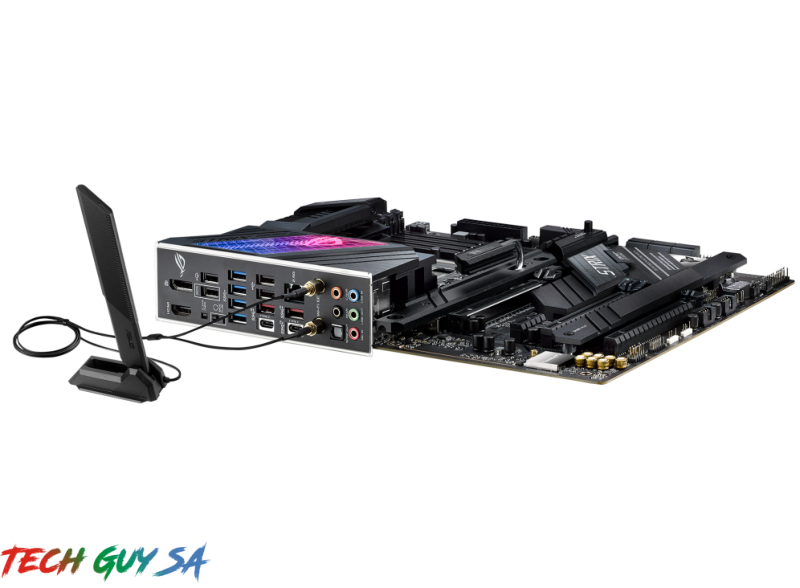

ROG STRIX Z690-E GAMING WIFI
IntelĀ® Z690 LGA 1700 ATX motherboard with PCIeĀ® 5.0, 18+1 power stages, DDR5, Two-Way AI Noise Cancelation, WiFi 6E, IntelĀ® 2.5 Gb Ethernet, five M.2 slots with heatsinks (including two on the bundled ROG Hyper M.2 card), PCIeĀ® 5.0 NVMeĀ® SSD support, M.2 Combo-Sink, M.2 backplate, PCIeĀ® Slot Q-Release, USB 3.2 Gen 2×2 Type-CĀ®, SATA and Aura Sync RGB lighting
- Ready for 12th Gen IntelĀ® Coreā¢, PentiumĀ® Gold and CeleronĀ® processors
- Optimal Power Solution:Ā 18+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design:Ā Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, an M.2 Combo-sink for PCIeĀ® 5.0 M.2 slot and M.2 heatsinks for two M.2 slots
- High-performance Networking:Ā On-board IntelĀ®Ā WiFi 6EĀ (802.11ax) and IntelĀ®Ā 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity:Ā Supports HDMIĀ® 2.1 and DisplayPortā¢ 1.4 output, five M.2 slots (including two on the bundled ROG Hyper M.2 card) plus USB 3.2 Gen 2×2 Type-CĀ®
- Intelligent Control:Ā ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design:Ā PCIeĀ® Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBackā¢ button, and Clr CMOS button
- Unmatched Personalization:Ā ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio:Ā ALC4080 with Savitech SV3H712 amplifier, along with DTSĀ®Ā Sound Unbound and Sonic Studio III
- Renowned Software:Ā Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
ROG STRIX Z690-E GAMING WiFi
ROG Strix Z690-E Gaming WiFi puts 12th Gen IntelĀ® Coreā¢ processors at center stage, with beefed-up power delivery, cooling, cutting-edge connectivity options, and a range of accoutrements that effortlessly propel builds to maximum performance. This series flagship is your ticket to next-level gaming.
Chipset | Intel Z690 |
CPU Socket | LGA 1700 |
USB | 1 x USB 3.2 Gen 2×2 Type-C 2 x USB 3.1 / USB 3.2 Gen 2 Type-A 1 x USB 3.1 / USB 3.2 Gen 2 Type-C 4 x USB 3.1 / USB 3.2 Gen 1 Type-A 4 x USB 2.0 Type-A |
Thunderbolt | None |
Display | 1 x HDMI 2.1 1 x DisplayPort 1.4 |
Audio | 5 x 3.5 mm 1 x S/PDIF |
Ethernet / Controller | 1 x Intel I225-V 2.5Gigabit |
Wi-Fi Antenna | 2 x Connector |
Buttons | BIOS Flashback, Clear CMOS |
Memory Slots | 4 x 288-Pin |
Memory Support | DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz |
Maximum Capacity | 128 GB |
Channel Architecture | Dual Channel |
ECC Support | Non-ECC Unbuffered |
SATA | 6 x SATA III |
M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 5.0 x4) 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) |
U.2 | None |
DIMM.2 | 2 Slots Supporting M Key 2242, 2260, 2280, 22110 PCIe 5.0 x4, PCIe 4.0 x4, PCIe 3.0 x4 |
Optane Memory Support | No |
RAID Support | RAID 0, 1, 5, 10 |
Expansion Slots | 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 |
USB | 1 x USB 3.2 Gen 2×2 Header (Supports 1 USB Type-C Port) 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) 2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
Multi-GPU Support | None |
Air Cooling | 2 x 4-Pin CPU 5 x 4-Pin System 1 x Thermal Sensor |
Liquid Cooling | 1 x 4-Pin Pump |
Power Connectors | 1 x 24-Pin Mainboard 2 x 8-Pin ATX |
Security | Chassis Intrusion, TPM Header |
LED Header | 4 x RGB |
Audio | 1 x Speaker |
Diagnostics | CPU Overclock |
Add-On | 1 x Thunderbolt Card Header |
ROM | 256 Mb |
I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.2 Gen 2×2 |
Audio Codec | SupremeFX ALC4080 (7.1-Channel) |
Bluetooth | 5.2 |
Wi-Fi | Wi-Fi 6E (802.11ax) (MU-MIMO) |
Supported Operating Systems | Windows 10 (64-Bit) Windows 11 (64-Bit) |
Form Factor | ATX |
Dimensions | 12.0 x 9.6″ / 30.5 x 24.4Ā cm |
