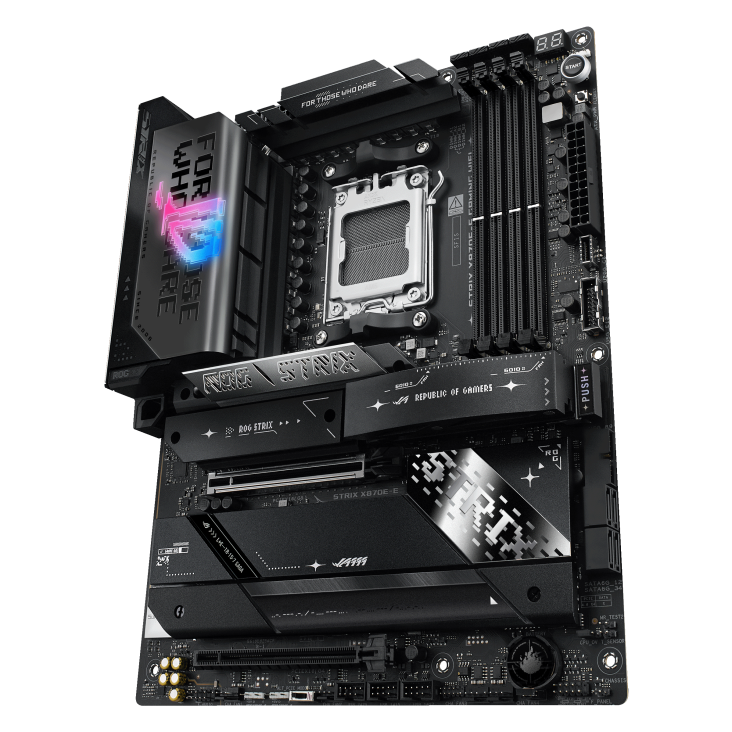

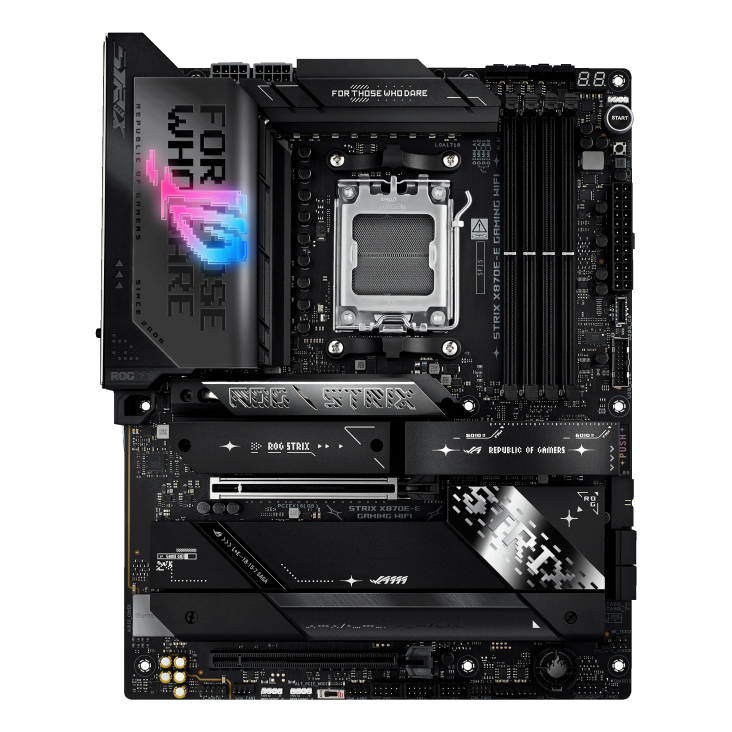

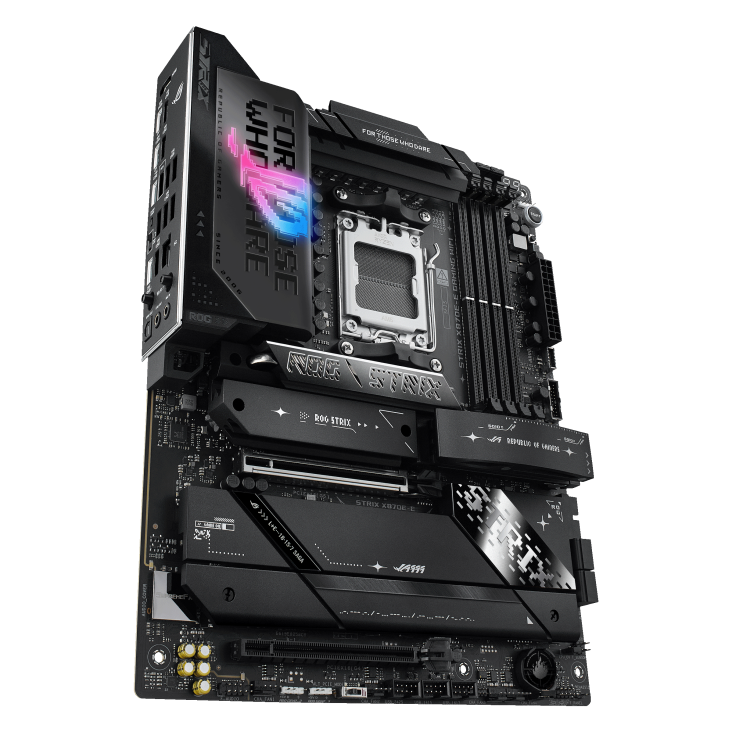

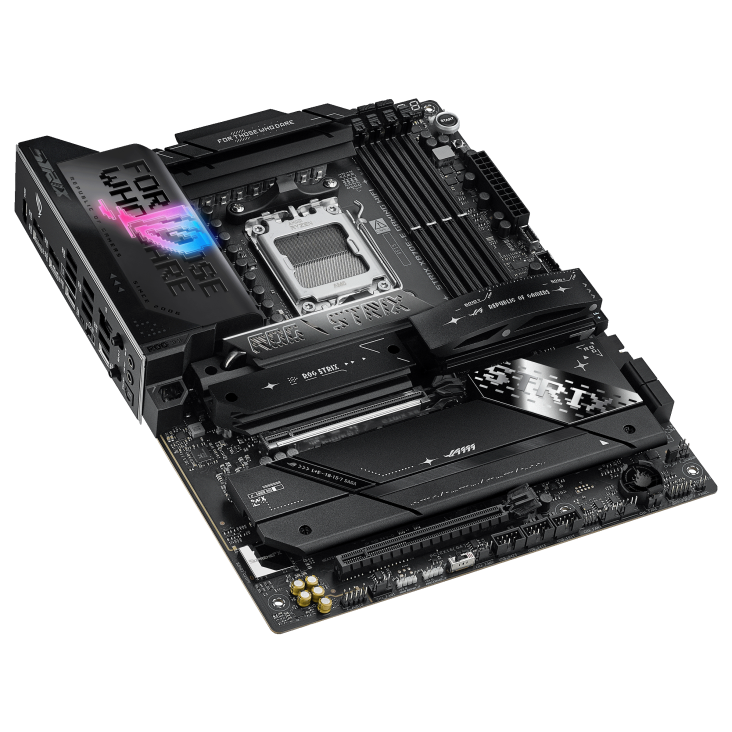

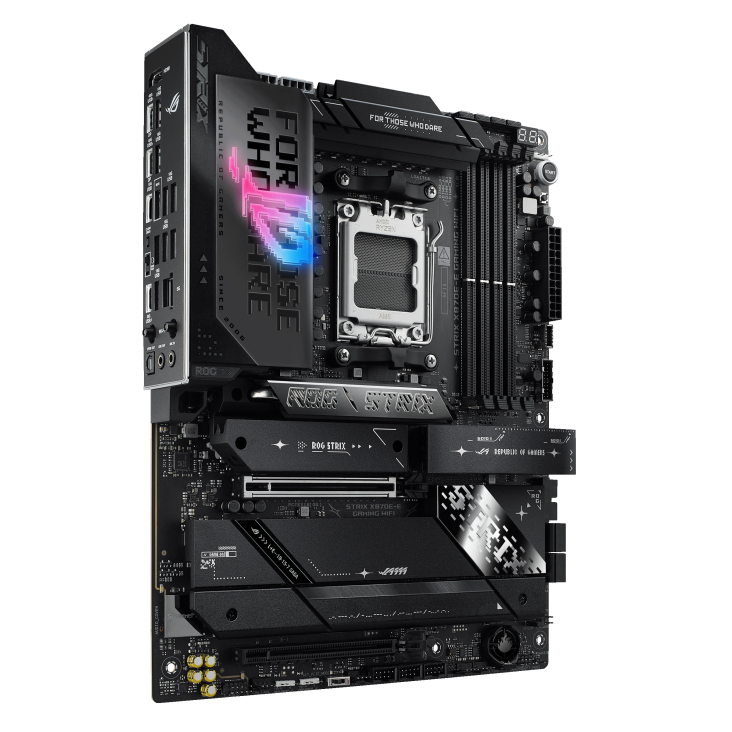

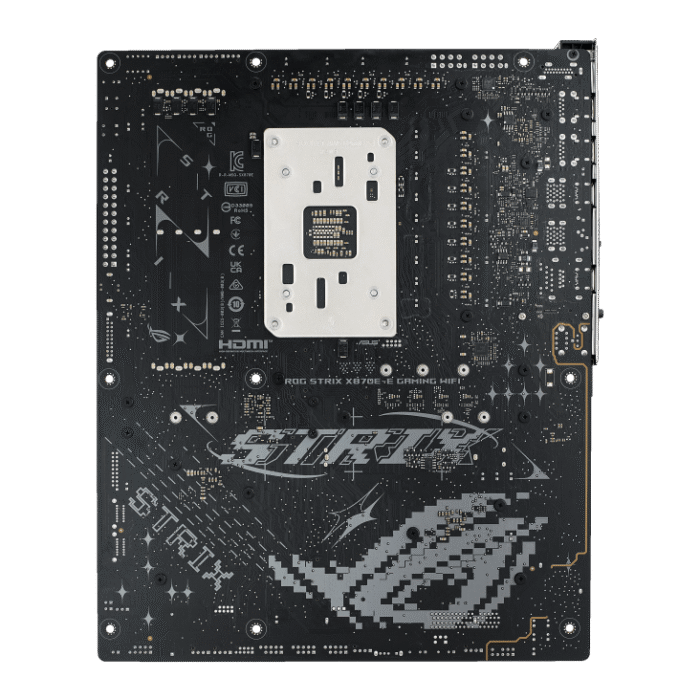

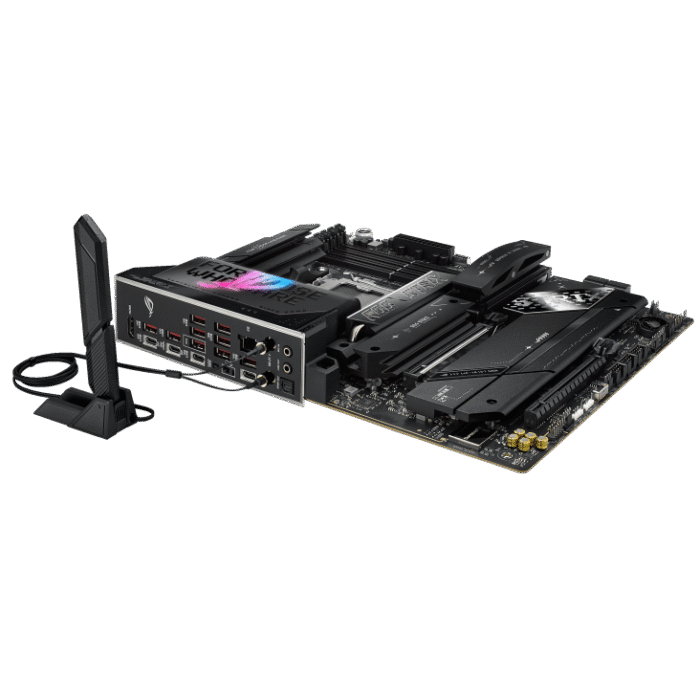

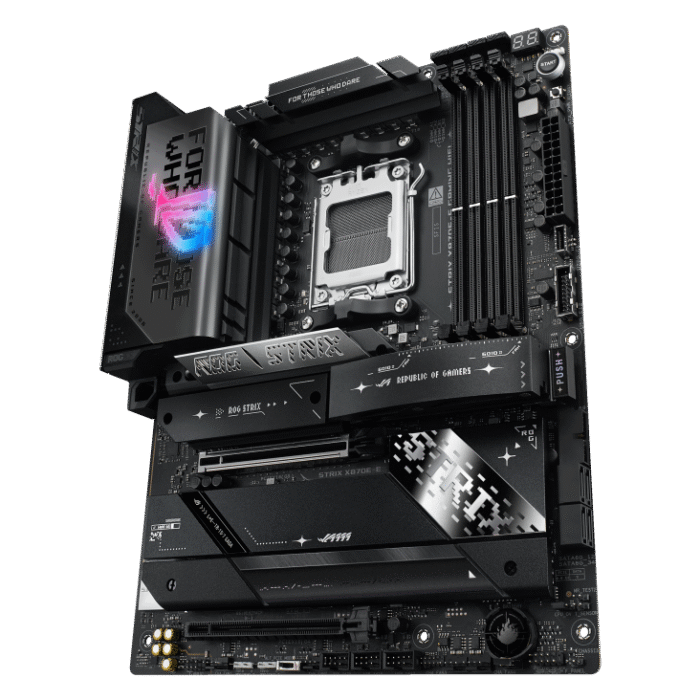

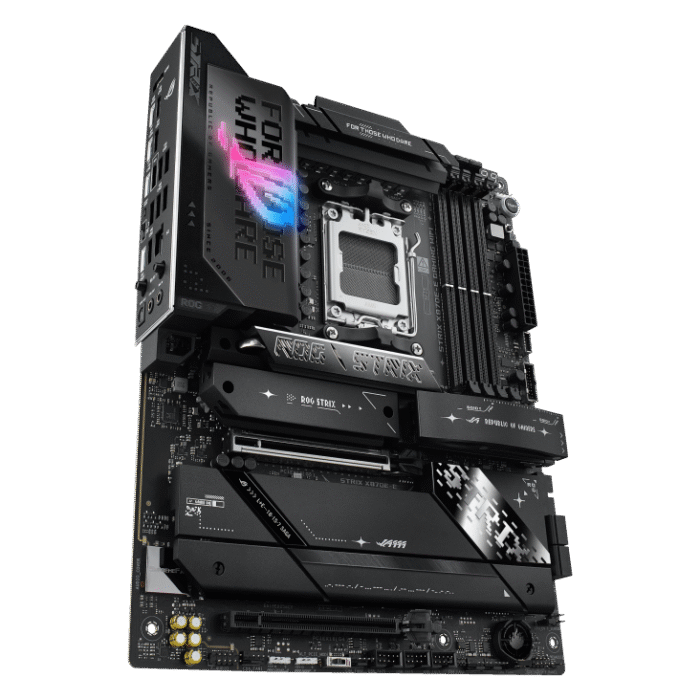

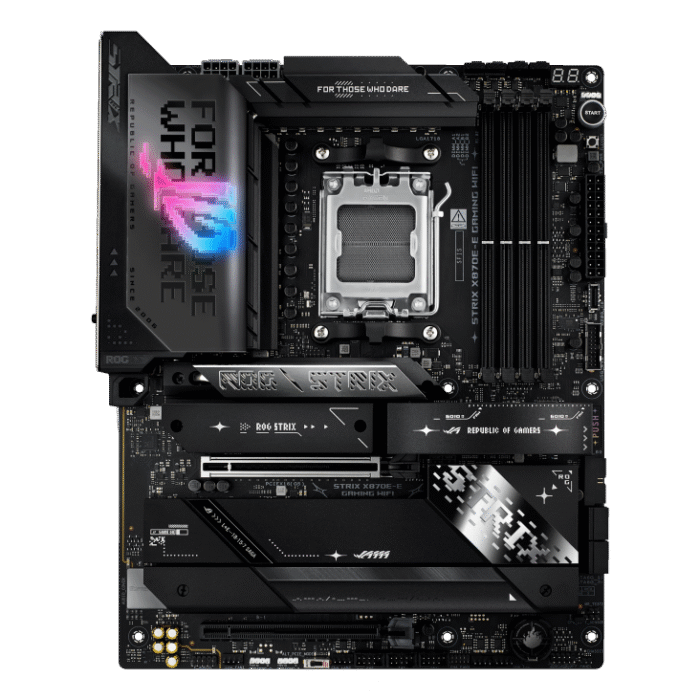

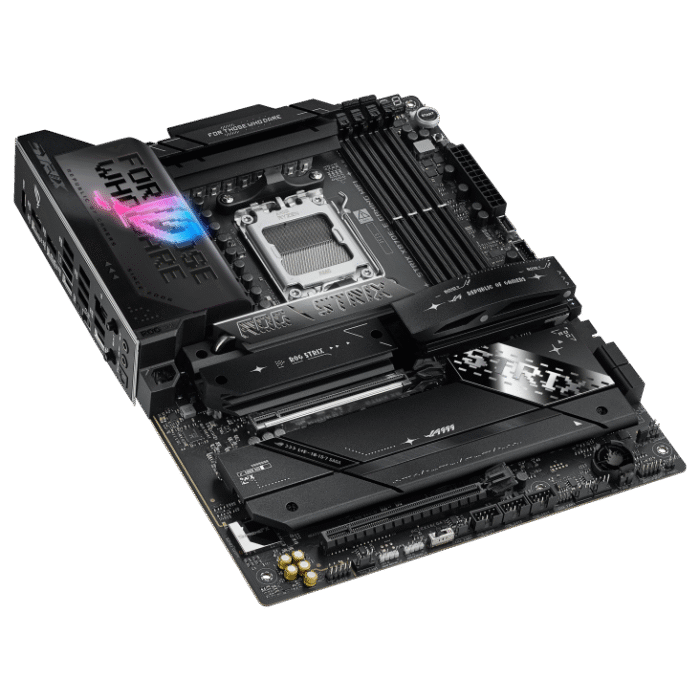

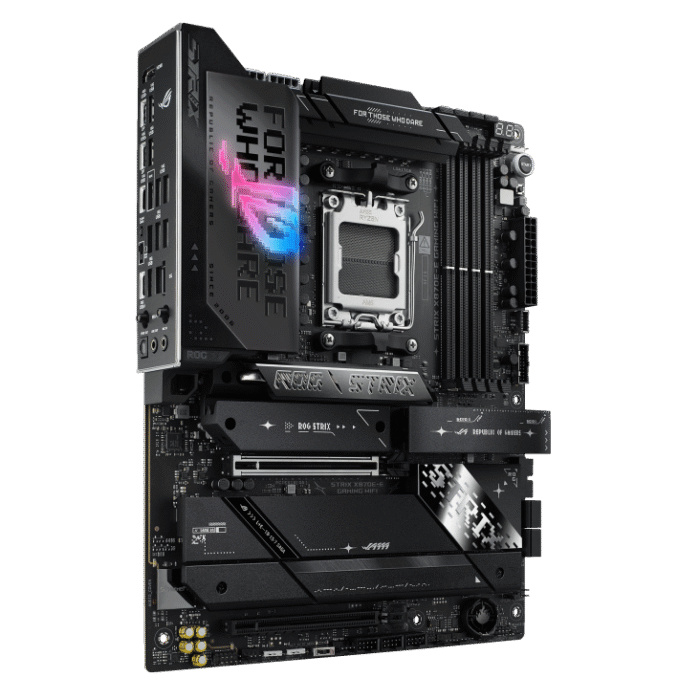

Asus ROG STRIX X870E-E GAMING WIFI AM5 Motherboard
R12,400 Incl VAT
Pay R12,028 When paying via EFT at checkout.
In stock with Supplier
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
0
People watching this product now!
Description
ROG STRIX X870E-E
gaming wifi
The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe® 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4® Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
Model
ROG STRIX X870E-E GAMING WIFI
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset
AMD X870E
Memory
4 x DIMM slots, max. 192GB, DDR5
Supports up to
8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
8400+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Supports up to
8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
8400+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)***
M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)***
AMD X870E Chipset
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen™ 9000series CPU.
** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
*** M.2_2 & M.2_3 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)***
M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)***
AMD X870E Chipset
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen™ 9000series CPU.
** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
*** M.2_2 & M.2_3 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.
Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.”
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.”
USB
Rear USB (Total 13 ports)
2 x USB4® (40Gbps) ports(2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)**
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)
Front USB (Total 11 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
* USB Type-C® power delivery output: 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
2 x USB4® (40Gbps) ports(2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)**
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)
Front USB (Total 11 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
* USB Type-C® power delivery output: 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– Audio Shielding
– Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– Audio Shielding
– Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

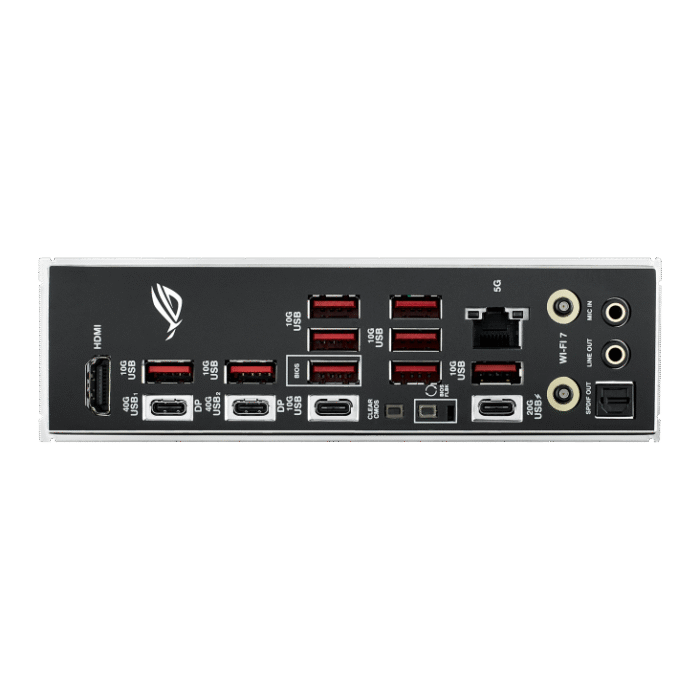

Back Panel I/O Ports
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features
Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Code
– Q-Dashboard
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsinks
– M.2 heatsink backplate
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 headers
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Code
– Q-Dashboard
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsinks
– M.2 heatsink backplate
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 headers
Software Features
ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
ASUS Driver Hub
ASUS GlideX
TurboV Core
USB Wattage Watcher
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI
BIOS EZ Mode
– ASUS
MyHotkey
Dynamic OC Switcher
FlexKey
– ROG CPU-Z
– Dolby Atmos
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
ASUS Driver Hub
ASUS GlideX
TurboV Core
USB Wattage Watcher
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI
BIOS EZ Mode
– ASUS
MyHotkey
Dynamic OC Switcher
FlexKey
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

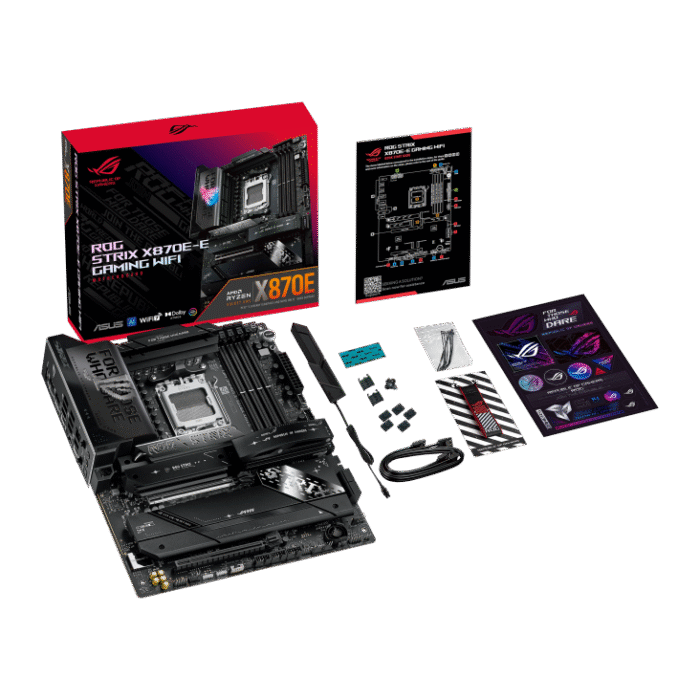

Accessories
Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
5 x M.2 Rubbers
Documentation
1 x Quick start guide
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
5 x M.2 Rubbers
Documentation
1 x Quick start guide
Operating System
Windows® 11 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Additional information
| Weight | 2.06 kg |
|---|---|
| Brand |
Asus |
| Socket |
AM5 |
| CPU Support |
AMD Ryzen 7000 Series ,AMD Ryzen 8000 Series ,AMD Ryzen 9000 Series |
| Chipset Manufacture |
AMD |
| Chipset Model |
AMD X870E |
| Form Factor |
ATX |
| Memory Slots Available |
4 Slots |
| Memory Type |
Desktop DDR5 |
| On-Board WiFi |
Yes |
| Reverse Connectors |
No |
| GPU High Powered Connector |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
| Colour |
Black |
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping
Please note that We use either following Couriers
Courierit / Courier Guy / MDS Collivery / DPD Laser / Internet Express / Rhenus / RTT / DCB.
via uAfrica / Suppliers
Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 – R1000 T&C’s Apply.
Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.
Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT) Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB).
Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved: Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals
Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 – R1000 T&C’s Apply.
Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.
Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT) Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB).
Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved: Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals
Warranty
3 Year's Warranty T&C's Apply
Reviews
There are no reviews yet.
