Asus ROG STRIX B760-I GAMING WIFI
Pay R0 When paying via EFT at checkout.

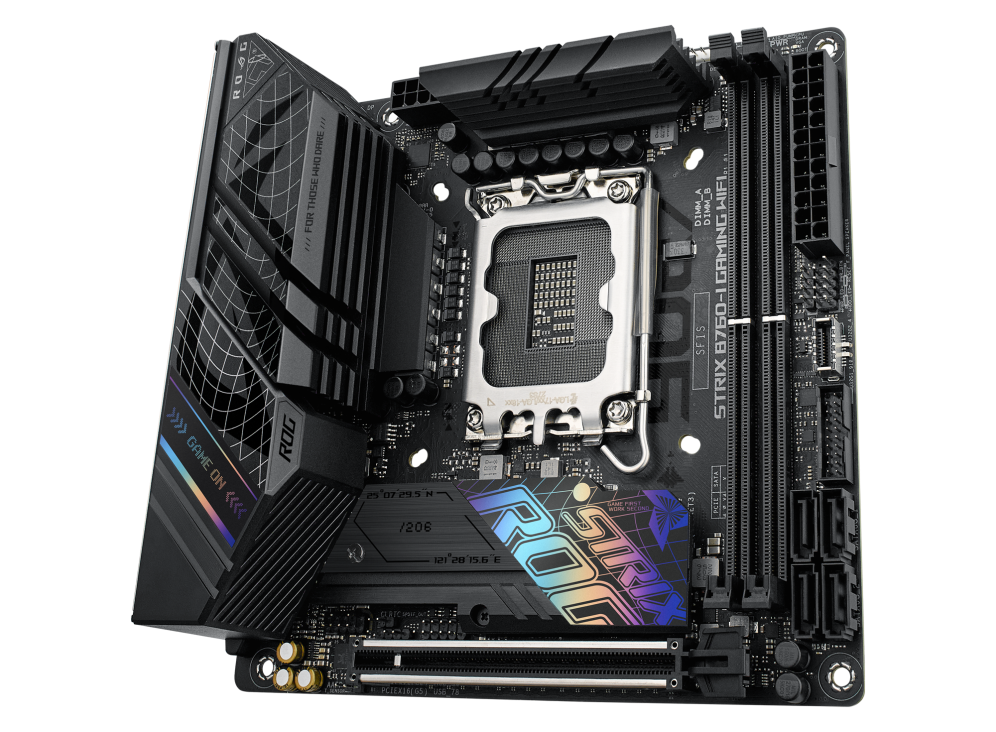

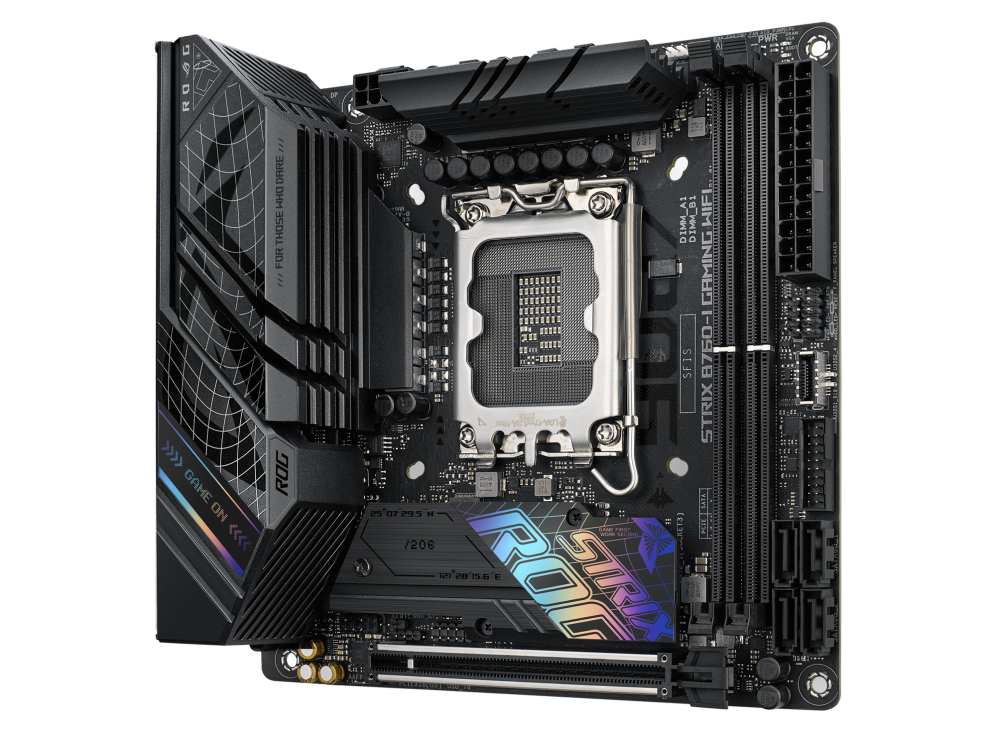

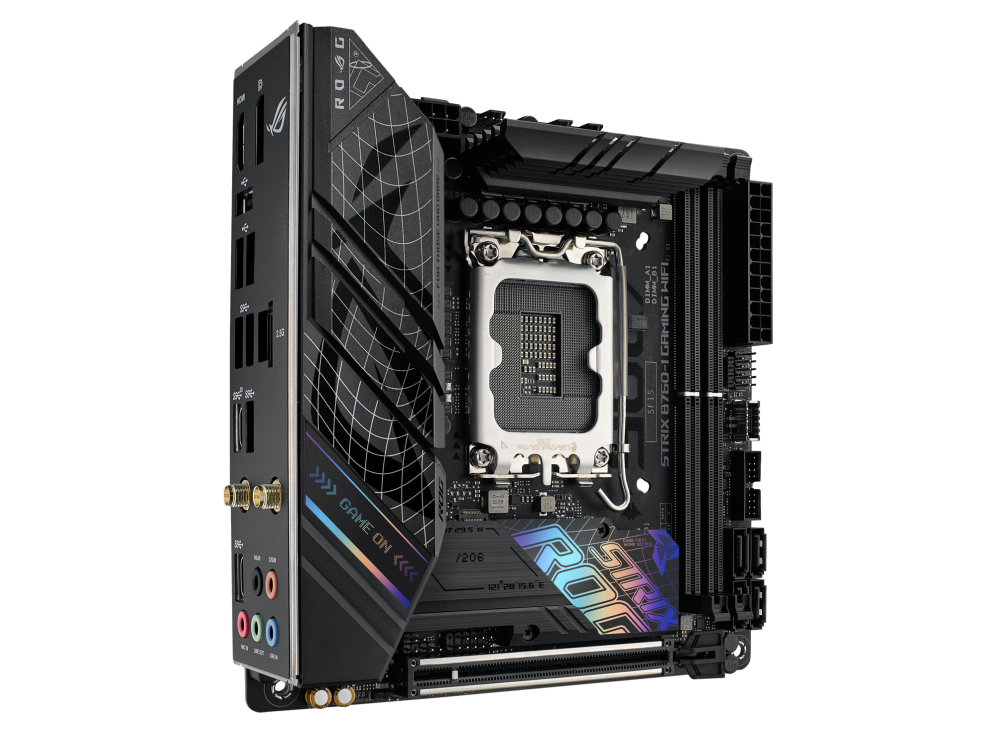

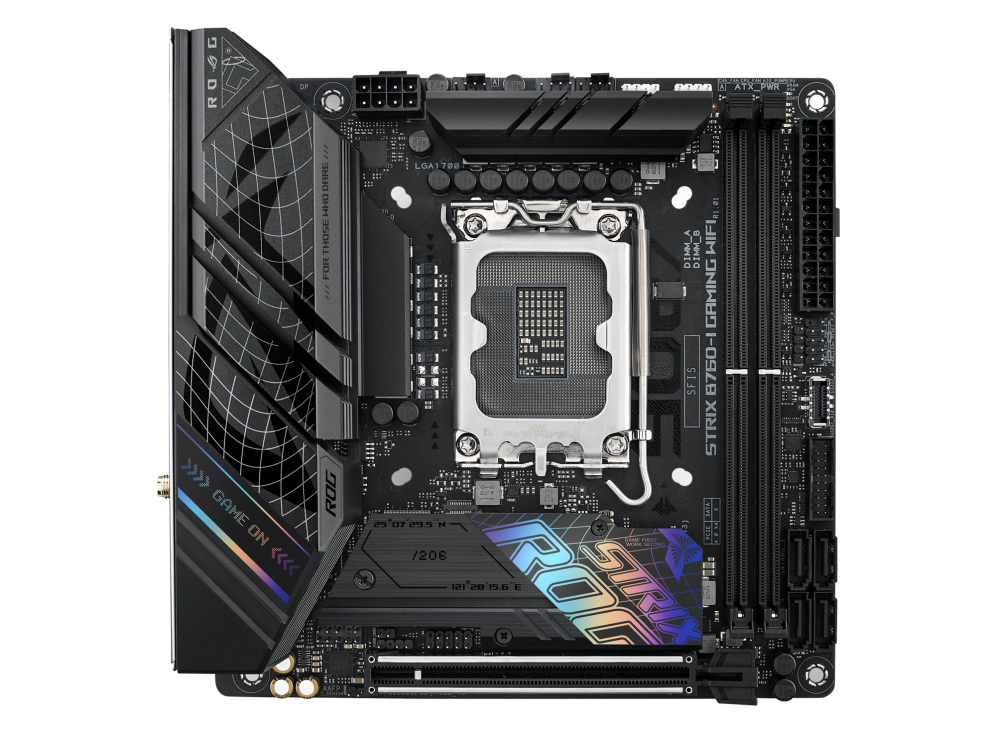

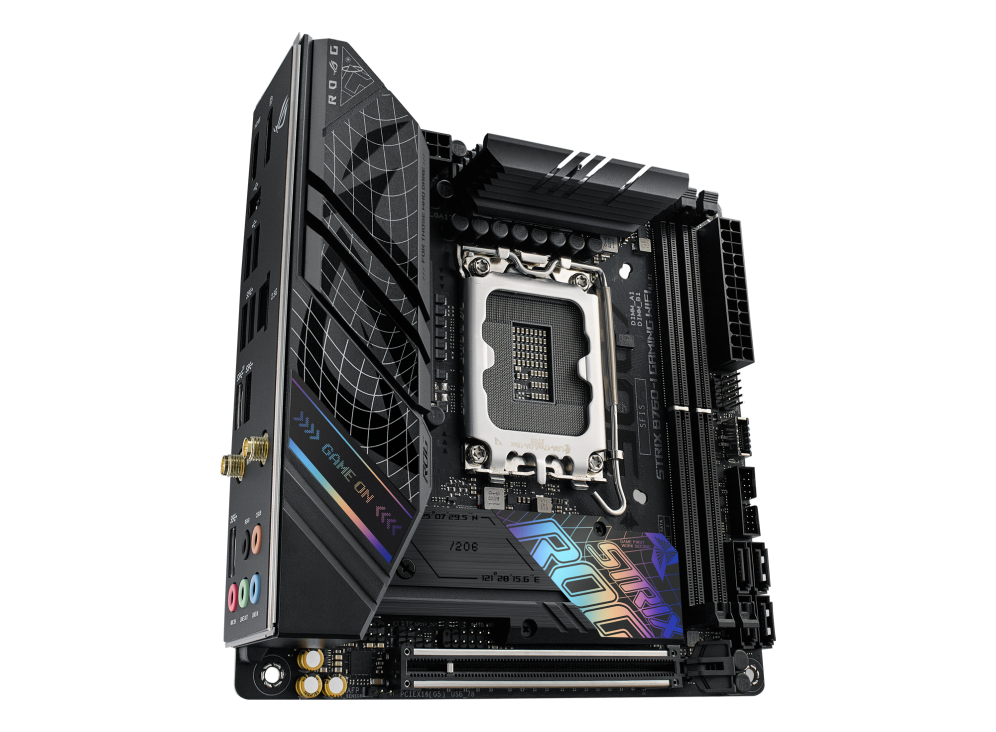

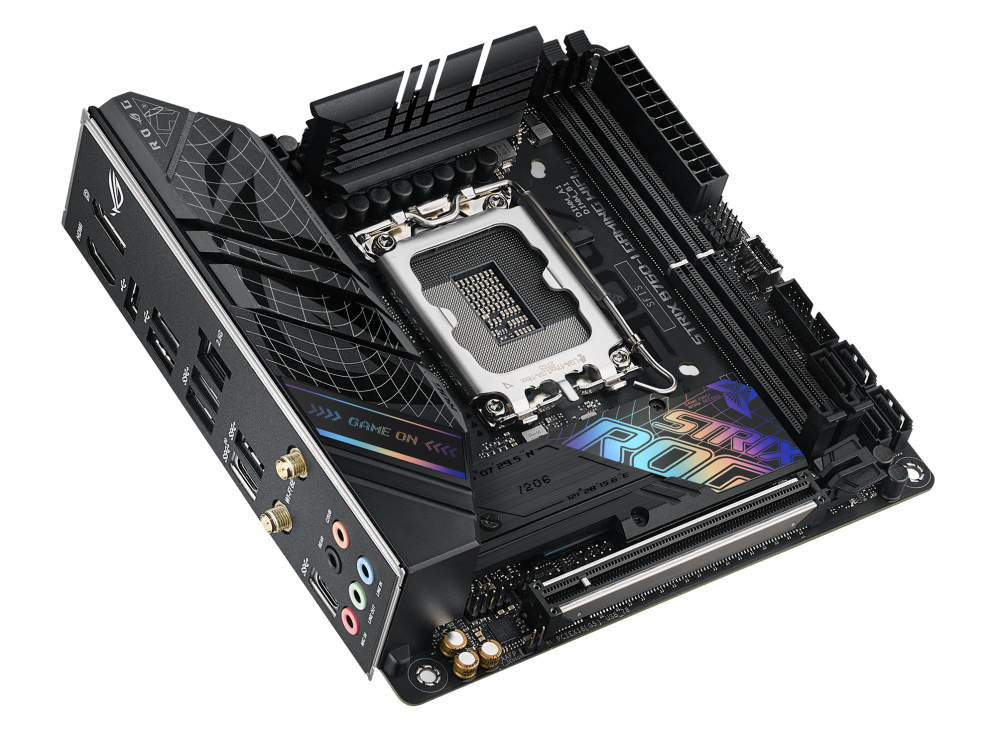

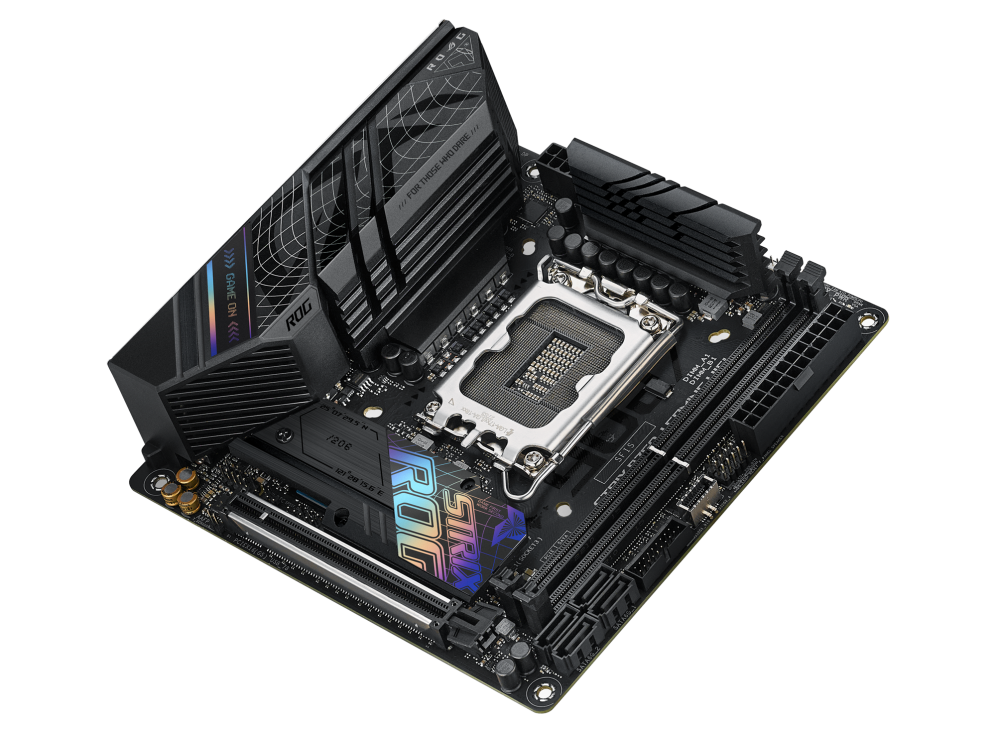

ROG STRIX B760-I GAMING WIFI
IntelĀ® B760 LGA 1700 mini-ITX motherboard with 8 + 1 power stages rated to 80A, DDR5 up to 7600 MT/s, PCIe 5.0 x16 SafeSlot, two PCIe 4.0 M.2 slots, WiFi 6E, 2.5G Ethernet, USB 3.2 Gen 2×2 Type-CĀ®, ASUS Enhanced Memory Profiles (AEMP) II, Two-Way AI Noise Cancelation, and Aura Sync RGB lighting
- IntelĀ® LGA 1700 socket: Ready for 13th Gen IntelĀ® Coreā¢, and 12th Gen IntelĀ® Coreā¢, PentiumĀ® Gold, and CeleronĀ® Processors
- Robust Power Solution: 8 + 1 power stages rated for 80A, ProCool power connector, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors
- Optimized VRM Thermals: Thick heatsinks bridged to the VRM with high-conductivity thermal pads, and the larger one integrated with the I/O cover for added surface area
- Ample M.2 Support: Two PCIe 4.0 M.2 slots, one with a beefy heatsink, and the other strategically placed on the rear to save space
- Next-Gen Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard
- Abundant Connectivity: USB 3.2 Gen 2×2 Type-CĀ® rear I/O port, seven additional USB ports, USB 3.2 Gen 2 front-panel connector, PCIe 5.0 x16 SafeSlot, HDMIĀ® 2.1, and DisplayPortā¢4
- Intelligent Control: ASUS-exclusive AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY-Friendly Design: Pre-mounted I/O shield, M.2 Q-Latch, and Q-LED
- Industry-leading Gaming Audio: S1220A codec with Savitech SV3H712 amplifier, along with DTSĀ® Sound Unboundā¢ and Sonic Studio III
- Renowned Software: Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
CPU
IntelĀ® Socket LGA1700 for 13th Gen IntelĀ® Coreā¢ Processors & 12th Gen IntelĀ® Coreā¢, PentiumĀ® Gold and CeleronĀ® Processors*
Supports IntelĀ® Turbo Boost Technology 2.0 and IntelĀ® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** IntelĀ® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
IntelĀ® B760 Chipset
Memory
2 x DIMM, Max. 96GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports IntelĀ® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
1 x DisplayPort**
1 x HDMIĀ®***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in DisplayPort 1.4
*** Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
IntelĀ® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
IntelĀ® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
IntelĀ® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* IntelĀ® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x IntelĀ® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
BluetoothĀ® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-CĀ®)
4 x USB 3.2 Gen 1 ports Ā (3 x Type-A +1 x USB Type-CĀ®)
3 x USB 2.0 ports Ā (3 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-CĀ®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Premium audio capacitors
* Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

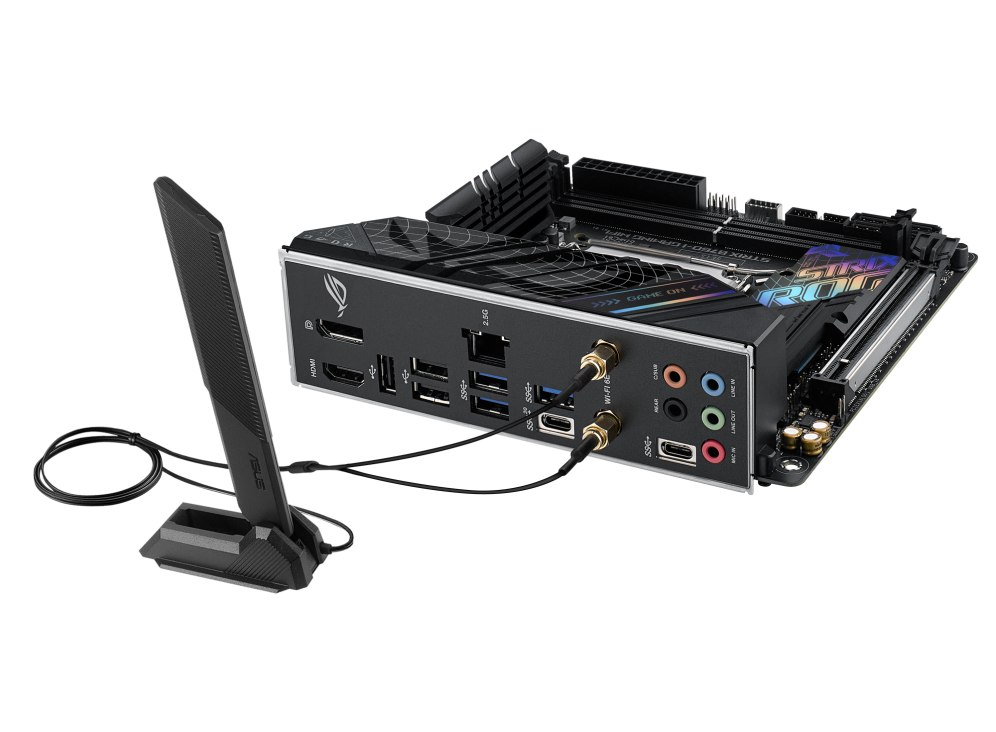

Back Panel I/O Ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-CĀ®)
4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-CĀ®)
3 x USB 2.0 ports (3 x Type-A)
1 x HDMIĀ® port
1 x DisplayPort
1 x Wi-Fi Module
1 x IntelĀ® 2.5Gb Ethernet
5 x Audio jacks
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chasis Fan header
1 x 4-pin AIO Pump header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-CĀ®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 headers support additional 2 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features
Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
ASUS EZ DIY
-CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– Aura RGB header
– Addressable Gen 2 header
Software Features
ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTSĀ® Sound Unbound
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– AURA Creator
– AURA Sync
– Fan Xpert 4
– Two-Way AI Noise Cancelation
– Power Saving
AI Suite 3
– Performance And Power Saving Utility
PC Cleaner
DIGI+ VRM
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
MemTest86
BIOS
Manageability
WOL by PME, PXE

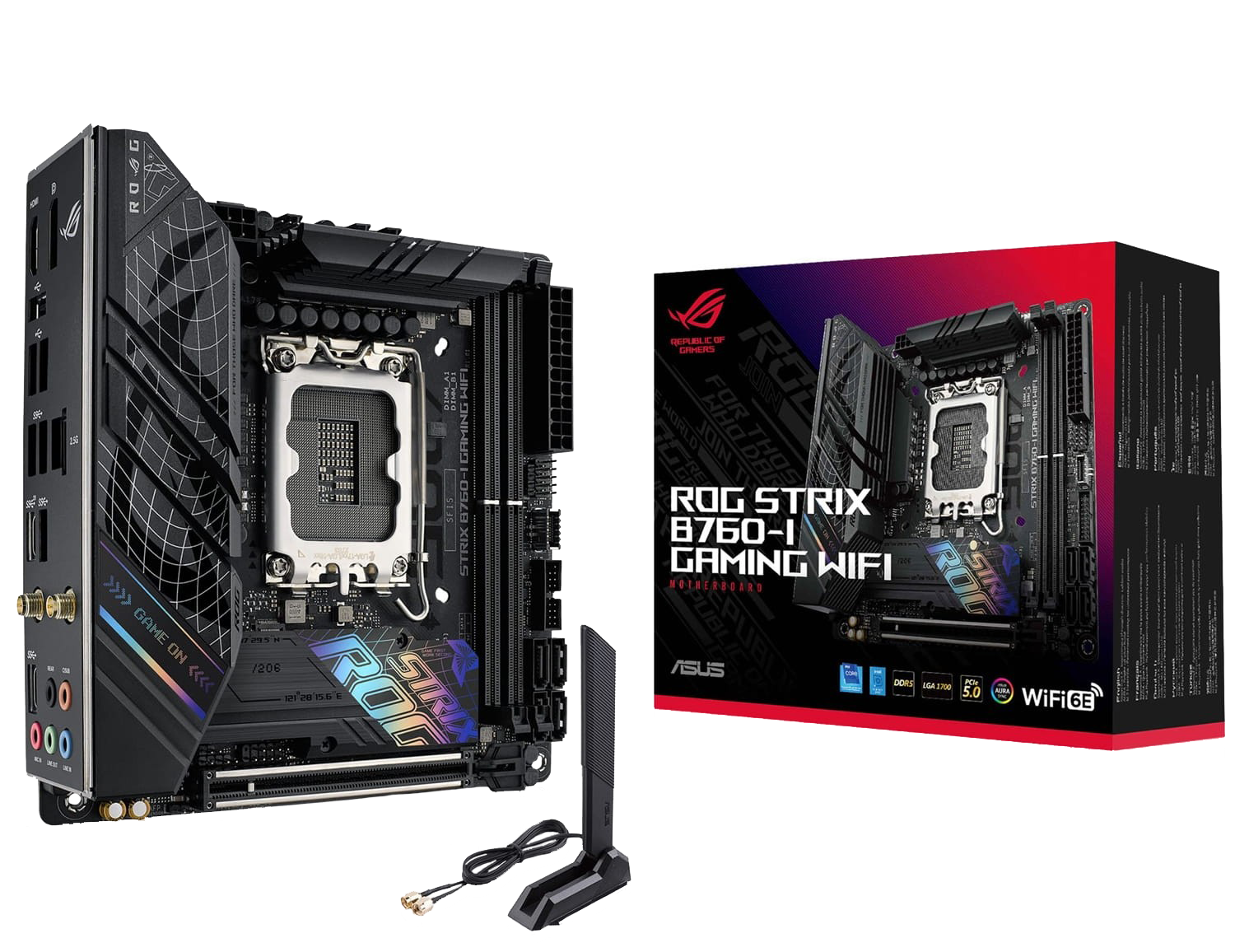

Accessories
Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
1 x M.2 bracket
1 x ROG key chain
1 x ROG STRIX stickers
1 x ROG STRIX thank you card
Documentation
1 x User manual
Operating System
Form Factor
Mini-ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
| Brand |
Asus |
|---|---|
| Socket |
LGA 1700 |
| CPU Support |
Intel 12įµŹ° Generation ,Intel 13th Generation ,Intel 14th Generation |
| Chipset Manufacture |
Intel |
| Chipset Model |
Intel B760 |
| Form Factor |
Mini ITX |
| Memory Slots Available |
2 Slots |
| Memory Type |
Desktop DDR5 |
| On-Board WiFi |
Yes |
| Reverse Connectors |
No |
| GPU High Powered Connector |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
| Colour |
Black |
