Asus ROG STRIX B760-A GAMING WIFI D4 – End of Life
SKU / Product is End of Life
Pay R0 When paying via EFT at checkout.
0
People watching this product now!
Description

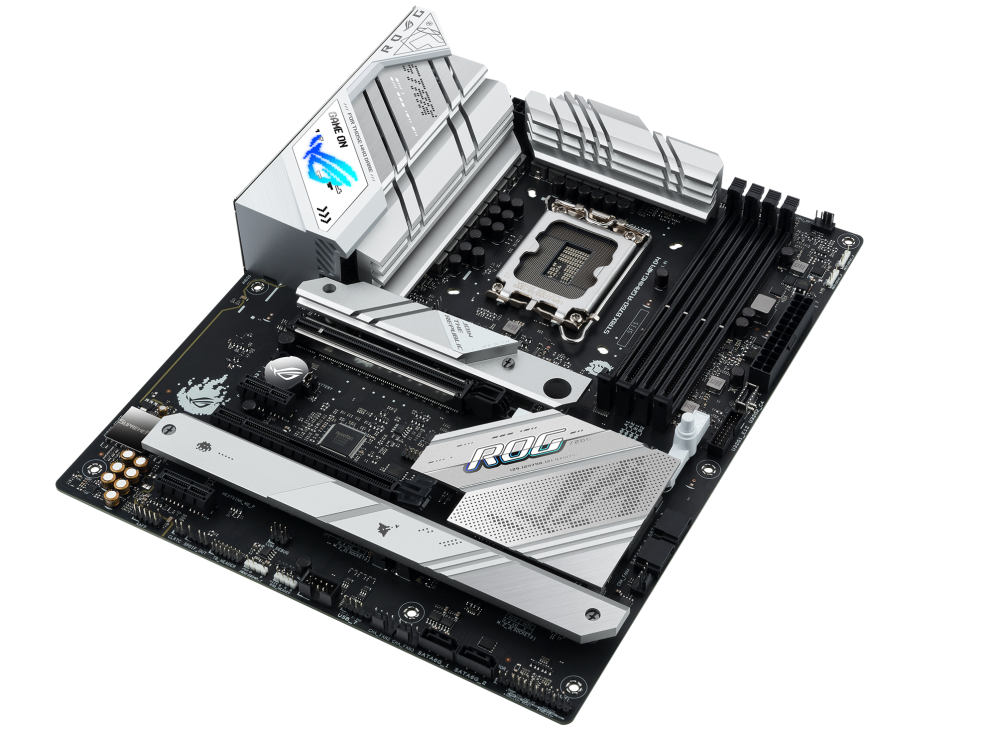

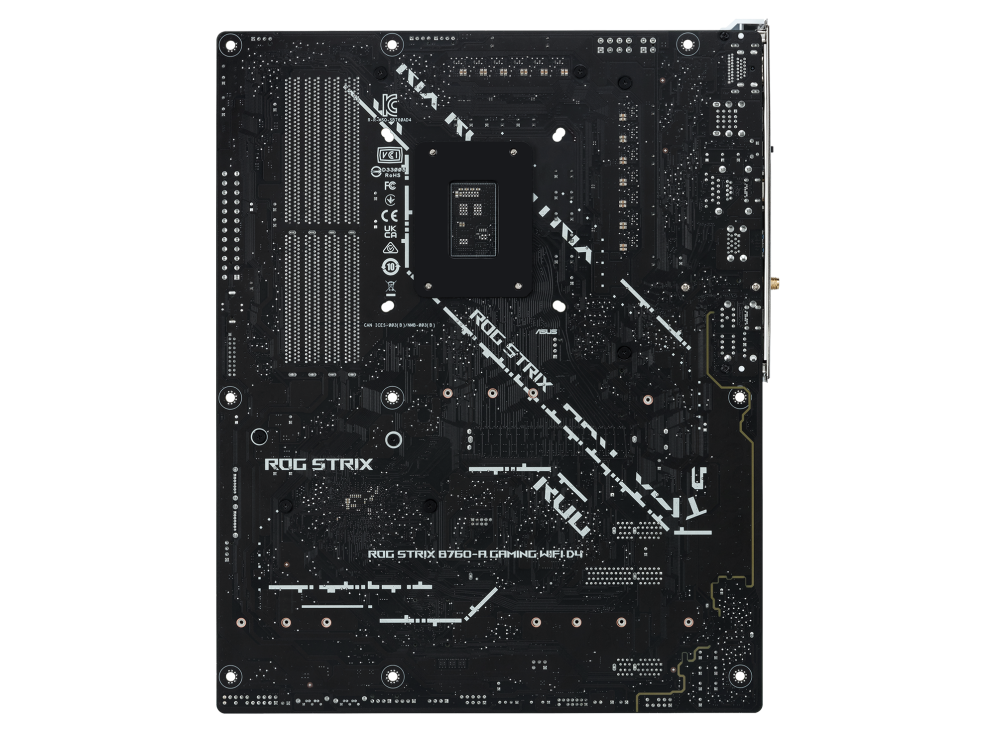

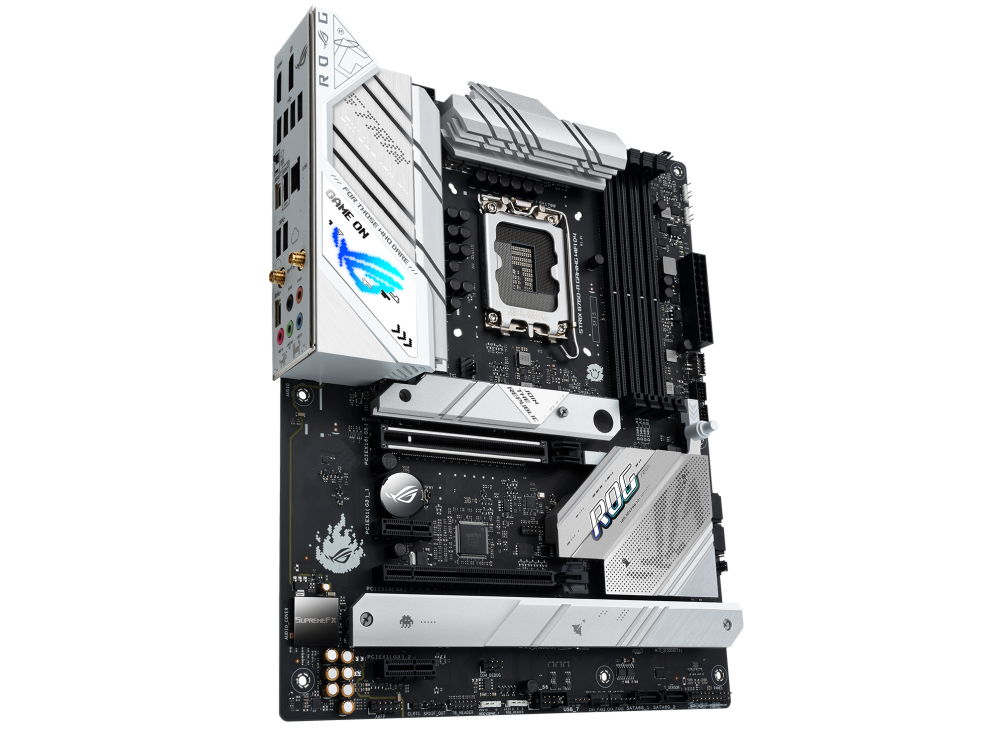

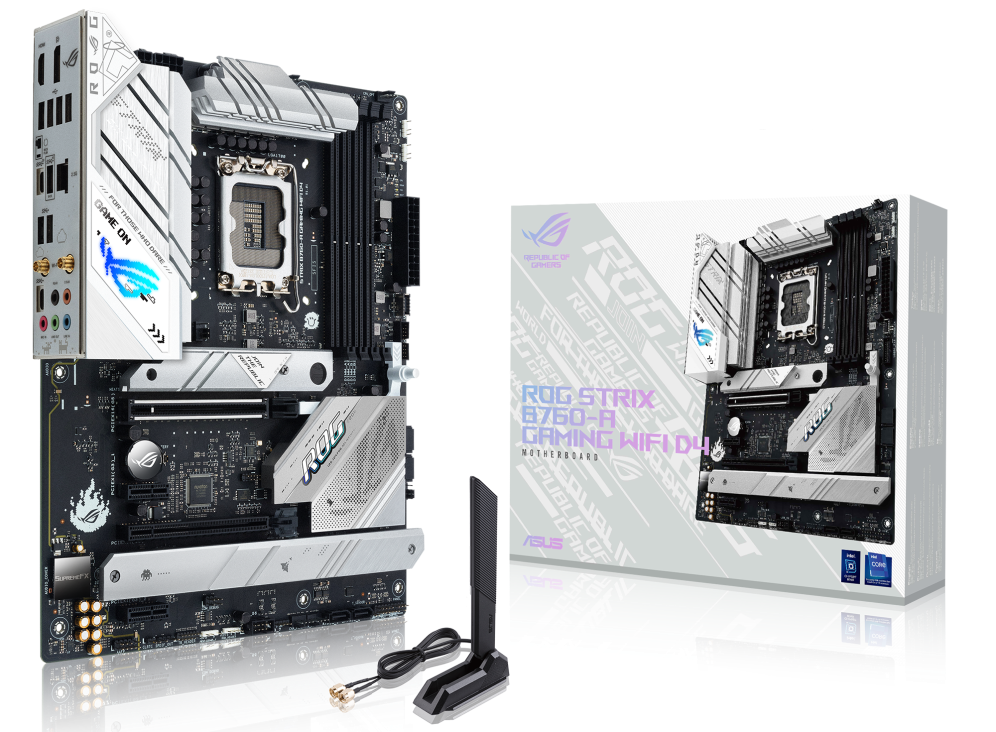

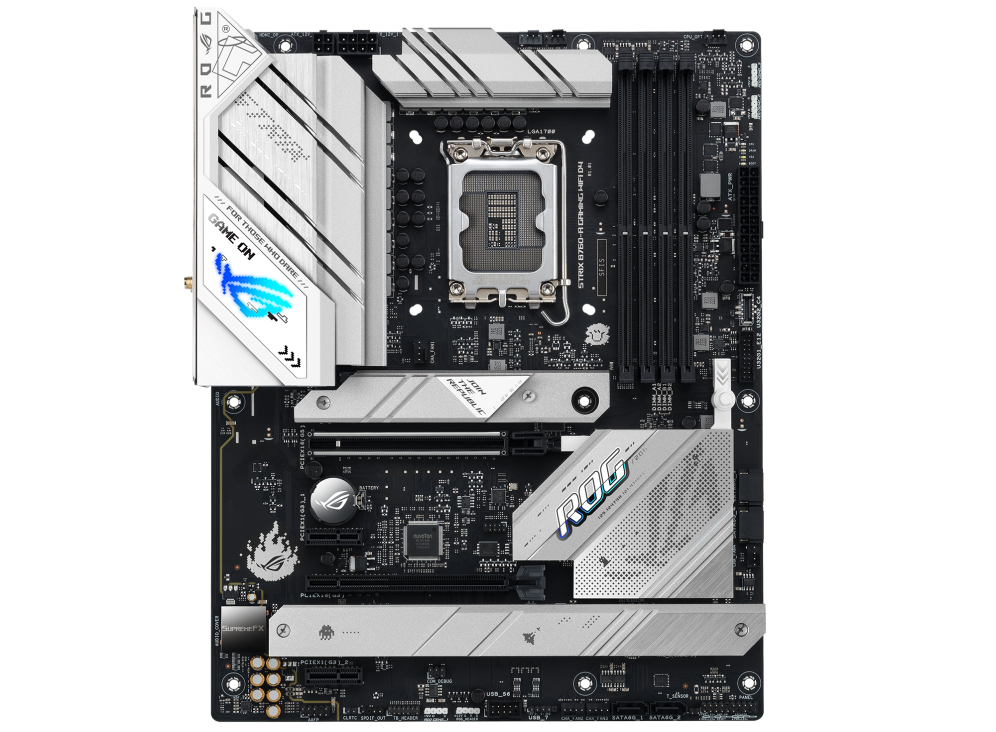

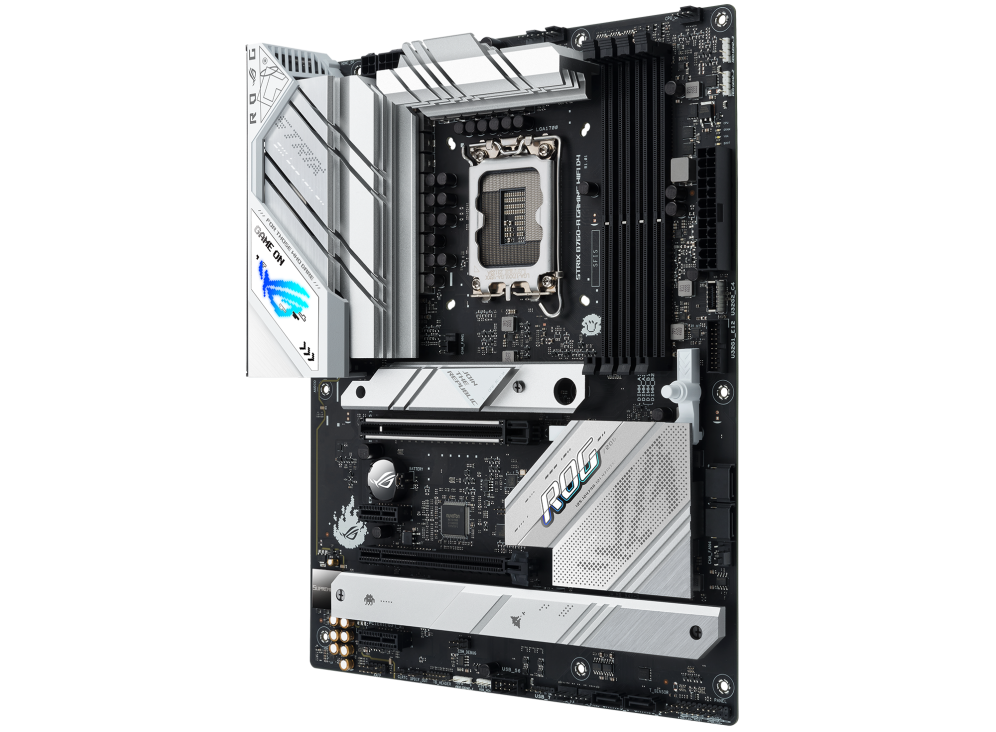

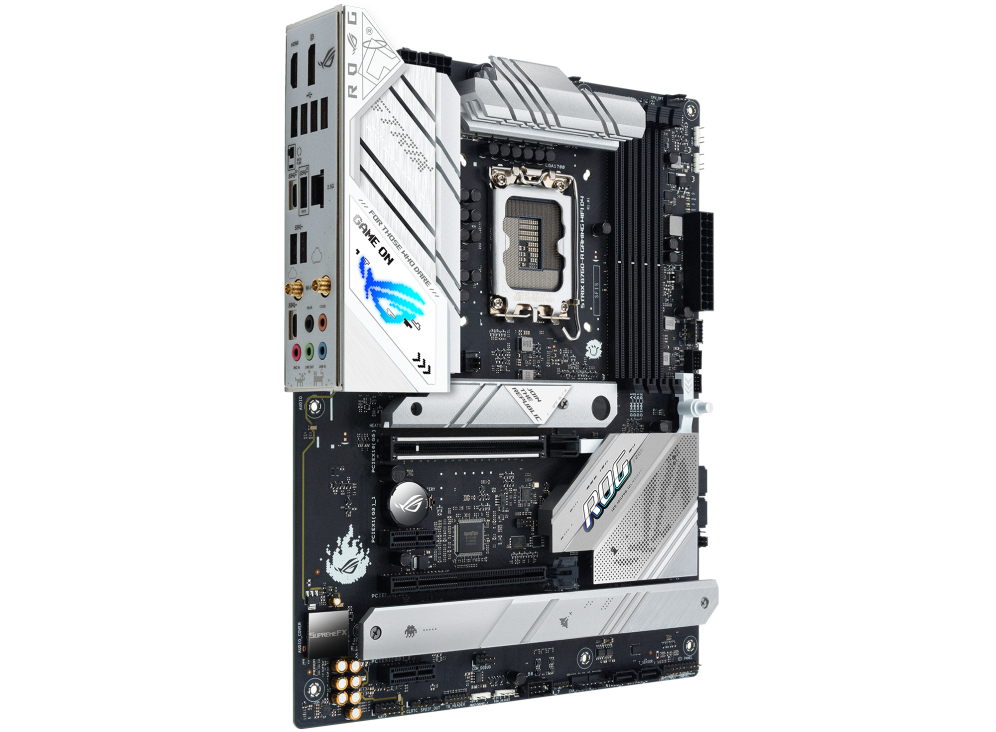

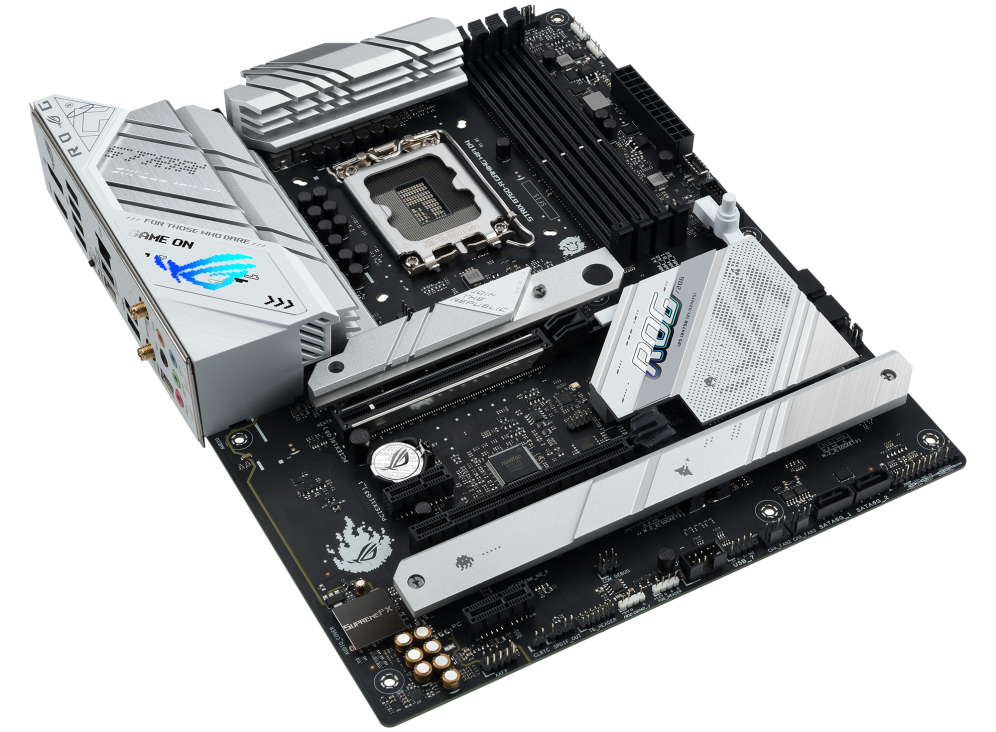

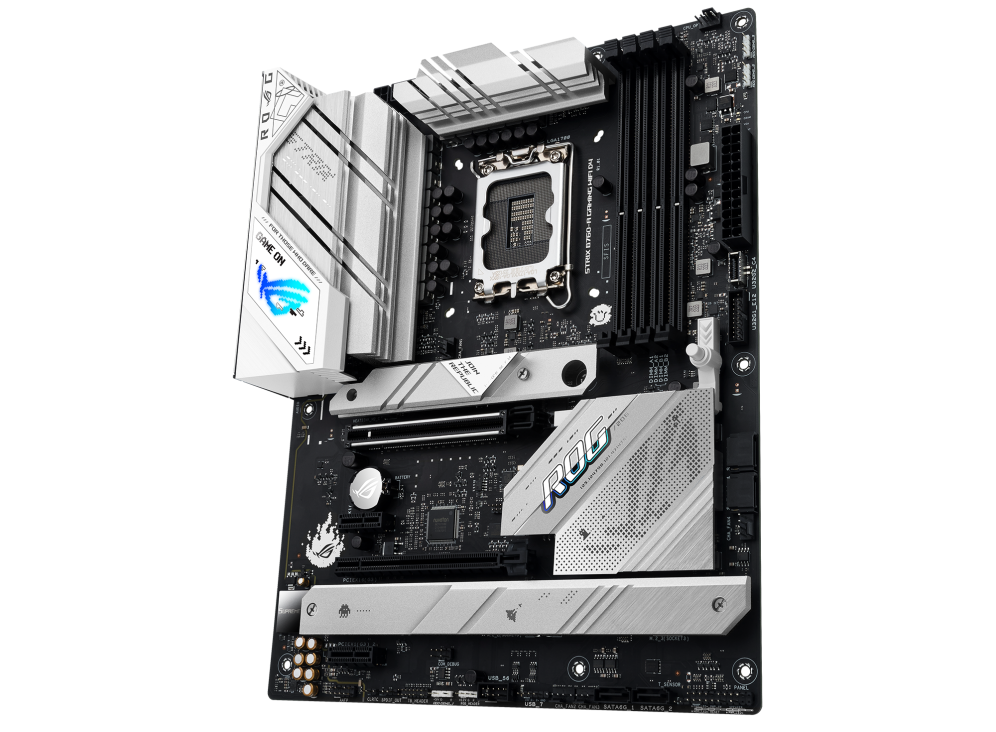

ROG STRIX B760-A GAMING WIFI D4
IntelĀ® B760 LGA 1700 white ATX motherboard with 12 + 1 power stages, DDR4 up to 5333 MT/s, PCIe 5.0 x16 SafeSlot, three PCIe 4.0 M.2 slots, WiFi 6E, USB 3.2 Gen 2×2 Type-CĀ®, Two-Way AI Noise Cancelation, and Aura Sync RGB lighting
- IntelĀ® LGA 1700 socket: Ready for 13th Gen IntelĀ® Coreā¢, and 12th Gen IntelĀ® Coreā¢, PentiumĀ® Gold, and CeleronĀ® processors
- Robust Power Solution: 12 + 1 power stages, ProCool power connectors, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors
- Optimized VRM Thermals: Thick heatsinks bridged to the VRM with high-conductivity thermal pads, and the larger one integrated with the I/O cover for added surface area
- Ample M.2 Support: Three PCIe 4.0 M.2 slots all with heatsinks to maintain optimal temperatures for maximum data transfer speed
- High-Performance Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard
- Abundant Connectivity: USB 3.2 Gen 2×2 Type-CĀ® rear I/O port, eight additional USB ports, USB 3.2 Gen 2 front-panel connector, PCIe 5.0 x16 SafeSlot, HDMIĀ® 2.1, and DisplayPortā¢4
- Intelligent Control: ASUS-exclusive AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY-Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBackā¢ button, and Q-LED
- Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTSĀ® Sound Unboundā¢ and Sonic Studio III
- Renowned Software: Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
CPU
IntelĀ® Socket LGA1700 for 13th Gen IntelĀ® Coreā¢ Processors & 12th Gen IntelĀ® Coreā¢, PentiumĀ® Gold and CeleronĀ® Processors*
Supports IntelĀ® Turbo Boost Technology 2.0 and IntelĀ® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** IntelĀ® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supports IntelĀ® Turbo Boost Technology 2.0 and IntelĀ® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** IntelĀ® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
IntelĀ® B760 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports IntelĀ® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Dual Channel Memory Architecture
Supports IntelĀ® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics
1 x DisplayPort**
1 x HDMIĀ® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. // Please refer to AMD CPU specifications.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
1 x HDMIĀ® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. // Please refer to AMD CPU specifications.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slots
IntelĀ® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
1 x PCIe 5.0 x16 slot
IntelĀ® B760 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
2 x PCIe 3.0 x1 slots*
* PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
IntelĀ® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
IntelĀ® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* IntelĀ® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x IntelĀ® 2.5Gb Ethernet
ASUS LANGuard // TUF LANGuard
ASUS LANGuard // TUF LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
BluetoothĀ® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
BluetoothĀ® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB
Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-CĀ®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 port (2 x Type-A, 1 x USBĀ Type-CĀ®)
4 x USB 2.0 ports (4 x Type-A)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-CĀ®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 port (2 x Type-A, 1 x USBĀ Type-CĀ®)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 2 connector (supports USBĀ Type-CĀ®)
1 x USB 3.2 Gen 1 header supports 2Ā additional USB 3.2 Gen 1 ports
1 x USB 2.0 header and 1 x USB 2.0 5-1 pinĀ header support 3 additional USB 2.0 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
*The rear panel Line out port does not support spatial audio. If youĀ wish to use spatial audio make sure to connect your audio output device to theĀ audio jack on the front panel of your chassis.
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
*The rear panel Line out port does not support spatial audio. If youĀ wish to use spatial audio make sure to connect your audio output device to theĀ audio jack on the front panel of your chassis.

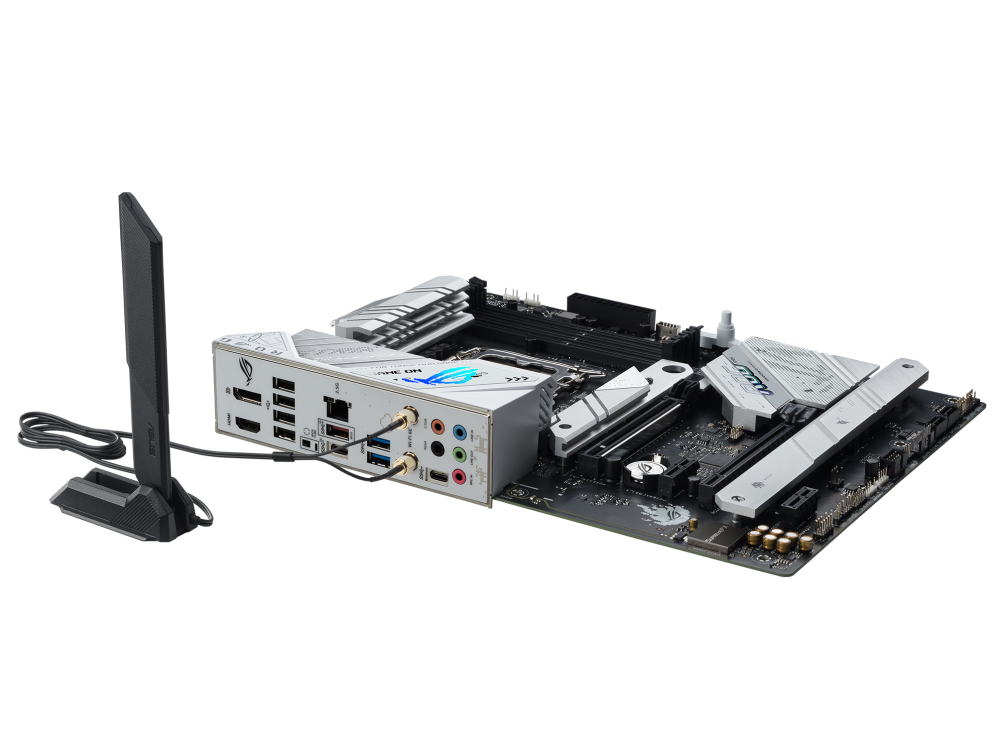

Back Panel I/O Ports
1 x USB 3.2 GenĀ 2×2 port (1 x USB Type-CĀ®)
1 x USB 3.2 GenĀ 2 port (1 x Type-A)
3 x USB 3.2 GenĀ 1 ports (2 x Type-A, 1 x USB Type-CĀ®)
4 x USB 2.0Ā ports (4 x Type-A)
1 x DisplayPort
1 x HDMIĀ® port
1 x Wi-Fi Module
1 x IntelĀ® 2.5GbĀ Ethernet port
5 x AudioĀ jacks
1 x BIOSĀ FlashBackā¢ Ā button
1 x USB 3.2 GenĀ 2 port (1 x Type-A)
3 x USB 3.2 GenĀ 1 ports (2 x Type-A, 1 x USB Type-CĀ®)
4 x USB 2.0Ā ports (4 x Type-A)
1 x DisplayPort
1 x HDMIĀ® port
1 x Wi-Fi Module
1 x IntelĀ® 2.5GbĀ Ethernet port
5 x AudioĀ jacks
1 x BIOSĀ FlashBackā¢ Ā button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USBĀ Type-CĀ® )
1 x USB 3.2 Gen 1 header supports 2Ā additional USB 3.2 Gen 1 ports
1 x USB 2.0 header and 1 x USB 2.0 5-1 pinĀ header support 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-5 pin System Panel header
1 x Thunderboltā¢ (USB4Ā®) header
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USBĀ Type-CĀ® )
1 x USB 3.2 Gen 1 header supports 2Ā additional USB 3.2 Gen 1 ports
1 x USB 2.0 header and 1 x USB 2.0 5-1 pinĀ header support 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-5 pin System Panel header
1 x Thunderboltā¢ (USB4Ā®) header
Special Features
Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGAĀ [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBackā¢ button
– BIOS FlashBackā¢ LED
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGAĀ [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBackā¢ button
– BIOS FlashBackā¢ LED
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Software Features
ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio VirtualĀ Mixer + Sonic Suite Companion
– Sonic Radar III
– DTSĀ® Sound Unbound
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– DIGI+ VRM
– PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio VirtualĀ Mixer + Sonic Suite Companion
– Sonic Radar III
– DTSĀ® Sound Unbound
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– DIGI+ VRM
– PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME
Accessories
Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG Strix stickers
1 x ROG Strix thank you card
1 x M.2 Rubber Packages
Documentation
1 x User guide
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG Strix stickers
1 x ROG Strix thank you card
1 x M.2 Rubber Packages
Documentation
1 x User guide
Operating System
WindowsĀ® 11, WindowsĀ® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Additional information
| Brand |
Asus |
|---|---|
| Socket |
LGA 1700 |
| CPU Support |
12įµŹ° Generation ,13th Generation ,14th Generation |
| Chipset Manufacture |
Intel |
| Chipset Model |
B760 |
| Form Factor |
ATX |
| Memory Slots Available |
4 Slots |
| On-Board WiFi |
Yes |
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping
Please note that We use either following Couriers
Courierit / Courier Guy / MDS Collivery / DPD Laser / Internet Express / Rhenus / RTT / DCB.
via uAfrica / Suppliers
Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 ā R1000 T&Cās Apply.
Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.
Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT) Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB).
Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved: Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals
Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 ā R1000 T&Cās Apply.
Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.
Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT) Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB).
Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved: Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals
Warranty
3 Year's Warranty T&C's Apply
Reviews
There are no reviews yet.
