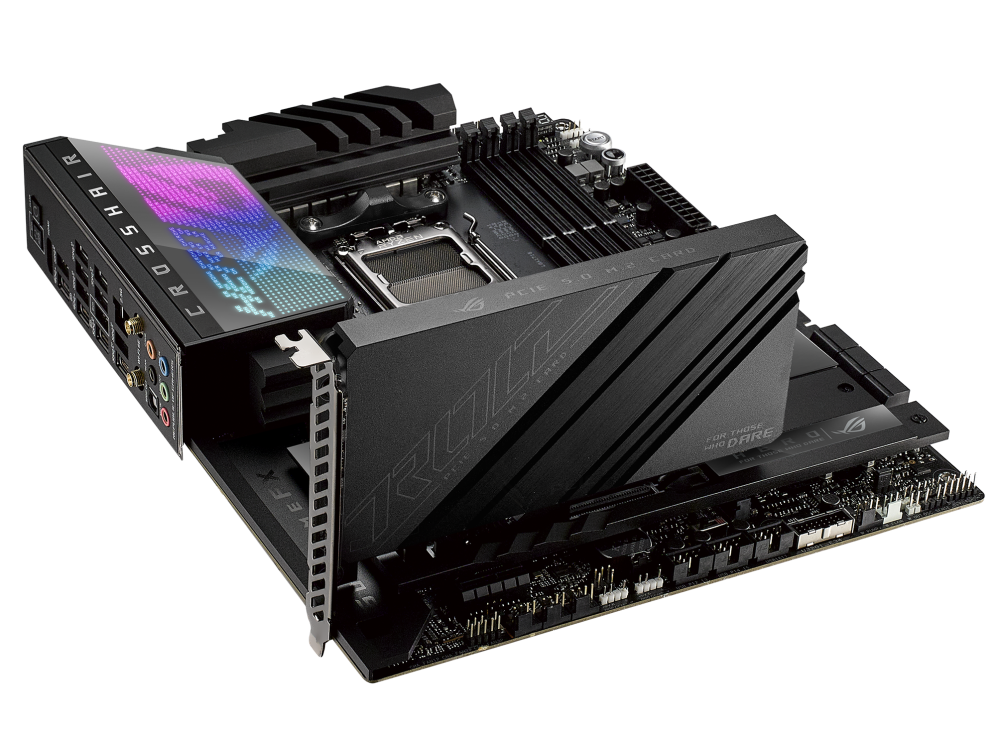

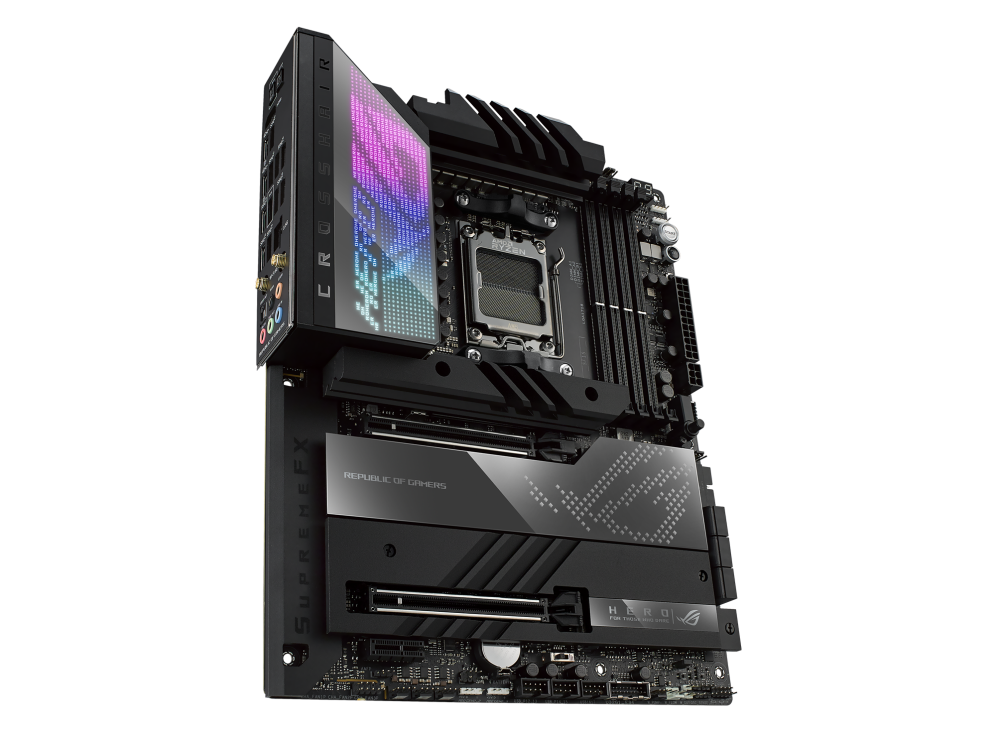

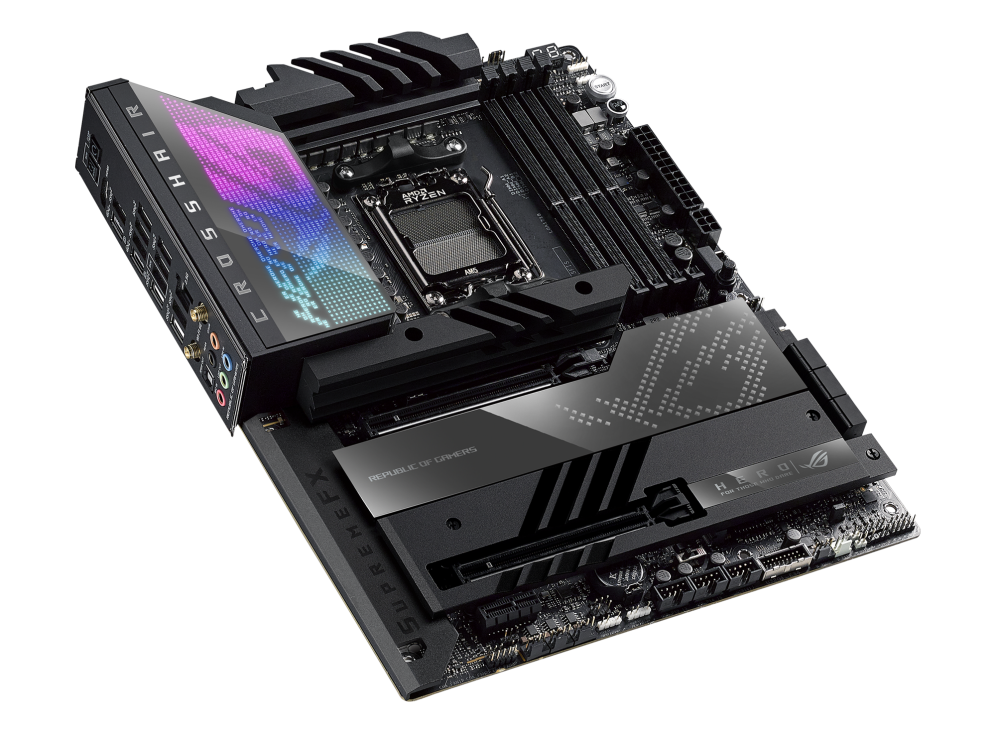

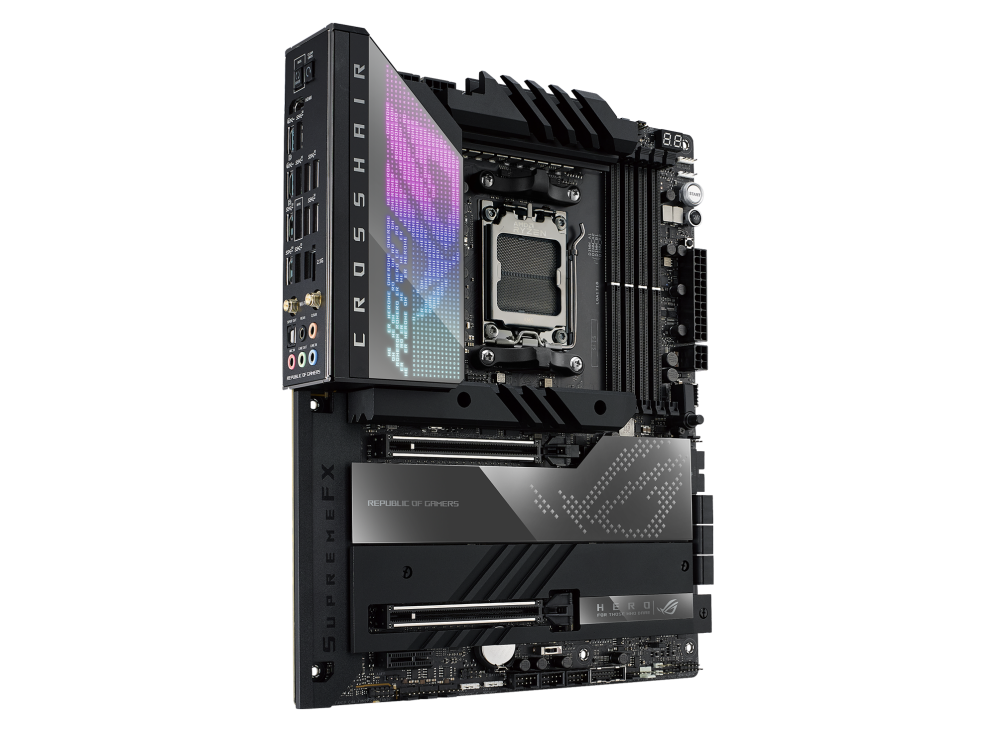

ASUS ROG CROSSHAIR X670E HERO
Pay R0 When paying via EFT at checkout.
0
People watching this product now!
Description
ROG Crosshair X670E Hero
Unyielding power delivery and robust thermal management form the indelible tenets of its creed. Hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support, and Polymo lighting add potent layers of build personalization on top. And the finishing touches are added by exclusive utilities and overclocking controls that allow you to uniquely flex the performance of Ryzen 7000 Series processors. Define your AM5 build with the ROG Crosshair X670E Hero.
CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
* Refer to www.asus.com for CPU support list.
Chipset
AMD X670
Memory
4 x DIMM, Max. 128GB, DDR5
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD® Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD® Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
1 x HDMI® port*
2 xUSB4® ports support USB Type-C® display outputs**
*Supports 4K@60Hz as specified in HDMI 2.1.
**VGA resolution support depends on processors’ or graphic cards’ resolution.
2 xUSB4® ports support USB Type-C® display outputs**
*Supports 4K@60Hz as specified in HDMI 2.1.
**VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)*
AMD X670 Chipset
1 x PCIe 4.0 x1 slots
* When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only.
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)*
AMD X670 Chipset
1 x PCIe 4.0 x1 slots
* When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only.
Storage
Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
6 x SATA 6Gb/s ports
*AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
**Performance may vary depending on the SSD’s firmware version and the system hardware & system configuration, for more information refer to www.asus.com for device support list.
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
6 x SATA 6Gb/s ports
*AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
**Performance may vary depending on the SSD’s firmware version and the system hardware & system configuration, for more information refer to www.asus.com for device support list.
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, and function will be
ready in Windows 11 or later.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB
Rear USB (Total 12 ports)
2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)
Front USB (Total 11 ports)
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
*To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.
2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)
Front USB (Total 11 ports)
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
*To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.
Audio
ROG SupremeFX 7.1 Surround Sound High
Definition Audio CODEC ALC4082
– Impedance sense for front and rear
headphone outputs
– Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback”
Audio Features
– SupremeFX Shielding Technology
– ESS® ES9218 QUAD DAC
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
Definition Audio CODEC ALC4082
– Impedance sense for front and rear
headphone outputs
– Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback”
Audio Features
– SupremeFX Shielding Technology
– ESS® ES9218 QUAD DAC
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
Back Panel I/O Ports
2 x USB4® ports with Intel® JHL8540 USB4®
controller (2 x USB Type-C®)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
9 x USB 3.2 Gen 2 ports(8 x Type-A + 1 x Type-C®)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
controller (2 x USB Type-C®)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
9 x USB 3.2 Gen 2 ports(8 x Type-A + 1 x Type-C®)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pinPCIe Power connector
Storage related
4 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration Mode Switch
1 x Aura RGB header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pinPCIe Power connector
Storage related
4 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration Mode Switch
1 x Aura RGB header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features
Extreme OC Kit
– FlexKey button
– ReTry button
– Start button
Extreme Engine Digi+
– 10K Black Metallic Capacitors
– MicroFine Alloy Choke
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Code
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support
– Support: up to 60W charging*
– Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
– Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
* To support 60W, please install the power cable to 6-pin PCIe power connector or can only support 27W
– FlexKey button
– ReTry button
– Start button
Extreme Engine Digi+
– 10K Black Metallic Capacitors
– MicroFine Alloy Choke
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Code
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support
– Support: up to 60W charging*
– Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
– Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
* To support 60W, please install the power cable to 6-pin PCIe power connector or can only support 27W
Software Features
ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
– BullGuard Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (1 year full version)
– Aura Creator
– Aura Sync
– Fan Xpert 4 with AI Cooling II
– Power Saving
– Polymo Lighting
– Two-Way AI Noise Cancellation
AI Suite 3
TPU
DIGI+ Power Control
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
– BullGuard Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (1 year full version)
– Aura Creator
– Aura Sync
– Fan Xpert 4 with AI Cooling II
– Power Saving
– Polymo Lighting
– Two-Way AI Noise Cancellation
AI Suite 3
TPU
DIGI+ Power Control
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS
256Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
1 x ARGB RGB extension cable
1 x RGB extension cable
4 x SATA 6Gb/s cables
PCIe 5.0 M.2 Card with Heatsink
1 x PCIe 5.0 M.2 Card with heatsink
1 x M.2 screw package for PCIe 5.0 M.2 Card
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
3 x Rubber Packages for M.2 backplate
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Latch packages for M.2 backplate
1 x ROG Graphics card holder
1 x ROG key chain
1 x ROG stickers
1 x ROG thank you card
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x User guide
1 x ARGB RGB extension cable
1 x RGB extension cable
4 x SATA 6Gb/s cables
PCIe 5.0 M.2 Card with Heatsink
1 x PCIe 5.0 M.2 Card with heatsink
1 x M.2 screw package for PCIe 5.0 M.2 Card
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
3 x Rubber Packages for M.2 backplate
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Latch packages for M.2 backplate
1 x ROG Graphics card holder
1 x ROG key chain
1 x ROG stickers
1 x ROG thank you card
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x User guide
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Additional information
| Brand |
Asus |
|---|---|
| Socket |
AM5 |
| CPU Support |
AMD Ryzen 7000 Series ,AMD Ryzen 8000 Series ,AMD Ryzen 9000 Series |
| Chipset Manufacture |
AMD |
| Chipset Model |
AMD X670E |
| Form Factor |
ATX |
| Memory Slots Available |
4 Slots |
| Memory Type |
Desktop DDR5 |
| On-Board WiFi |
Yes |
| Reverse Connectors |
No |
| GPU High Powered Connector |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
| Colour |
Black |
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping
Please note that We use either following Couriers
Courierit / Courier Guy / MDS Collivery / DPD Laser / Internet Express / Rhenus / RTT / DCB.
via uAfrica / Suppliers
Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 – R1000 T&C’s Apply.
Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.
Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT) Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB).
Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved: Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals
Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 – R1000 T&C’s Apply.
Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.
Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT) Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB).
Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved: Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals
Warranty
Reviews
There are no reviews yet.
