ASUS PT201Q Touch Monitor – 19.5″ FHD (1920×1080)
Pay R0 When paying via EFT at checkout.
ASUS PT201Q Touch Monitor – 19.5″ FHD (1920×1080), Pen Digitizer, 10-point Touch, 178° Wide Viewing Angle
- Bundled 1024-pressure level pen digitizer for a natural onscreen writing feel
- Easily switch between digitizer pen, touch, and simultaneous input modes
- Adjustable stand with 20 – 75 degree tilt angles for an ideal viewing position
PT201Q
PEN TOUCH
MONITOR
Easily Write
Simply Work
The PT201Q gives you unprecedented levels of interaction, allowing you to simultaneously make inputs through your fingers or the bundled digitizer pen. Now you can draw precise lines or write smoothly directly on screen with the digitizer pen in your dominant hand, leaving your other hand free to manipulate onscreen elements – so you can zoom or rotate images, open or save files, or click on the task bar in an instant.
3 Switchable Modes
A side shourtcut button lets you easily switch between digitizer pen, fingertip, or simultaneous input modes. It recognizes both fingertip and digitizer pen input, but gives priority to the latter.
On top of that, palm rejection technology also means you can even rest your hand on the screen without interfering with what you’re doing.
Natural Writing Experience
The PT201Q comes bundled with a digitizer pen so you can draw, take notes or mark presentations directly onscreen. And it feels entirely natural too — 1024-pressure level detection* means line thickness and colors change in relation to the pressure you exert. You can even select eraser or right-click functions through a special shortcut button on the pen**. *Software dependent. Please check software compatibility table at the bottom of this webpage prior to use.
**Default setting. Digitizer Pen Utility must be installed prior to use.
Intuitive Fingertip Control
10-point touch control gives you precise input, even when you’re using it with a friend or two, so collaborating on projects has never been this easy.
The PT201Q display is Windows® 8.1-compatible and designed to offer great performance as well as intuitive control; letting you smoothly transition between onscreen typing and navigating. And remember, it’s not just for work; you can have some fun with it too! You can easily pinch-zoom or rotate images, or scroll through webpages on the PT201Q.
Outstanding Visuals with 178° Wide Viewing Angles
The PT201Q features a large 19.5-inch display that’s capable of showcasing up to 16.7 million colors in stunning Full HD. It features a 178-degree wide-view angle so there’s no color shift even when you’re viewing it from extreme angles; while 250 cd/m² brightness ensures you can read what’s onscreen even under bright office lights.
Adjustable Tilt Angles for an Ideal Viewing Position

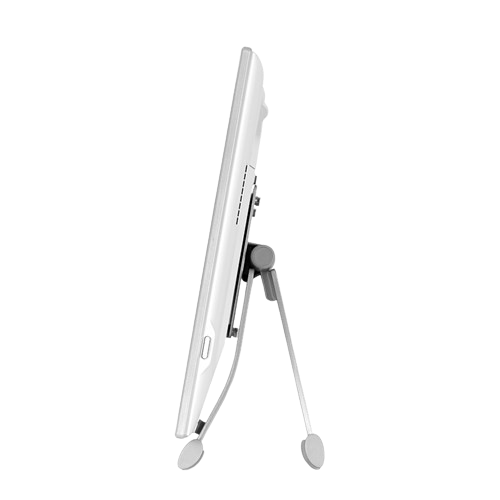

The PT201Q has an adjustable stand with 20 – 75 degree tilt angles to give you an ideal viewing position. Alternatively, you can detach the display from the stand so you can use it flat on the desk. The PT201Q has an ergonomic design that promotes good posture and minimizes wrist strains, allowing you to get the most out of its 10-point touch display.
Extensive Driver-free Connectivity with Windows®
You can hook up the a PT201Q to your PC or notebook through HDMI or DisplayPort. There’s also a USB port for a mouse, keyboard or other devices. And if you’re using Windows® 7/ 8/ 8.1 , there’s no need to download any additional drivers, so you can get right down to work with your Windows PC*.
*A driver is required for Mac OS support. It can be downloaded from the ASUS Support site.
Reference of Software Compatibility
- Display
Panel Size: Wide Screen 19.5″(49.5cm) 16:9
True Resolution : 1920×1080
Full HD 1080P : Yes
Pixel Pitch : 0.225mm
Brightness(Max) : 250 cd/㎡
Contrast Ratio (Max) : 3000:1
Viewing Angle (CR≧10) : 178°(H)/178°(V)
Response Time : 5ms (Gray to Gray)
Display Colors : 16.7M
Touch Screen : Yes, Capacitive 10-point multi-touch - Video Feature
Trace Free Technology : Yes
Color Temperature Selection : 5 Modes
Gamma adjustment : Yes (Support Gamma 2.0/2.2/2.4/2.6/1.8 )
HDCP support : Yes - Audio Features
Stereo Speakers : 1W x 2 Stereo RMS
- Pen Control
Touch Pen Technology: Digitizer Pen
Pressure Level: 1024 levels*
Writing Response: 240Hz - Convenient Hotkey
Volume Adjustment
Input Selection - I/O Ports
Signal Input : HDMI , DisplayPort
AV Audio Input : HDMI
USB Port(s) : 2.0, 1 x Type A port, 1 x microUSB, *1 - Signal Frequency
Digital Signal Frequency : 31~68kHz (H) /50~60Hz(V)
- Power Consumption
Power Consumption:<41W
Power Off Mode:<0.3W
Voltage:AC 100–240V, 50/60 Hz - Mechanical Design
Chassis Colors : White
Tilt : +20°~+75°
VESA Wall Mounting : 100x100mm - Security
Kensington lock
- Dimensions
Phys. Dimension (WxHxD):463.8 x 274.8 x 116.5mm (20 degree)
Phys. Dimension without Stand(WxHxD)(For VESA Wall Mount):463.8 x 274.8 x 25.2 mm
Box Dimension (WxHxD):554 x 431 x 137 mm - Weight
Net Weight (Esti.):3.6Kg (with stand)/ 2.3kg(without stand)
Gross Weight (Esti.):4.7kg - Accessories
Cable Clamp
Power cord
Power adapter
DisplayPort cable
USB cable
Support CD
Warranty Card
Setup Manual
Digitizer Pen with pen stand - Compliance and Standards
BSMI, CB, CE, CU, FCC, J-MOSS, PSE, RoHS, VCCI, WEEE, WHQL (Windows 8.1), RCM, UL
- Note
*. The Digitizer Pen supports Windows® standard API (TabletPC API)
*1. for touch panel
| Weight | 4.7 kg |
|---|---|
| Brand |
Asus |
