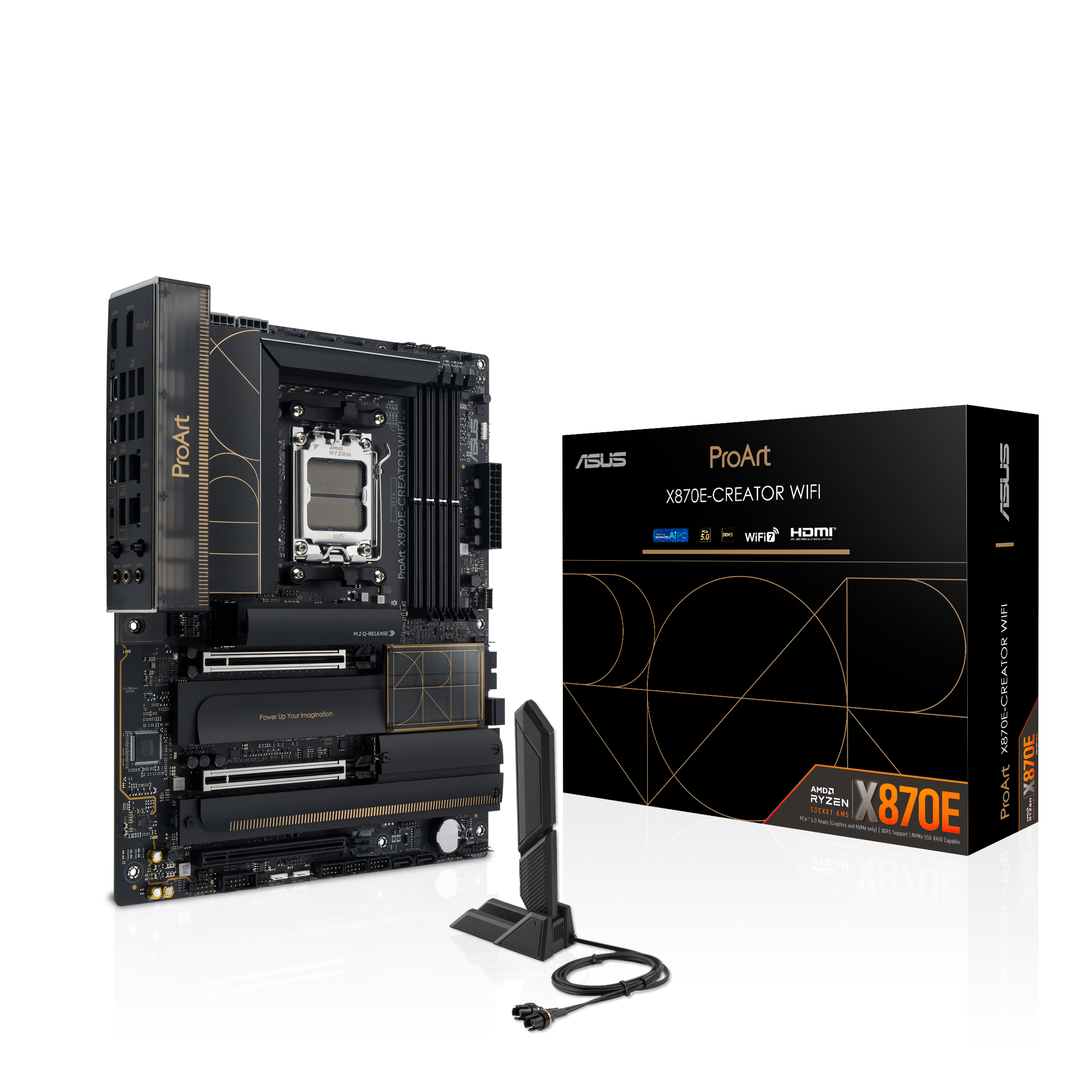

Asus ProArt X870E-CREATOR WIFI AM5 Motherboard
R11,400 Incl VAT
Pay R11,058 When paying via EFT at checkout.
Supplier out of stock
0
People watching this product now!
Description

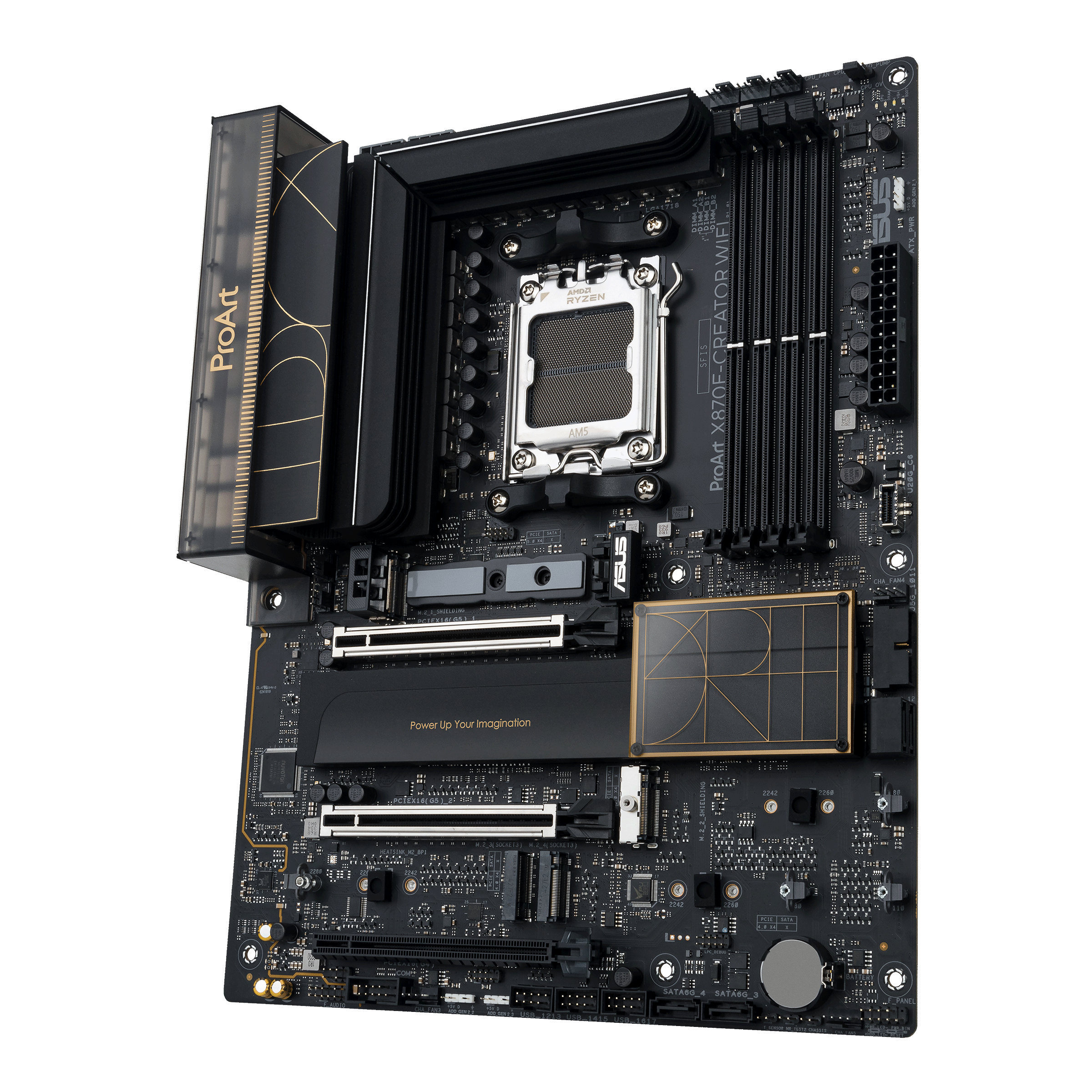

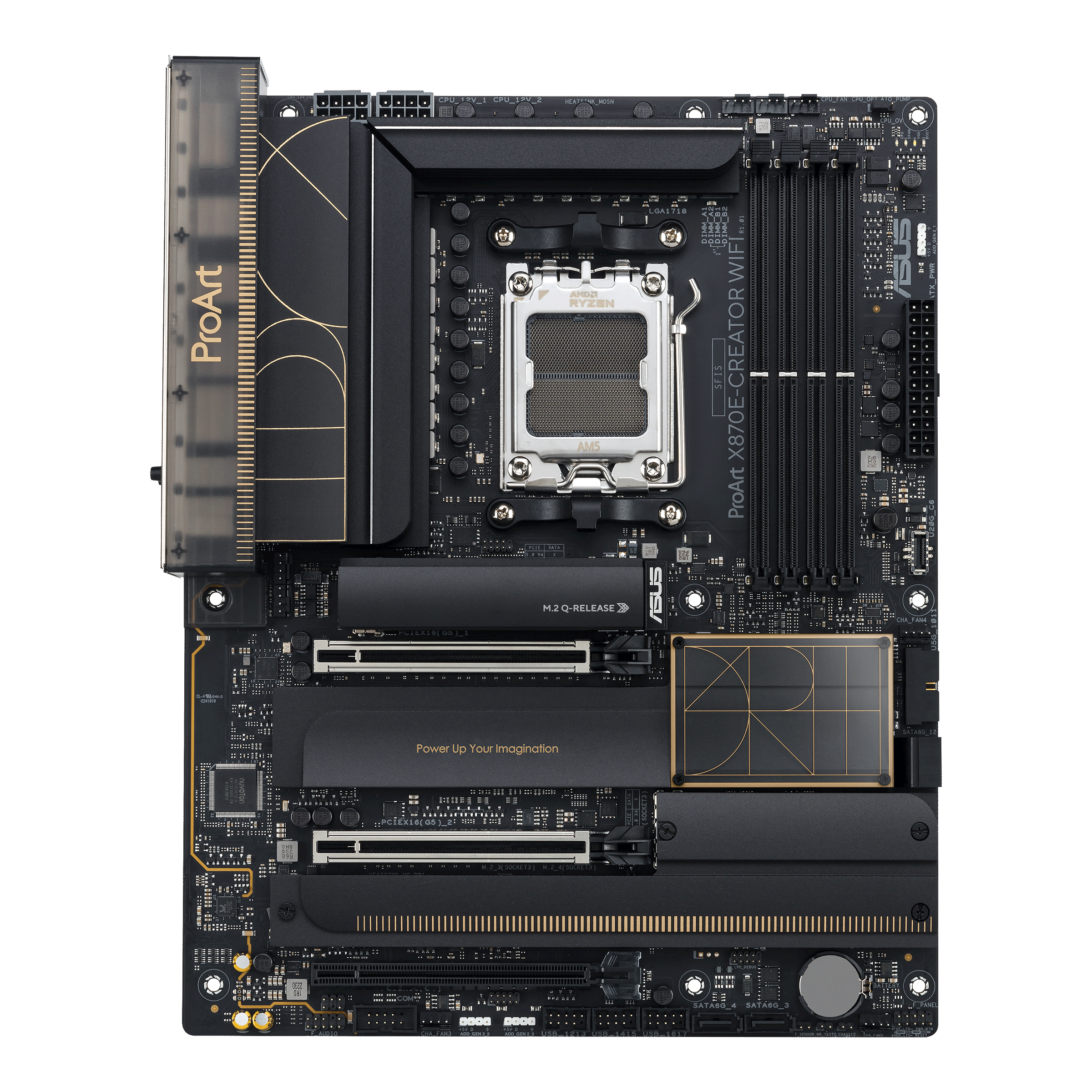

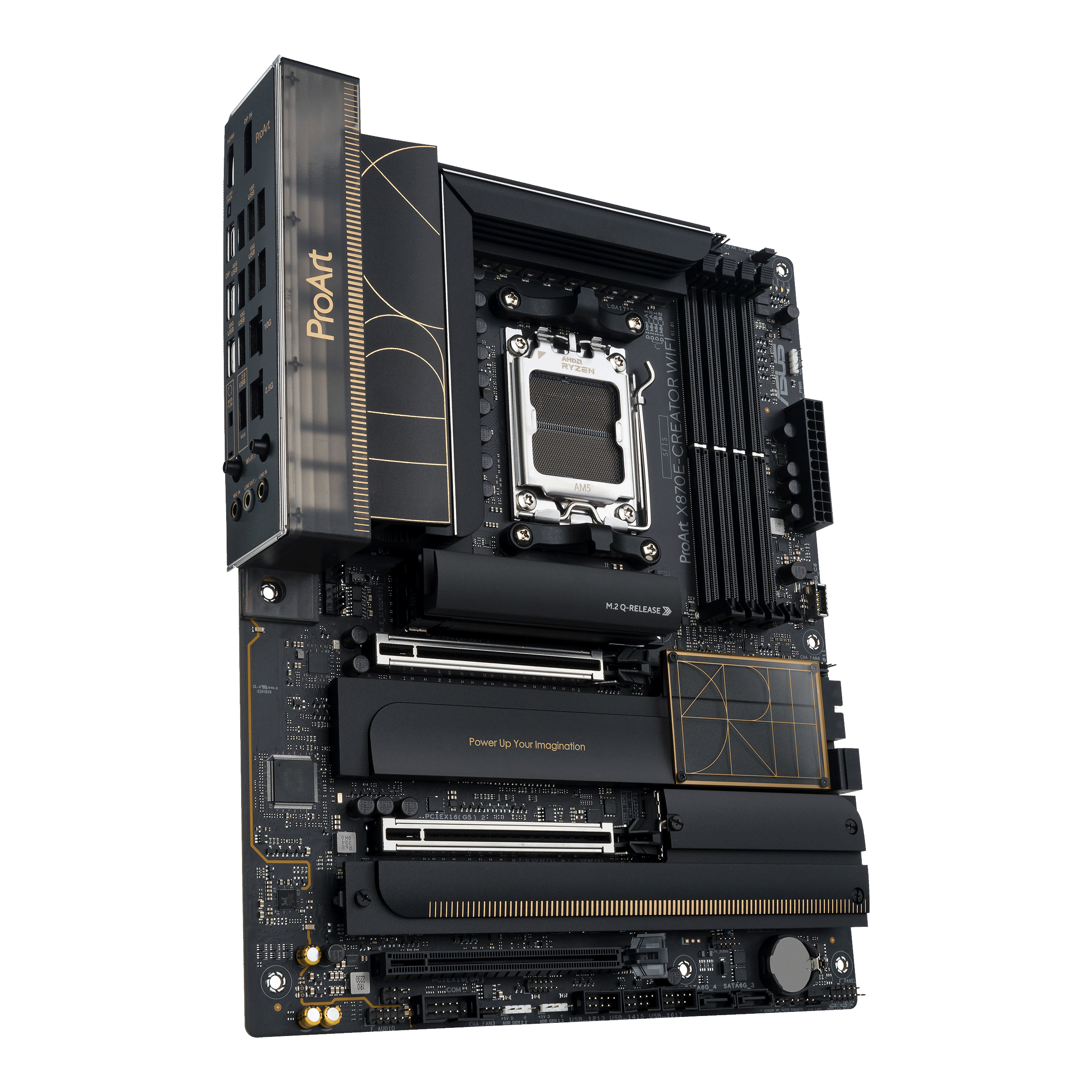

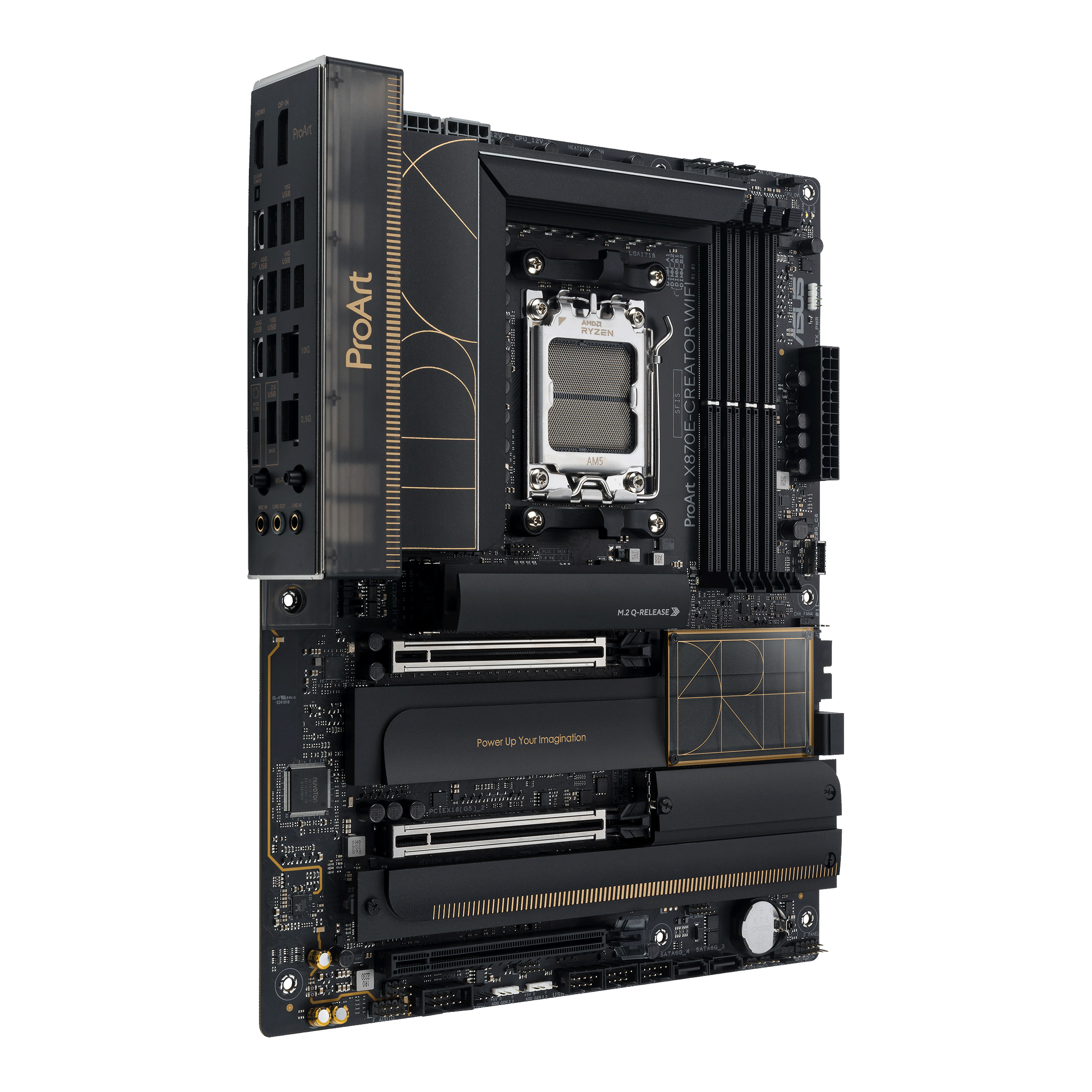

X870E-CREATOR WIFI
The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.
This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
Model
ProArt X870E-CREATOR WIFI
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
* Refer to www.asus.com for CPU support list.
Chipset
AMD X870E
Memory
4 x DIMM slots, max. 192GB, DDR5
Support up to
8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
8000+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory
configuration, for more information refer to www.asus.com for memory support list.
*** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Support up to
8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
8000+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory
configuration, for more information refer to www.asus.com for memory support list.
*** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each.
*** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4.
– To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals.
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each.
*** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4.
– To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot is not supported
AMD X870E Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot is not supported
AMD X870E Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
Ethernet
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB
Rear USB (Total 11 ports)
2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
1 x USB 20Gbps port(s) (1 x USB Type-C®)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)**
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
“* USB Type-C® power delivery output: max. 5V/3.0A”
** USB Type-C® power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A
2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
1 x USB 20Gbps port(s) (1 x USB Type-C®)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)**
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
“* USB Type-C® power delivery output: max. 5V/3.0A”
** USB Type-C® power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
– Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
– Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

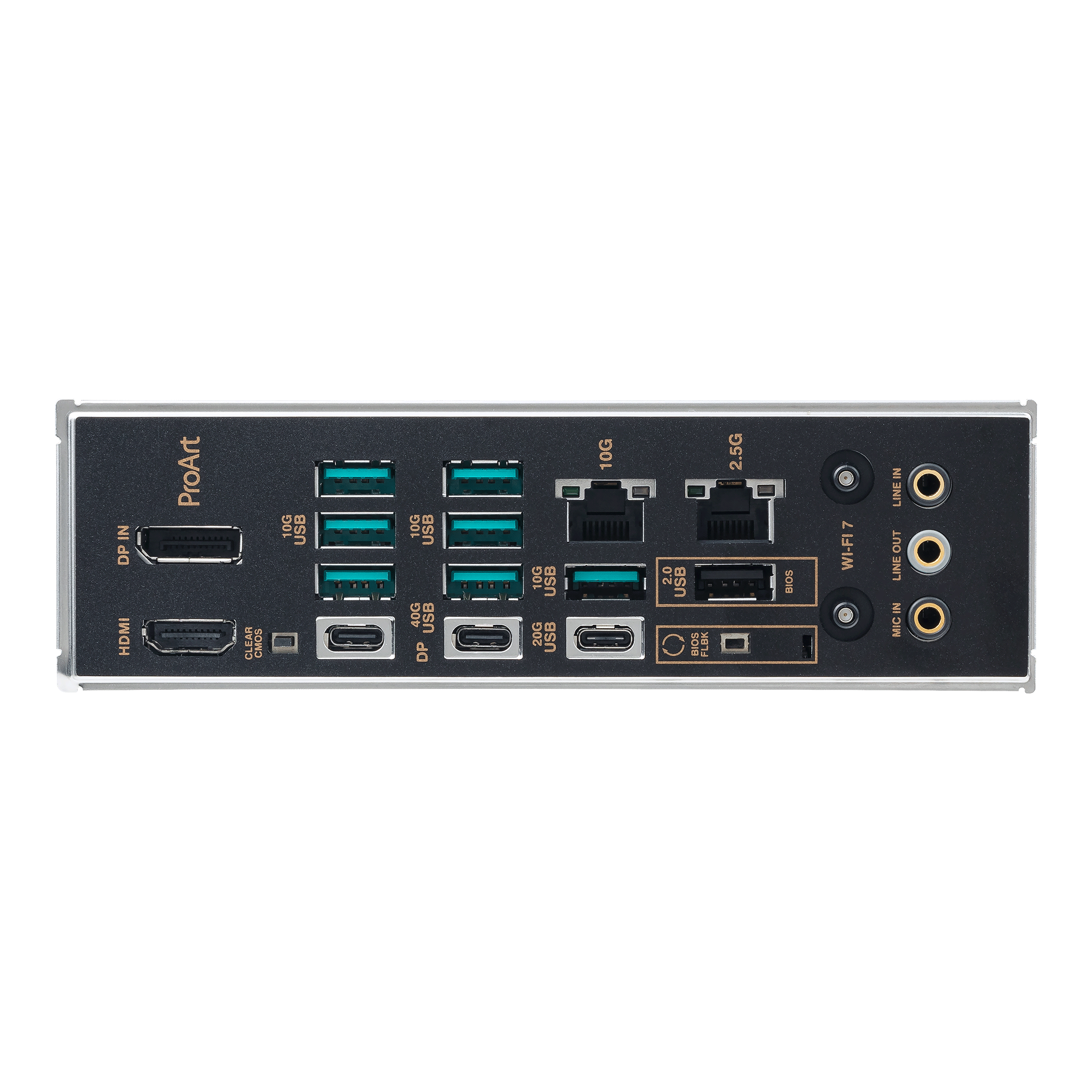

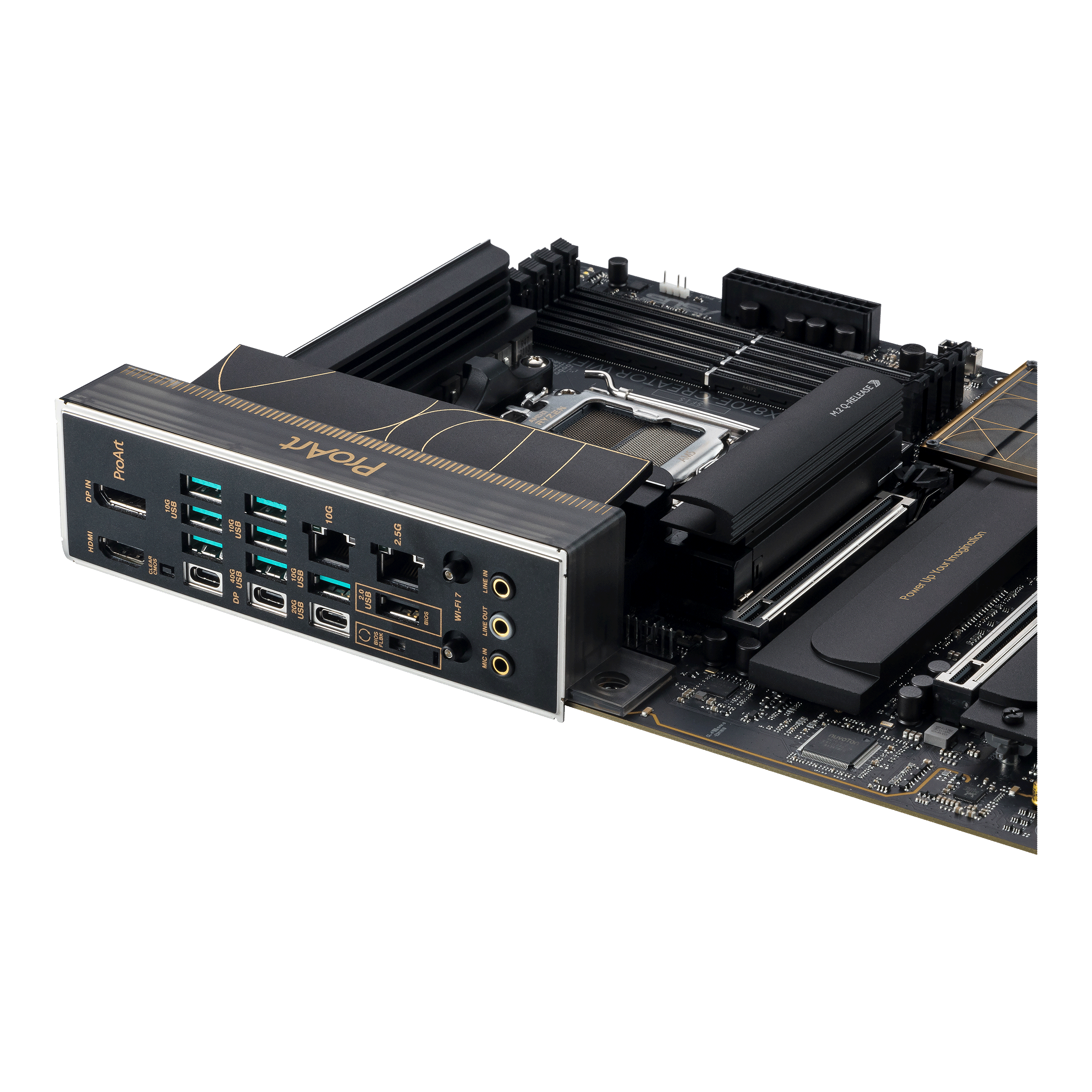

Back Panel I/O Ports
2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
7 x USB 10Gbps ports (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMITM port
1 x Wi-Fi Module
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
1 x USB 20Gbps port (1 x USB Type-C®)
7 x USB 10Gbps ports (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMITM port
1 x Wi-Fi Module
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design)
– Enhanced DRAM Overcurrent Protection
– ESD Guards
– LANGuard
– Overvoltage Protection
– Safeslot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsinks
– VRM heatsink design ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– Addressable Gen 2 headers
Bespoke Motherboard Design & Business Focused Features
– 24/7 Reliability
– Overcurrent Protection
Front Panel USB 20Gbps with Quick Charge 4+ Support
– Support: up to 30W fast charging and USB Wattage Watcher
– Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A
– Compatible with PD3.0
– DIGI+ VRM (- Digital power design)
– Enhanced DRAM Overcurrent Protection
– ESD Guards
– LANGuard
– Overvoltage Protection
– Safeslot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsinks
– VRM heatsink design ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– Addressable Gen 2 headers
Bespoke Motherboard Design & Business Focused Features
– 24/7 Reliability
– Overcurrent Protection
Front Panel USB 20Gbps with Quick Charge 4+ Support
– Support: up to 30W fast charging and USB Wattage Watcher
– Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A
– Compatible with PD3.0
Software Features
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 with AI Cooling II
– Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
ASUS CPU-Z
ProArt Creator Hub
CreationFirst
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 with AI Cooling II
– Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
ASUS CPU-Z
ProArt Creator Hub
CreationFirst
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
Remote Management Features
IT Management software supported
– ASUS Control Center Express(ACCE)
– ASUS Control Center Express(ACCE)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
1 x M.2 Q-Latch Q-Slide package for M.2 backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
Documentation
1 x Quick start guide
1 x ACC Express Activation Key Card
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
1 x M.2 Q-Latch Q-Slide package for M.2 backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
Documentation
1 x Quick start guide
1 x ACC Express Activation Key Card
Operating System
Windows® 11
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Additional information
| Weight | 2 kg |
|---|---|
| Brand |
Asus |
| Socket |
AM5 |
| CPU Support |
AMD Ryzen 7000 Series ,AMD Ryzen 8000 Series ,AMD Ryzen 9000 Series |
| Chipset Manufacture |
AMD |
| Chipset Model |
AMD X870E |
| Form Factor |
ATX |
| Memory Slots Available |
4 Slots |
| Memory Type |
Desktop DDR5 |
| On-Board WiFi |
Yes |
| Reverse Connectors |
No |
| GPU High Powered Connector |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
| Colour |
Black |
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping
Please note that We use either following Couriers
Courierit / Courier Guy / MDS Collivery / DPD Laser / Internet Express / Rhenus / RTT / DCB.
via uAfrica / Suppliers
Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 – R1000 T&C’s Apply.
Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.
Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT) Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB).
Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved: Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals
Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 – R1000 T&C’s Apply.
Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.
Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT) Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB).
Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved: Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals
Warranty
3 Year's Warranty T&C's Apply
Reviews
There are no reviews yet.
