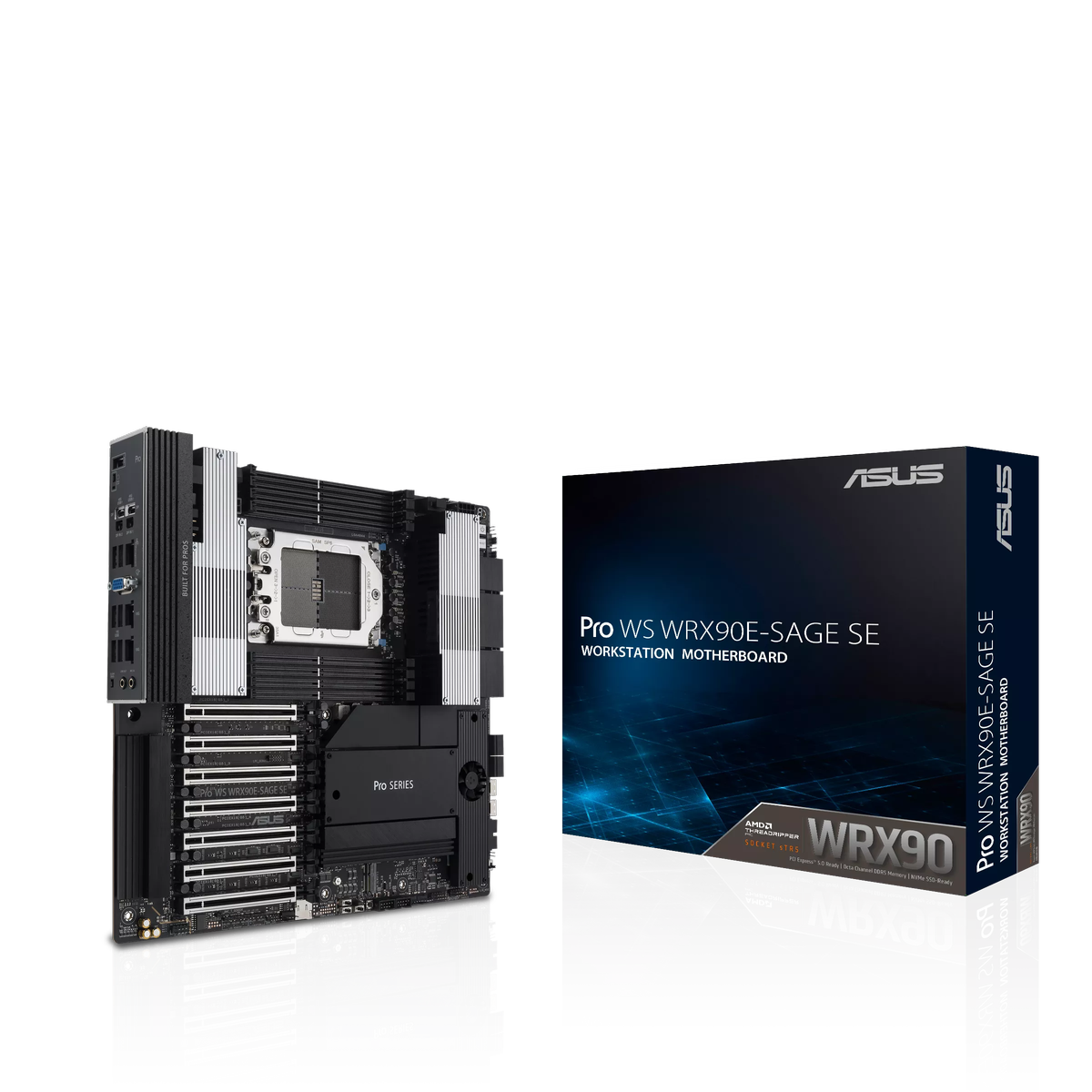

Asus Pro WS WRX90E-SAGE SE – sTR5
R31,200 Incl VAT
Pay R30,264 When paying via EFT at checkout.
Supplier out of stock
0
People watching this product now!
Description

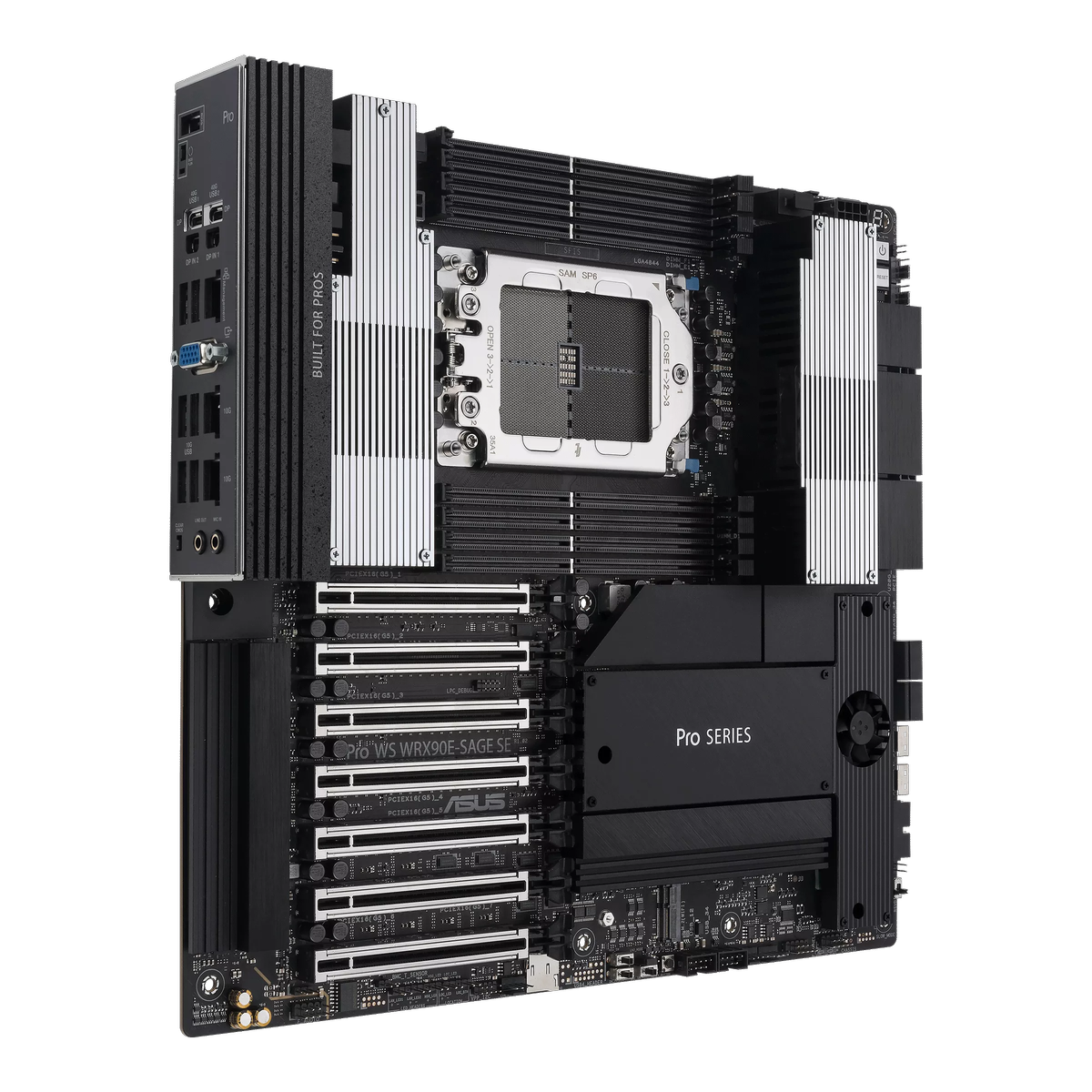

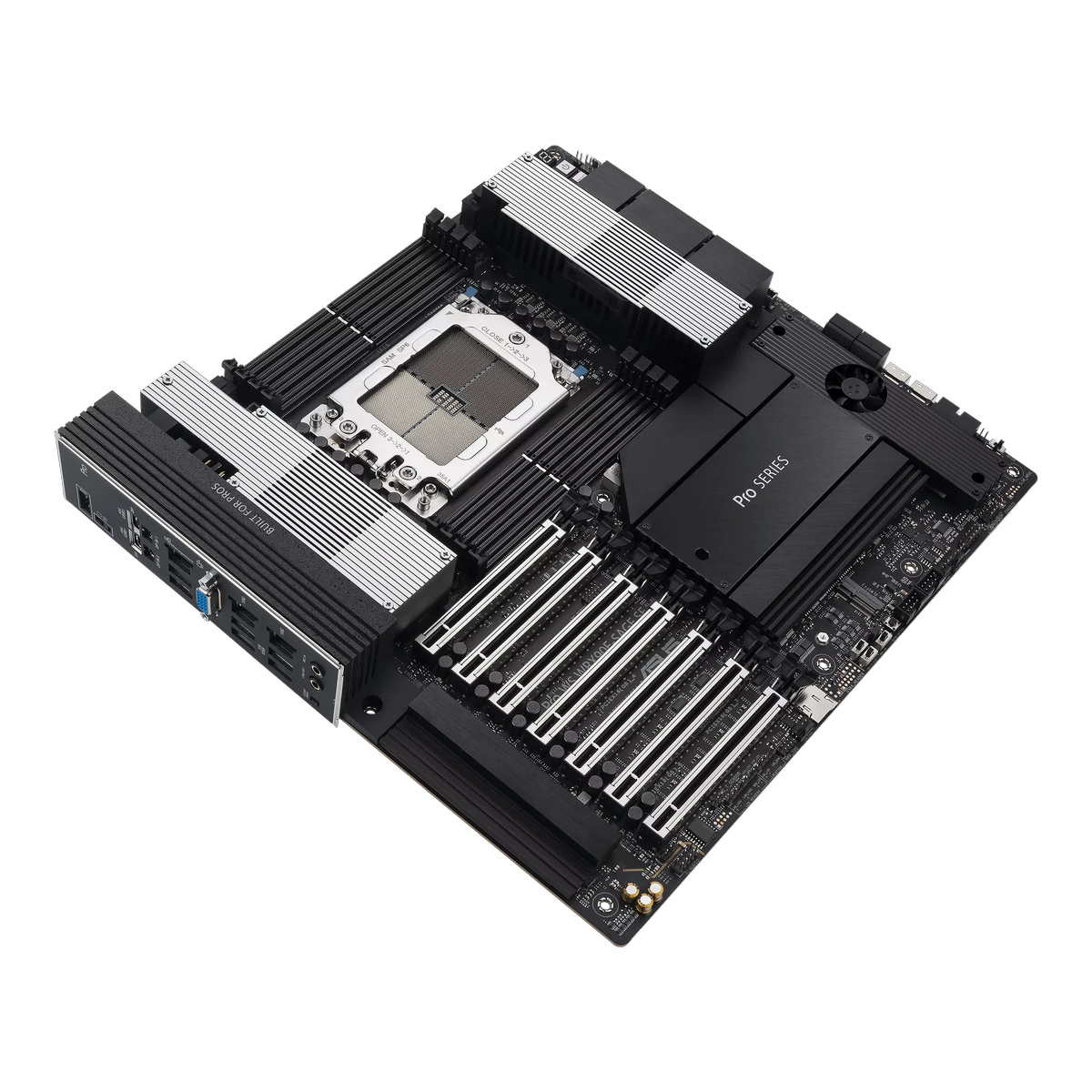

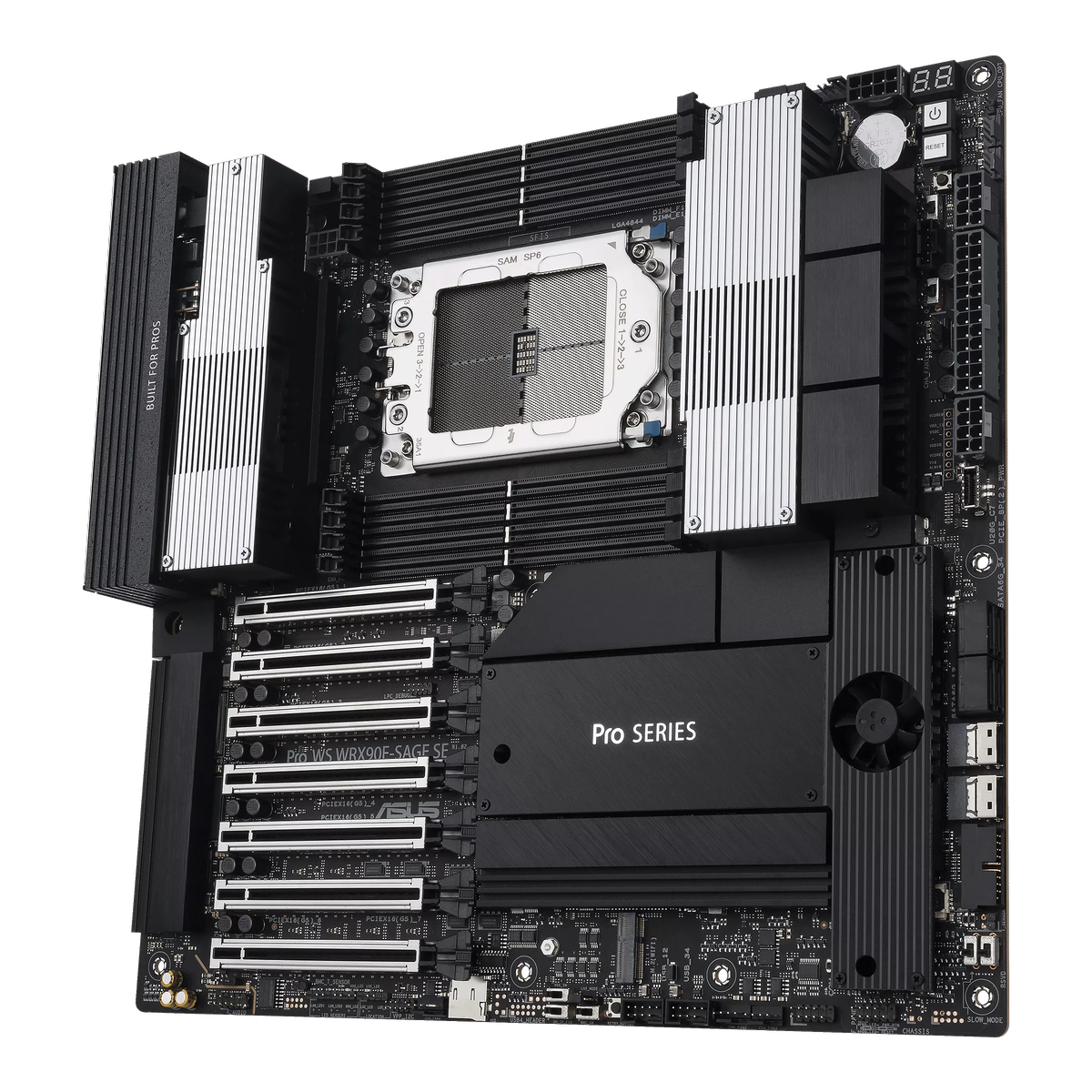

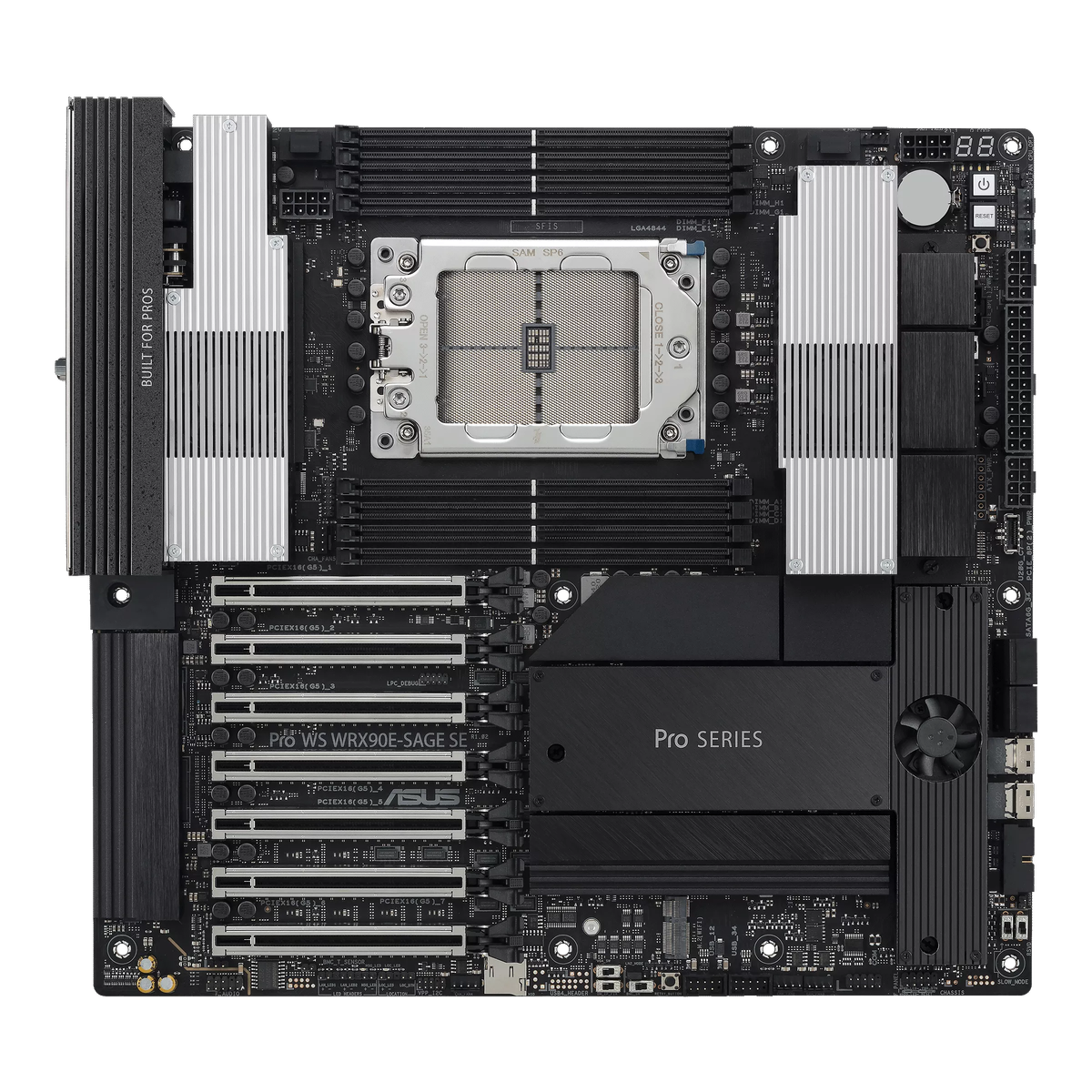

AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
- Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.
- CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
- Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
- PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
- Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
- Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
Model
Pro WS WRX90E-SAGE SE
CPU
AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series*
*Refer to www.asus.com for CPU support list.
Chipset
AMD WRX90 Chipset
Memory
8 x DIMM slots, DDR5, ECC Registered Memory*
8 Channel Memory Architecture*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
8 Channel Memory Architecture*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Expansion Slots
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
6 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)*Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
**To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
6 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)*Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
**To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports*
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD WRX90 Chipset
2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device
4 x SATA 6Gb/s ports* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD WRX90 Chipset
2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device
4 x SATA 6Gb/s ports* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
1 x Intel® dual 10Gb Ethernet
ASUS LANGuard
1 x Intel® dual 10Gb Ethernet
ASUS LANGuard
USB
Rear USB (Total 9 ports)
2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbpsconnector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbpsconnector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC1220P Surround Sound High Definition Audio CODEC*
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback
Audio Features
– Premium audio capacitors
– Dedicated audio PCB layers
– Unique de-pop circuit*A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
* This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback
Audio Features
– Premium audio capacitors
– Dedicated audio PCB layers
– Unique de-pop circuit*A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
* This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.

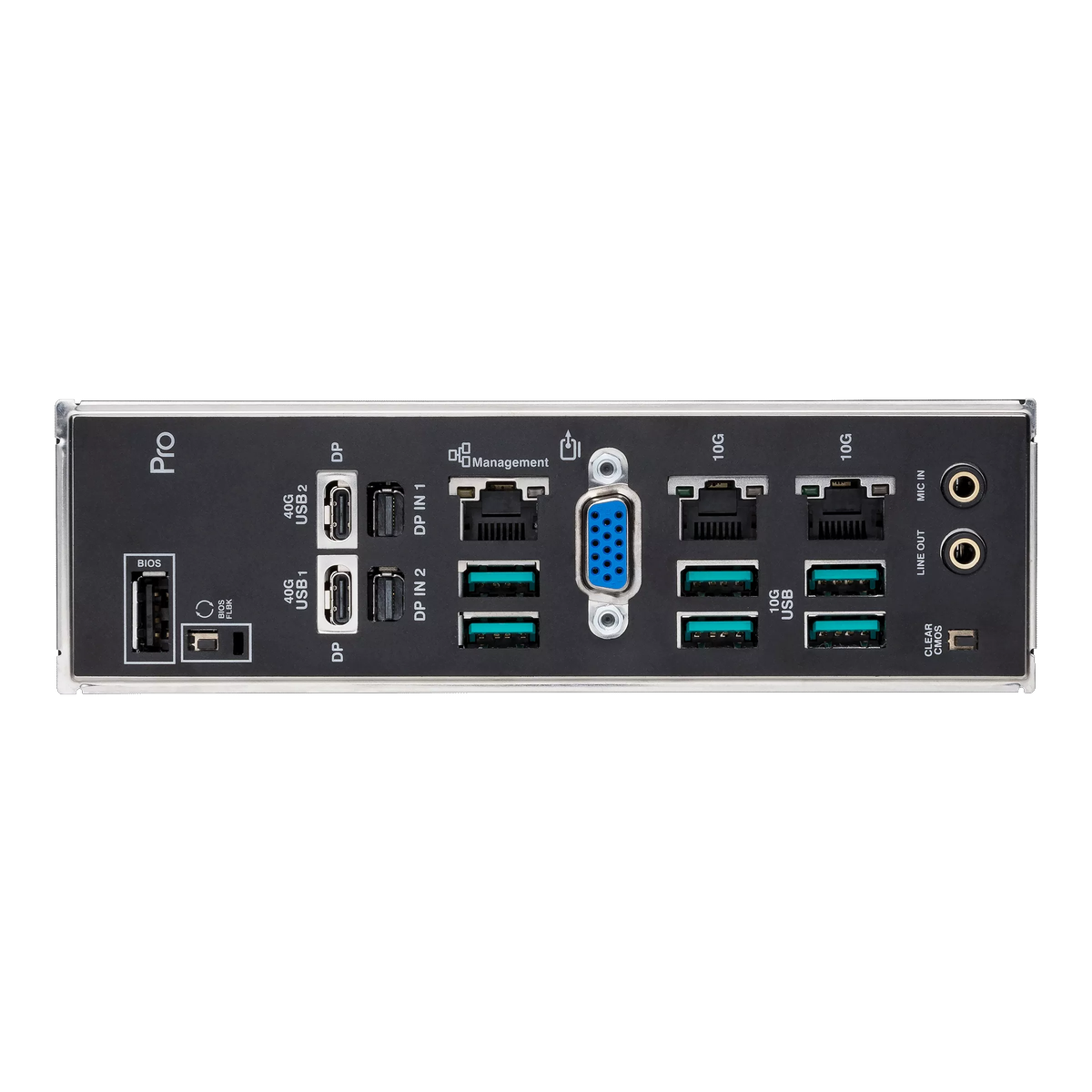

Back Panel I/O Ports
2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (2 x Type-A)
1 x VGA port
2 x mini DisplayPort IN
1 x Intel® dual 10Gb Ethernet ports
1 x Realtek 1Gb Ethernet port
2 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (2 x Type-A)
1 x VGA port
2 x mini DisplayPort IN
1 x Intel® dual 10Gb Ethernet ports
1 x Realtek 1Gb Ethernet port
2 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
5 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
Power related
1 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
2 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Chassis intrusion header
1 x COM port header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x LN2 mode jumper
1 x M.2 slot (Key E)
7 x ProbeIt measurement points
1 x ReTry button
1 x RSVD switch
1 x Slow mode switch
1 x Safe boot button
1 x SPI TPM header (14-1 pin)
1 x Start button
1 x 10-1 pin system panel header
1 x Thermal sensor header
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
5 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
Power related
1 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
2 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Chassis intrusion header
1 x COM port header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x LN2 mode jumper
1 x M.2 slot (Key E)
7 x ProbeIt measurement points
1 x ReTry button
1 x RSVD switch
1 x Slow mode switch
1 x Safe boot button
1 x SPI TPM header (14-1 pin)
1 x Start button
1 x 10-1 pin system panel header
1 x Thermal sensor header
Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with SPS)
– ESD Guards
– LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-Release Slim (with PCIe SafeSlot)
– Q-Code
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate and onboard thermal pads
– M.2 heatsink

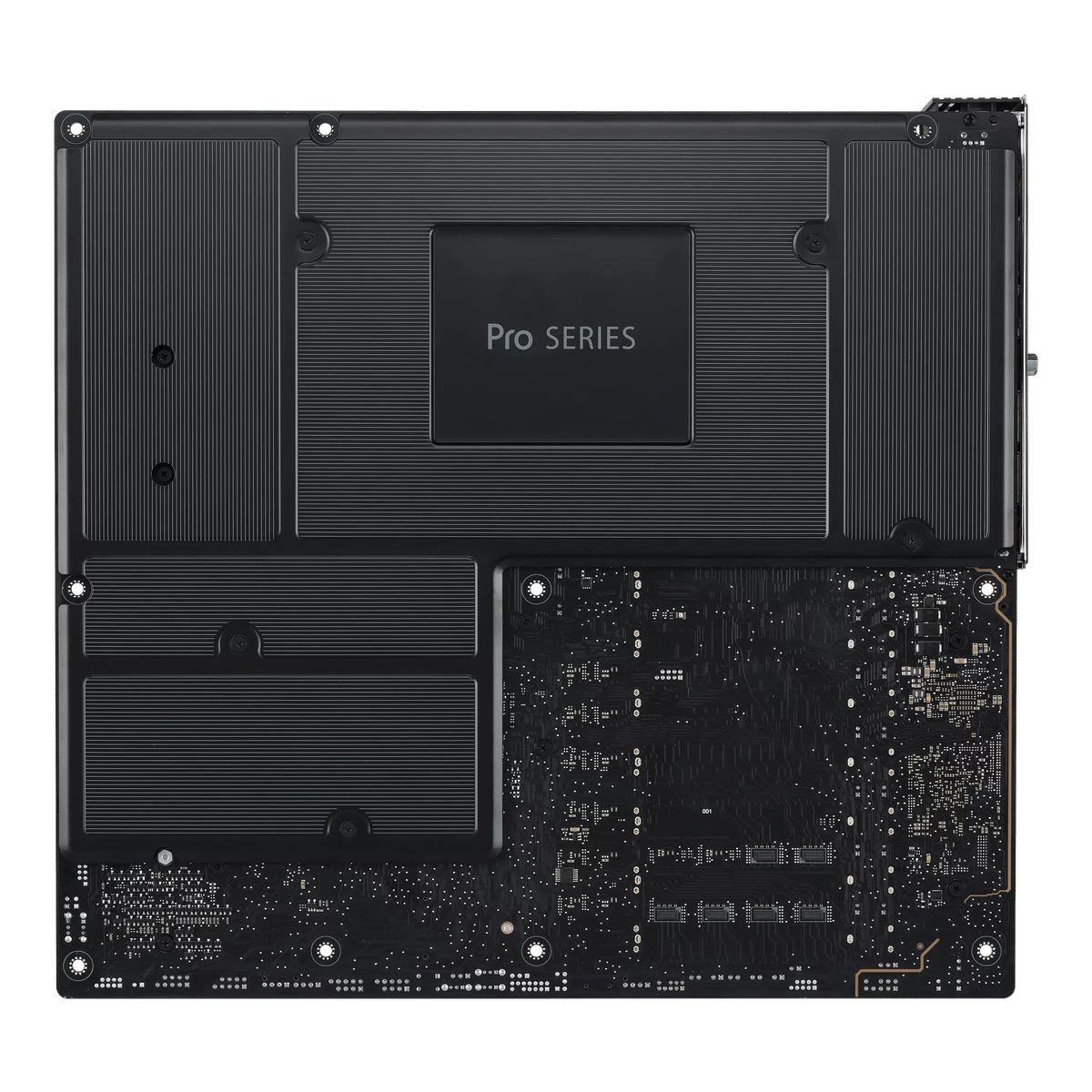

– Steel backplate
– VRM heatsink design with active fans
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Bespoke Motherboard Design & Business Focused Features
– 24/7 Reliability
– Overcurrent Protection
BMC Related
1 x BMC switch
1 x BMC LAN fixed IP switch
1 x IPMI switch
1 x Message LED header
1 x microSD card socket
2 x LAN LED headers
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header (Dedicated Management for AST2600)
1 x VPP_I2C header
– DIGI+ VRM (- Digital power design with SPS)
– ESD Guards
– LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-Release Slim (with PCIe SafeSlot)
– Q-Code
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate and onboard thermal pads
– M.2 heatsink
– Steel backplate
– VRM heatsink design with active fans
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Bespoke Motherboard Design & Business Focused Features
– 24/7 Reliability
– Overcurrent Protection
BMC Related
1 x BMC switch
1 x BMC LAN fixed IP switch
1 x IPMI switch
1 x Message LED header
1 x microSD card socket
2 x LAN LED headers
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header (Dedicated Management for AST2600)
1 x VPP_I2C header
Software Features
ASUS Exclusive Software
Armoury Crate
– Fan Xpert 4
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUSTeK. EzFlash Utility
FlexKey
IT Management software supported
– ASUS Control Center Express(ACCE)
Armoury Crate
– Fan Xpert 4
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUSTeK. EzFlash Utility
FlexKey
IT Management software supported
– ASUS Control Center Express(ACCE)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS(text-based)
Manageability
WOL by PME, PXE (UEFI mode)
Accessories
Cables
2 x PCIe 8-pin to CPU power cables
1 x 24-pin power cable (Y cable)
2 x Mini DisplayPort cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x Q-connector
1 x M.2 Q-Latch package
1 x AMI license sticker
4 x M.2 rubber packages
1 x Screw package for M.2 Key E
Documentation
1 x ACC Express Activation Key Card
1 x Quick start guide
2 x PCIe 8-pin to CPU power cables
1 x 24-pin power cable (Y cable)
2 x Mini DisplayPort cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x Q-connector
1 x M.2 Q-Latch package
1 x AMI license sticker
4 x M.2 rubber packages
1 x Screw package for M.2 Key E
Documentation
1 x ACC Express Activation Key Card
1 x Quick start guide
Operating System
Windows® 11
Windows® 10 64-bit
Windows® 10 64-bit
Form Factor
EEB Form Factor
12 inch x 13 inch
(30.5 cm x 33 cm)
12 inch x 13 inch
(30.5 cm x 33 cm)
Additional information
| Brand |
Asus |
|---|---|
| Socket |
sTR5 |
| CPU Support |
AMD Ryzen Threadripper Pro 7000 WX Series |
| Chipset Manufacture |
AMD |
| Chipset Model |
AMD WRX90 |
| Form Factor |
EEB |
| Memory Slots Available |
8 Slots |
| Memory Type |
Desktop DDR5 |
| On-Board WiFi |
No |
| Reverse Connectors |
No |
| GPU High Powered Connector |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
| Colour |
Black |
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping
Please note that We use either following Couriers
Courierit / Courier Guy / MDS Collivery / DPD Laser / Internet Express / Rhenus / RTT / DCB.
via uAfrica / Suppliers
Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 – R1000 T&C’s Apply.
Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.
Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT) Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB).
Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved: Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals
Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 – R1000 T&C’s Apply.
Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.
Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT) Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB).
Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved: Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals
Reviews
There are no reviews yet.
