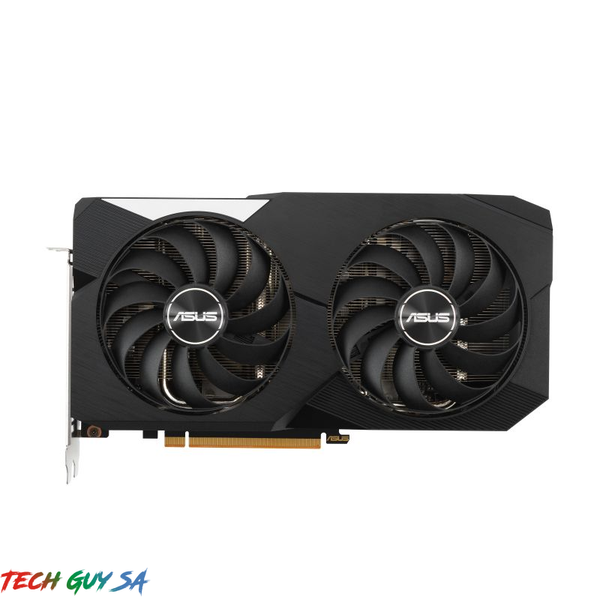

- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- Auto-Extreme Technology uses automation to enhance reliability.

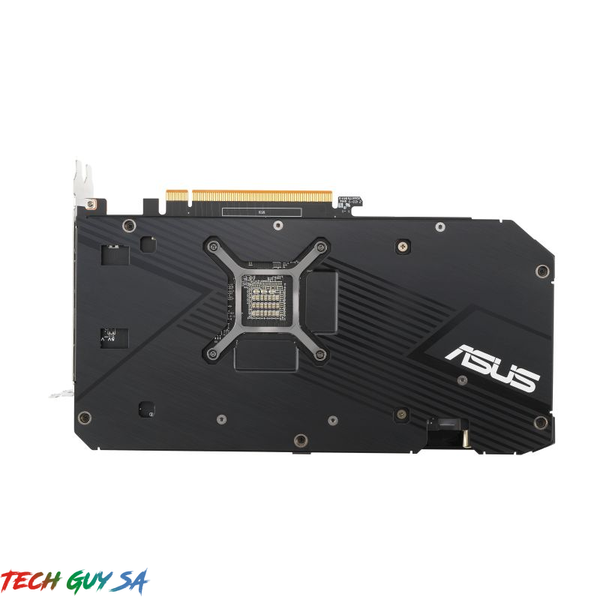

- A protective backplate prevents PCB flex and trace damage.
Ā Graphic Engine | Radeon RX 6600 XT |
Bus Standard | PCI Express 4.0 |
OpenGL | OpenGLĀ®4.6 |
Video Memory | 8GB GDDR6 |
Engine Clock | OC mode : up to 2607 MHz (Boost Clock)/up to 2402 MHz (Game Clock) |
Gaming mode : up to 2593 MHz (Boost Clock)/up to 2382 MHz (Game Clock) | |
Stream Processors | 2048 |
Memory Speed | 16 Gbps |
Memory Interface | 128-bit |
Resolution | Digital Max Resolution 7680 x 4320 |

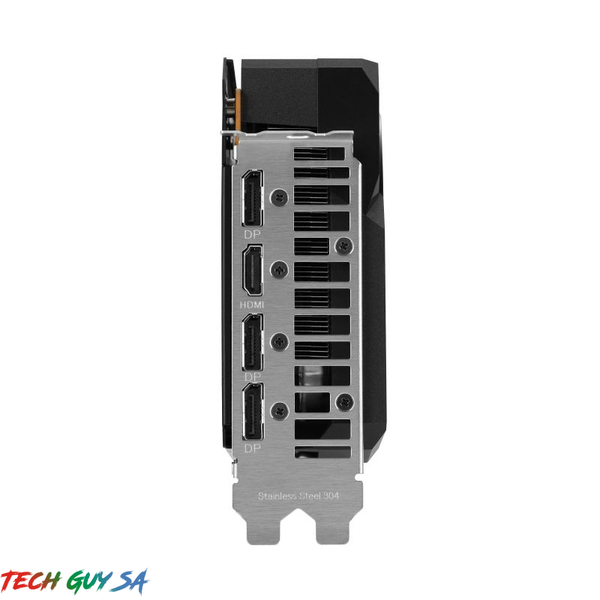

Interface | Yes x 1 (Native HDMI 2.1) |
Yes x 3 (Native DisplayPort 1.4a) | |
HDCP Support Yes (2.3) | |
Maximum Display Support | 4 |
NVlink/ Crossfire Support | Yes |
Accessories | 1 x Collection Card |
1 x Speedsetup Manual | |
Software | ASUS GPU Tweak II & Drivers: please download all software from the support site. |
Dimensions | 243 x 134 x 49 mm |
9.6 x 5.3 x 1.9 inch | |
Recommended PSU | 500W |
Power Connectors | 1 x 8-pin |
Note
* Crossfire Support for DirecXĀ® 12 and VulkanĀ®
* āGame Clockā is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* āBoost Clockā is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
