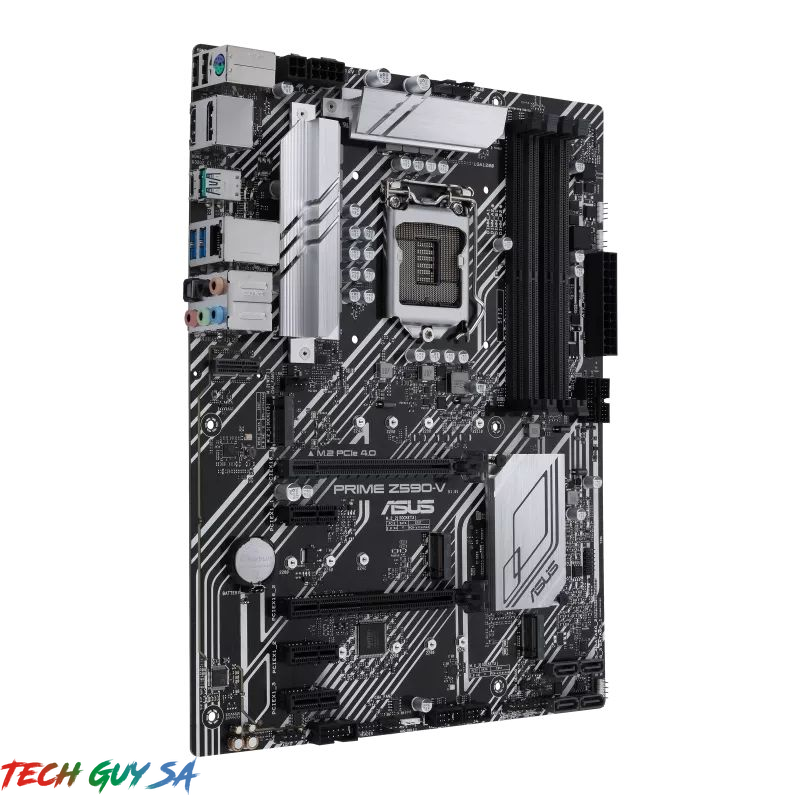

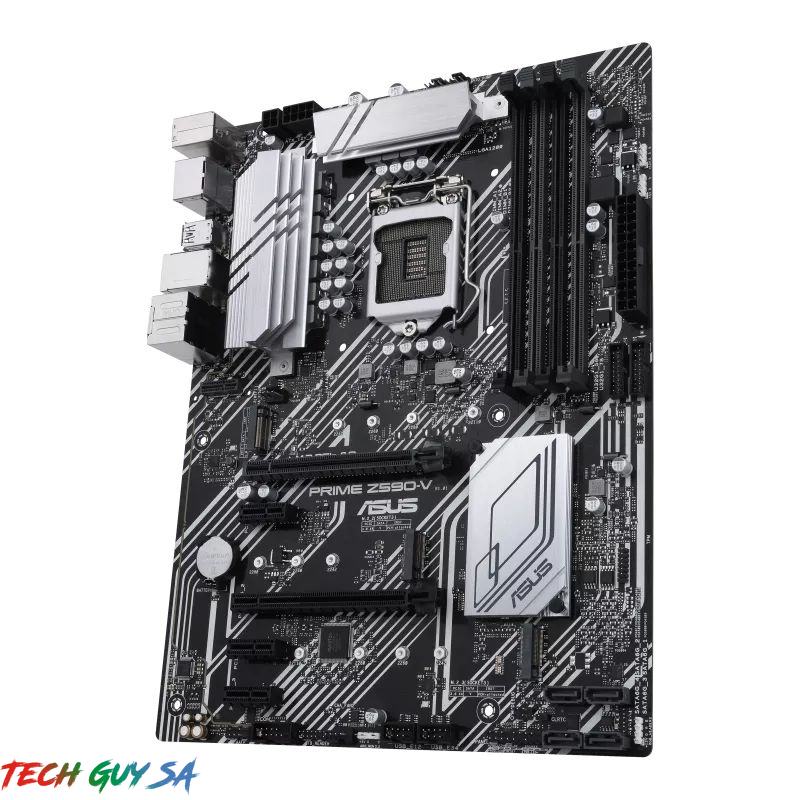

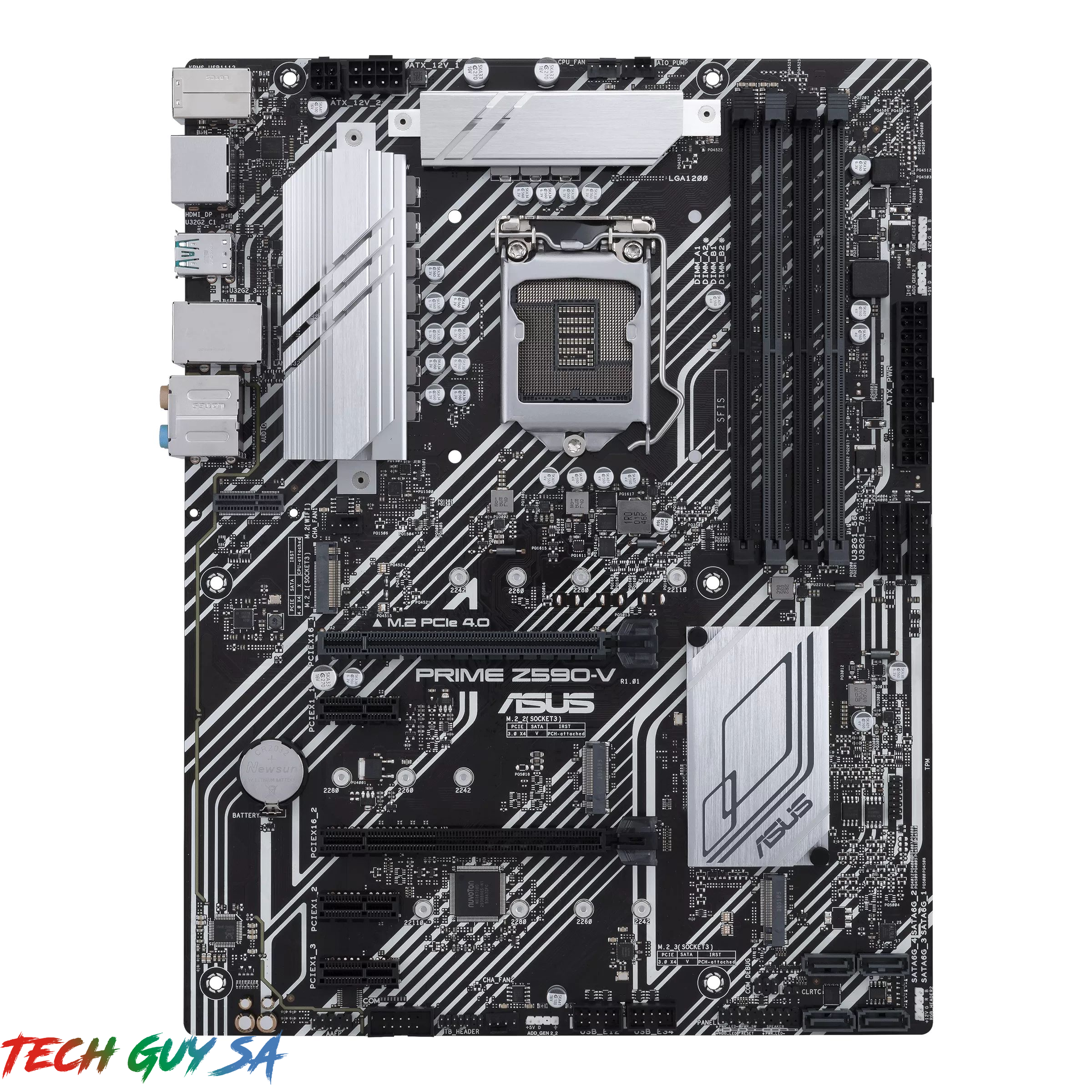

- IntelĀ® LGA 1200 socket: Ready for 11th and 10th gen IntelĀ® Coreā¢ processors
- Enhanced power solution: 8+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Next-gen connectivity: PCIeĀ® 4.0, IntelĀ® 1 Gb Ethernet , USB 3.2 Gen 2 Type-CĀ®, Thunderboltā¢ 4 header support
Network
Wi-Fi | N |
---|---|
Ethernet LAN | Y |
Ethernet interface type | Gigabit Ethernet |
Wake-on-LAN ready | Y |
LAN controller | Intel I219-V |
Weight & dimensions
Width | 305 |
---|---|
Depth | 234 |
Processor
Processor manufacturer | Intel |
---|---|
Compatible processor series | Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium G |
Processor socket | LGA 1200 |
Supported processor sockets | LGA 1200 (Socket H5) |
Memory
Maximum internal memory | 128 |
---|---|
Supported memory types | DDR4-SDRAM |
Number of memory slots | 4 |
Memory slots type | DIMM |
Non-ECC | Y |
Unbuffered memory | Y |
Memory channels | Dual-channel |
Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4500,4600,4700,4800,5000,5133 |
Graphics
Maximum resolution | 4096 x 2304 |
---|---|
Parallel processing technology support | Not supported |
Features
Component for | PC |
---|---|
Motherboard form factor | ATX |
Motherboard chipset family | Intel |
Audio output channels | 7.1 |
Windows operating systems supported | Windows 10 x64 |
Motherboard chipset | Intel Z590 |
Audio chip | Realtek ALC897 |
Packaging content
Cables included | SATA |
---|---|
Drivers included | Y |
Expansion slots
PCI Express x16 (Gen 3.x) slots | 1 |
---|---|
Number of M.2 (M) slots | 3 |
PCI Express x1 (Gen 3.x) slots | 3 |
PCI Express x16 (Gen 4.x) slots | 1 |
Internal I/O
USB 2.0 connectors | 2 |
---|---|
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Number of chassis fan connectors | 2 |
TPM connector | Y |
Number of SATA III connectors | 4 |
Front panel audio connector | Y |
Front panel connector | Y |
ATX Power connector (24-pin) | Y |
CPU fan connector | Y |
EPS power connector (8-pin) | Y |
12V power connector | Y |
RGB LED pin header | Y |
Number of COM connectors | 1 |
Thunderbolt headers | 1 |
Rear panel I/O ports
USB 2.0 ports quantity | 2 |
---|---|
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
PS/2 ports quantity | 1 |
HDMI ports quantity | 1 |
Headphone outputs | 5 |
Microphone in | Y |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
S/PDIF out port | Y |
USB connector type | USB Type-A,USB Type-C |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
HDMI version | 1.4/2.0 |
Storage controllers
RAID support | Y |
---|---|
Number of storage drives supported | 7 |
Supported storage drive interfaces | M.2,PCI Express 3.0,PCI Express 4.0,SATA III |
Supported storage drive types | HDD |
BIOS
BIOS type | UEFI AMI |
---|---|
Clear CMOS jumper | Y |
BIOS memory size | 192 |
