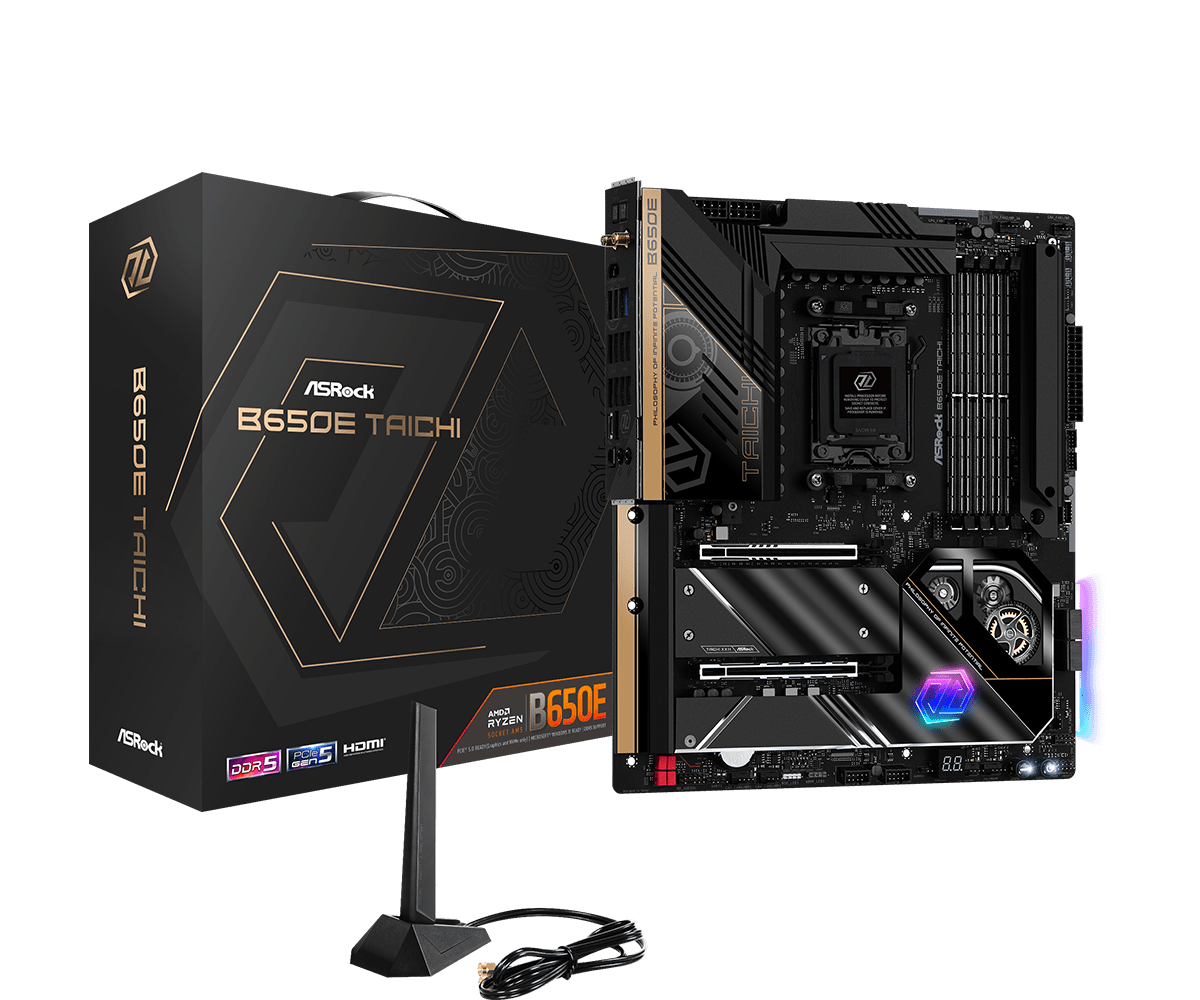

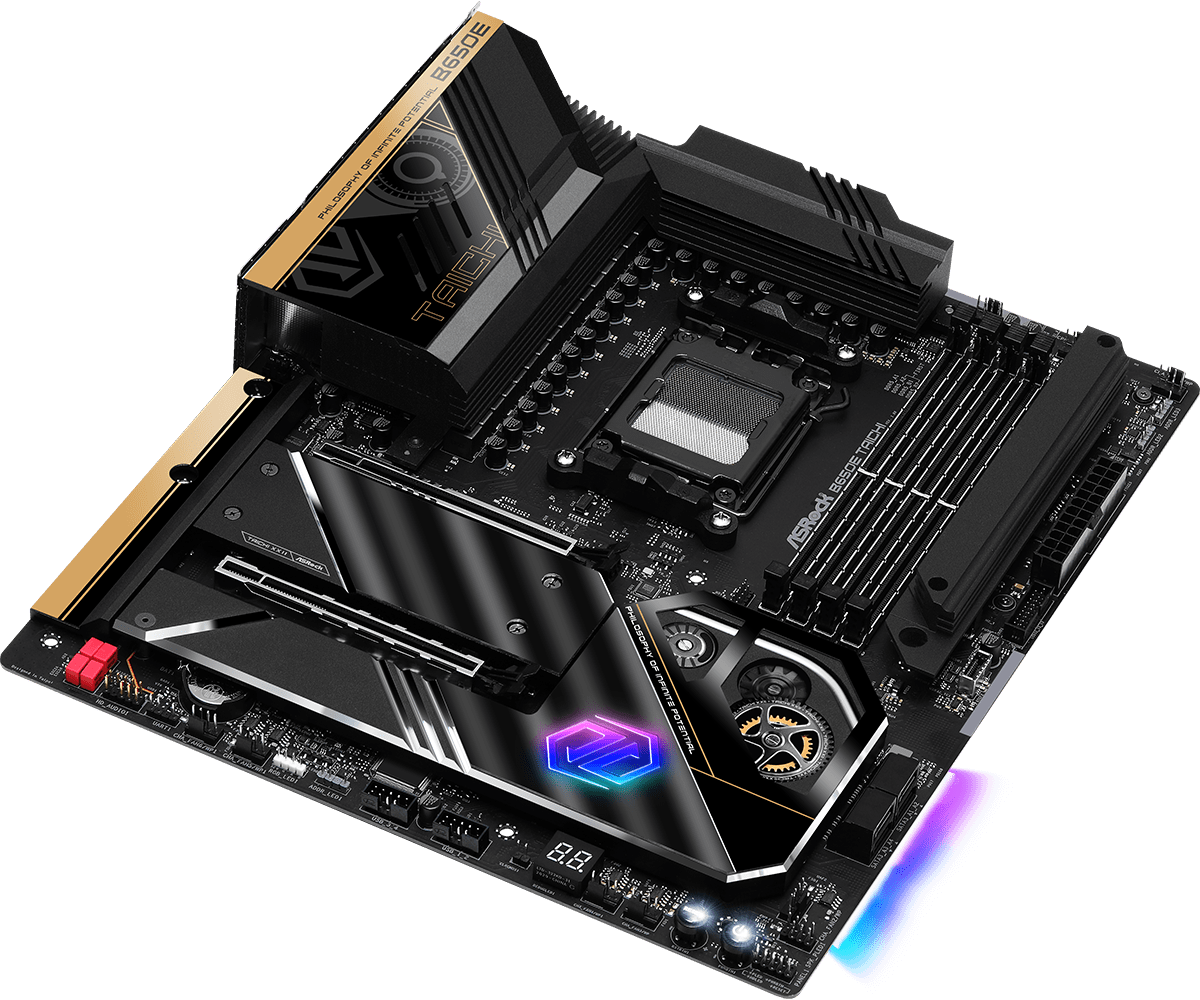

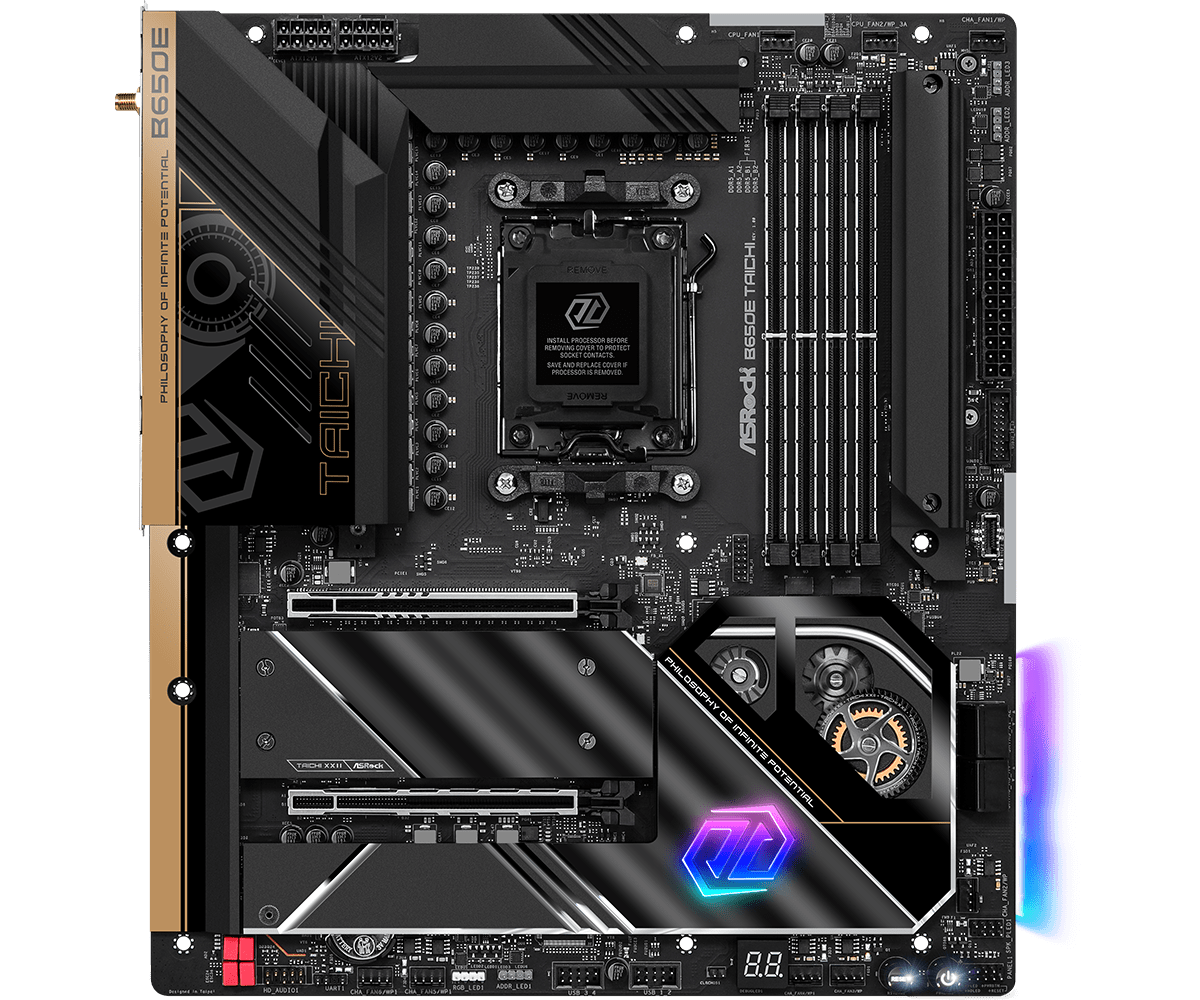

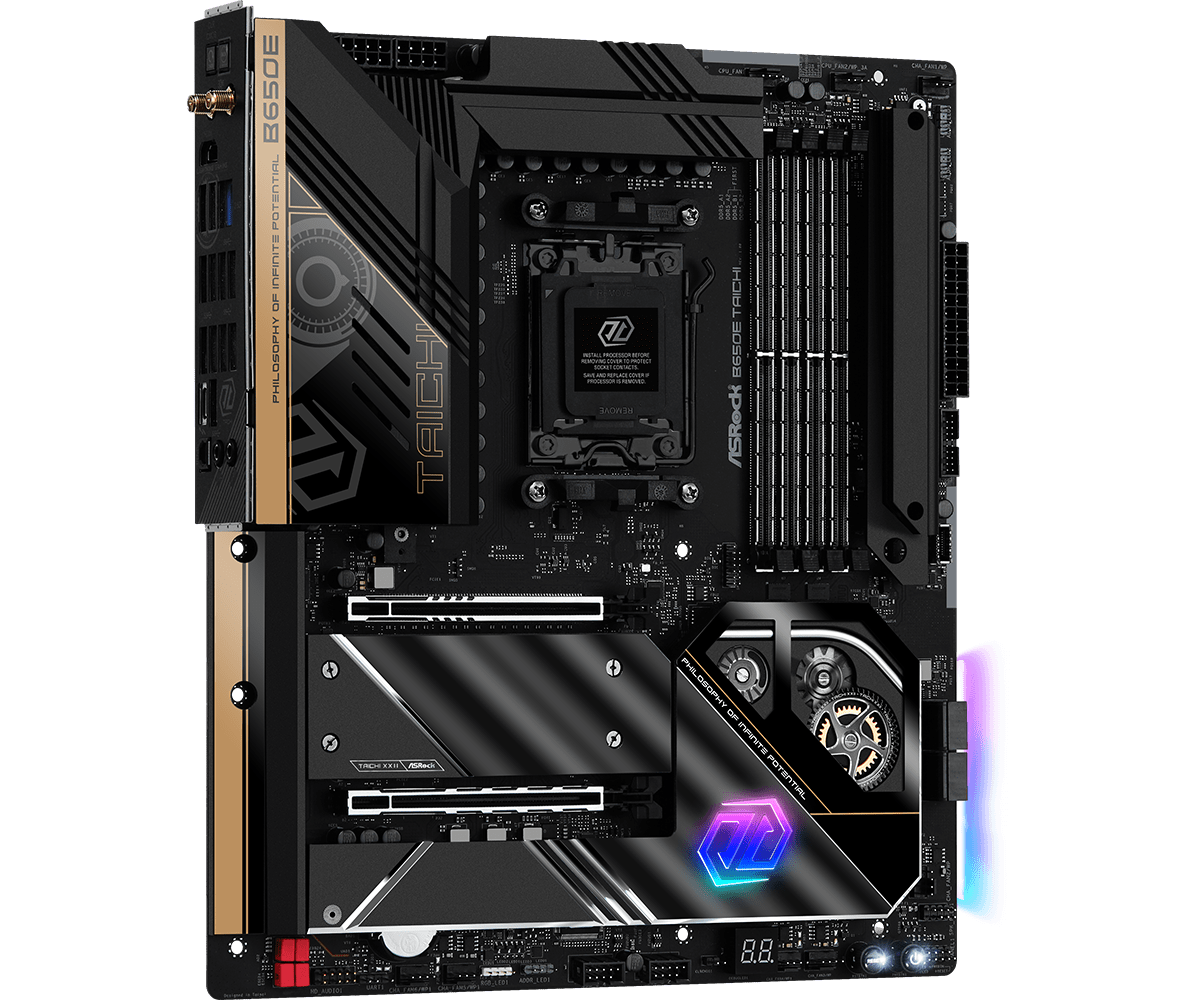

AsRock B650E Taichi – AM5 Motherboard – End of Life
SKU / Product is End of Life
Pay R0 When paying via EFT at checkout.
0
People watching this product now!
Description
B650E Taichi
- Supports AMD Ryzenā¢ 7000 Series Processors
- 24+2+1 Phase Power Design, SPS for VCore+GT
- 4 x DDR5 DIMMs, supports up to 6600+(OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Output Options: 1 USB4 Type-C, 1 HDMI
- Realtek ALC4082 5.1 CH HD Audio Codec,
ESS SABRE9218 DAC, WIMA Audio Caps - 1 Blazing M.2 (PCIe Gen5x4),
2 Hyper M.2 (PCIe Gen4x4),
4 SATA3 - 1 USB4 Type-C (Rear),
1 USB 3.2 Gen2x2 Type-C (Front),
3 USB 3.2 Gen2 Type-A (Rear),
10 USB 3.2 Gen1 (8 Rear, 2 Front) - Killer 2.5G LAN
- Killer 802.11ax Wi-Fi 6E + Bluetooth 5.3
Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task ā with style! Become like water. Shapeless, formless, versatile for any situation.
Build for The Most Advanced PC

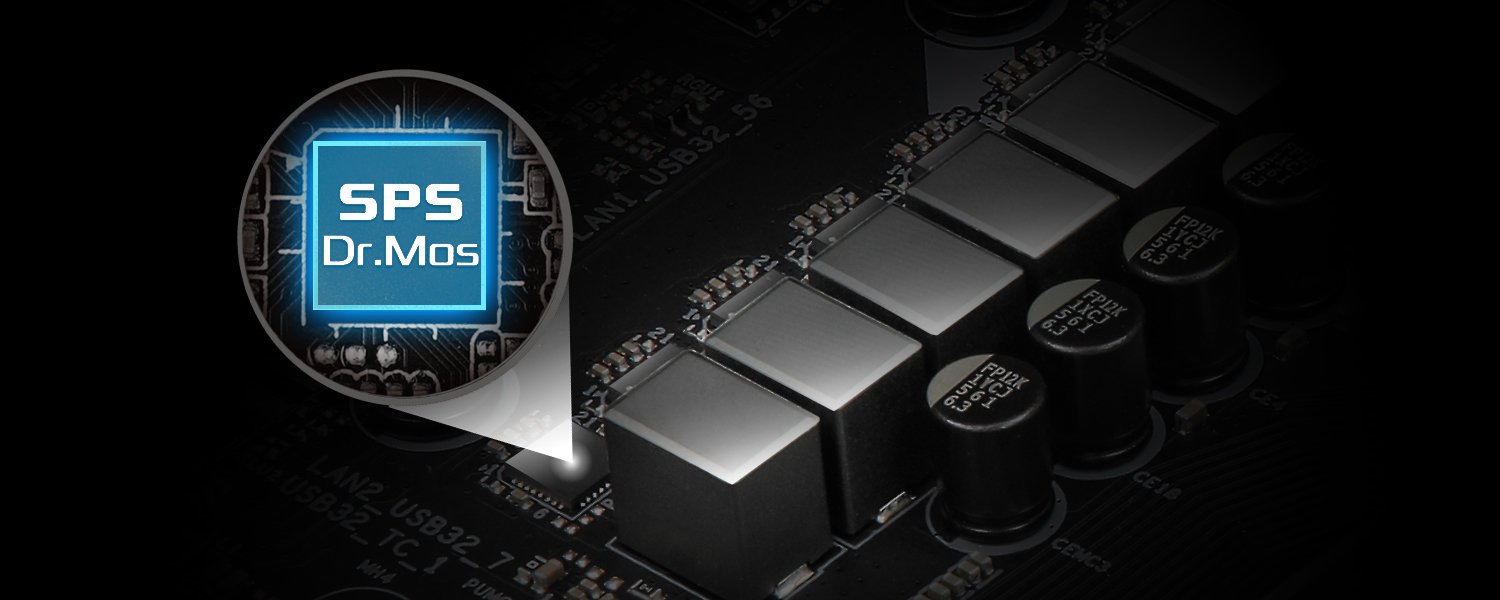

Optimized VRM Design
Dr.MOS design features the latest SPS (Smart Power Stage) technology. Itās optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
Premium PCB Design
The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
Extreme Overclocking Performance
Derived from the ābuilt for stable and reliableā designing concept, ASRock does not compromise on any details. All B650E motherboards are built with 8-Layer and premium low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6600MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPOā¢/ IntelĀ® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
* There are certain risks involved with memory overclocking and may affect your systemās stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.

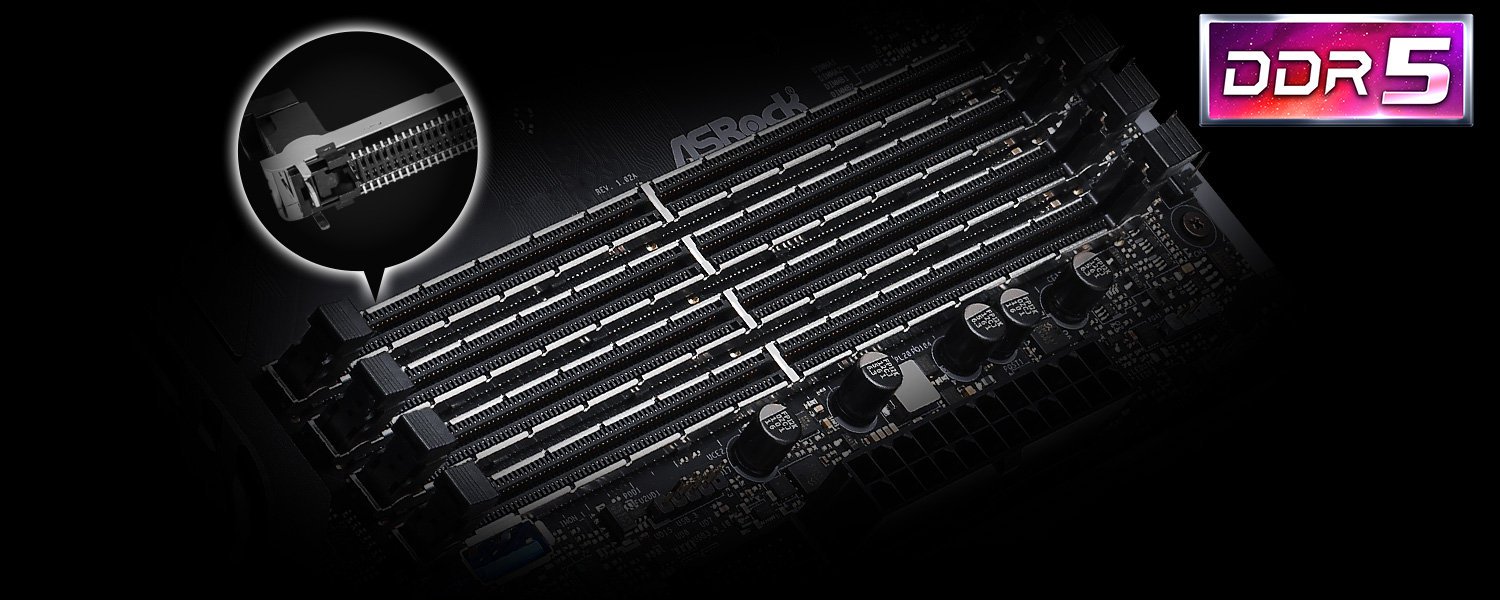

DDR5 Memory with Protection Circuit
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
KiLLER Networking
The Killer Ethernet controller is designed specially for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.
Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
*The availability of Wi-Fi 6E (6GHz) may vary between different countries.
Wi-Fi 6E (6GHz band) will be supported by MicrosoftĀ® WindowsĀ® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through WindowsĀ® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Wi-Fi 6E (6GHz band) will be supported by MicrosoftĀ® WindowsĀ® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through WindowsĀ® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
USB4 Type-C
USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and supports up to 9V@3A 27W with the next generation PD 3.0 for superfast charging!
High Definition Sound Effects
Embrace the audio stunning performance with ES9218 SABRE DAC!
ā True Hi-Fi Audio. No distorted digital signal
ā 130dB SNR
ā 112dB THD+N and supports higher impedance up to 600 Ī© headphone
ā True Hi-Fi Audio. No distorted digital signal
ā 130dB SNR
ā 112dB THD+N and supports higher impedance up to 600 Ī© headphone

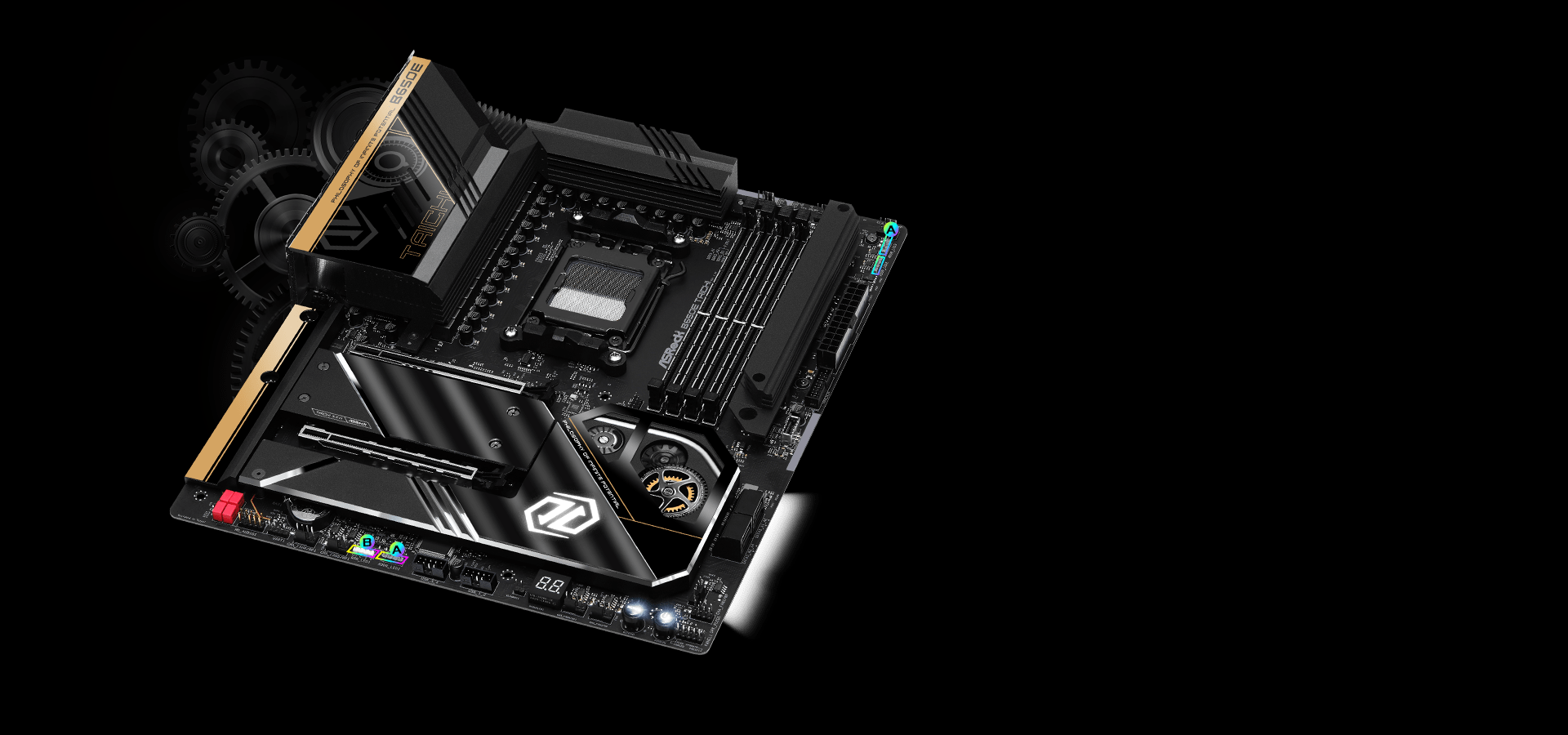

POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
*A Group=Addressable RGB Header, B Group=RGB Header
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
*A Group=Addressable RGB Header, B Group=RGB Header

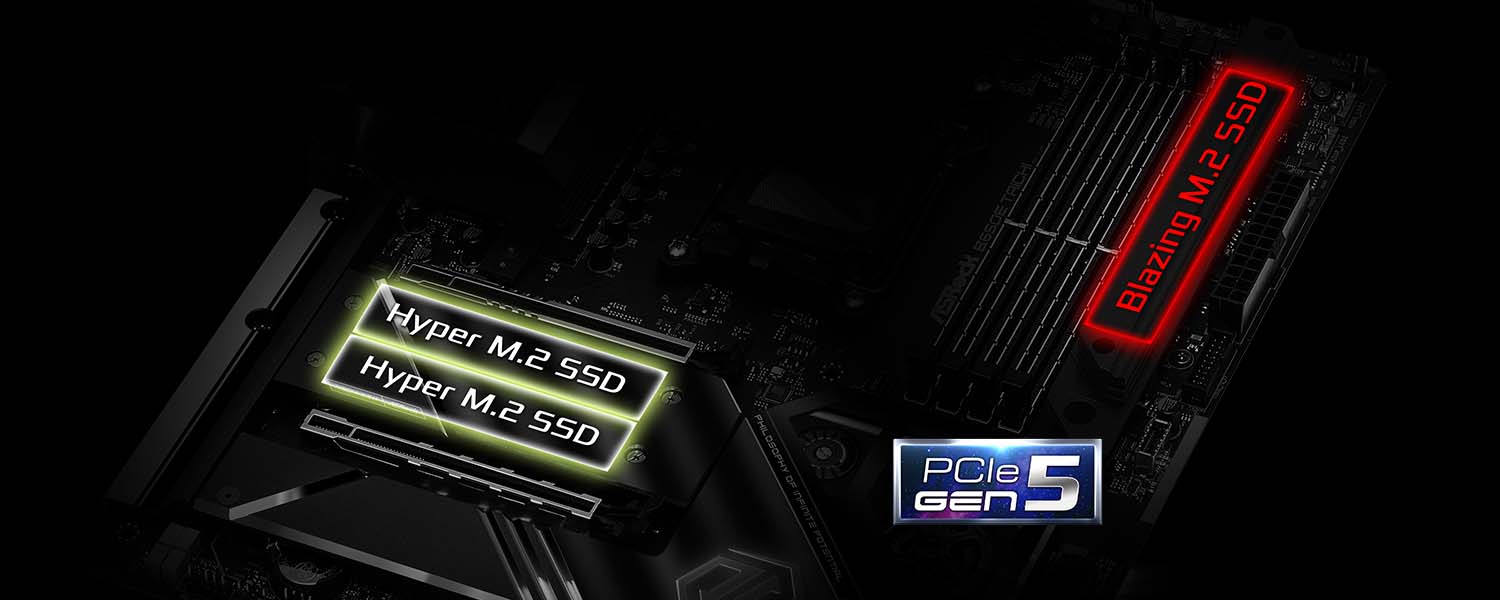

High Speed M.2 Solution
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
EZ Setting
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!
-
Unique FeatureSuperb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
– USB4 Type-C Port (40 Gb/s)
Rock-Solid Durability
– Server-Grade Low-Loss PCB
– 24+2+1 Power Phase, 105A SPS for VCore+GT with Enlarged Heatsink Armor
– Flexible Integrated I/O Shield
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Gaming
– Killer 2.5G LAN, Killer
802.11ax Wi-Fi 6EModule
– Killer DoubleShotā¢ Pro
– ASRock Lightning Gaming Ports
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer -
CPU– Supports AMD Socket AM5 Ryzenā¢ 7000 Series Processors
– Supports ASRock Hyper BCLK Engine -
Chipset– AMD B650
-
Memory– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 6600+(OC)*
– Max. capacity of system memory: 128GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules -
BIOS– 256Mb AMI UEFI Legal BIOS with GUI support
-
GraphicsIntegrated AMD RDNAā¢ 2 graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x USB4, supports HDCP 2.3 and max. resolution up to 8K 60Hz**Only the CPU’s embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use CPU models with embedded graphics.
USB4 graphics output may not be compatible with certain Type-C monitors. Please use graphics card outputs instead. -
Audio– 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
– WIMA Audio Capacitors (For Front Outputs)
– ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
– Individual PCB Layers for R/L Audio Channel
– Impedance Sensing on Rear Out port
– Nahimic Audio -
LAN– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Killer E3100G
– Supports Killer LAN Software
– Supports Killer DoubleShotā¢ Pro -
Wireless LAN– 802.11ax Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax
– Supports Dual-Band 2×2 160MHz with extended 6GHz band support*
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.3 + High speed class II
– Supports MU-MIMO
– Supports Killer LAN Software
– Supports Killer DoubleShotā¢ Pro*Wi-Fi 6E (6GHz band) will be supported by MicrosoftĀ® WindowsĀ® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through WindowsĀ® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality. -
SlotsCPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module– 15Ī¼ Gold Contact in VGA PCIe Slot (PCIE1)
*If M2_3 is occupied, PCIE2 will be disabled.
Supports NVMe SSD as boot disks -
StorageCPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2230/2242/2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
ASMedia ASM1061:
– 4 x SATA3 6.0 Gb/s Connectors*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
If M2_3 is occupied, PCIE2 will be disabled. -
RAID– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices**Requires additional M.2 NVMe expansion cards to support RAID 10
-
USB– 1 x USB4 Type-C (Rear)
– 1 x USB 3.2 Gen2x2 Type-C (Front)
– 3 x USB 3.2 Gen2 Type-A (Rear)
– 10 x USB 3.2 Gen1 (8 Rear, 2 Front)
– 4 x USB 2.0 (Front)*All USB ports support ESD Protection -
Connector– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15Ī¼ Gold Audio Connector)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)
– 1 x Dr. Debug with LED
– 1 x Power Button with LED
– 1 x Reset Button with LED*Supports in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip
***CPU_FAN1 supports the fan power up to 1A (12W).
****CPU_FAN2/WP_3A supports the fan power up to 3A (36W).
*****CHA_FAN1~6/WP support the fan power up to 2A (24W).
CPU_FAN2/WP_3A and CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use. -

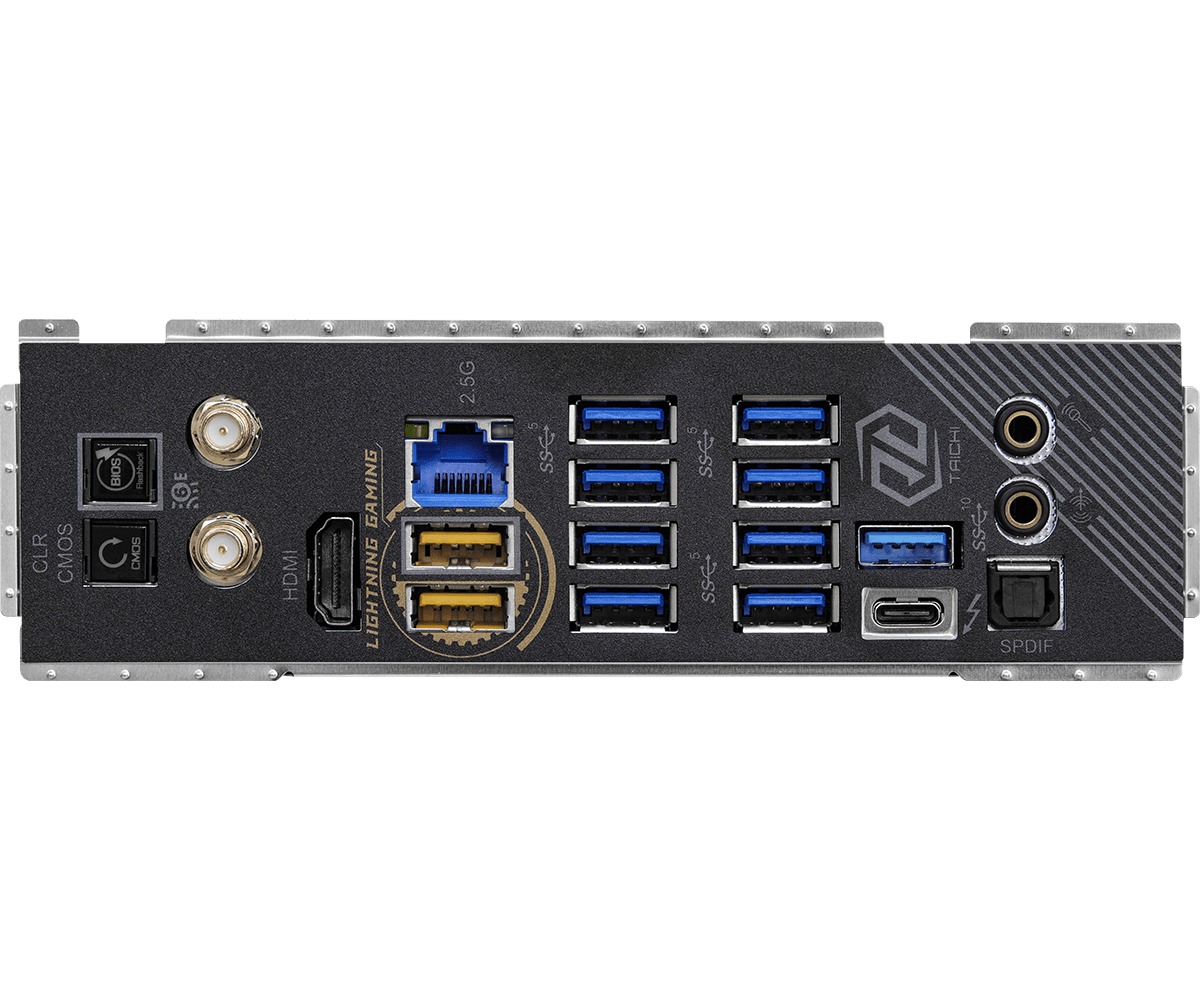

Rear Panel I/O– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 1 x USB4 Type-C Port (40 Gb/s)*
– 3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (USB32_12 are Lightning Gaming Ports. USB32_11 supports Ultra USB Power.)
– 8 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub)
– 1 x RJ-45 LAN Port
– 1 x Clear CMOS Button
– 1 x BIOS Flashback Button
– 1 x Line Out Jack (Gold Audio Jack)
– 1 x Microphone Input Jack (Gold Audio Jack)*Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging -
Software and UEFISoftware
– ASRock Motherboard Utility (A-Tuning)
– Killer Control Center
– ASRock Polychrome SYNC*
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop. -
Accessories– 1 x User Manual
– 4 x SATA Data Cables
– 1 x Wireless Dongle USB Bracket
– 1 x ASRock WiFi 2.4/5/6 GHz Antenna
– 3 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket -
Form Factor– EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
– 8 Layer PCB -
OS– MicrosoftĀ® WindowsĀ® 10 64-bit / 11 64-bit
-
Certifications– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Additional information
| Brand |
ASRock |
|---|---|
| Socket |
AM5 |
| CPU Support |
Ryzen 7000 Series |
| Chipset Manufacture |
AMD |
| Chipset Model |
B650E |
| Form Factor |
E ATX |
| Memory Slots Available |
4 Slots |
| On-Board WiFi |
Yes |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
