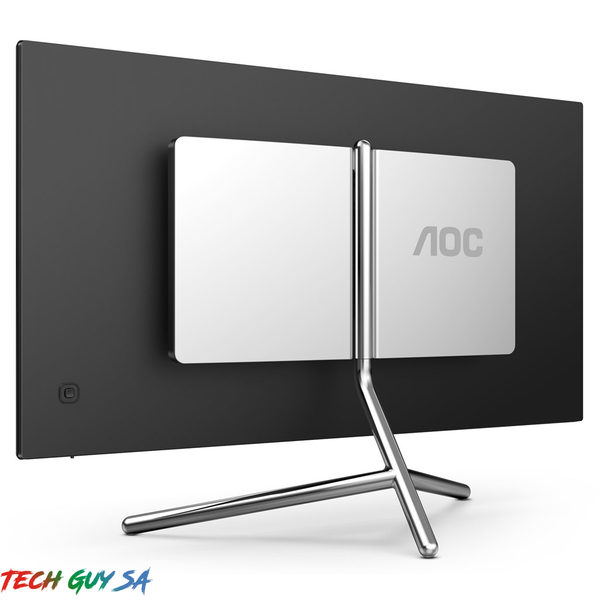

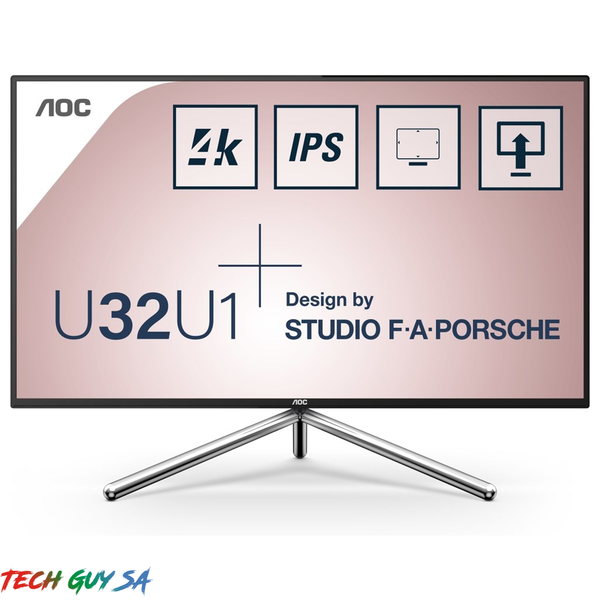

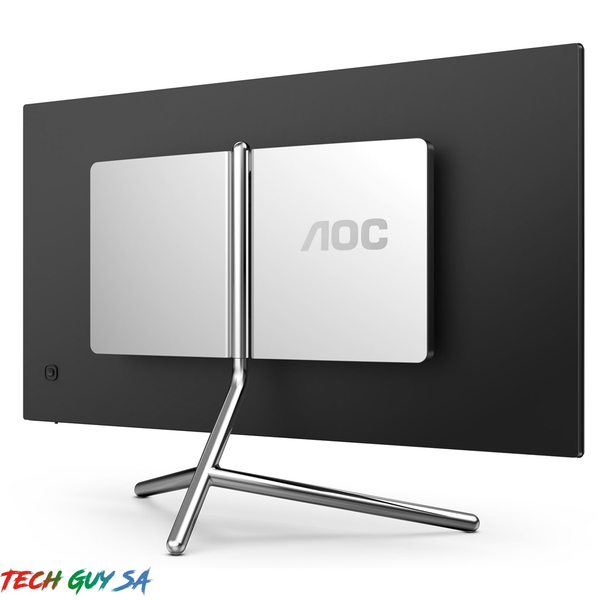

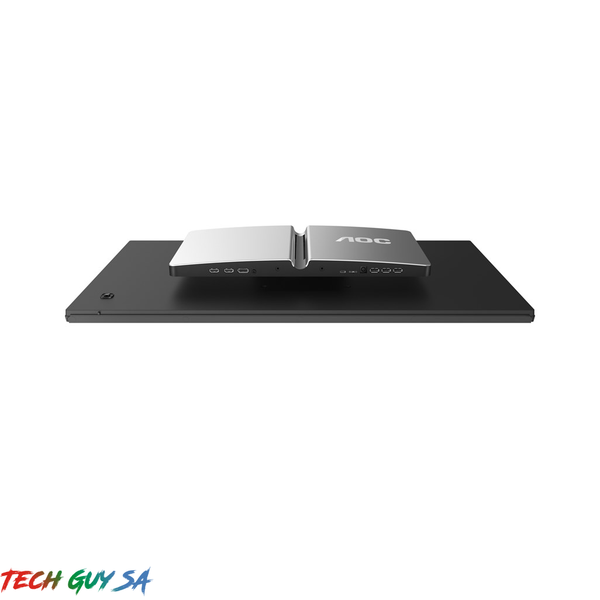

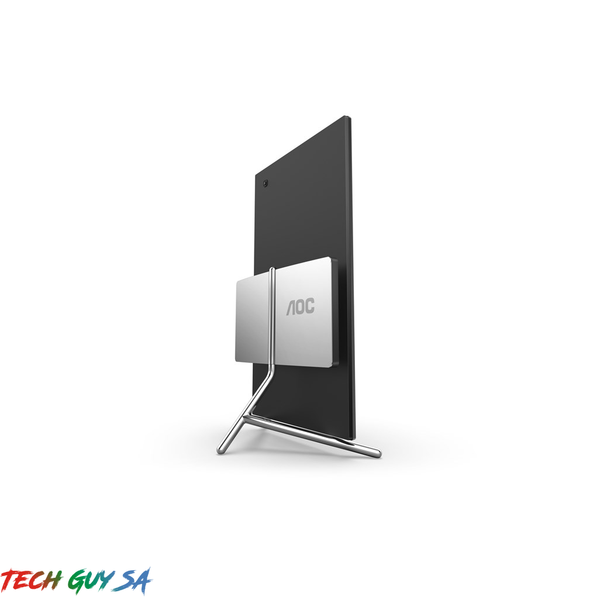

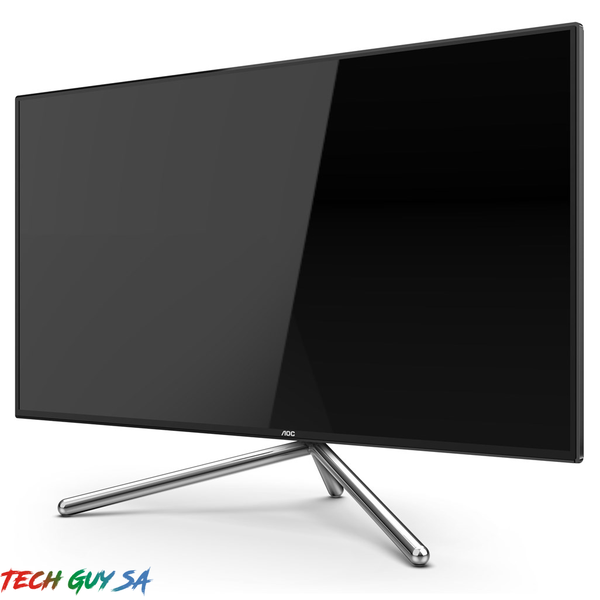

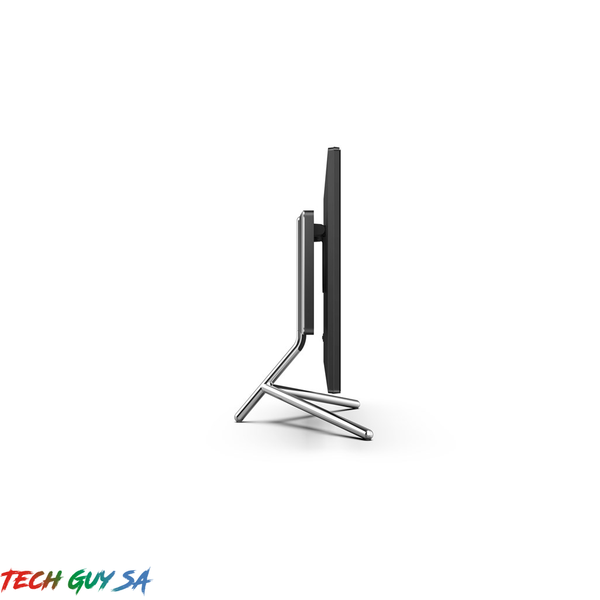

Elegantly designed by Studio F.A. Porsche, the U32U1 boasts a 31.5” IPS panel in 4K, Vesa DisplayHDR 600 and 98% DCI-P3 coverage for breath-taking images. With USB-C and USB 3.0 hub.
Ports & interfaces
| HDMI ports quantity | 2 |
|---|---|
| Headphone outputs | 1 |
| DVI port | N |
| DisplayPorts quantity | 1 |
| Built-in USB hub | Y |
| HDMI | Y |
| Headphone out | Y |
| Number of upstream ports | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| DisplayPort version | 1.2 |
| Headphone connectivity | 3.5 mm |
| Audio input | Y |
| HDMI version | 1.4/2.0 |
| USB upstream port type | USB Type-C |
| USB Type-C downstream ports quantity | 1 |
Display
| Panel type | IPS |
|---|---|
| Screen shape | Flat screen |
| Display diagonal | 31.5 |
| Maximum refresh rate | 60 |
| Native aspect ratio | 16:9 |
| Response time | 5 |
| 3D | N |
| Display technology | LED |
| Viewing angle, horizontal | 178 |
| Viewing angle, vertical | 178 |
| Contrast ratio (dynamic) | 50000000:1 |
| Backlight type | W-LED |
| Display sRGB | Y |
| Colour depth | 8 |
| High Dynamic Range (HDR) supported | Y |
| Display resolution | 3840 x 2160 |
| HD type | 4K Ultra HD |
| Display brightness (typical) | 600 |
| Supported graphics resolutions | 3840 x 2160 |
| Display number of colours | 1.073 billion colours |
| Display diagonal (metric) | 80 |
| Contrast ratio (typical) | 1300:1 |
| Pixel pitch | 0.1815 x 0.1815 |
| Supported video modes | 2160p |
| Horizontal scan range | 30 – 160 |
| Vertical scan range | 23 – 60 |
| Viewable size, horizontal | 697.31 |
| Viewable size, vertical | 414.3 |
| Digital horizontal frequency | 30 – 160 |
| Digital vertical frequency | 23 – 60 |
| sRGB coverage (typical) | 135 |
| Adobe RGB coverage | 111 |
Design
| Product colour | Black |
|---|---|
| Market positioning | Home |
| Feet colour | Silver |
| EPEAT compliance | EPEAT Gold |
| Frameless design | Y |
| Heavy metals free | Hg (mercury),Pb (lead) |
| Mean time between failures (MTBF) | 50000 |
| RoHS compliance | Y |
| Certification | TÜV Bauart, CE, GOST, ISO, ISO 9241-307 |
| Bezel thickness type | Narrow |
| Front bezel colour | Black |
Performance
| Flicker-free technology | Y |
|---|---|
| Low Blue Light technology | Y |
Power
| Power consumption (standby) | 0.5 |
|---|---|
| Power consumption (off) | 0.5 |
| AC input voltage | 100 – 240 |
| AC input frequency | 50 – 60 |
| Power consumption (typical) | 60 |
| Energy efficiency class | C |
| Annual energy consumption | 88 |
| External power adapter | N |
Packaging data
| DisplayPort cable length | 1.8 |
|---|---|
| HDMI cable length | 1.8 |
| Cables included | DisplayPort,HDMI,USB |
| Package width | 820 |
| Package depth | 640 |
| Package height | 360 |
| USB cable length | 1.8 |
Ergonomics
| VESA mounting | Y |
|---|---|
| On/off switch | Y |
| Tilt adjustment | Y |
| Height adjustment | Y |
| Panel mounting interface | 100 x 100 |
| Pivot | Y |
| Swivelling | Y |
| On Screen Display (OSD) | Y |
| Number of OSD languages | 16 |
| Cable lock slot type | Kensington |
| Tilt angle range | -3.5 – 18.5 |
| Height adjustment | 120 |
| Swivel angle range | -40 – 40 |
| On Screen Display (OSD) languages | CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,KOR,POL,POR,RUS,SER |
Multimedia
| Built-in speaker(s) | Y |
|---|---|
| Built-in camera | N |
| TV tuner integrated | N |
| Number of speakers | 2 |
| RMS rated power | 4 |
Weight & dimensions
| Width | 414.25 |
|---|---|
| Depth | 75.07 |
| Height | 718.15 |
| Width (with stand) | 718.5 |
| Depth (with stand) | 277.5 |
| Height (with stand) | 414.25 |
Recycling data
| Recyclable material | 100 |
|---|
