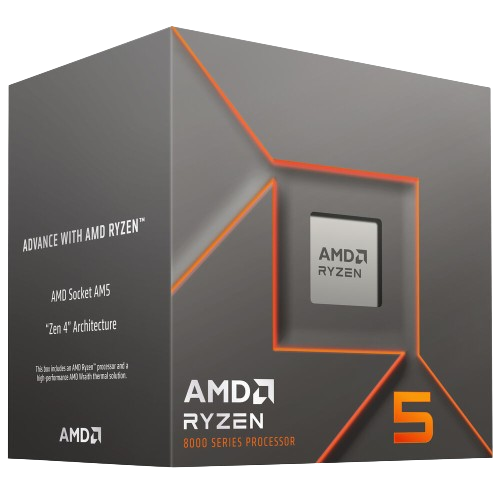

With six cores and 12 threads, the AMD Ryzen 5 8400F 4.2 GHz Six-Core AM5 Processor brings your gaming and content-creation experiences to new levels. Designed for socket AM5 motherboards using the powerful Zen 4 architecture with the 4nm process, this Ryzen processor delivers significantly improved performance compared to its predecessor while maintaining high energy efficiency.
With a base clock speed of 4.2 GHz and a max boost clock speed of 4.7 GHz in addition to 16MB of L3 Cache, the Ryzen 5 8400F is built to deliver the power needed to smoothly load and multitask demanding applications. You can boost performance further by overclocking this unlocked processor. Other features include support for PCIe Gen 4 technology to take advantage of high-bandwidth graphics cards and storage drives. The Ryzen 5 8400F also supports up to 256GB of 5200 MHz DDR5 memory with compatible motherboards, which may be overclocked using AMD EXPO profiles for higher gaming performance.
This processor has a 65W TDP (Thermal Design Power) and includes a Wraith Stealth cooler. The AMD Ryzen 5 8400F does not include integrated graphics, meaning that users will need to purchase a dedicated graphics card.
-
General Specifications
Name AMD Ryzenā¢ 5 8400FFamily RyzenSeries Ryzen 8000 SeriesForm Factor DesktopsAMD PRO Technologies NoConsumer UseYesRegional Availability GlobalFormer Codename PhoenixArchitectureZen 4# of CPU Cores6Multithreading (SMT) Yes# of Threads12Max. Boost Clock Up to 4.7 GHzBase Clock 4.2 GHzL2 Cache6 MBL3 Cache16 MBDefault TDP65WAMD Configurable TDP (cTDP)45-65WProcessor Technology for CPU Cores TSMC 4nm FinFETCPU Compute Die (CCD) Size178mmĀ²Package Die Count 1Unlocked for Overclocking YesAMD EXPOā¢ Memory Overclocking Technology YesPrecision Boost Overdrive YesCurve Optimizer Voltage Offsets YesAMD Ryzenā¢ Master Support YesCPU SocketAM5CPU Boost Technology Precision Boost 2Instruction Setx86-64Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSSE3 , SSE4.1 , SSE4.2 , SSE4A , x86-64Max. Operating Temperature (Tjmax)95Ā°CLaunch Date04/01/2024*OS Support Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
-
Connectivity
Native USB 4 (40Gbps) Ports2Native USB 3.2 Gen 2 (10Gbps) Ports2Native USB 2.0 (480Mbps) Ports1PCI ExpressĀ® Version PCIeĀ® 4.0Native PCIeĀ® Lanes (Total/Usable)20 , 16NVMe Support Boot , RAID0 , RAID1System Memory TypeDDR5Memory Channels2Max. Memory256 GBSystem Memory Sub type UDIMMMax Memory Speed
2x1RDDR5-52002x2RDDR5-52004x1RDDR5-36004x2RDDR5-3600
-
Graphics Capabilities
Graphics Model Discrete Graphics Card RequiredAMD SmartAccess Memory Available
-
AI Engine Capabilities
Brand Name AMD Ryzenā¢AMD Ryzenā¢ AI Not Available
-
Product IDs
Product ID Boxed100-100001591BOX , 100-100001591CBXProduct ID Tray100-000001591 (AM5)Product ID MPK100-100001591MPK , 100-100001591CPK
-
Security, Virtualization, and Manageability
AMD Enhanced Virus Protection (NX bit)Yes
