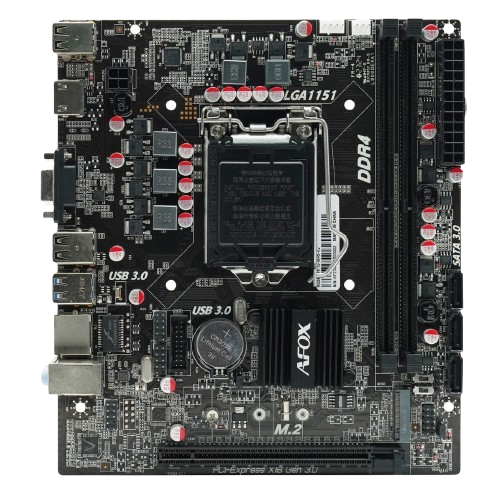

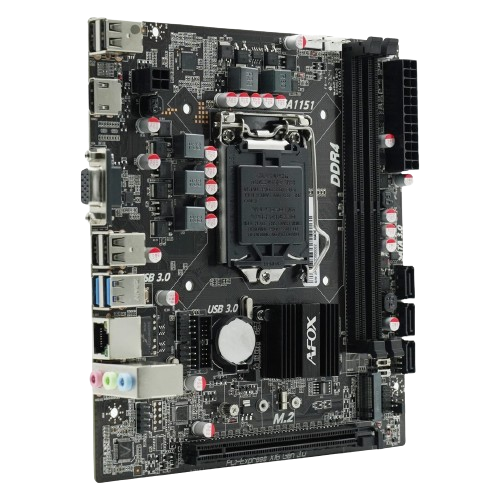

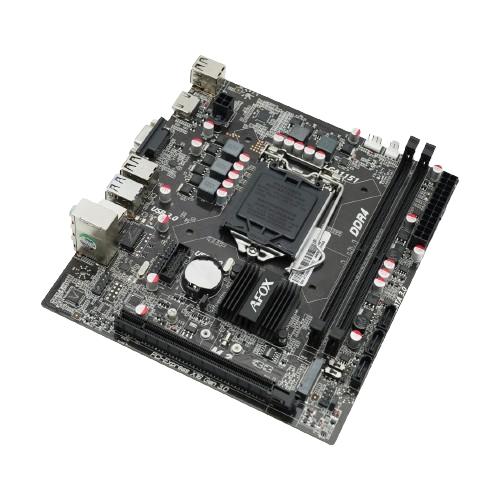

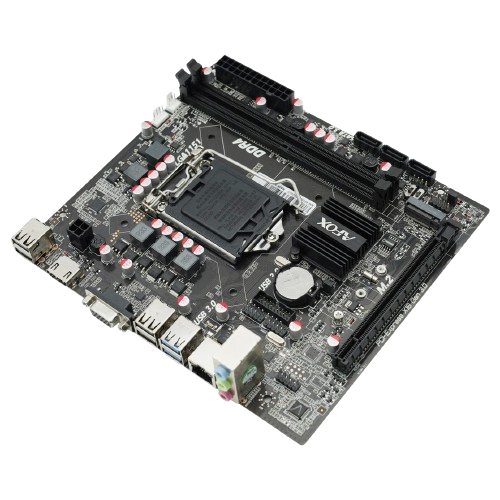

AFOX IH110D4-MA5-V2 – Motherboard LGA 1151
R1,740 Incl VAT
Pay R1,688 When paying via EFT at checkout.
Supplier out of stock
AFOX IH110D4-MA5-V2
Model Name: IH110D4-MA5-V2
Chipset: Intel® H110
Socket:INTEL Socket 1151
Supports Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors
Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts)
Dual channel DDR4 slots
2133MHz Memory up to 32GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
Excellent in multitasking，a wise choice for gaming players
Excellent compatibility
Stable power supply，smooth game performance
Intel® Socket 1151 for 6/7/8/9th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Intel® H110 Express Chipset
Dual-Channel DDR4 2133MHz Memory up to 32GB
SATA 6Gb/s
PCI Express Architecture
USB 3.0
Microsoft Windows 8 compatible
| Platform | INTEL Socket 1151 |
| Model Name | IH110D4-MA5-V2 |
| Chipset | Intel® H110 |
| CPU Supports | Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts) |
| FSB | 2133MHz |
| Memory | Dual Channel DDR4 2133MHz |
| Dimm | 2 x Memory Slots (Max. capacity of system memory 32GB) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support |
| PCI/PCI-E Slots | 1 x PCI Express x16 3.0 slot |
| SATA | 3 x SATA3 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3) |
| IDE | N/A |
| Audio | Realtek 662 on board, Supports 6-channel audio-out |
| LAN | Realtek RTL8111 1000Mbps Ethernet on board |

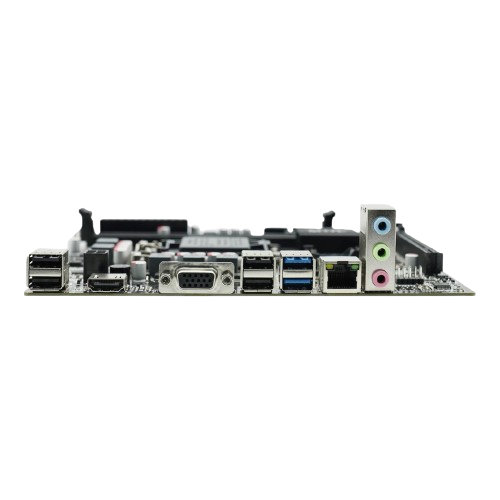

| Back Panel I/Os | 1 x HDMI Port 1 x D-Sub (VGA) Port 2 x USB 3.0 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port with LED 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
| ON-Board Pinheaders/Connectors | 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader 1 x LPC DEBUG |
| BIOS | UEFI BIOS |
| Form Factor | Micro-ATX (17*19cm) |
| Mounting | 4 mounting holes |
| Accessories | 1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
| Brand |
AFOX |
|---|---|
| Socket |
LGA 1151 |
| CPU Support |
Intel 6ᵗʰ Generation ,Intel 7ᵗʰ Generation ,Intel 8ᵗʰ Generation ,Intel 9ᵗʰ Generation |
| Chipset Manufacture |
Intel |
| Chipset Model |
Intel H110 |
| Form Factor |
mATX |
| Memory Slots Available |
2 Slots |
| Memory Type |
Desktop DDR4 |
| On-Board WiFi |
No |
| Reverse Connectors |
No |
| GPU High Powered Connector |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
| Colour |
Black |
