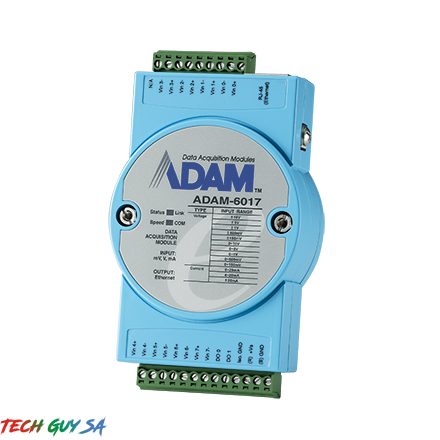

Advantech 8-CH AI/DO MODULE
R5,100 Incl VAT
Pay R4,947 When paying via EFT at checkout.
In stock with Supplier
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
0
People watching this product now!
Description
- 8ch analog input(voltage or current)/2ch digital output
- Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII
- GCL to perform basic logic control rules
- Peer-to-Peer function to map I/O status
- Cloud access: Data update to Azure
- Built-in web server
- Watchdog timer to recover the system
- LED Indicators
- Status, Comm, Link, Speed
- Power Requirement
- 10~30 VDC
- Channel Independent Configuration
- Sampling Rates
- Resolution
- Channels
- Voltage Range
- Current Input
- Input Impedance
- Span Drift
- Zero Drift
- Yes
- 10 or 100 sample/second
- 16-bit
- 8 differential
- ±150 mV ±500 mV ±1 V ±5 V ±10 V, 0~150mV, 0~500 mV, 0~1V, 0~5V, 0~10V
- 0~20 mA, 4~20 mA, ±20 mA
- Voltage: >10 MOhm Current: 120 Ohm
- ±25 ppm/°C
- ± 6 µV/° C
- Watchdog Timer*
- Temperature (Operating)*
- Humidity*
- Temperature (Storage)*
- Interface*
- Peer-to-Peer*
- GCL*
- Isolation Protection*
- Communication Protocol*
- Communication Speed*
- Comm. Distance*
- Connector*
- System (1.6 second) & Communication (programmable)
- -40 ~ 70°C (-40 ~ 158°F)
- 20~95 %RH
- -40~85°C (-40~185 °F)
- 10/100Base-T(X)
- Yes
- Yes
- 2000 VDC
- Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, SNMP, MQTT
- Ethernet: 10/100Mbps
- Ethernet: 100 m
- 1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power)
- Channels
- Power Dissipation*
- 2, open collector to 30V, 100 mA max. load
- 300 mW for each module
