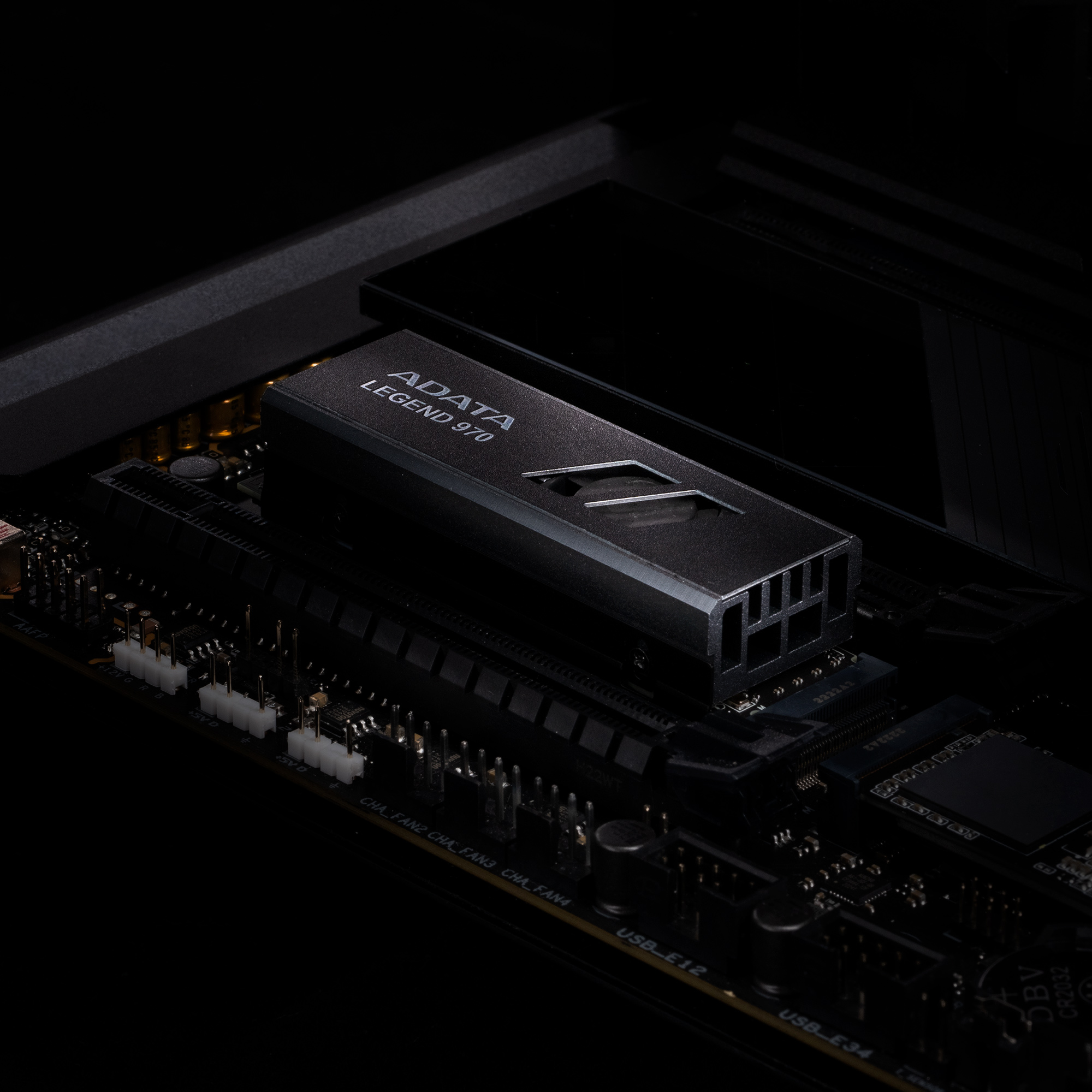

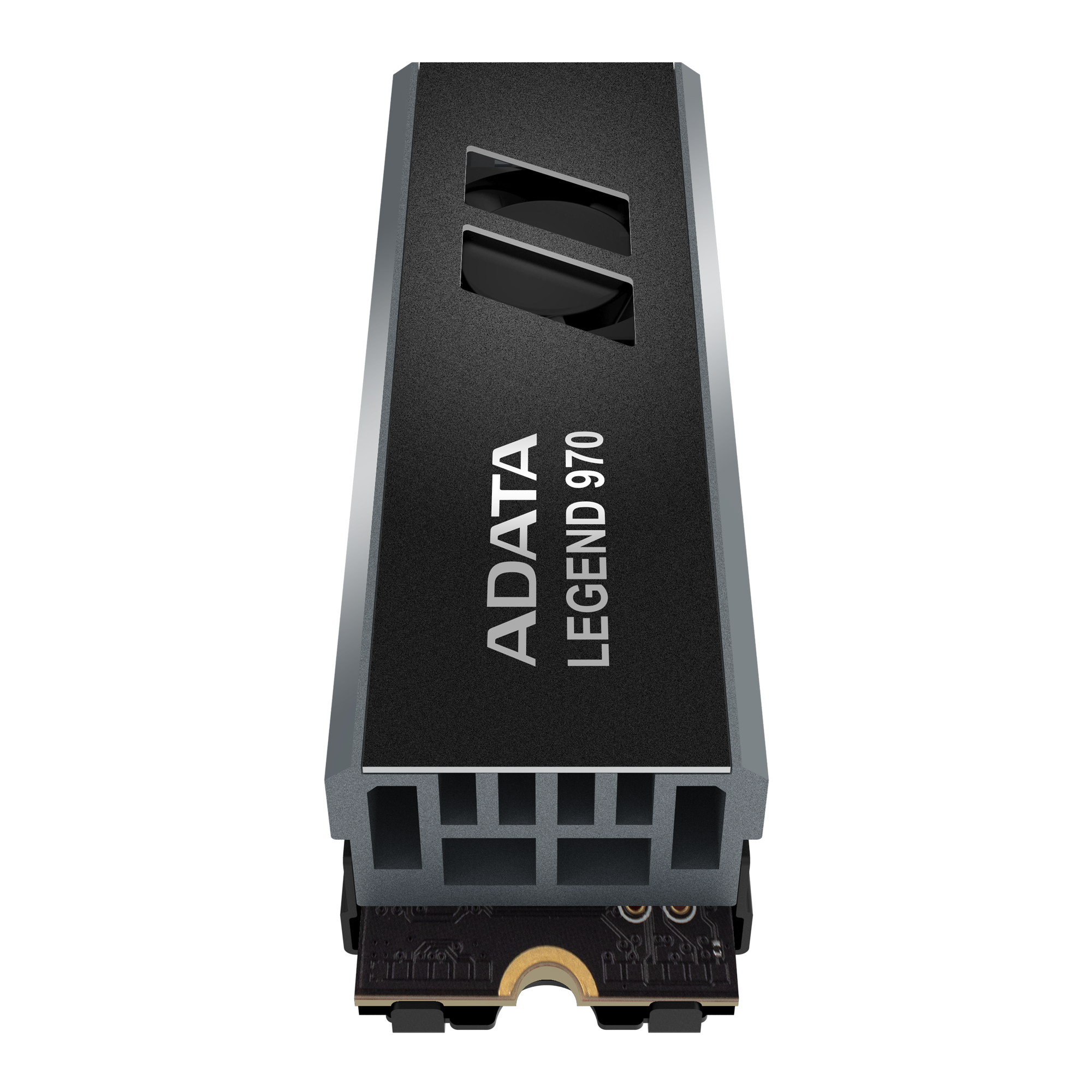

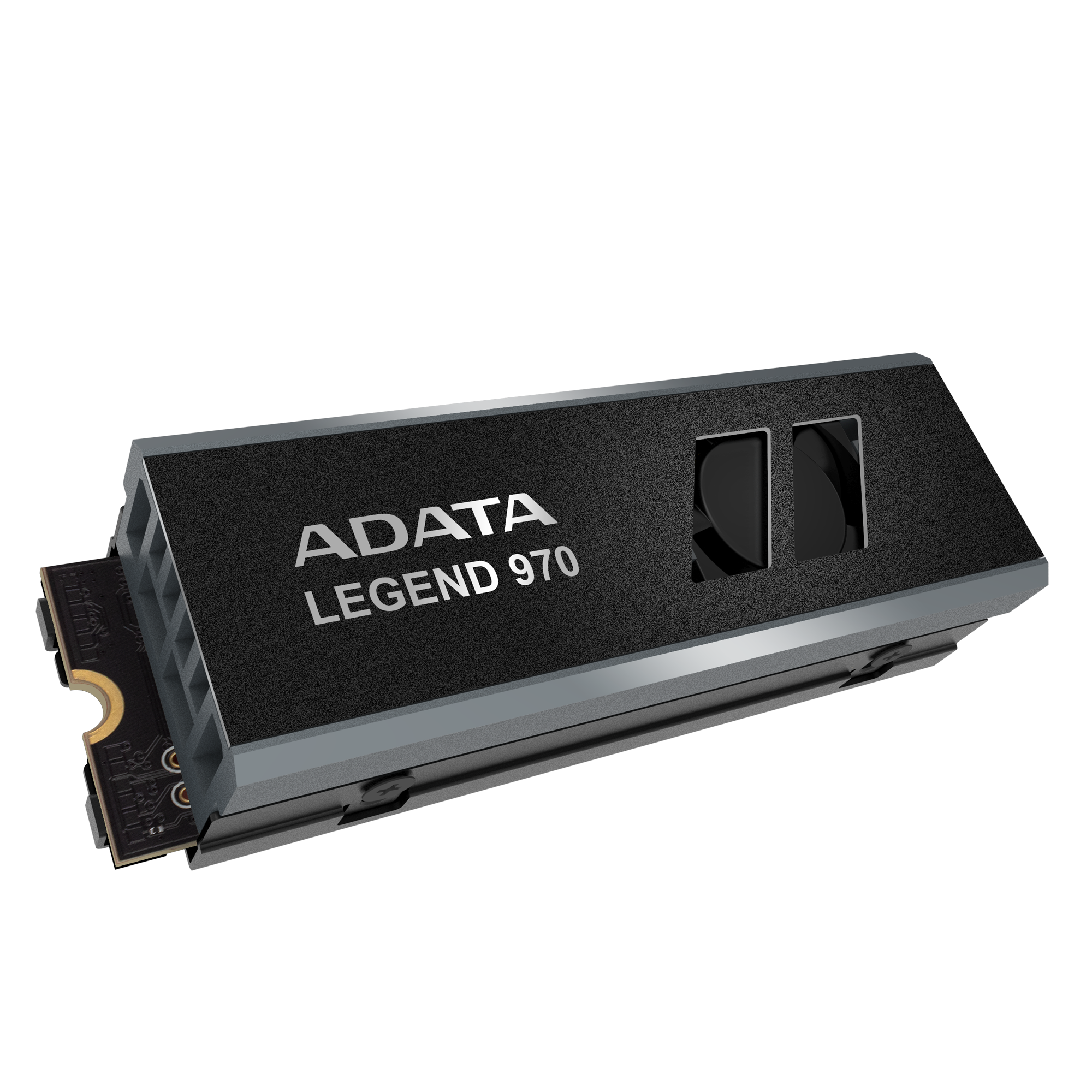

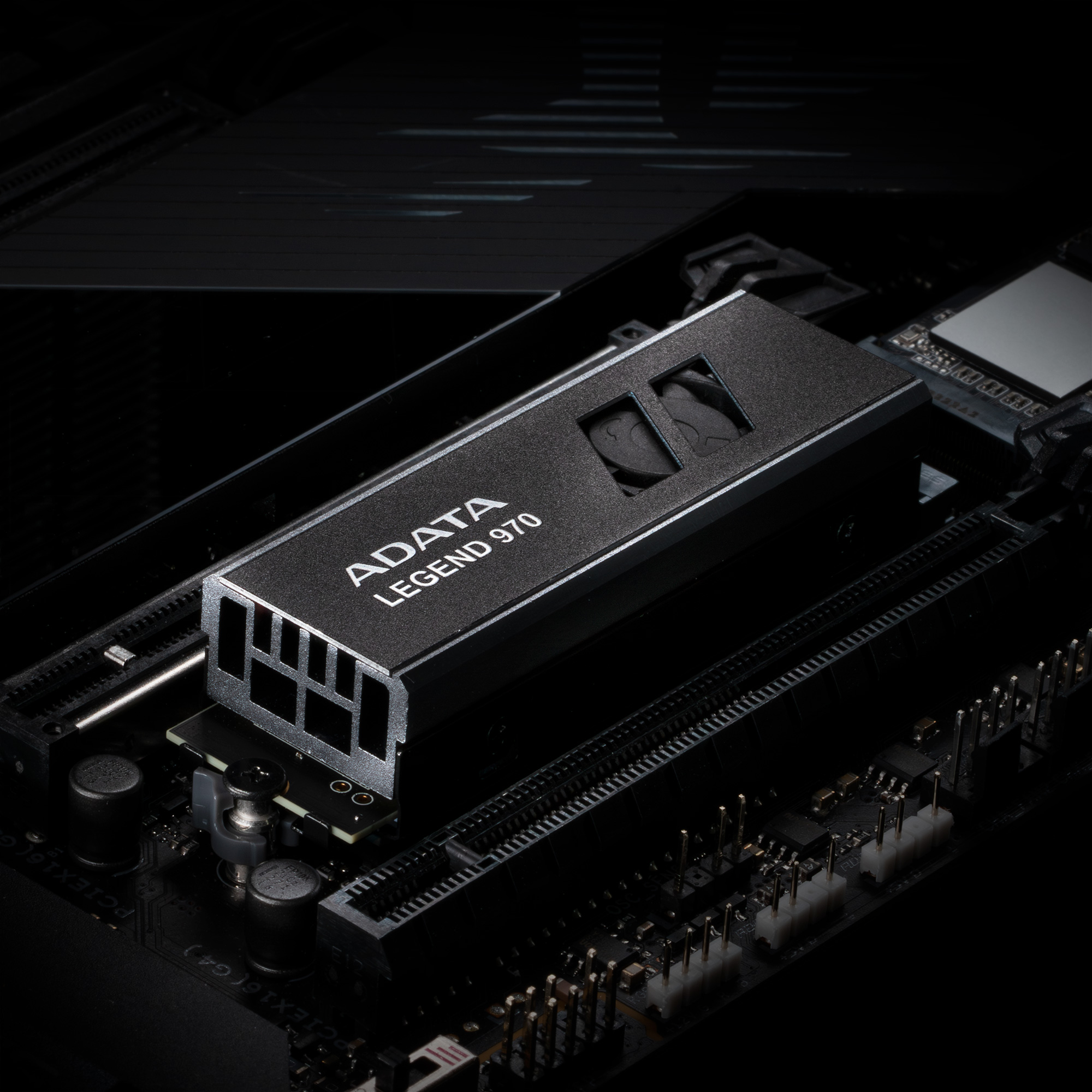

Adata LEGEND 970 1TB PCIe Gen5 x4 M.2 2280 Solid State Drive
R4,200 Incl VAT
Pay R4,074 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
- PCIe Gen5 x4 transmission interface
- 9,500/8,500MB/s sequential read/write speed
- Dual-layer aluminum alloy and fan forms a patented active air cooling system
- Compared with a fanless heat sink, temperatures significantly reduced by 10%
- Surface crystallization improves thermal conductivity
- Operates long-term without slowing down or crashing
- 1TB capacity
- Supports latest Intel and AMD platforms
- 5-year warranty
*Download SSD Toolbox for the latest Firmware to optimize performance and obtain other value-added functions
This product is compatible with Gen4 and Gen3 platforms, but the performance may be limited. Optimal Gen5 performance requires a Gen5-compatible platform.
Extraordinary Speed
The LEGEND 970 adopts the latest generation PCIe Gen5 x4 transmission interface and complies with the NVMe 2.0 standard to deliver amazing read and write capabilities. The LEGEND 970 also supports the latest Intel and AMD platforms. Whether in dynamic or static output, it always provides full performance.
Unreal Performance
Complete every task in moments. The LEGEND 970 has a sequential read/write speed of 10,000/10,000MB per second, double the speed of PCIe Gen4 SSDs and 6 times faster than Gen3 SSDs, and is fully backward compatible with PCIe 4.0 and 3.0 platforms.
* 1TB Version Speeds 9,500/8,500 MB/s Read/Write Speeds
Experts of Patented Heat Dissipation
When high efficiency is required, leave it to the professionals! The LEGEND 970 adopts dual-layer extruded aluminum fins¹ to create a dense air duct to divert hot and cold air. When heat is conducted upward, a built-in micro fan is used to remove thermal energy. This unique “active heat dissipation” design delivers significantly cooler temperatures than a fanless heatsink by 10%².

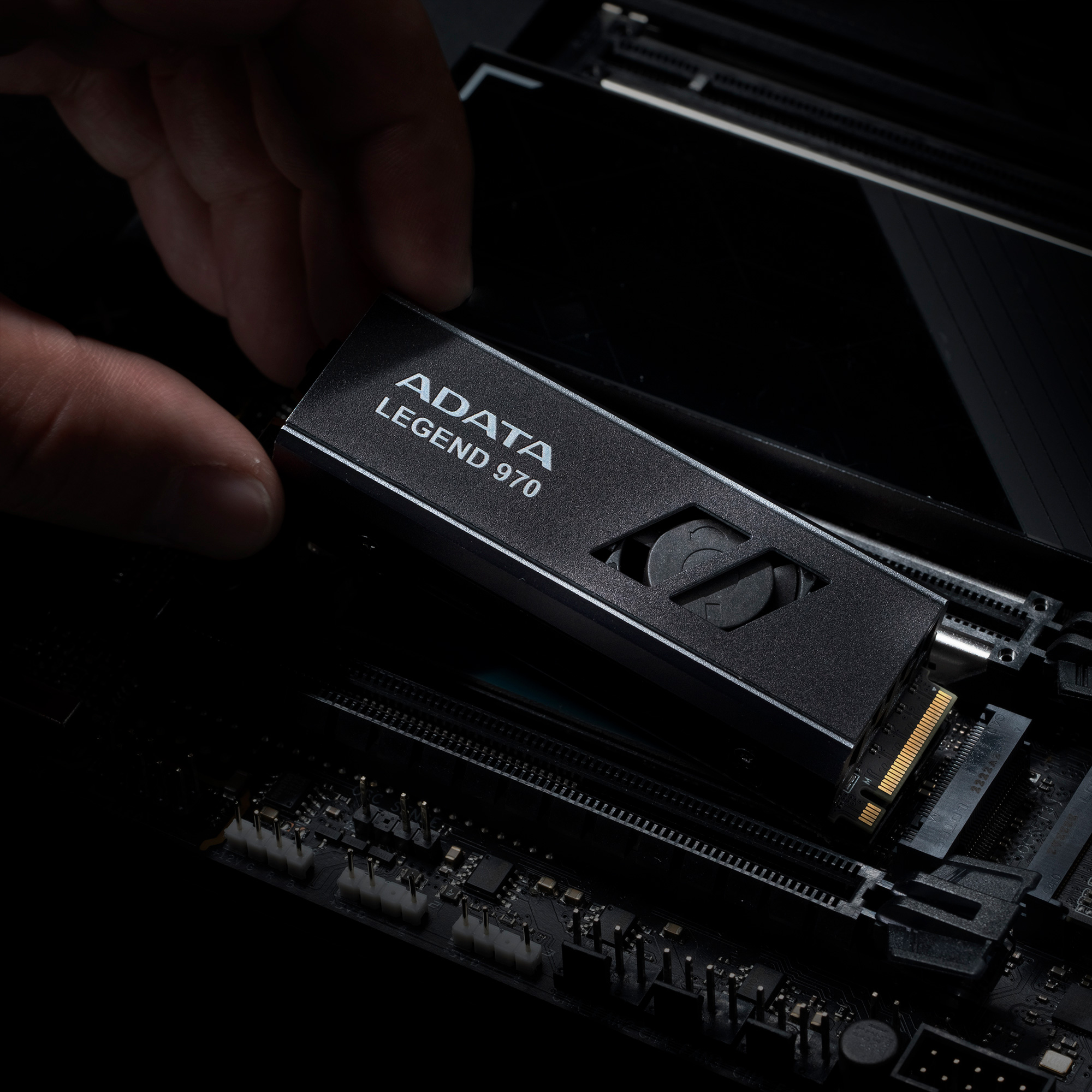

1The heatsink of this product is pre-installed. Please consider installation space before adopting this product and confirm whether your motherboard is supplied with an M.2 heatsink (refer to manufacturer board manual). If so, please remove it first and then install this product with its supplied heatsink.
2This product comes with a fan attached to the SATA cable, which requires an additional power supply connection to activate the active cooling effect.
3Heat dissipation data is based on test conditions of an internal laboratory and actual figures may vary due to personal hardware, software, and test environments.
Surface Crystallization Improve Heat Dissipation
The LEGEND 970’s aluminum alloy fins are treated with surface crystallization, which utilizes its physical properties to increase the overall air contact area and maximize the effectiveness of its air cooling system.
QuiKTIPS : Never Experience Throttling Again
High-speed PCIe 5.0 transmission requires powerful heat dissipation. If heat is not dissipated quickly, data read/writes speeds will be adversely affected and the drive itself crashing is a possibility. The LEGEND 970’s active heat dissipation mechanism withstands high temperature test and can maintain stable performance even during long bouts of high speed operation.
*Heat dissipation data is based on test conditions of an internal laboratory and actual figures may vary due to personal hardware, software, and test environments.
QuiKTIPS : Active Cooling Analysis
How does active cooling work? Active cooling works by using a tightly adhered heat dissipation pad and a metal heat dissipator to transfer heat from the SSD. The double-layered aluminum fins help facilitate the heat transfer process. Additionally, a built-in fan draws cold air from openings on the nameplate and directs it towards the aluminum fins. The hot and cold air meet, and the rotation of the fan quickly expels the heat from both sides of the aluminum fins. This design provides superior heat dissipation compared to fanless heatsinks.
High Quality Memory Components
Strict selection of 232-layer 3D flash memory gives the LEGEND 970 a capacity of up to 2000GB and it utilizes a variety of data protection and correction technologies to increase total bytes written (TBW) and durability to meet various high-load requirements.
Superior Technology
LEGEND 970 leverages the advantages of a SLC cache algorithm and DRAM Cache Buffer while featuring 4K random read/write IOPS up to 1,400K/1,400K, further improving the efficiency of multi-file processing. The LEGEND 970 also adopts a LDPC (Low Density Parity Check Code) error correction mechanism and AES 256-bit high-level encryption technology to ensure the accuracy of data transmission and the security of files.
*Above image specs based on 2TB version Please see specifications below for 1TB version.
SSD Toolbox value-added software for real-time status monitoring
SSD Toolbox ensures users utilize the latest Firmware version for the best performance and employs Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) to understand the health and remaining lifespan of SSDs, as well as the current operating temperature and storage capacity, so that users can track of SSD status at any time.
Specifications:
| Capacity | 1000GB |
|---|---|
| Form factor | M.2 2280 |
| NAND Flash | 3D NAND |
| Controller | Phison PS5026 E26 |
| Dimensions (L x W x H) | 80.6 x 24.2 x 17.9mm |
| Weight | 57.1g |
| Interface | PCIe Gen5 x4 |
| Sequential Read (Max) | Up to 9,500MB/s* |
| Sequential Write (Max) | Up to 8,500MB/s* |
| 4KB Random Read IOPS(Max) | Up to 1,300K* |
| 4KB Random Write IOPS(Max) | Up to 1,400K* |
| Operating temperature | 0°C – 70°C |
| Storage temperature | -40°C-85°C |
| Shock resistance | 1,500G/0.5ms |
| MTBF | 1,600,000 hours |
| Terabytes Written (TBW) | 700TB** |
| Warranty | 5-year limited warranty*** |
| Remark | * This product is compatible with the latest Intel and AMD platforms and must be used with a motherboard that supports PCIe 5.0 to achieve optimal performance. Actual performance may vary depending on the hardware and software configurations.
* This product is backward compatible with PCIe 4.0 and 3.0. * Test system configuration : M/B : ASUS Z790 STRIX E-Gaming WIFI , CPU: i7-13700K, RAM: 16GBx2 DDR5-5200 ** The value is the minimum amount of terabyte written that could be reached. *** The SSD is based on the TBW or Warranty period. Visit https://www.adata.com/us/support/warranty/ for more details. |
| Brand |
Adata |
|---|
