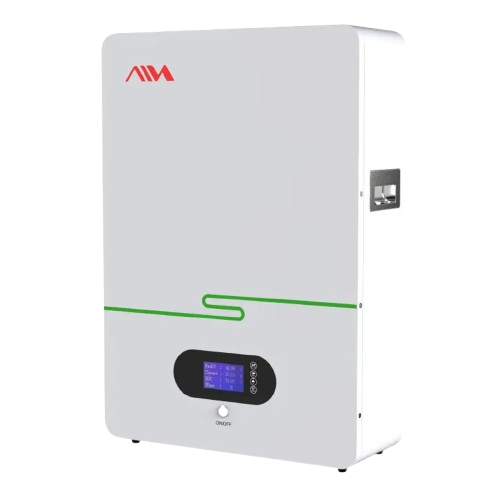

Sunnew 5.12KWh 100Ah Wall Mount Lithium Battery Module

Upgrade your power storage capabilities with the SUNNEW Wall Mount 5.12kWh LiFePo 51.2V DC Inverter Battery. This high-quality battery is designed to provide reliable and efficient power backup for your inverter system.

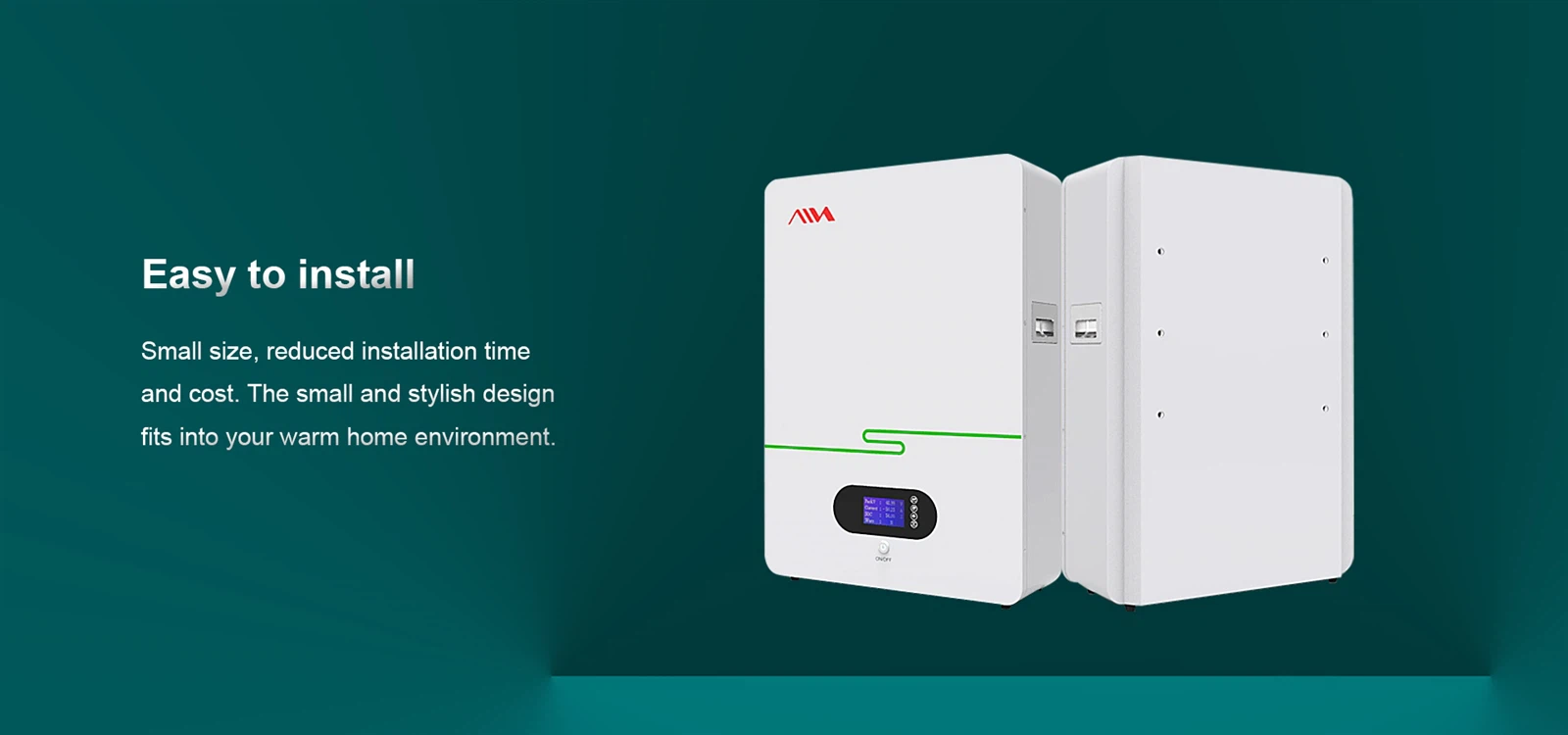

Featuring advanced LiFePo (Lithium Iron Phosphate) technology, this battery offers exceptional performance and durability. With a capacity of 5.12kWh, it provides ample power to keep your appliances running during outages or load-shedding events. The wall-mount design ensures easy installation and space-saving convenience.

The SUNNEW Wall Mount 5.12kWh LiFePo 51.2V DC Inverter Battery is engineered to deliver consistent power output and has a voltage rating of 51.2V DC. Its robust construction ensures long-term reliability and optimal performance in various environmental conditions.

With this battery, you can enjoy uninterrupted power supply, even during prolonged power disruptions. It is an ideal solution for residential, commercial, or industrial applications, providing peace of mind and ensuring that your critical equipment stays operational.

Don’t wait any longer! Upgrade your power storage with the SUNNEW Wall Mount 5.12kWh LiFePo 51.2V DC Inverter Battery. Experience reliable backup power and never worry about power outages again.

Buy yours now and take control of your power supply!

*images for illustration purpose Device rated IP21 a Certified installer will install where recommended.

*Certified installer is required.



Model		SNP5.12KWH
Performance Specifications
Battery Chemistry Type	Lithium iron phosphate
Rated Capacity		100Ah
Rated Power		5.12kWh
Nominal Voltage	51.2V
Working Voltage Range	43.2-57.6V
Charging Voltage	57.6-58.4V
Internal Impedance	≤40mΩ
Standard Charge	Constant current: 10A	Constant current: 20A	Constant current: 30A	Constant current: 40A
Standard Charge	Constant voltage: 57.6V
Standard Discharge	Constant current: 20A	Constant current: 20A	Constant current: 30A	Constant current: 40A
Standard Discharge	Discharge end voltage: 43.2V
Maximum Continuous Charge Current		100A
Maximum Continuous Discharge Current		100A
Operation Temperature Range	Charge: 0~45℃
Operation Temperature Range	Discharge: -20~60℃
Charging/Discharging Efficiency	95%
Cycle Life	＞6000 times
Storage Temperature Range	Less than 12 months: -20~25℃
Storage Temperature Range	Less than 3 months: -20~40℃
Storage Temperature Range	Less than 7 day : -20~65℃
Months Self Discharge	≤3%
Enclosure protection rating	IP21
Dimensions		600*420*175mm
Weight		49kg
