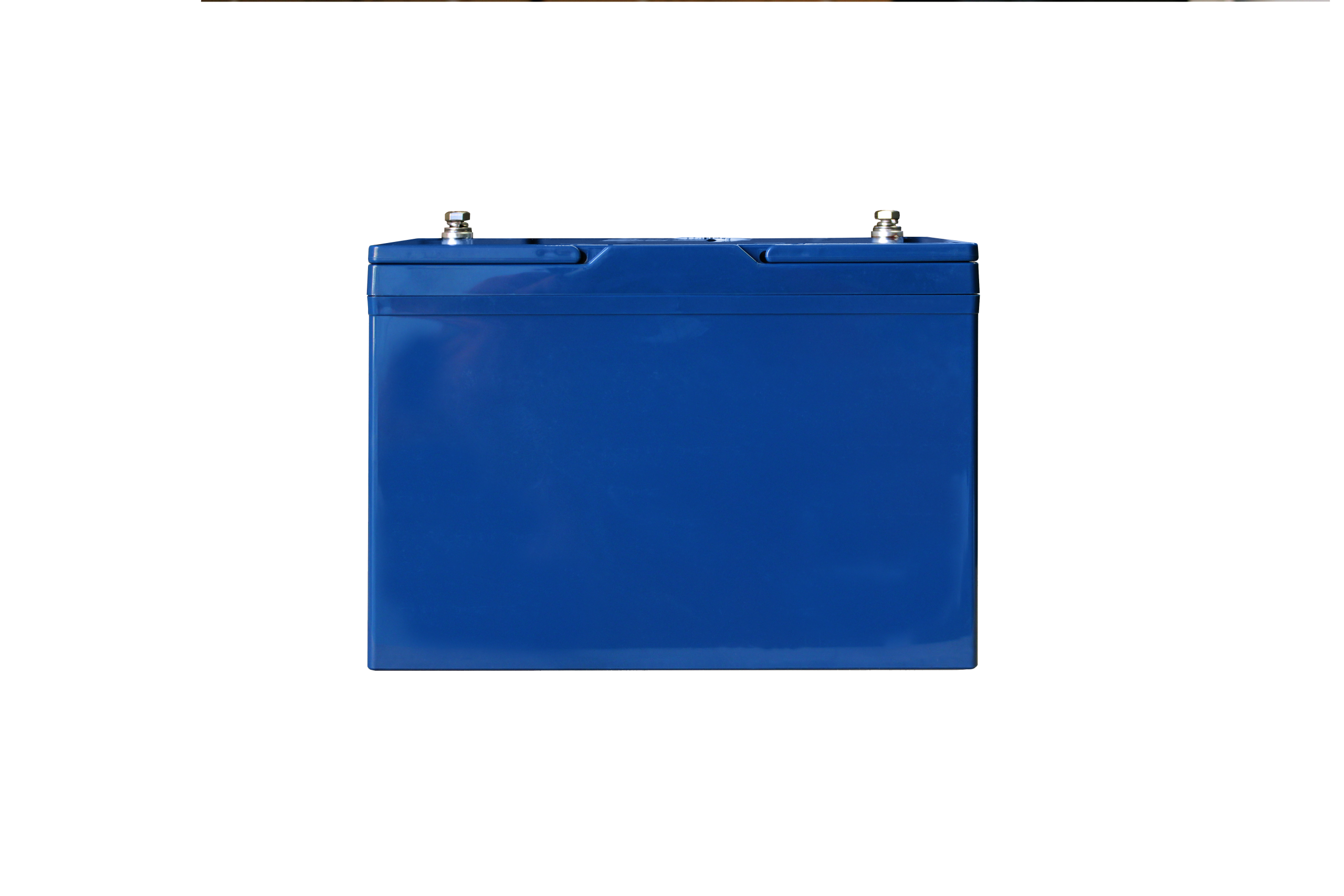

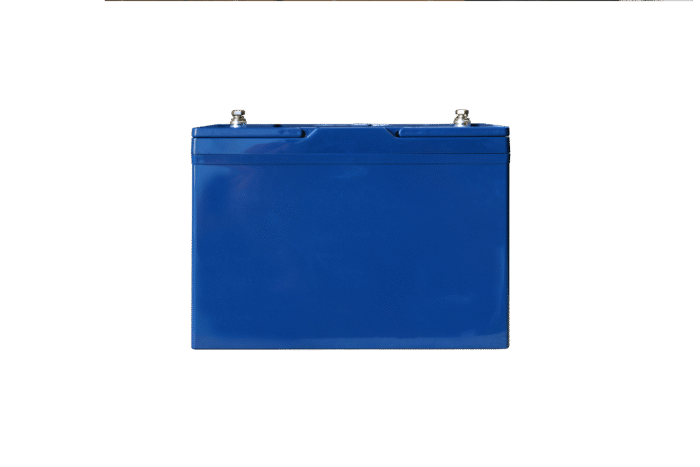

LFP12-100 12V 100Ah (10hr)
Easy to carry lightweight Lithium 12.8v Battery great for replacing inverter gel batteries. With Wh of 1280 you can power a typical appliance of 150W power draw for approx 6 and a half hours (times may vary).
Attention:
- When the battery needs to be used in parallel or in series, each
battery shall be fully charged according to the standard charging
method before parallel or in series.
- Duration of maximum constant current is thermally limited
by internal electronics and depends on ambient temperature.
- Iron-V Lithium Iron Phosphate Battery
- Cost Effectiveness
- Longer Service Life
- Guaranteed Safety
- Fast Charge
- Drop-in Replacement
Nominal Characteristics
General Features
Case Material ABS
Length (mm) 306
Width (mm) 169
Height (mm) 215
Weight (kg) 10.3
Terminal Type M8
IP Grade /
BCI Group NO. 27
Cell Type-Chemistry Prismatic LiFePO4
Mechanical Characteristics
Cycle Life ā„2000
Operating Temperature Charge: 10 ĀŗC ~ 45ĀŗC
Discharge: -20ĀŗC ~ 55ĀŗC
Storage Temperature 20ĀŗC~30ĀŗC
Storage Duration 12 months at 25ĀŗC
Heating Function Charging heating (Optional)
<1Āŗ, ON >6ĀŗC, OFF
Operating Conditions
Voltage Window 10.8-14.6V
Max. Continuous Charge Current 100A
Max. Continuous Discharge Current 100A
Peak Discharge Current 200Aōō15s Ā± 2sō£
Recommended charge current/A 50A
Recommended discharge current/A 50A
Charge current cut-off/A 3A
Charge & Discharge Characteristics
Primary Charging Protection Current: >105.0 Ā± 2.5A
Delay time:15 Ā± 2s
Secondary Charging Protection Current: >125.0A Ā± 2.5A
Delay time: 3 Ā± 1s
Primary Discharging Protection Current: >105.0 Ā± 2.5A
Delay time: 20 Ā± 1s
Secondary Discharging Protection Current: >210.0A Ā± 2.5A
Delay time: 3 Ā± 1s
Over-charge Voltage Protection Voltage: >14.8 Ā± 0.2V
Delay time: 2 Ā± 0.5s
Over-discharge Voltage Protection Voltage: <9.6 Ā± 0.2V
Delay time: 2 Ā± 0.5s
High Temperature Protection Charging: 65 Ā± 3ĀŗC Recover: 60 Ā± 3ĀŗC
Discharging: 65 Ā± 3ĀŗC Recover: 60 Ā± 3ĀŗC
Low Temperature Protection Charging: 0 Ā± 3ĀŗC Recover: 3 Ā± 3ĀŗC
Discharging: -20 Ā± 3ĀŗC Recover: -15 Ā± 3ĀŗC
BMS Characteristics
Nominal Voltage Nominal Capacity Energy IR Efficiency Maximum Batteries
in Series and Parallel
12.8 V 100Ah 1280Wh ā¤ 12mĪ© @ 100% SOC ā„ 99.5 % 2 x 4
