GROUP
- – Professional quality full-HD video brings fluid HD 1080p video to conference calls, enabling expressions, non-verbal cues and movements to be seen clearly, while the advanced H.264 encoding dynamically adjusts the video stream to the available bitstream, ensuring a smooth video quality throughout the call.
- – The generously wide field of view and silky smooth pan and tilt controls enhance collaboration by making it easy to see everyone in the room. Operate the PTZ controls either with the remote control or from the console.
- – Use the remote control to zero in on objects and whiteboard content with outstanding detail and clarity.
- – Hear and be heard with lifelike sound that’s crisp, clear and highly intelligible. The cast metal speakerphone base console features advanced audio and intuitive controls. Conference participants can converse within a 6-metre (20-foot) diameter around the speakerphone.
- – Beam-forming audio technology with four omni-directional microphones built in means conversations sound realistic and natural by minimising sound reflections (reverb) and distracting audio artifacts.
Logitech Group. Product type: Group video conferencing system. HD type: Full HD, Supported video modes: 1080p, Maximum frame rate: 30 fps. Optical zoom: 10x. Product colour: Black, Grey
-
Dimensions
Camera
- Height: 130 mm
- Width: 170 mm
- Depth: 138 mm
- Weight: 585 g
SPEAKERPHONE
- Height: 240 mm
- Width: 65 mm
- Depth: 240 mm
- Weight: : 1223 g
Hub
- Height: 94 mm
- Width: 34 mm
- Depth: 74 mm
- Weight: 83 g
Remote
- Height: 50 mm
- Width: 120 mm
- Depth: 12 mm
- Weight: 51 g
Wall/Table Mount
- Height: 210 mm
- Width: 120 mm
- Depth: 99 mm
- Weight: 255 g
Expansion Mics (Optional)
- Height: 83 mm
- Width: 83 mm
- Depth: 21 mm
- Weight: 230 g
-
System Requirements
Windows® 7, 8.1 or 10macOS 10.10 or later -
Technical Specifications

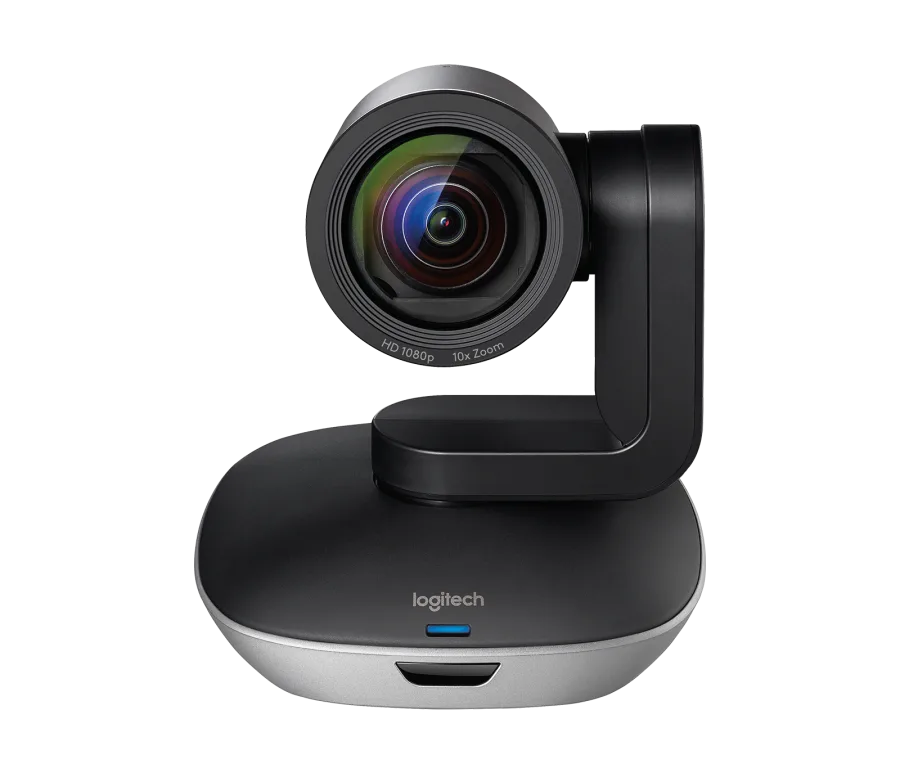

Camera
- Smooth motorized pan, tilt and zoom controlled from remote or console
- Pan +/- 90°
- Tilt +35° / -45
- 10x lossless HD zoom
- Field of View
- Diagonal: 90°
- Horizontal: 82.1°
- Vertical: 52.2°
- Full HD 1080p 30fps
- H.264 UVC 1.5 with Scalable Video Coding (SVC)
- Autofocus
- 5 camera presets
- Far-end control (PTZ) of ConferenceCam product (with supported services)
- Kensington security slot
- Video mute/unmute LED indicator
- Standard tripod thread
Remote Control
- Camera, speakerphone, and call control
- 5 camera presets
- Docks on speakerphone
- IR 8.5 m range
- CR2032 battery (included)

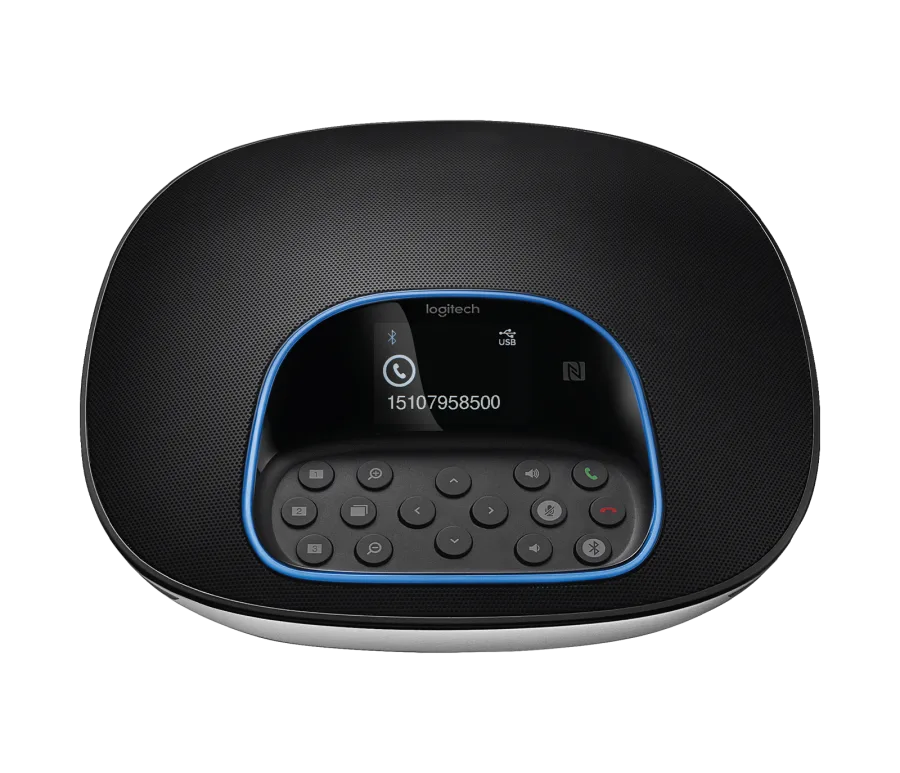

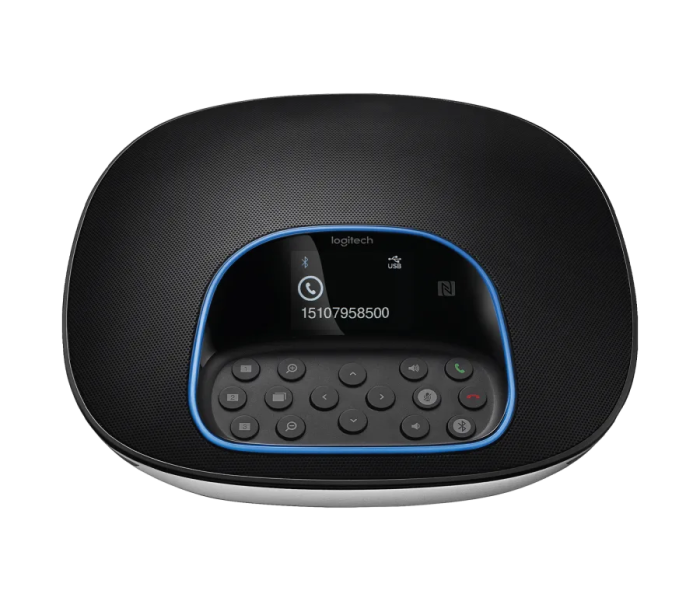

SPEAKERPHONE
- Full-duplex performance
- Acoustic echo cancellation
- Noise reduction technology
- Ultra-wideband audio
- Pairs with mobile devices via Bluetooth and NFC
- LCD for caller ID, call duration and other functional response
- LEDs for speakerphone streaming, mute, hold, and Bluetooth
- Tactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls
- 5 camera presets for pan, tilt, and zoom settings
- Kensington security slot
Microphones
- Pickup Range: 6 m
- Pickup range with expansion mics: 8.5 m
- Four omnidirectional, beamforming microphones
- Frequency response: 100Hz – 11KHz
- Sensitivity: -28 dB +/-3dB
- Distortion: <5% from 200Hz
HUB / CABLES / POWER
- Central Hub connects and powers all components
- Under-table mounting adhesive included
- One cable to camera: 5 m
- One cable to speakerphone: 5 m
- Extended cables available: 10 and 15 m
- One USB cable for connection to PC/Mac: 2 m
- AC Power adapter with regional plugs
- Power cable: 3 m
MOUNT
- Dual-purpose bracket works for both wall mounting and tabletop elevation
COMPATIBILITY AND CERTIFICATIONS
- Plug-and-play USB connectivity
- Certified for Skype for Business and ready for Teams
- Zoom Certified
- Fuze Certified
- Microsoft Cortana®
- Cisco Jabber®
- Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
-
Package Contents
- Camera
- Speakerphone
- Remote control
- Two 5m cables for connection between speakerphone and hub and camera and hub
- One 2m meter cable between hub and PC
- Velcro for cable management
- Velcro for hub to table securing
- Powered hub
- Power adapter with regional plugs and 3m
- Mount
- Documentation
- Warranty card
-
Warranty Information
2-Year Limited Hardware Warranty -
Part Number
- 960-001057
