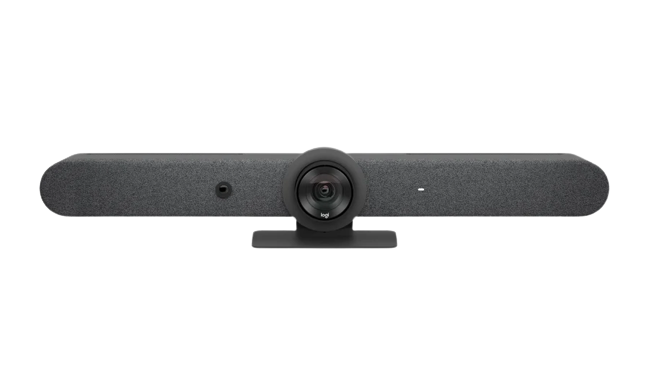

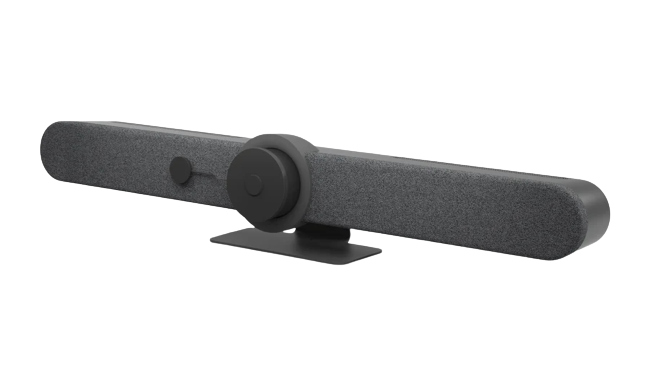

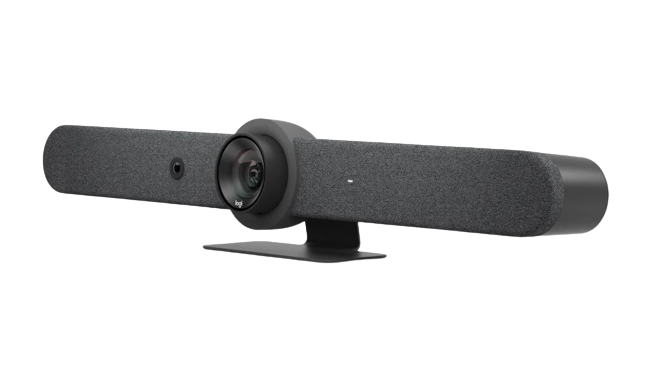

Rally Bar is Logitech’s premier, all-in-one video bar for midsize meeting rooms. With cinema-quality video and audio, AI-driven performance, and beautiful design, Rally Bar sets a new standard for video collaboration.
Rally Bar creates a natural, frictionless meeting experience with motorized PTZ and 15x optical + digital HD zoom. AI Viewfinder persistently views the room, ensuring all meeting participants are captured and framed to perfection.
Powerful low-distortion speakers and adaptive beamforming mics, optimized by RightSound™, deliver outstanding conversational accuracy. Out of the box, Rally Bar provides an expansive 15’ mic pickup range with the option to extend coverage for larger groups and settings.
Simple, versatile, and meticulously designed for scale, Rally Bar offers clutter-free cable management and multiple mounting options. Plug and play Rally Bar with virtually any PC or Mac, or run supported video conferencing applications on the device without a computer.
- – All-in-one video bar features an advanced microphone array, room-filling speakers, and a real PTZ camera in a sleek, easy-to-install form factor.
- – Simple to set up with a dedicated PC, laptop, or in appliance mode for a computer-free deployment option.
- – Thoughtful cable management lets you route cables from above or below to minimize visible cabling and prevent accidental disconnections.
- – Multiple mounting options, including available Wall and TV Mounts, provide a finished look and no-drill options for both meeting rooms and mobile carts.
- – Motorized PTZ lens delivers expansive room coverage, outstanding color, and exceptional accuracy at resolutions up to 4K.

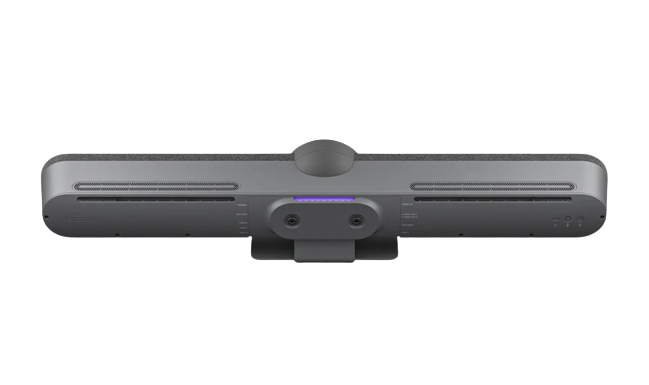

- – Always-on AI Viewfinder provides persistent awareness for RightSight auto-framing and room utilization metrics like people count.
Logitech Rally Bar. Product type: Group video conferencing system. HD type: 4K Ultra HD, Supported video modes: 720p,900p,1440p,2160p, Maximum frame rate: 30 fps. Field of view (FOV) angle: 90°, Optical zoom: 5x, Digital zoom: 3x. Ethernet LAN, Wi-Fi. Product colour: Graphite
-
Dimensions
Height: 164 mmWidth: 910 mmDepth: 130.5 mmLens Depth: 28.8 mmWeight: 7.08 kg -
System Requirements
Internet Connection: Wired or wirelessUSB Mode: Windows® 11, Windows 10, the two most recent versions of macOSAppliance Mode: Room solution software license (not included) -
Technical Specifications
Certifications & Compatibility
- Certifications
- Appliance Mode: Supports compatible video conferencing software in appliance mode (no PC required), including
- Microsoft Teams Rooms on Android
- Zoom Rooms
- GoToRoom®
- Pexip Room
- RingCentral Rooms™
- Tencent Meeting Rooms
- USB Mode: Plug-and-play USB connectivity with virtually any video conferencing application
- For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications.
GENERAL SPECIFICATIONS
- Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
- Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
- Device Management: Logitech Sync
- Displays Supported: 2 (up to 1080p)
- Display Resolution: Up to 1080p
- Network Protocol Support: IPv4, IPv6
- Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
- Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Pan: Motorized ±25°
- Tilt: Motorized ±15°
- Zoom: 15X HD zoom (5X optical and 3X digital)
- Diagonal Field of View: 90°
- Horizontal Field of View: 82.1°
- Vertical Field of View: 52.2°
- Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical
Speakers
- Drivers: 2x 70 mm
- Sensitivity: 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
- Rated Power: 8W
- THD: 1kHz <2% at 1W
- Speaker Sampling Rate: 48 kHz
- Impedance: 4 Ohms
Microphones
- Frequency Response: 90Hz – 16kHz
- Sensitivity: >-36dBFS +/-1 dB @ 1Pa
- Microphone data rate output: 48KHz
- Pickup Range: 7 m
- Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
- Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise suppression: AI based de-noising algorithm
- Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
RightSense™ Technologies
- RightLight: Renders natural skin tones for each participant
- RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
- RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
Interfaces
- HDMI Out: 2 (up to 1080p)
- HDMI In: 1
- USB: 3x Type A, 1x Type C
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac
- External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
- Remote Control: Bluetooth® Low Energy
Power & Cables
- Power supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 4.74A
- Power Supply Dimensions: 127 mm x 51 mm x 30 mm
- DC Cable: 1.5 m
- AC Cable: 1 m
- HDMI 1.4 Cable: 2 m
- USB A to USB C 3.0 Cable: 2.2 m
Environmental
- Operating Temperature: 0 to 40°C
- Storage Temperature: -40 to 70 °C
- Humidity: 10 to 95%
- BTU/hr: 57 idle, 64 in meeting
Security
- Full Disk Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMP
Accessories
- MOUNTS: Wall Mount for Video Bars, TV Mount for Video Bars

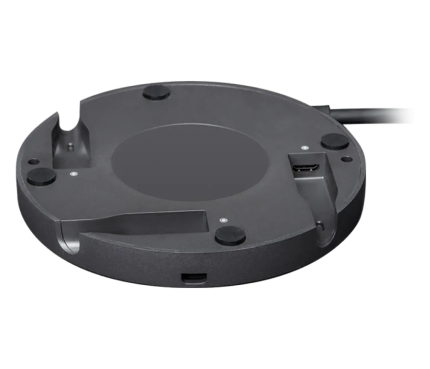

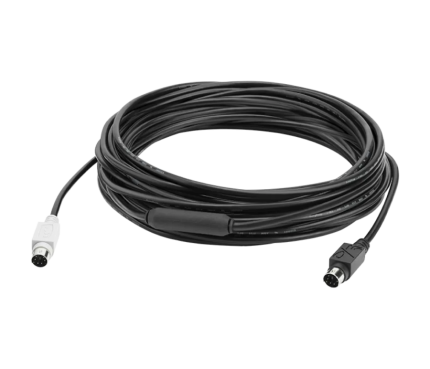

- Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
- Connectivity: Logitech Strong USB (10 m, 25 m, 45 m)
- Touch Controller: Logitech Tap and Tap IP 7
-
Package Contents
- Rally Bar
- Power supply
- AC power cord
- HDMI cable
- USB cable
- Remote control
- Lens caps for main camera and AI Viewfinder
- User documentation
-
Warranty Information
Standard: 2-year limited hardware warranty included.
Extended: Additional one-year and three-year extended warranties available at the time of hardware purchase.
Contact your reseller for availability. -
Part Number
- Graphite: 960-001313
