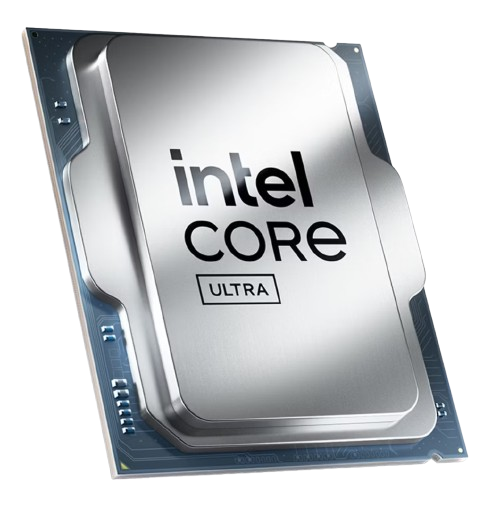

Intel Core Ultra 5 245K. Processor family: Intel Core Ultra 5, Processor socket: FCLGA1851, Processor manufacturer: Intel. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 30 TOPs. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR5-SDRAM. On-board graphics card model: Intel Graphics, On-board graphics card outputs supported: DisplayPort 2.1, Embedded DisplayPort (eDP) 1.4b, HDMI 2.1, On-board graphics card base frequency: 300 MHz. Market segment: Desktop, Use conditions: Workstation, PC/Client/Tablet, PCI Express slots version: 4.0, 5.0
Specifications
CPU Model |
Intel Core Ultra 5Ā 245K
|
CPU Socket |
LGA 1851
|
Unlocked |
Yes
|
Number of Cores |
14 (6 x P-Cores + 8 x E-Cores)
|
Base Clock Speed |
P-Core: 4.2 GHz
E-Core: 3.6 GHz
|
Maximum Boost Speed |
P-Core Turbo: 5.2 GHz
P-Core Thermal Velocity Boost: 5.2 GHz
E-Core Turbo: 4.6 GHz
|
Thermal Design Power (TDP, Max) |
159 W
|
Included Thermal Solution |
No
|
Integrated Graphics |
Intel Graphics
|
General
CPU Model |
Intel Core Ultra 5Ā 245K
|
CPU Socket |
LGA 1851
|
Maximum CPU Configuration |
1S
|
Maximum Number of PCIe Lanes |
20 (Revision 5.0)
4 (Revision 4.0)
|
Unlocked |
Yes
|
Performance
Number of Cores |
14 (6 x P-Cores + 8 x E-Cores)
|
Number of Threads |
14
|
Base Clock Speed |
P-Core: 4.2 GHz
E-Core: 3.6 GHz
|
Maximum Boost Speed |
P-Core Turbo: 5.2 GHz
P-Core Thermal Velocity Boost: 5.2 GHz
E-Core Turbo: 4.6 GHz
|
Dedicated Neural Processor Unit (NPU) |
Yes, 13 TOPS
|
L3 Cache |
24 MB
|
Memory Support
Maximum Capacity |
192 GB
|
Memory Support |
DDR5 Up to 6400 MT/s
|
ECC Memory |
No
|
Channel Architecture |
Dual Channel
|
Optane Memory Support |
No
|
Power
Thermal Design Power (TDP, Max) |
159 W
|
Included Thermal Solution |
No
|
Maximum Temperature |
221Ā°F / 105Ā°C
|
Thermal Monitoring Technologies |
Yes
|
Technology
AES Support |
Yes
|
Extension |
AVX 2.0, SSE 4.1/4.2
|
Instruction Set |
64-Bit
|
Virtualization |
Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
|
DMI |
DMI4 (16 GT/s)
|
vPro Support |
Yes
|
Performance Technologies |
Deep Learning Boost, Gaussian and Neural Accelerator 3.5, Intel AI Boost, Intel Thread Director, SpeedShift, Stable Image Platform Program, Turbo Boost 2.0, Turbo Boost Max 3.0
|
Security Technologies |
Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key
|
Integrated Graphics
Integrated Graphics |
Intel Graphics
|
Maximum Resolution Support |
7680 x 4320 at 60 Hz
|
Supported APIs |
DirectX: 12
OpenGL: 4.5
OpenCL: 3
|
Number of Displays |
4
|
Output Support |
eDP, DisplayPort, HDMI
|
Packaging Info
Package Weight |
0.2 lb
|
Box Dimensions (LxWxH) |
4.9 x 4.6 x 1.8″
|
