Intel Core Ultra 5 (Series 2) Desktop Processor 235 5.0 GHZ 14 cores LGA 1851 (Laminar RH2 Cooler Included)

Intel Core Ultra 5 (Series 2) Desktop Processor 235 (BX80768235)

• Architecture: Arrow Lake-S (15th Generation)
• Core Configuration: 14 cores (6 Performance-cores + 8 Efficient-cores)
• Threads: 14 threads (As with other Arrow Lake-S desktop processors, it does not utilize Hyper-Threading on E-cores, so the thread count matches the core count).
• Max Turbo Frequency: Up to 5.0 GHz (P-core Max Turbo Frequency)
  • Efficient-core Max Turbo Frequency: Up to 4.4 GHz
  • Performance-core Base Frequency: 3.4 GHz
  • Efficient-core Base Frequency: 2.9 GHz
• Socket: LGA 1851
  • This is Intel’s new desktop socket, designed for Arrow Lake-S and future processors.
  • It maintains the same physical dimensions and cooler mounting hole spacing as LGA 1700, so most existing LGA 1700 CPU coolers are compatible.
  • LGA 1851 exclusively supports DDR5 memory (up to 6400 MT/s) and typically offers 20 PCIe 5.0 lanes directly from the CPU (16 for a graphics card, 4 for an M.2 SSD).
• Cache: 24 MB Intel Smart Cache (L3 Cache), 26 MB Total L2 Cache
• Processor Base Power (TDP): 65W
• Maximum Turbo Power (MTP): 121W
• Integrated Graphics: Intel Graphics (This model includes integrated graphics, allowing for display output without a dedicated graphics card.)
  • Graphics Base Frequency: 300 MHz
  • Graphics Max Dynamic Frequency: Up to 2.0 GHz
  • GPU Peak TOPS (Int8): 6
  • Xe-cores: 3
  • Graphics Output: DP2.1 UHBR20, HDMI 2.1 FRL 12GHz, eDP1.4b
• AI Acceleration: Includes Intel AI Boost (Neural Processing Unit – NPU) with 13 Peak TOPS (Int8) for accelerating AI workloads. The overall processor performance (CPU + GPU + NPU) can reach up to 27 Peak TOPS (Int8).

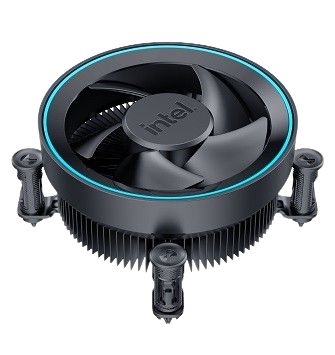

• Cooler: Includes Intel Laminar RM2 Cooler
  • This cooler is typically designed for 65W TDP CPUs. It should be sufficient for the processor’s base power, but for sustained maximum turbo performance, a more capable aftermarket cooler might be beneficial.
• Launch Date: Q1 2025 (January 2025)
• Key Features:
  • Hybrid core architecture (6 Performance-cores and 8 Efficient-cores) for balanced performance across various workloads.
  • Good clock speeds with up to 5.0 GHz max turbo frequency.
  • Support for the latest DDR5 memory and PCIe 5.0 for high-bandwidth components.
  • Integrated NPU for dedicated AI acceleration.
  • Includes integrated graphics, providing display capabilities without the need for a discrete GPU.

This processor is well-suited for users building a new mainstream to high-end desktop PC for tasks such as gaming, general productivity, web Browse, office applications, and light to moderate content creation. Its integrated graphics offer flexibility for systems where a dedicated GPU might be added later or for builds prioritizing cost-effectiveness and efficiency.
