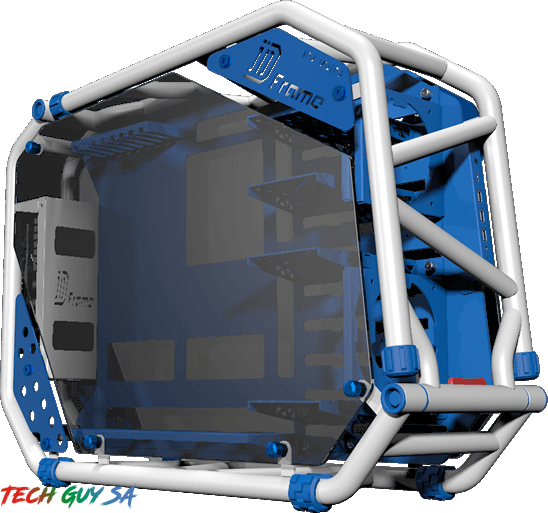

In-Win D Frame 2.0 Open-Air Chassis – White/Blue

Specifications
Model D-Frame 2.0
Color Black/Gold Platinum, White/Blue, Black/Green
Case Type Open-Air Chassis
Case Material Reinforced Steel Tube, Aluminium, Tempered Glass
M/B Compatibility 12″ x 13″ E-ATX, ATX, Micro-ATX
Expansion Slots 8 x PCI-E Slots
Maximum Compatibility VGA Card Length: 350-415mm (Depends on Mounting Configuration)
VGA Card Height: 173mm (Motherboard Die Surface to Side Panel)
CPU Heatsink Height: 165mm (CPU Die Surface to Side Panel)
Front Ports 1 x USB 3.1 Type-C
3 x USB 3.0
HD Audio
Internal Drive Bays 4 x 2.5“/3.5” Multifunctional Brackets
Thermal Solution Compatibility 2 x 120mm Fan Brackets (Supports 2 x 120mm Fans)
1 x 3-in-1 Fan Bracket (Supports 3 x 120mm Fans)
Supports 1 x 360mm Radiator
– Front: 90mm Maximum Height including Fans
– Bottom: 65mm Maximum Height including Fans
Power Supply Compatibility SIII-1065W Internal PSU Included
ATX12V and EPS12V
– Dimension(L x W x H): 210 x 180 x 96 mm

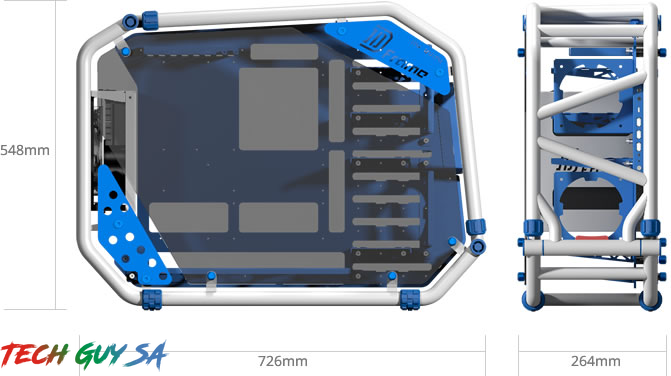

Product Dimension
(H x W x D) 548 x 264 x 726 mm
21.6” x 10.4” x 28.6”

Product Dimension
(H x W x D)
with screw height

548 x 291 x 726 mm

21.6″ x 11.5″ x 28.6″
Package Dimension
(H x W x D) 760 x 346 x 842 mm
29.9″ x 13.6″ x 33.1″
Net Weight 22.5kg/49.5lbs
Gross Weight 25.5kg/56.1lbs
