Description

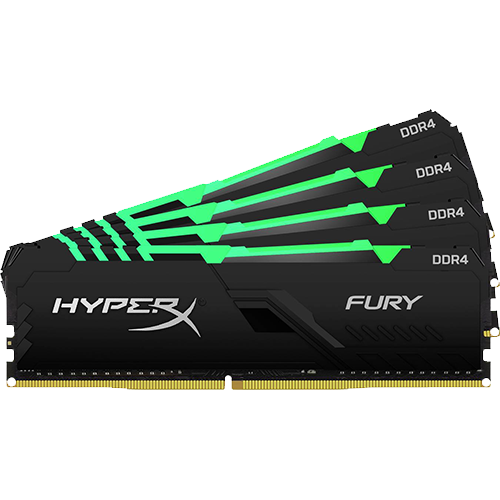

HyperX HX436C18FB3AK4/128 is a kit of four 4G x 64-bit (32GB) DDR4-3600 CL18 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports IntelĀ® Extreme Memory Profiles (IntelĀ® XMP) 2.0. Total kit capacity is 128GB. Each module has been tested to run at DDR4-3600 at a low latency timing of 18-22-22 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standardĀ electrical and mechanical
specifications are as follows:
FACTORY TIMING PARAMETERS
ā¢ Default (JEDEC): DDR4-2400 CL17-17-17 @1.2V
ā¢ XMP Profile #1: DDR4-3600 CL18-22-22 @1.35V
ā¢ XMP Profile #2: DDR4-3000 CL16-18-18 @1.35V
Features
ā¢ Power Supply: VDD = 1.2V Typical
ā¢ VDDQ = 1.2V Typical
ā¢ VPP = 2.5V Typical
ā¢ VDDSPD = 2.2V to 3.6V
ā¢ On-Die termination (ODT)
ā¢ 16 internal banks; 4 groups of 4 banks each
ā¢ Bi-Directional Differential Data Strobe
ā¢ 8 bit pre-fetch
ā¢ Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
ā¢ Height 1.624ā (41.24mm), w/heatsink
Kingston hyper-x RGB Fury HX436C18FB3AK4/128 / RGB Fury beast KF436C18BBAK4/128 , DDR4-3600 ( pc4-28800) , with asymmetrical heatsink , CL18 , 32Gb x 4 kit – support Intel XMP ( eXtreme Memory Profiles ) , 1.35v – 288pin – lifetime warranty
