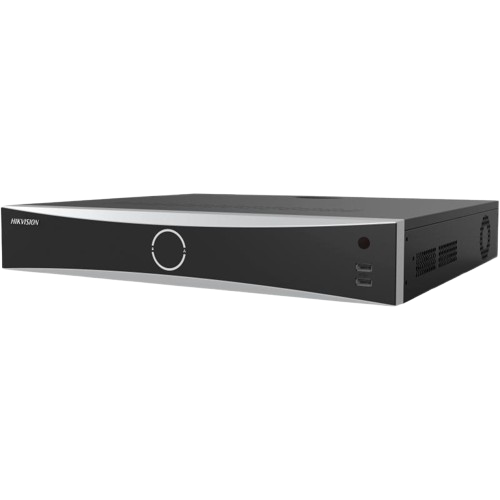

Hikvision 16-ch 1.5U 16 POE AcuSense 4K NVR
R12,100 Incl VAT
Pay R11,737 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
DS-7716NXI-I4/16P/S
16-ch 1.5U 16 POE AcuSense 4K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on deep learning algorithm
- Up to 4-ch perimeter protection
- Up to 4-ch facial recognition for video stream
- Up to 8-ch facial recognition for face picture
- Up to 16-ch IP camera inputs
- Up to 32-ch 1080p decoding capability
- Up to 8-ch IP speakers can be connected
Specifications
- Intelligent Analytics
- AI by NVRFacial recognition, perimeter protection, motion detection 2.0
- AI by CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
- Engine1, engine mode is adjustable
- Facial Recognition
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
- Face AttributesWearing glasses, wearing a mask, facial expression, body temperature
- Face Picture LibraryUp to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
- Face Picture Comparison (Captured from Camera)8-ch
- Facial Detection and Analytics Performance4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
- Motion Detection 2.0
- By NVRAll channels for Hikvision cameras
- By CameraAll channels
- Perimeter Protection
- By NVR
4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;
Up to 12 rules in total
- By CameraAll channels
- ANPR
- By CameraAll channels
- Vehicle AttributesPlate number, license plate color, license plate type
- Plate AttributesVehicle brand, vehicle color, vehicle type
- Video and Audio
- IP Video Input16-ch
- Incoming Bandwidth160 Mbps
- Outgoing Bandwidth256 Mbps
- HDMI 1 Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz;4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, HDMI1/VGA simultaneous output
- HDMI 2 Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz;1920 × 1080/60Hz, HDMI2/VGA independent output
- VGA Output
1920 × 1080/60 Hz;1-ch, 1920 × 1080/60Hz,
HDMI1/VGA simultaneous output
- Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Decoding
- Decoding FormatH.265+/H.265/H.264+/H.264
- Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
*: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.
- Synchronous Playback16-ch
- Decoding Capability
Enable AI by NVR: 20-ch@1080p (30 fps)
Disable AI by NVR: 32-ch@1080p (30 fps)
- Dual-Stream RecordingSupport
- Stream TypeVideo, Video & Audio
- Live View Window Division1/2/4/6/8/9/16
- Aux Port Window Division1/2/4/6/8/9/16
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
- Network
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnPâ„¢, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Camera Access ProtocolONVIF(Version 2.5), RTSP
- PoE
- Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 200 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- Serial Interface2 RS-485 (half-duplex), 1 RS-232
- SATA4 SATA interfaces
- eSATA1 eSATA interface
- CapacityUp to 16 TB capacity for each disk
- Alarm In/Out16/9
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Ctrl 12V
Controllable 12 VDC, 0.5 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
- DC 12V12 VDC, 1 A power output
- General
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 30 W (without HDD and PoE off)
- Working Temperature-10° C to 55° C (14° F to 131° F)
- Working Humidity10% to 90%
- Chassis19-inch rack-mounted 1.5U chassis
- Dimension (W × D × H)440 × 391 × 75 mm ( 17.3″× 15.4″ × 3.0″)
- Weight≤ 3.6 kg (without HDD, 7.9 lb.)
- Certification
- Obtained CertificationCE, CB, REACH, WEEE, UKCA, LOA
- CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
| Brand | HIKVision |
|---|
