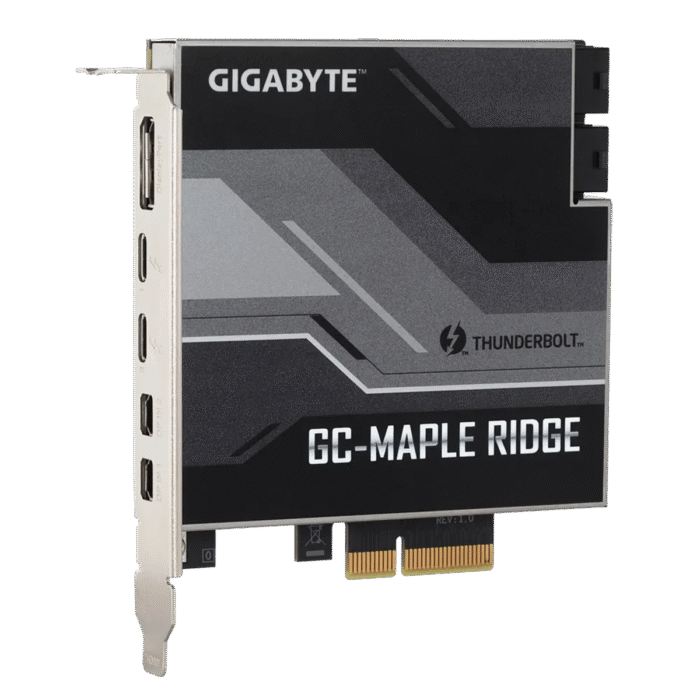

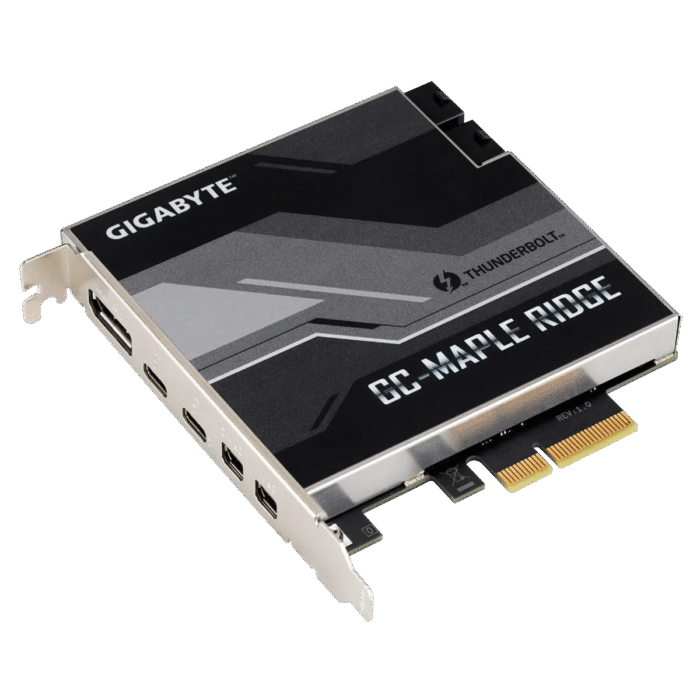

Gigabyte GC-MAPLE RIDGE
R1,960 Incl VAT
Pay R1,901 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
- Intel® Thunderbolt™ 4 Certified add-in card
- Intel® JHL8540 Thunderbolt™ 4 controller
- Dual Thunderbolt™ 4 Ports (USB Type-C™)
- Max Bandwidth 40 Gb/s
- DisplayPort 1.4 Capable with 8K Video Throughout
- Daisy-chain up to 10 Devices (5 devices per port)
- Support PD3.0 standard (up to 97W)
The GC-MAPLE RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt™ ready motherboards with the new and faster Thunderbolt™ 4 connectivity without having to upgrade to a whole new system.
Port 1 : Support 5V/3A 9V/3A 15V/3A 19V/5A Power Delivery Spec
Port 2 : Support 5V/3A 9V/3A Power Delivery Spec
Delivers speeds of up to 40Gb/s– that’s 2 times faster than Thunderbolt™ 2 and 8 times faster than USB3. Thunderbolt™ 4 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 5 Thunderbolt devices without an additional hub or switch.
Support for DisplayPort 1.4 makes Thunderbolt™ 4 a must have for any enthusiast. GIGABYTE GC-MAPLE RIDGE support two displays in 4K* resolution at 60 FPS. In addition, Thunderbolt™ 4 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 3.0, and the ability to daisy-chain up to 10 devices thanks to the dual USB Type-C™ ports.
* Supported status may vary depending on motherboard specifications.
* Support for Windows 10 64-bit with 20H2 or later.
| Series | Model | |||
| Z790 series (Support by PCH PCIe x4 slot only) | Z790 AORUS TACHYON X | Z790 AORUS MASTER X | Z790 AORUS PRO X | Z790 AORUS PRO X WIFI7 |
| Z790 AORUS ELITE X WIFI7 | Z790 AORUS ELITE X AX | Z790 AORUS ELITE X | B760M AORUS ELITE X AX | |
| Z790 AORUS TACHYON | Z790 AORUS MASTER | Z790 AORUS ELITE AX | Z790 AORUS ELITE | |
| Z790 AORUS ELITE AX DDR4 | Z790 AORUS ELITE DDR4 | Z790M AORUS ELITE AX | Z790M AORUS ELITE | |
| Z790 AERO G | Z790 GAMING X AX | Z790 GAMING X | Z790 UD AX | |
| Z790 UD AC | Z790 UD | Z790 D DDR4 | ||
| B760 series (Support by PCH PCIe x4 slot only) | B760 AORUS MASTER DDR4 | B760M AORUS PRO AX | B760M AORUS PRO | B760M AORUS PRO AX DDR4 |
| B760M AORUS PRO DDR4 | B760M AORUS ELITE AX | B760M AORUS ELITE AX-P | B760M AORUS ELITE | |
| B760M AORUS ELITE AX DDR4 | B760M AORUS ELITE DDR4 | B760M GAMING X AX | B760M GAMING X | |
| B760M GAMING X AX DDR4 | B760M GAMING X DDR4 | B760M D3H DDR4 | B760M D3H | |
| B760M C | ||||
| Z690 series (Support by PCH PCIe x4 slot only) | Z690 AORUS TACHYON | Z690 AORUS MASTER | Z690 AORUS ULTRA | Z690 AORUS PRO |
| Z690 AORUS PRO DDR4 | Z690 AORUS ELITE AX | Z690 AORUS ELITE | Z690 A ELITE AX DDR4 | |
| Z690 AORUS ELITE DDR4 | Z690M AORUS ELITE AX DDR4 | Z690M AORUS ELITE DDR4 | Z690 AERO G | |
| Z690 AERO G DDR4 | Z690 GAMING X | Z690 GAMING X DDR4 | Z690 UD AX | |
| Z690 UD AC | Z690 UD AX DDR4 | Z690 UD | Z690 UD DDR4 | |
| B660 AORUS MASTER | B660 AORUS MASTER DDR4 | B660 DS3H AC | B660M AORUS PRO AX | |
| B660M AORUS PRO AX DDR4 | B660M AORUS PRO | B660M AORUS PRO DDR4 | B660M AORUS ELITE AX DDR4 | |
| B660M AORUS ELITE DDR4 | B660M GAMING X AX | B660M GAMING X AX DDR4 | B660M GAMING X | |
| B660M GAMING X DDR4 | B660M D3H DDR4 | |||
| Z590 / B560 series (Support by PCH PCIe x4 slot only) | Z590 AORUS TACHYON | Z590 AORUS MASTER | Z590 AORUS ULTRA | Z590 AORUS PRO AX |
| Z590 AORUS ELITE AX | Z590 AORUS ELITE | Z590 VISION G | Z590 GAMING X | |
| Z590M GAMING X | Z590 UD AC | Z590 UD | Z590 D | |
| Z590M | B560 AORUS PRO AX | B560M AORUS PRO AX | B560M AORUS PRO | |
| B560M AORUS ELITE | B560 HD3 | B560M D3H | ||
| Brand | Gigabyte |
|---|
