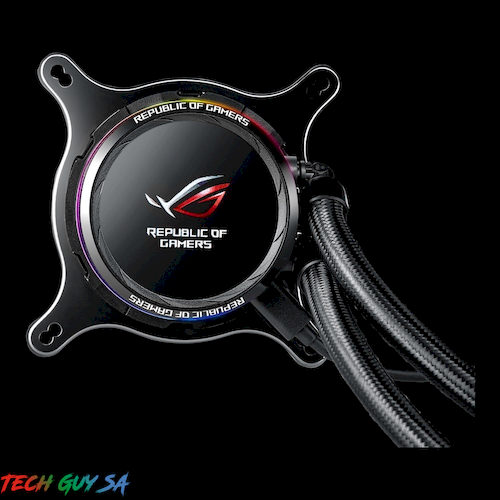

Water Block
Water Block Dimension: 80 x 80 x 45 mm
Block Material (CPU plate): Copper
CPU Socket Support: Intel: LGA 115x,1366, 2011, 2011-3, 2066;AMD: AM4, TR4*
Radiator
Radiator Dimension: 272 x 121 x 27 mm
Radiator Material: Aluminum
Tube: Sleeved Rubber tube
Tube Length: 380 mm

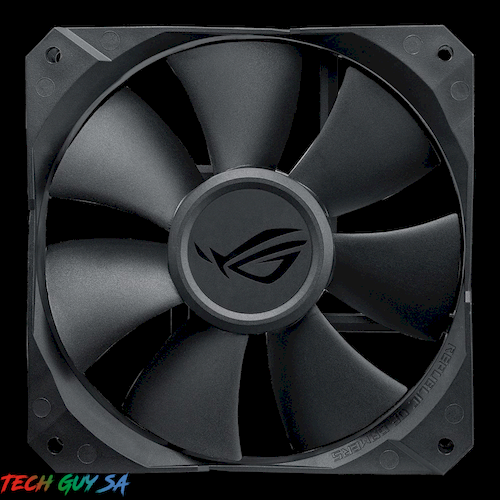

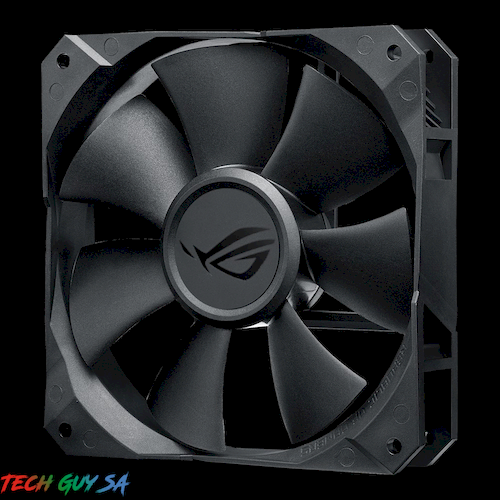

Fan
Fan: 2 x ROG RYUO FAN Model 12
Fan size: 2 Fan Slots (120mm)
Fan Dimension: 120 x 120 x 25 mm
Fan Speed: 800 ~ 2500 RPM +/- 10 %
Fan Static Pressure: 5.0 mmH2O
Fan Air Flow: 80.95 CFM / 137.5 m3h
Fan Noise: 37.6 dB(A)
Control Mode: PWM
Special Features
OLED Display: 1.77 ” Full Color OLED
AURA Sync Support: Yes
Package Content
ROG RYUO 240 Liquid Cooler
Accesory Pack of Scews and brackets
2 x 120mm ROG Ryuo Fan Model 12
USB Cable for Software control
Thermal compound (pre-applied)
Quick Start Guide
Compatibility
Intel: LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066
AMD: AM4, TR4*
Warranty
Warranty: 3 years
Note
*The mounting bracket is bundled with TR4 CPU Package, not in the RYUO’s package
** JPG/GIF only accept 160 x 128 pixels resolution size lower than 1 MB. GIF files suggest remove transparent background and without complement frame to increase the successful rate of decoding
*** Hardware monitor and fan control is optimized for ASUS motherboards
**** for control radiator FAN from the Y-Cable on the pump, please install AI Suite III v3.00.26 or above version to support ROG AIO cooler
3 – 5 Working days before Dispatch
