- Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
- Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: VRM heatsink, PCH heatsink
- Ultrafast connectivity: PCIe 4.0, Intel® 1 Gb Ethernet, rear USB 3.2 Gen 1 support

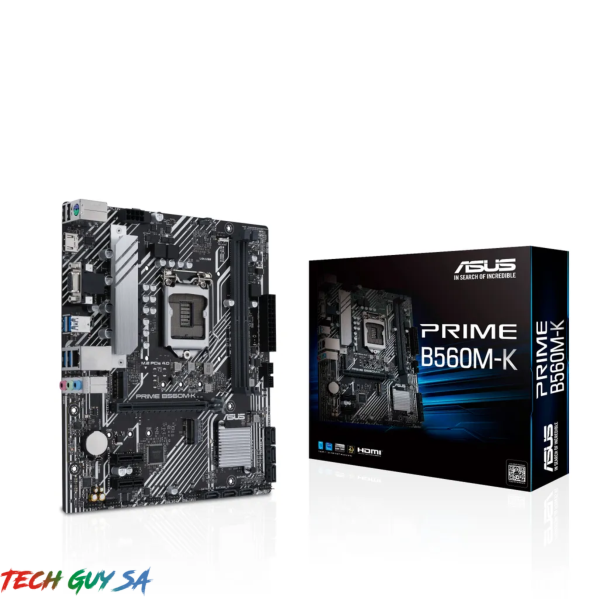

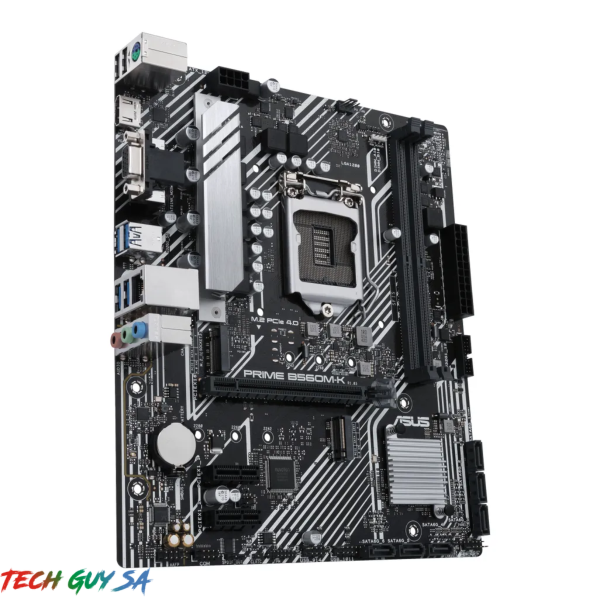

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B560M-K provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Specifications
Memory
Maximum internal memory | 64 |
---|---|
Supported memory types | DDR4-SDRAM |
Number of memory slots | 2 |
Memory slots type | DIMM |
Non-ECC | Y |
Unbuffered memory | Y |
Memory channels | Dual-channel |
Supported memory clock speeds |
DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
Network
Wi-Fi | N |
---|---|
Ethernet LAN | Y |
Ethernet interface type | Gigabit Ethernet |
Wake-on-LAN ready | Y |
LAN controller | Intel I219-V |
Weight & dimensions
Width | 244 |
---|---|
Depth | 211 |
Processor
Processor manufacturer | Intel |
---|---|
Compatible processor series | Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium G |
Processor socket | LGA 1200 |
Supported processor sockets | LGA 1200 (Socket H5) |
Graphics
Parallel processing technology support | Not supported |
---|---|
Maximum resolution | 3840 x 2160 |
Features
Component for | PC |
---|---|
Motherboard form factor | Micro ATX |
Motherboard chipset family | Intel |
Audio output channels | 7.1 |
Windows operating systems supported | Windows 10 x64 |
Motherboard chipset | Intel B560 |
Audio chip | Realtek ALC887 / Realtek ALC897 |
Packaging content
Cables included | SATA |
---|---|
Drivers included | Y |
Expansion slots
Number of M.2 (M) slots | 2 |
---|---|
PCI Express x1 (Gen 3.x) slots | 2 |
PCI Express x16 (Gen 4.x) slots | 1 |
Internal I/O
USB 2.0 connectors | 2 |
---|---|
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Number of chassis fan connectors | 1 |
TPM connector | Y |
Number of SATA III connectors | 6 |
S/PDIF out connector | Y |
Front panel audio connector | Y |
ATX Power connector (24-pin) | Y |
CPU fan connector | Y |
EPS power connector (8-pin) | Y |
12V power connector | Y |
RGB LED pin header | Y |
Number of COM connectors | 1 |
Peripheral (Molex) power connectors (4-pin) | 2 |
Rear panel I/O ports
USB 2.0 ports quantity | 2 |
---|---|
VGA (D-Sub) ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
PS/2 ports quantity | 1 |
HDMI ports quantity | 1 |
USB connector type | USB Type-A |
Headphone outputs | 3 |
BIOS
BIOS type | UEFI AMI |
---|---|
BIOS memory size | 128 |
Clear CMOS jumper | Y |
Storage controllers
Supported storage drive types | HDD & SSD |
---|---|
Supported storage drive interfaces | M.2,SATA III |
Number of storage drives supported | 8 |
