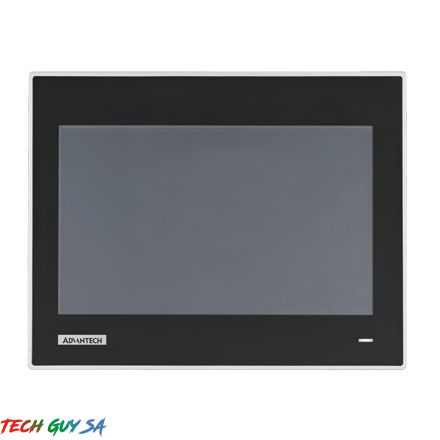

Advantech 10.1″ WSVGA CORTEX A8 256 WCE6
R11,100 Incl VAT
Pay R10,767 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Description
Specification
WOP-3100T-C4AE Specs
| LCD Display/Viewing Angle (H/V°) | 140/110 |
| General/Certifications | BSMI, CCC, CE, FCC Class A, UL |
| General/Dimensions | 271.5 x 213.5 x 43.2 mm (10.69″ x 8.41″ x 1.7″) |
| General/Cut-out Dimensions | 260 x 201.5 mm (10.24″ x 7.93″) |
| General/OS Support | Microsoft® Windows CE 6.0 |
| General/Power Input | 24VDC ±10% |
| General/Power Consumption | 9W (Typical) |
| General/Enclosure Housing | PC + ABS |
| General/Mounting | Panel |
| General/Weight (Net) | 1.2 kg (2.65 lbs) |
| System Hardware/CPU | RISC 32 bits, 600 MHz (ARM® Cortex™-A8) |
| System Hardware/Battery Backup Memory | FRAM 128KB |
| System Hardware/Flash Memory | DDR2 256MB on board |
| System Hardware/Storage | 512MB on board SLC type |
| System Hardware/Power-On LED | Yes |

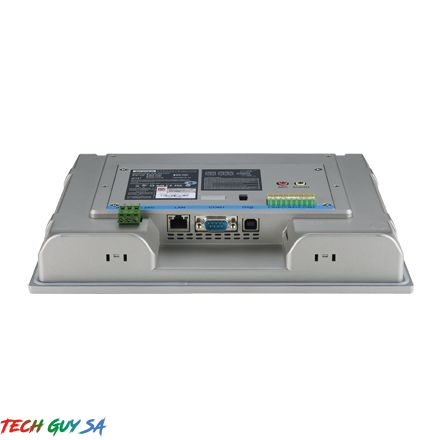

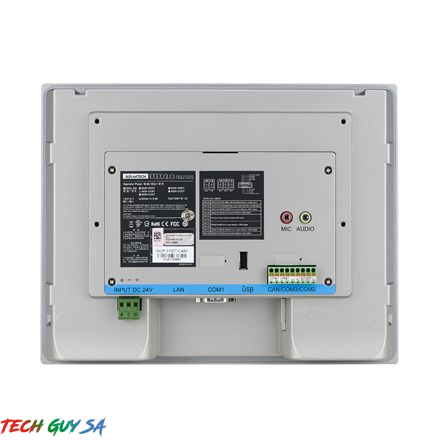

| Communications/COM1 | RS-232/422/485 (DB9 Male) |
| Communications/COM2 | RS-422/485 (Terminal Plug 4-Pin) |
| Communications/COM3 | RS-485 (Terminal Plug 2-Pin) |
| Communications/CAN | Terminal Plug 2-Pin |
| Communications/Ethernet | 10/100-BaseT |
| LCD Display/Display Type | WSVGA TFT LCD |
| Display/Size | 10.1″ |
| LCD Display/Max. Resolution | 1024 x 600 |
| LCD Display/Max. Colors | 64K |
| LCD Display/Luminance (cd/m2) | 550 |
| LCD Display/Backlight Life | LED, 50,000 |
| LCD Display/Dimming | Adjustable by touch panel |
| LCD Display/Contrast Ratio | 500:1 |
| Touchscreen/Lifespan | 36 million touches at 8mm-diameter finger poin through silicone rubber bearing at least 250g 2 times per second. |
| Touchscreen/Light Transmission | Transmission Above 80% |
| Touchscreen/Resolution | Linearity |
| Touchscreen/Touch Type | 5-wire, analog resistive |
| Environment/Temperature (Operating) | -20 ~ 60°C (-4 ~ 140°F) |
| Environment/Temperature (Storage) | -30 ~ 70°C (-22 ~ 158°F) |
| Environment/Humidity (Operating) | 10 ~ 90% RH @ 40°C, non-condensing |
| Environment/Ingress Protection | Front panel: IP66 |
| Environment/Vibration Protection | Operating, radom vibration 1 Grms (5 ~ 500 Hz) |
| Brand | Advantech |
|---|
