Features
Powered by AMD Radeon™ RX 5700
Integrated with 8GB GDDR6 256-bit memory interface

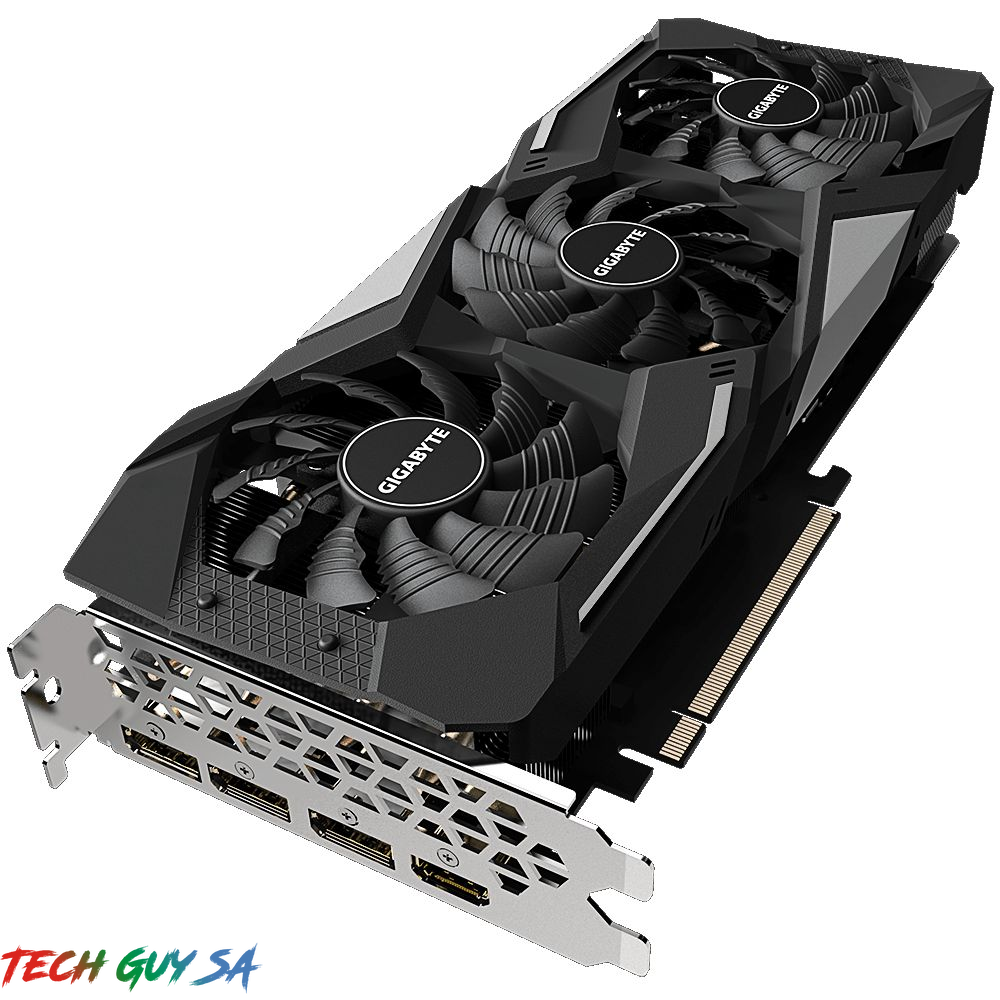

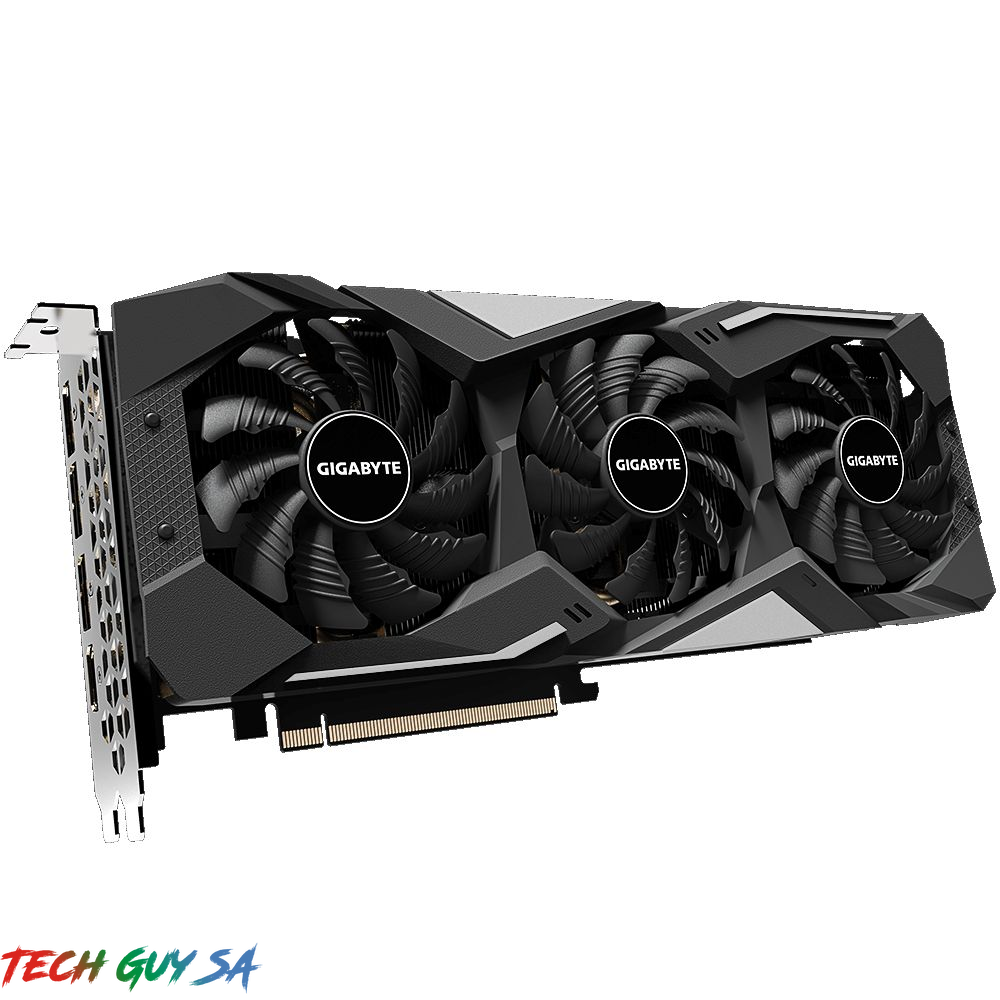

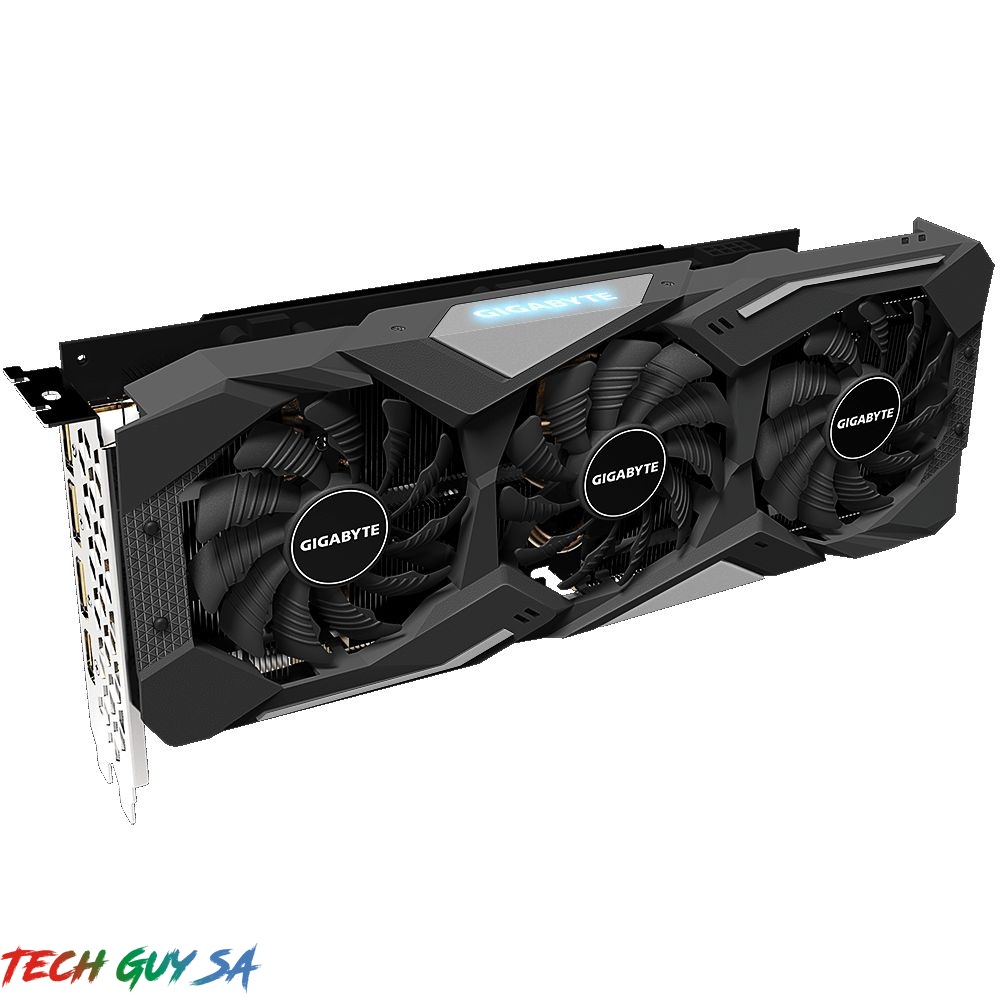

WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0 – synchronize with other AORUS devices

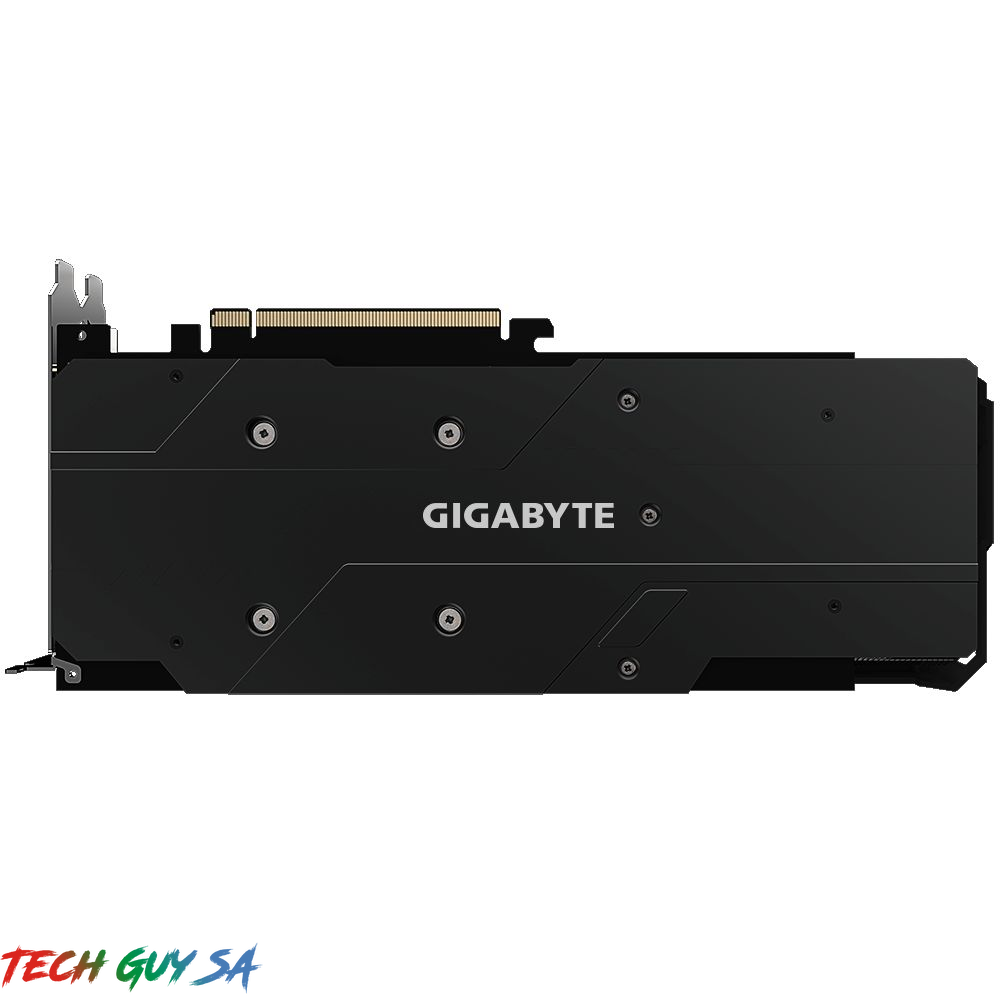

Metal Back Plate
PCI-Express 4.0 Support
Core Clock
Boost Clock : up to 1750 MHz (Reference card is 1725 MHz)
Game Clock* : 1720 MHz (Reference card is 1625 MHz)
Base Clock : 1565 MHz (Reference card is 1465 MHz)
| Graphics Processing | Radeon™ RX 5700 |
| Core Clock | Boost Clock : up to 1750 MHz (Reference card: 1725 MHz) |
| Game Clock* : 1720 MHz (Reference card: 1625 MHz) | |
| Base Clock : 1565 MHz (Reference card: 1465 MHz) | |
| Stream Processors | 2304 |
| Process Technology | 7 nm |
| Memory Clock | 14000 MHz |
| Memory Size | 8 GB |
| Memory Type | GDDR6 |
| Memory Bus | 256 bit |
| Memory Bandwidth (GB/sec) | 448 GB/s |
| Card Bus | PCI-E 4.0 x 16 |
| Digital max resolution | 7680×4320@60Hz |
| Multi-view | 4 |
| Card size | L=279.85 W=114.35 H=49.55 mm |
| PCB Form | ATX |
| DirectX | 12 |
| OpenGL | 4.6 |
| Recommended PSU | 600W |
| Power Connectors | 8 Pin*1 |

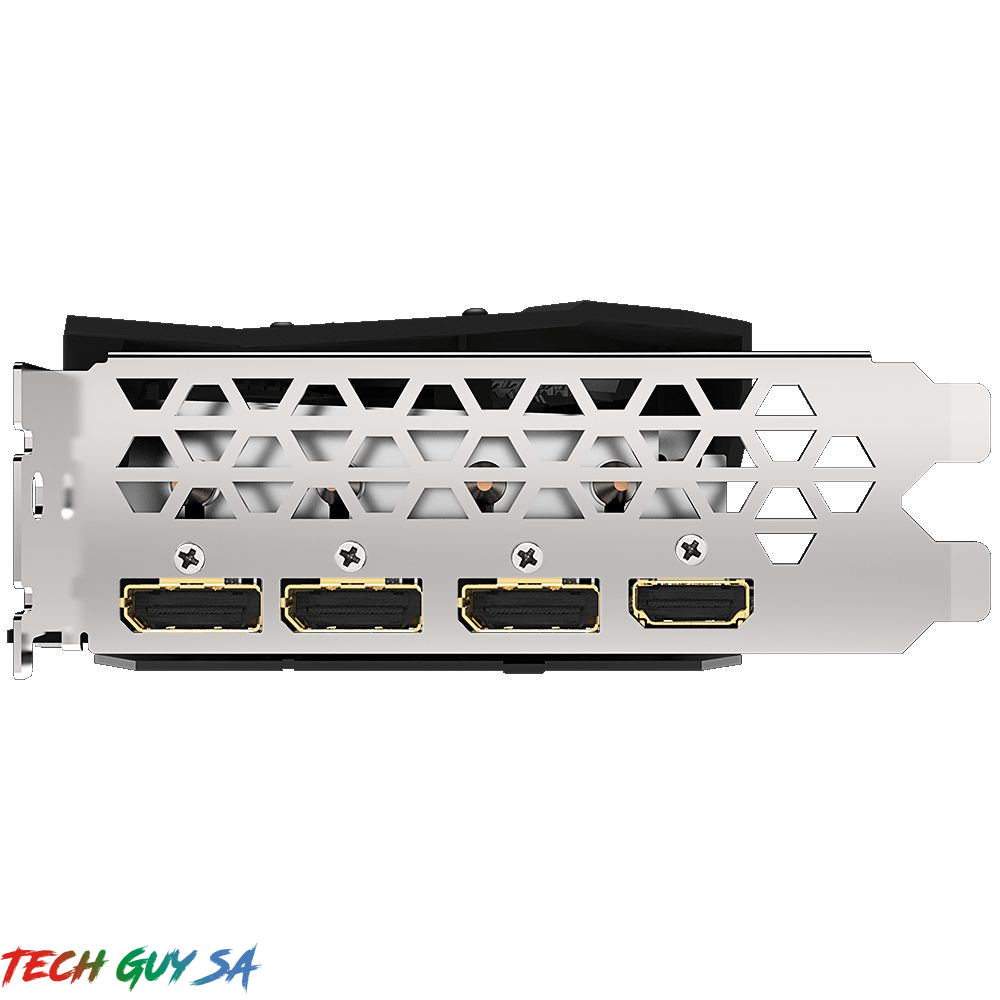

| Output | DisplayPort 1.4 *3 |
| HDMI 2.0b *1 | |
| Accessories | Quick Guide |
