|Graphics Engine||AXRX 6600 8GBD6-3DH|
|Video Memory||8GB GDDR6|
|Stream Processor||1792 Units|
|Engine Clock(OC)||up to 2044MHz(Game)
up to 2491MHz(Boost)
|Memory Clock||14.0 Gbps|
|Bus Standard||PCIE 4.0|

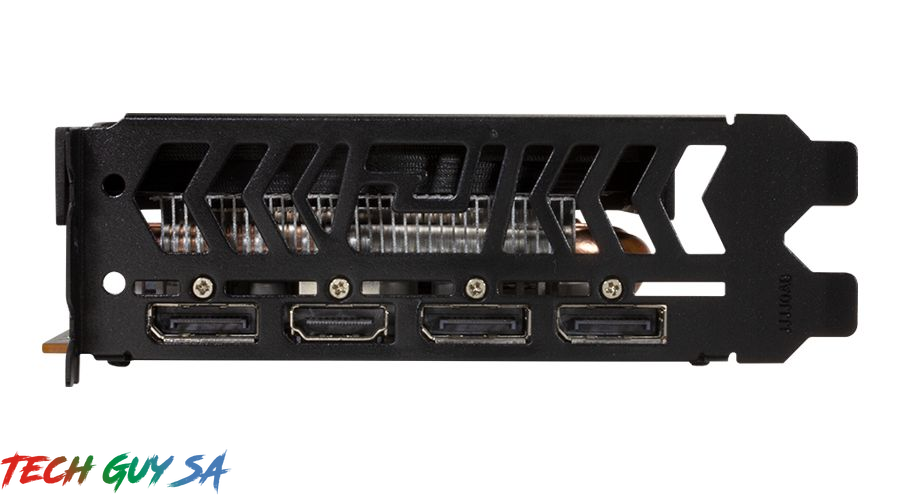

|Standard Display Connectors||1 x HDMI 2.1 , 3 x DisplayPort 1.4|
|Product Remark||‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
‘Boost Clock’ is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
|CrossFireX™ Technology||support (DirectX® 12/Vulkan™)|
|AMD Stream Technology||Support|
|AMD Eyefinity Technology||Support|
Power Specs + Board Dimensions
|Minimum System Power requirement (W)||500W|
|Extension Power Connector||One 8-Pin PCI Express Power Connector|
The entire information provided herein are for reference only.
PowerColor reserves the right to modify or revise the content at anytime without prior notice.
