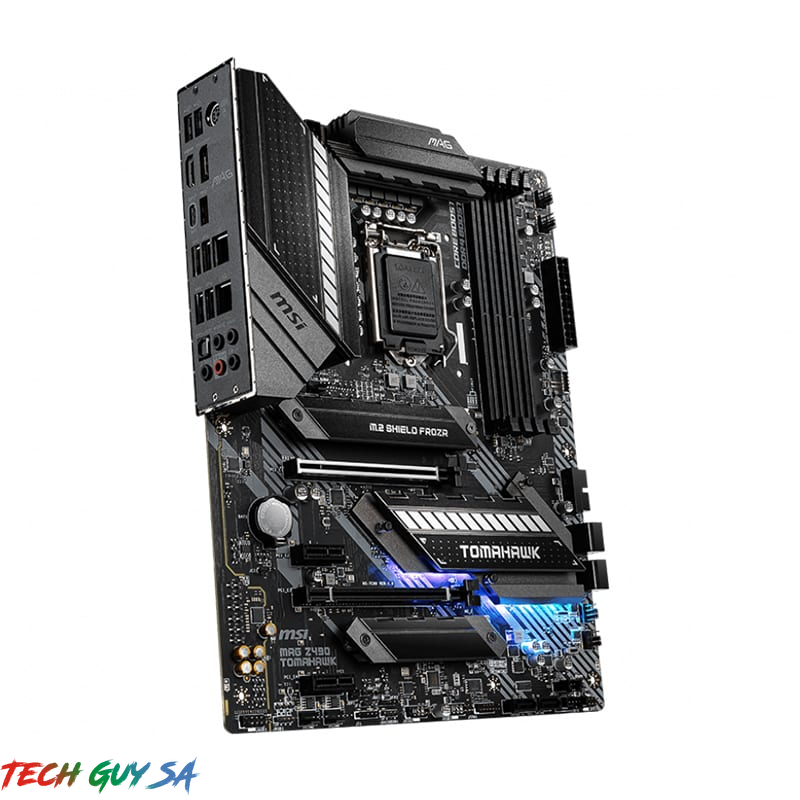

The MSI MAG Z490 Tomahawk Intel 1200 ATX Motherboard was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
FEATURES:
- Supports 10th Gen IntelĀ® Coreā¢ / PentiumĀ® CeleronĀ® processors for LGA 1200Ā socket
- Supports DDR4 Memory, up to 4800(OC) MHz
- Ready 4 the Future: Support Lightning Gen 4 Solution for the future
- Premium Thermal Solution: Extended Heatsink DesignĀ andĀ M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN: UpgradedĀ network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Turbo M.2:Ā Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
- Audio Boost: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfireā¢
SPECIFICATIONS:
- Socket: 1200
- CPU (Max Support): i9
- Chipset: IntelĀ® Z490 Chipset
- DDR4 Memory: 4800(OC)/4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933/ 2666/ 2400/ 2133 MHz
- Memory Channel: Dual
- DIMM Slots: 4
- Max Memory (GB): 128
- PCI-E x16: 2
- PCI-E Gen: Gen3
- PCI-E x1: 3
- SATAIII: 6
- M.2 Slot: 2
- RAID: 0/1/5/10
- LAN: 1x RealtekĀ® RTL8125B 2.5G LAN + 1x Intel I219V 1G LAN
- USB 3.2 ports (Front): 1(Gen 1, Type C), 2(Gen 1, Type A)

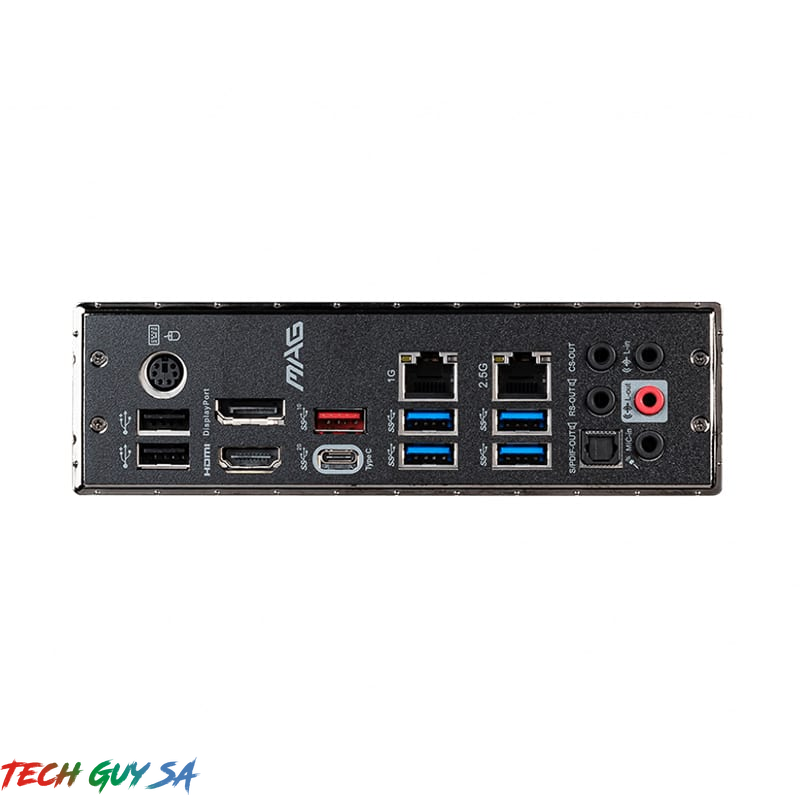

- USB 3.2 ports (Rear): 1(Gen 2×2, Type C), 1(Gen 2, Type A), 4(Gen 1, Type A)
- USB 2.0 ports (Front): 4
- USB 2.0 ports (Rear): 2
- Audio ports (Rear): REALTEK/ALC1200-VD1
- DisplayPort: 1
- HDMI: 1
- DirectX: 12
- Form Factor: ATX
- CrossFire: Yes
- Operating System: Support for WindowsĀ® 10 64-bit
WHAT’S IN THE BOX:
- MSI MAG Z490 Tomahawk Intel 1200 ATX Motherboard – Black x1
- SATA cables x2
- Driver DVD x1
- User Manual x1
- Quick Install Guide x1
